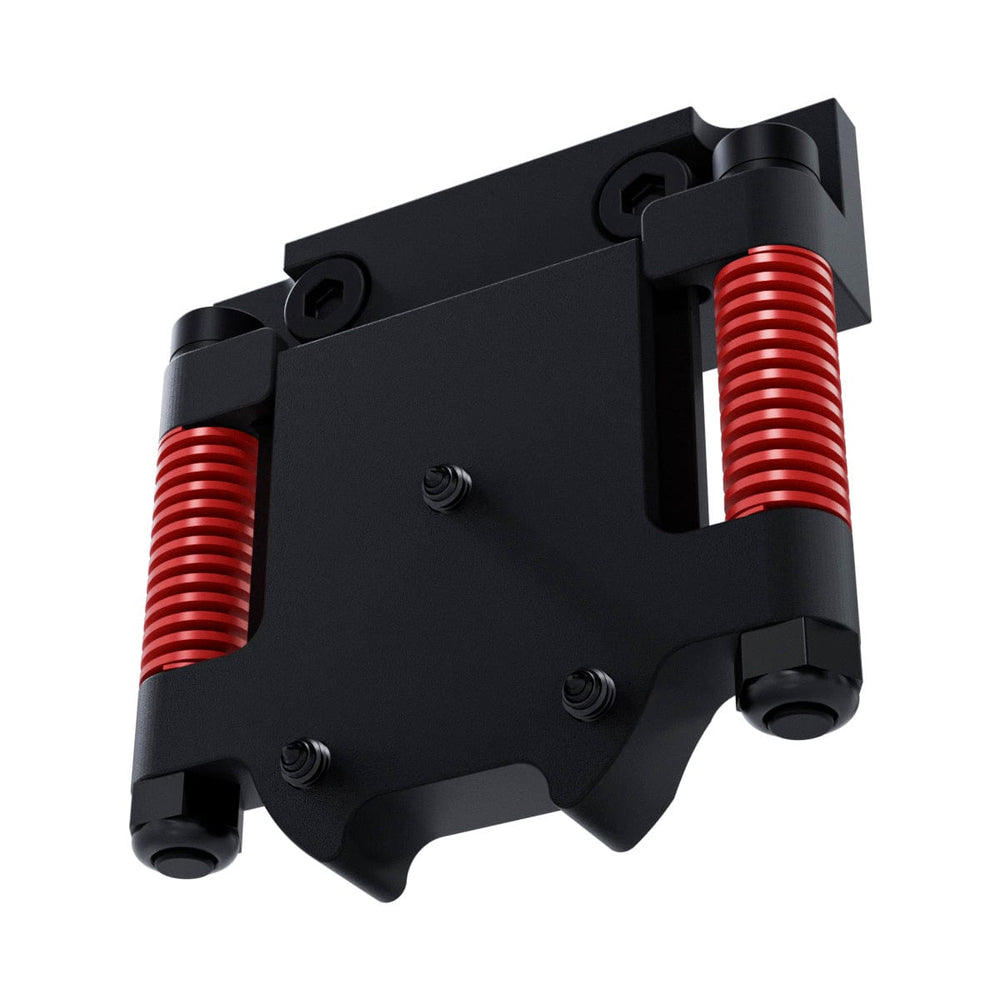

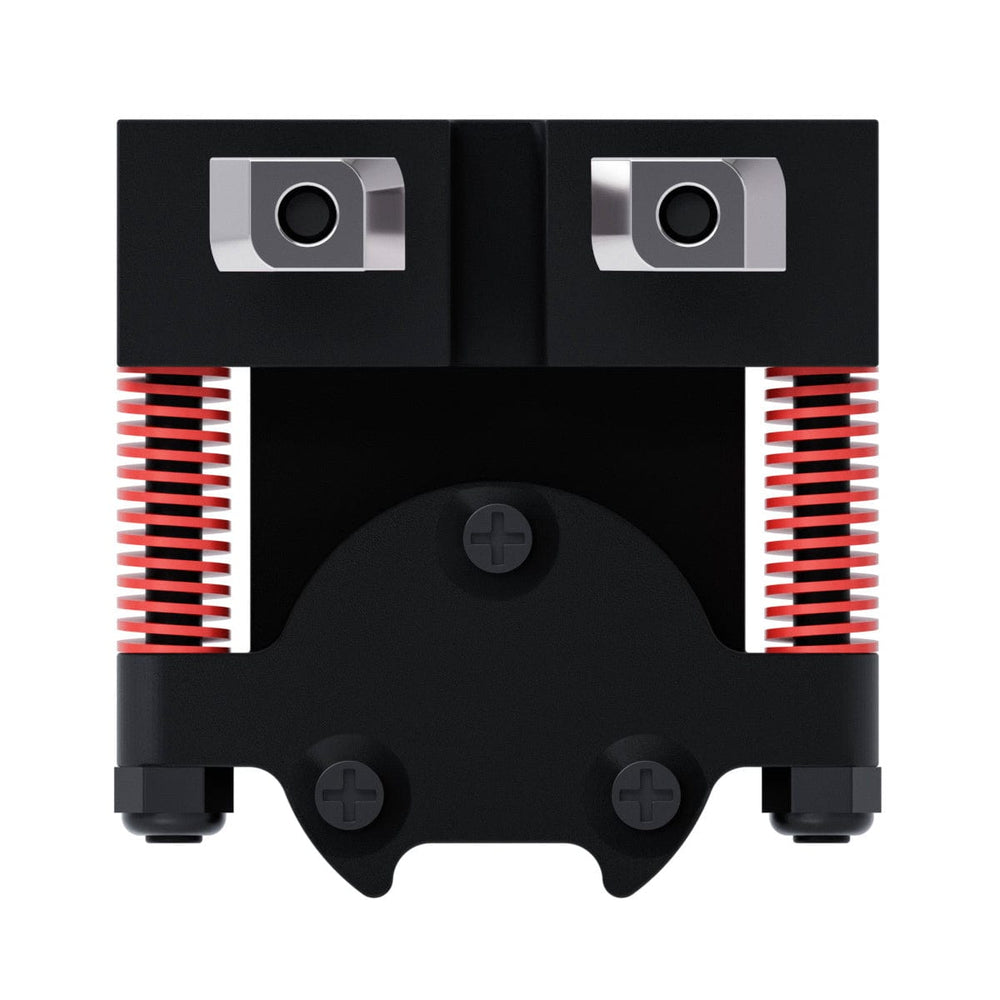

All-metal Compact UGV Suspension for DDSM210 and DDSM400 Hub Motors (B)

This UGV suspension is built with high-strength 6061 aluminium alloy and a durable 65Mn spring, this suspension provides a strong 3kg load capacity per wheel, making it perfect for supporting a 12kg load on a 4-wheel chassis. Its compact design saves chassis space, reducing the overall difficulties of the vehicle design and assembly.

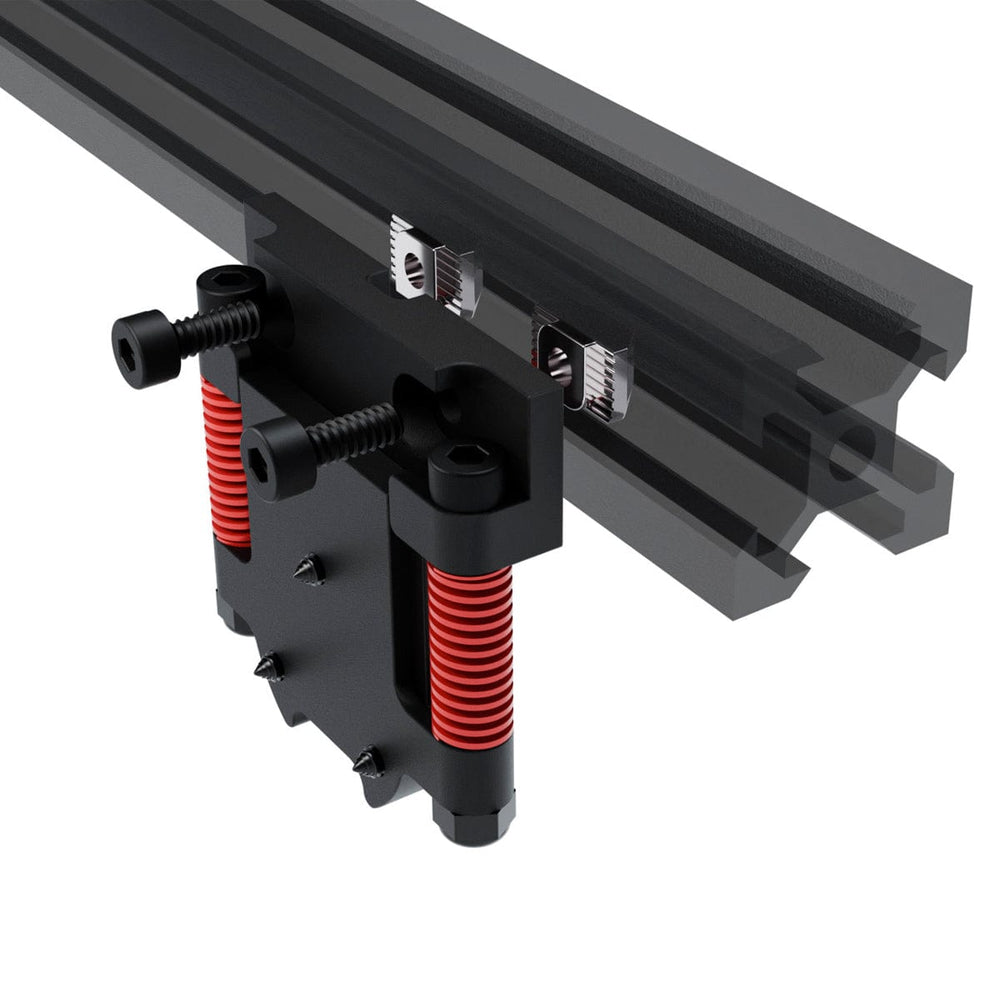

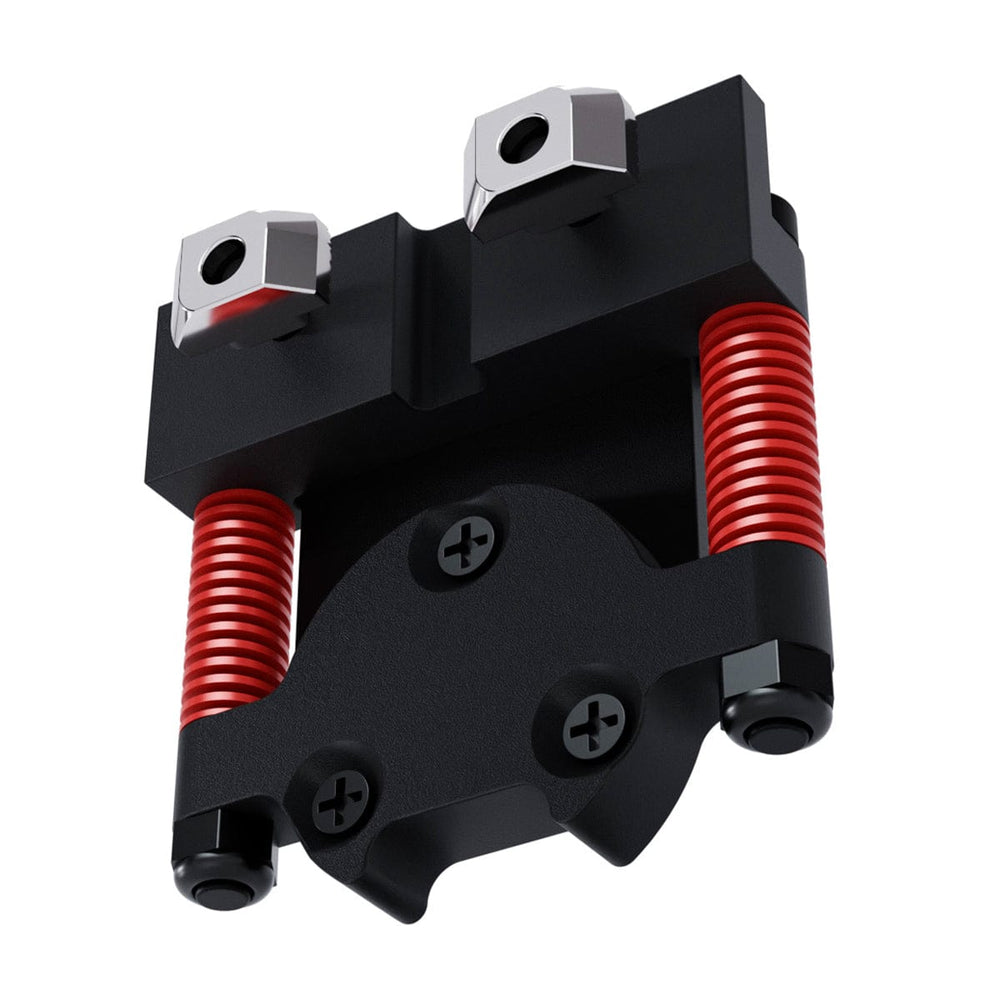

This suspension is specifically designed for DDSM210 and DDSM400 hub motors and is easy to install. It features 20 series European standard T-nuts for easy combination with aluminium profiles. For more advanced users, you can customise the installation by cutting holes in the chassis body and aligning it with the built-in suspension slot to simplify motor wiring and improve the overall functionality.

An open-source model of a fully enclosed chassis is also available for those seeking a more enclosed design. The suspension’s design improves space and strength and provides a tidy wiring setup, making it a great choice for both beginner and advanced UGV and AGV developers.

Resources

• Product Wiki
• Assembly Video
• Schematic
• Profile Chassis STEP Model
• UGV DDSM STEP Model

Package Contents

• 1x All-metal Compact UGV Suspension
