Bipolar Stepper Motor with Planet Gear Box (18kg.cm)

Price:
Sale price £35.10
incl. VAT
excl. VAT
Stock:
Only 1 unit left
Quantity:

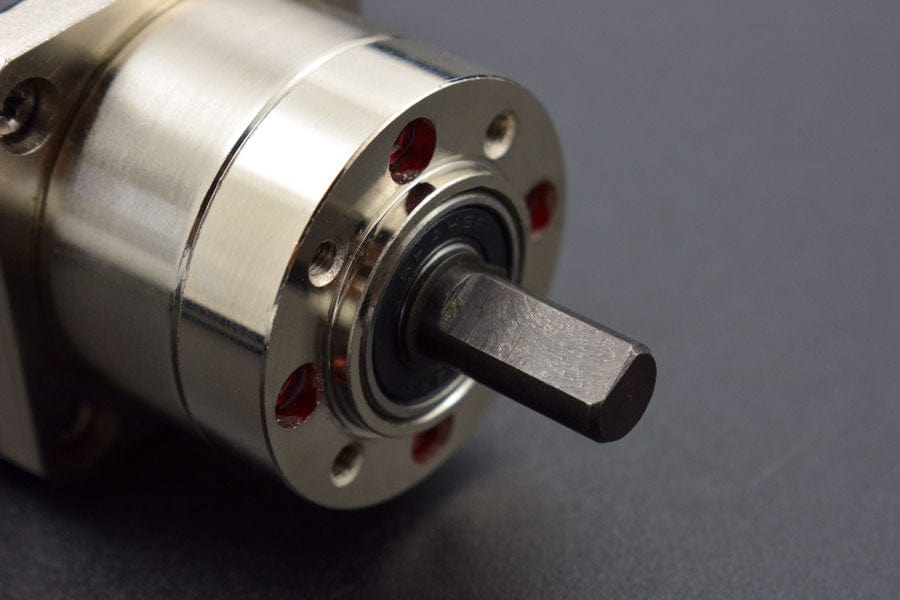

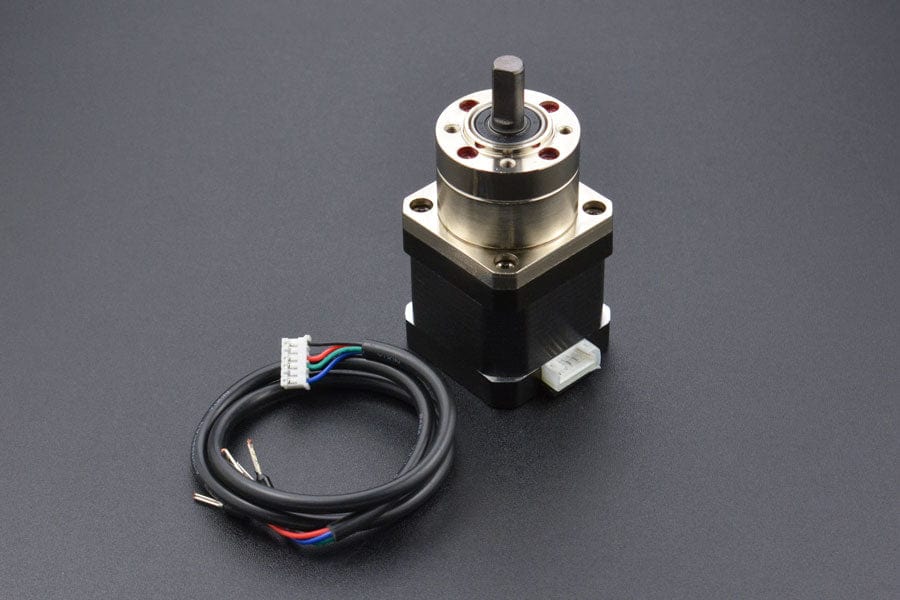

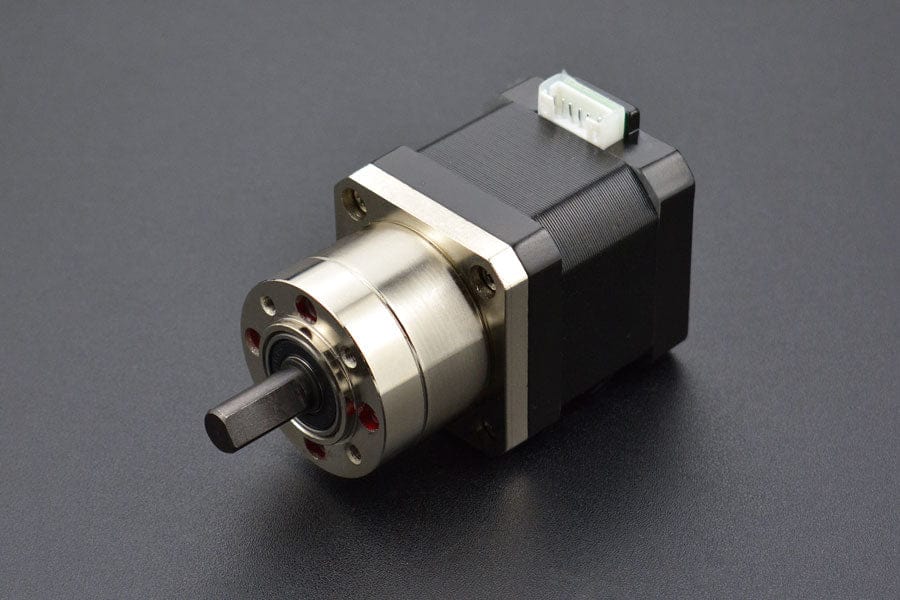

This bipolar stepper motor with planet gear box (gear ratio: 5.18) uses a standard 8mm-diameter D type output shaft, and has a 1.8° step angle (200 steps/revolution). Each phase draws 1.0 A at 3.4 V, allowing for a holding torque of 18kg-cm (176N-cm) (200rpm). The motor has a body dimension of 42mm square and 40mm in length, while the planet gear box is 36mm in diameter and 27mm in length. The motor has four color-coded wires terminated with bare leads: black and green connect to one coil; red and blue connect to the other. It can be easily mounted with 4 M3 threaded holes and can be controlled with the Dual Bipolar Stepper Motor Shield for Arduino (DRV8825).
Notice: please carefully confirm techical details (torque, dimension, mounting, etc) for your project(s) before purchasing.

Hardwares you needed:

TB6600 Stepper Motor Driver

Bipolar Stepper Motor Project 1: How to Make A Terrifying Halloween Gadget


This is a simple but fun application for Halloween. All you need is a mask, a stepper motor, a micro-controller, a motor driver, a MP3 module and some wires as well as batteries.

Hardware components:

DFRduino UNO R3 - Arduino Compatible

TMC260 Stepper Motor Driver Shield For Arduino

Bipolar Stepper Motor with Planet Gear Box (18kg.cm)

DFPlayer - A Mini MP3 Player For Arduino

Gravity: Digital PIR (Motion) Sensor For Arduino

Applications

  • Printer
  • 3D Printer
  • CNC
  • Robotics
  • Linear Actuators

Specification

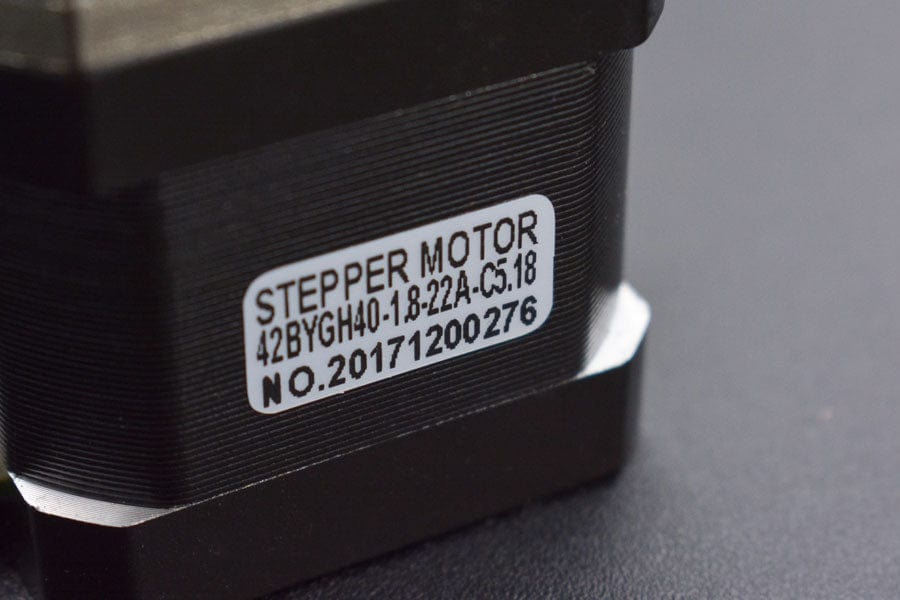

  • Model No: 42BYGH40-18-22A-C5.18
  • Step Angle (degrees) :1.8
  • 2 Phase
  • Voltage: 3.4V
  • Current: 1.0A
  • Resistance: 1.7±10% Ohm/Phase
  • Inductance: 4.3±20% mH/Phase
  • Holding Torque: 3600 g.cm
  • Detent Torque: 400 g.cm
  • Insulation Class: B
  • Life: 6000 hours
  • Gear Ratio: 5.18:1
  • Hold Torque with Gearbox: 18kg·cm (176N·cm) (200rpm)
  • Dimension: 42×42×40mm(1.65x1.65x1.57")
  • Mounting: 4 x M3
