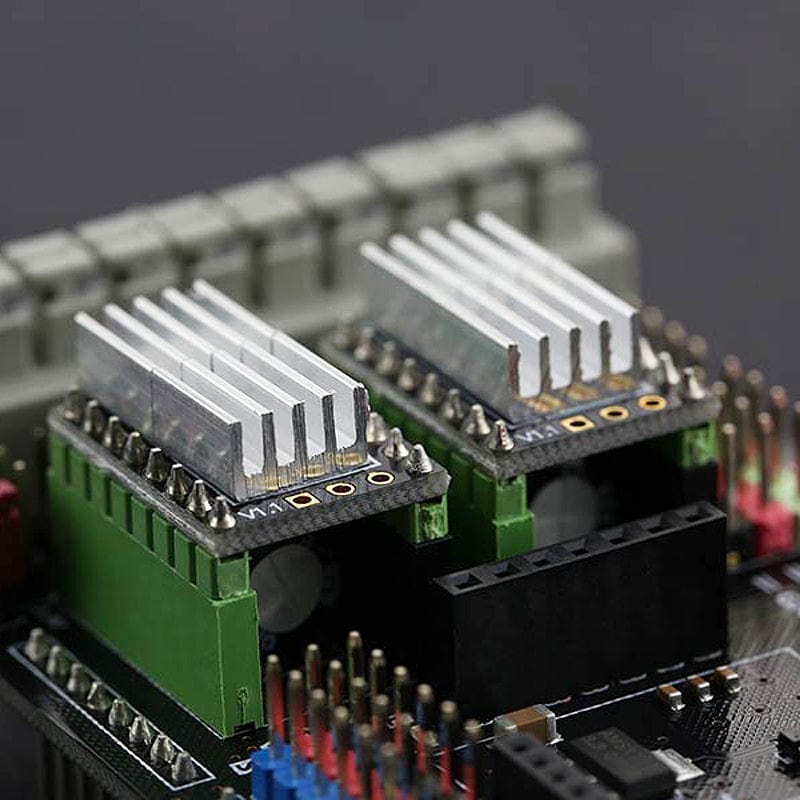

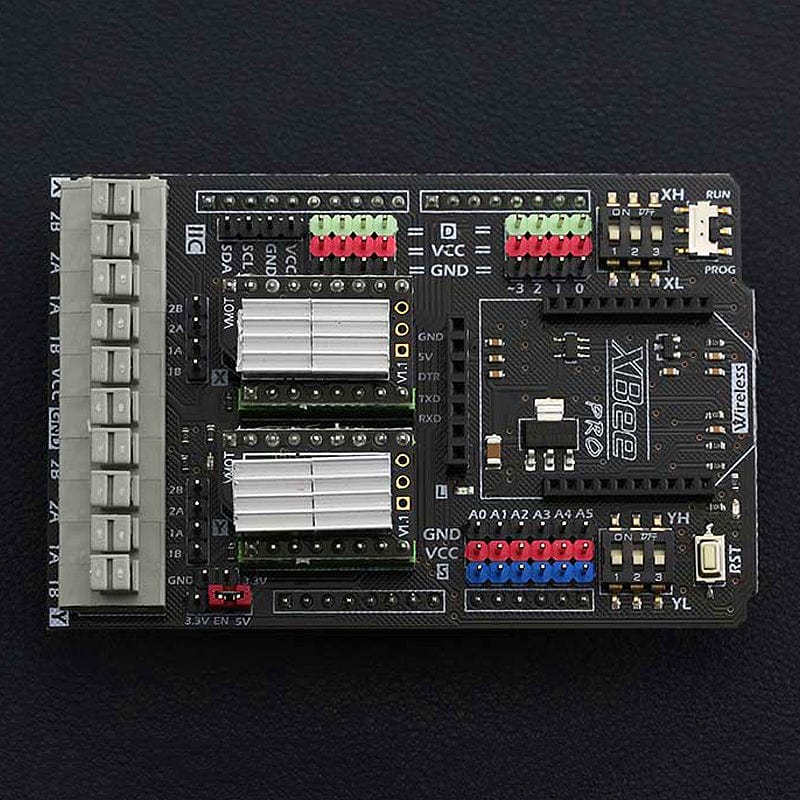

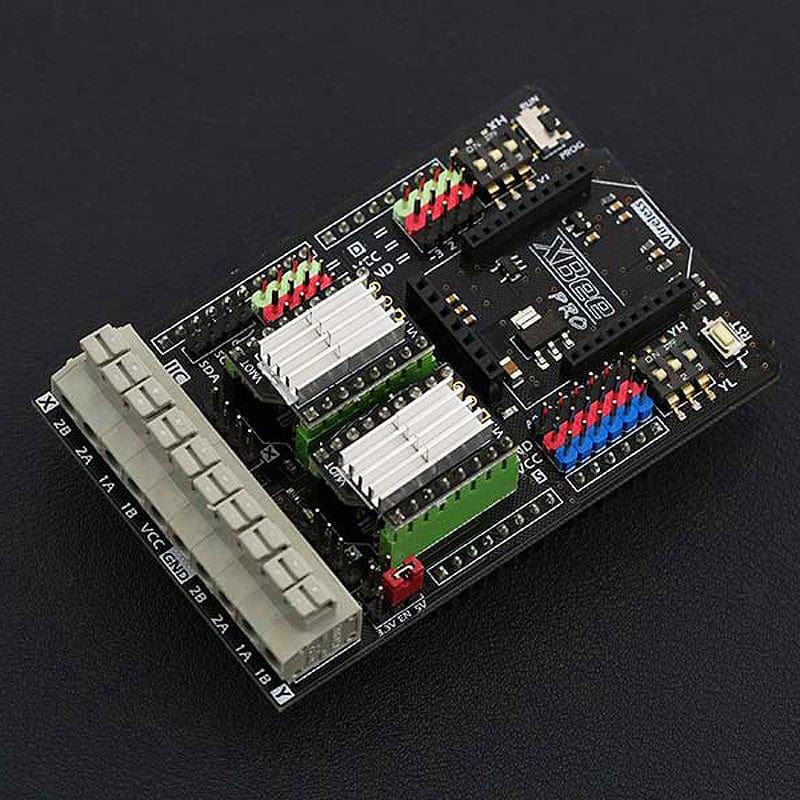

Dual Bipolar Stepper Motor Shield for Arduino (DRV8825)

Deliveryfrom just £2.50

20,000+customer reviews

No Quibblereturns policy

Securepayment system

Next Day DeliveryOrder by 2PM*

Only 1 left!
£21.00

We will notify you when this product becomes available.



Share this Product


INTRODUCTION

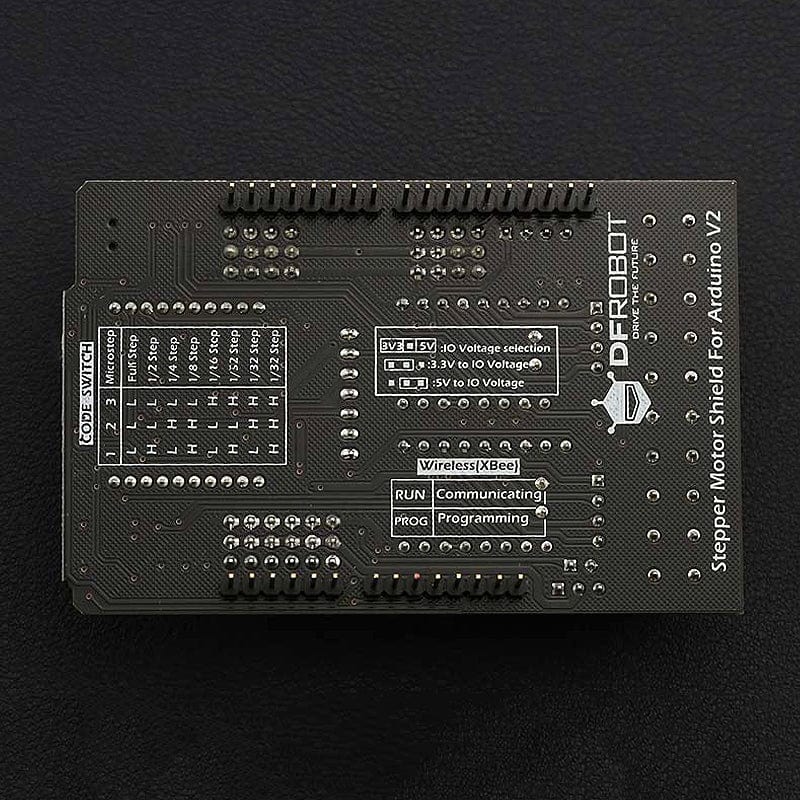

Do you want to do some projects with stepper motors such as a drafting instrument, a 3D printer, an auto curtain......? As we all know, regular stepper motors are hard to drive, but with this stepper motor shield, you can easily drive 2 stepper motors via just 6 digital I/O pins. This board is compatible with the Arduino UNO R3. This shield directly supports Xbee and Xbee form factor Wi-Fi, Bluetooth and RF modules and is easy to connect cables via screwless PC terminals. Each stepper motor has a code switch for adjusting driving modes to obtain different rotational speeds. Interfaces of the board include extension 6 channel Analog I/O, 8 channel Digital I/O & I2C.

Version Upgrade:
1.V2 replaces DRV8825 as stepper motor driver, higher micro stepping (1/32)
2.Increase 3.3/5V input signal switch, compatible with 3.3V microcontroller
3.Expand the driver Enable pins, support sleep mode

SPECIFICATION

  • Input Voltage: 8.2-45 VDC
  • Output current: 2.5 A (MAX)
  • Working voltage: 3.3/5 V
  • Driving pin: D4, D5, D6, D7, D8, D12
  • Microstep resolutions: full, 1/2, 1/4, 1, 8, 1/16, 1/32
  • Support Dual Bipolar Stepper Motor
  • Support XBee interface
  • Compatible with the Arduino UNO R3, Leonardo, Mega microcontroller
  • Dimension: 83 * 55 * 25 mm/3.26 * 2.16 * 0.98 inches
  • Weight: 48 g
