ATOMS3R Camera Kit (8MB PSRAM)
Price:
Sale price
£18.30
Stock:
Quantity:
Awesome Extras

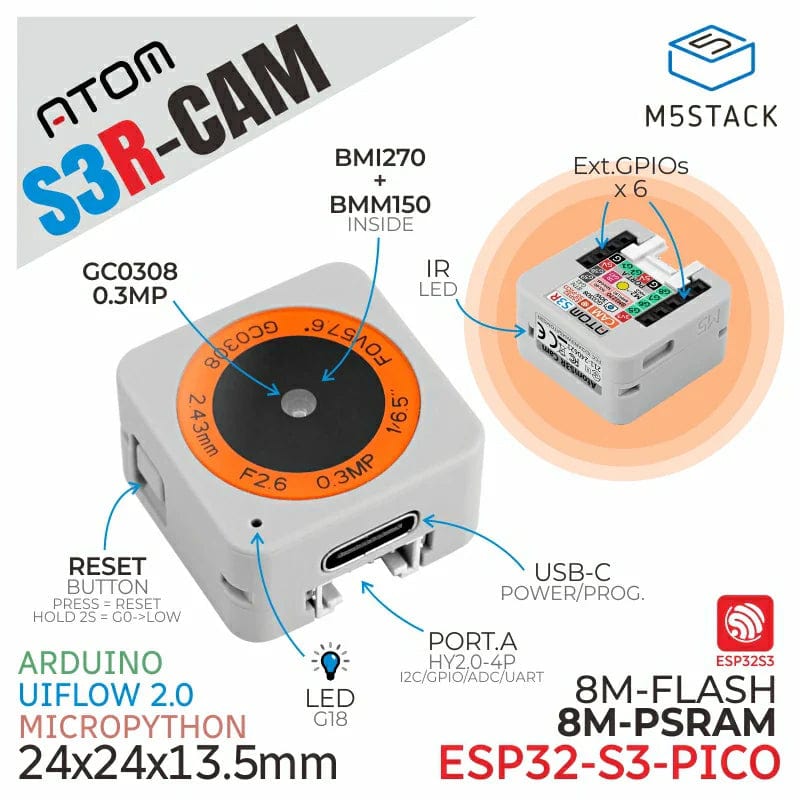

The AtomS3R Cam is a compact programmable controller with an integrated camera, made for a range of embedded projects. Powered by the ESP32-S3-PICO-1-N8R8 main controller, it has built-in WiFi, 8MB of onboard FLASH, and 8MB of PSRAM. Its power management circuit converts 5V to 3.3V, and it also includes a three-axis BMM150 geomagnetic sensor and a six-axis BMI270 altitude sensor for improved motion and orientation detection.

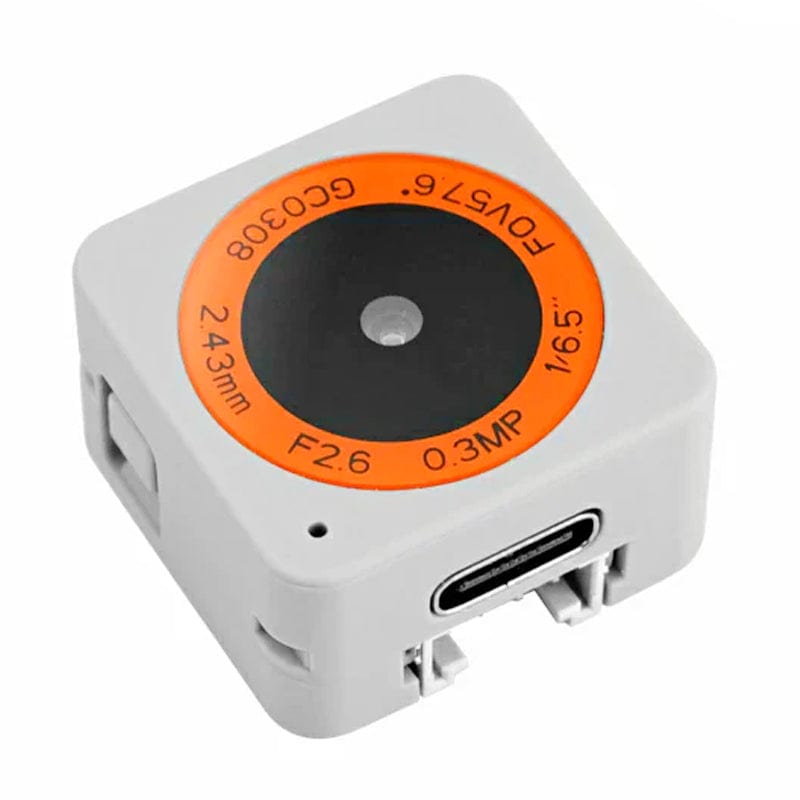

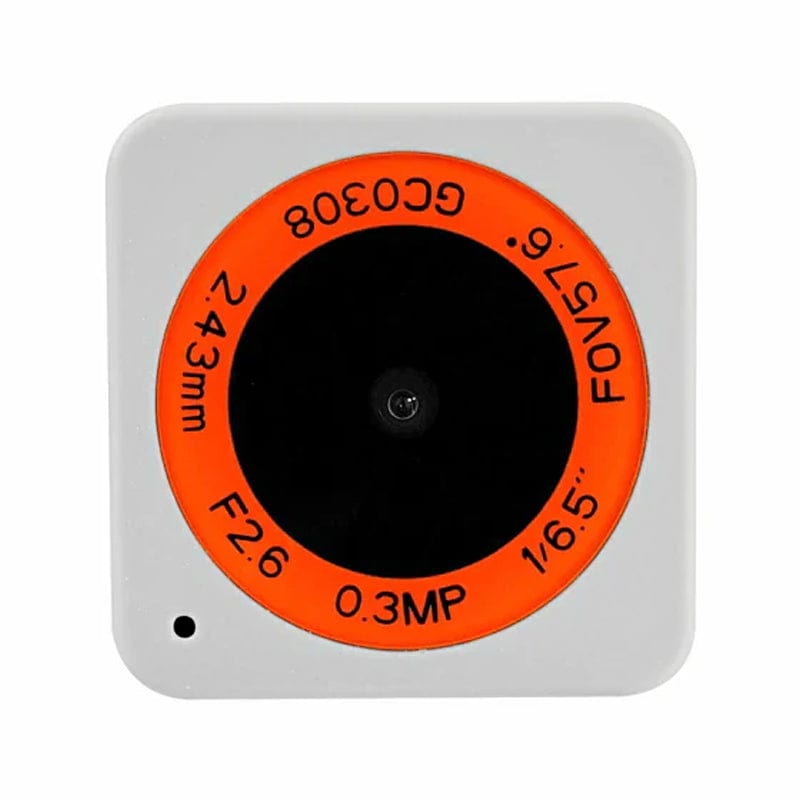

It has a 0.3MP GC0308 camera that supports image capture and infrared transmission control. The camera is protected by a glass cover to keep dust out and maintain image quality. With an improved 3D antenna compared to previous models, this controller provides better performance and stability.

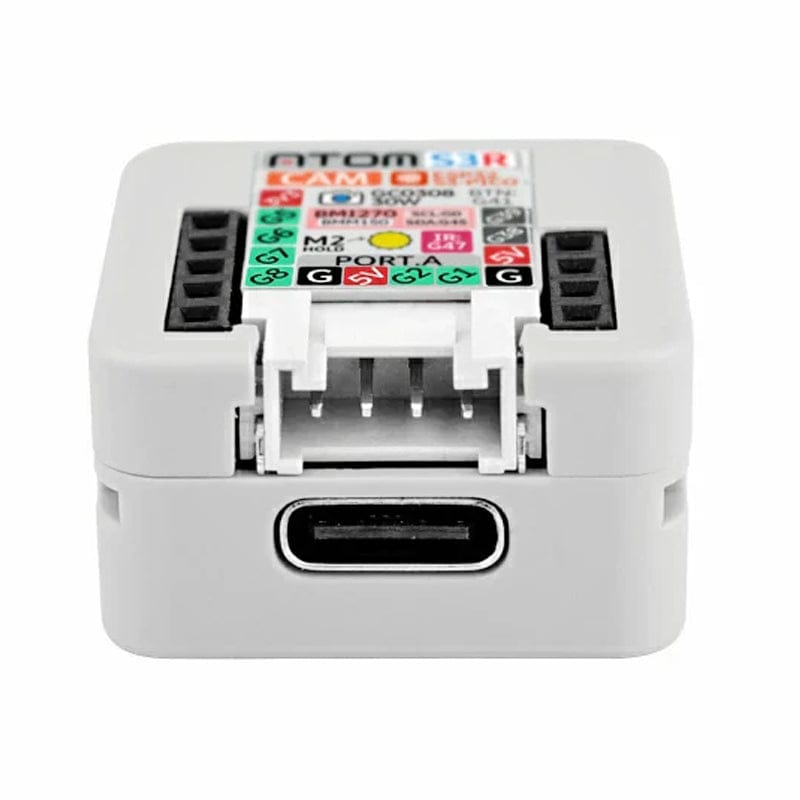

Pre-installed with UVC (USB Video Class) firmware, the AtomS3R works as a plug-and-play USB camera, meaning no additional drivers are required. You can easily connect and use the camera via the USB interface. The device also includes a Type-C port for power and firmware downloads, along with an HY2.0-4P expansion port. For added flexibility, six GPIO and power pins are available at the bottom for easy expansion.
Measuring just 24 x 24 x 13.5mm, the AtomS3R is ideal for projects like IoT device monitoring, as well as for educational development tools. Its small size and powerful features make it a great fit for a variety of projects.
If you're looking for a higher-megapixel camera with a better resolution and a wider field of view, Click here to see it in our store
Features
- Integrated ESP32-S3-PICO-1-N8R8 main controller
- 300,000-pixel GC0308 camera
- Nine-axis sensor system (six-axis BMI270 + three-axis BMM150 geomagnetic sensor)
- 8MB Flash and 8MB PSRAM
- Supports infrared control
- Expandable pins and interfaces
- Development platforms: Arduino, UIFlow, Micropython
Specifications
| SoC | ESP32-S3-PICO-1-N8R8 @Dual-core Xtensa LX7 processor, up to 240MHz |
| PSRAM | 8MB PSRAM |
| FLASH | 8MB FLASH |
| Six-axis Sensor (BMI270) | Accuracy: 0.05% (acceleration), 0.05°/s (angular velocity) |
| I2C address: 0x68 | |
| Three-axis Geomagnetic Sensor (BMM150) | Accuracy: 0.3 μT |
| Mounted on BMI270, magnetometer data accessed via BMI270 | |
| Camera | GC0308 @0.3 MP(megapixels) |
| Max frame rate: 30 fps | |
| Camera Panel Material | Glass |
| IR | Infrared transmission range: 12.46m @ ∠180°, 1.45m @ ∠90°, 3.88m @ ∠45° |
| Sleep Current | GPIO-5V power: DC5V @ 11.63 μA |
| Grove-5V power: DC5V @ 10.75 μA | |
| USB-5V power: DC5V @ 92.50 μA | |
| Operating Current | IMU operating current: DC5V @ 99.25 mA |
| IR operating current: DC5V @ 100.40 mA | |
| RGB operating current: DC5V @ 106.39 mA | |
| Camera: DC5V @ 21.02 mA | |

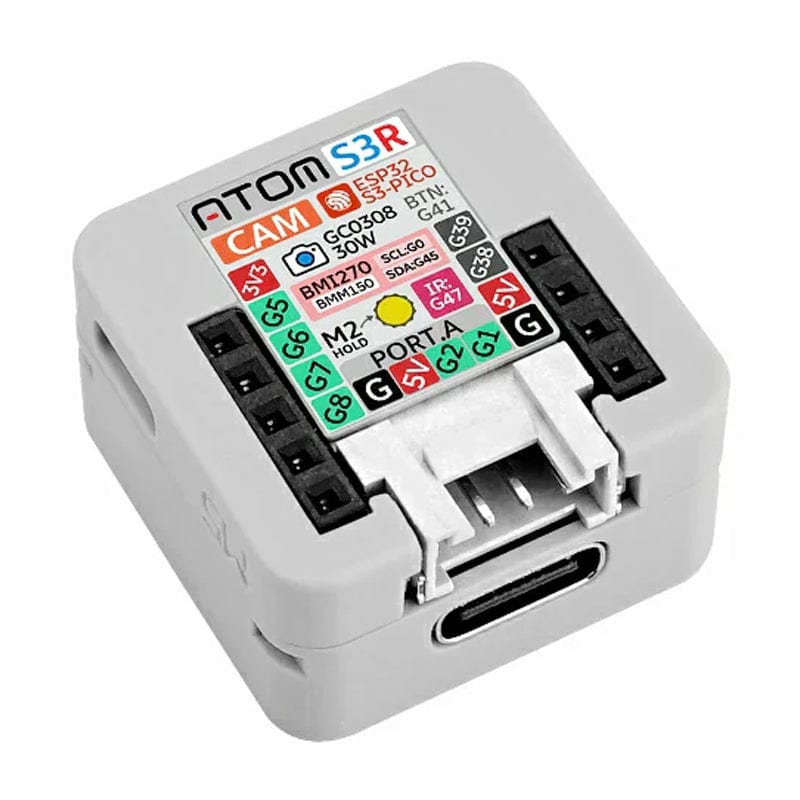

| Bottom Reserved GPIO Pins | G5/G6/G7/G8/G38/G39 |
| Operating Temperature | 0°C ~ 40°C |
| Product Dimensions | 24 x 24 x 13.5mm |
| Packaging Dimensions | 85 x 65.5 x 13.6mm |
| Product Weight | 7.3g |
| Packaging Weight | 13.5g |
Resources
Pinout
Package Contents
- 1x AtomS3R Cam
