ATOMIC Motion Base (STM32F030)

Price:
Sale price £8.10
incl. VAT
excl. VAT
Stock:
Only 3 units left
Quantity:

Awesome Extras

ATOMS3 Dev Kit w/ 0.85-inch Screen - The Pi HutATOMS3 Dev Kit w/ 0.85-inch Screen - The Pi Hut
M5StackATOMS3 Dev Kit with 0.85" Display
Sale price £15.40 incl. VAT excl. VAT
ATOM Matrix ESP32 Development Kit - The Pi HutATOM Matrix ESP32 Development Kit - The Pi Hut
M5StackM5Stack ATOM Matrix ESP32 Development Kit
Sale price £15 incl. VAT excl. VAT
ATOM Lite ESP32 Development Kit - The Pi HutATOM Lite ESP32 Development Kit - The Pi Hut
M5StackM5Stack ATOM Lite ESP32 Development Kit
Sale price £9 incl. VAT excl. VAT

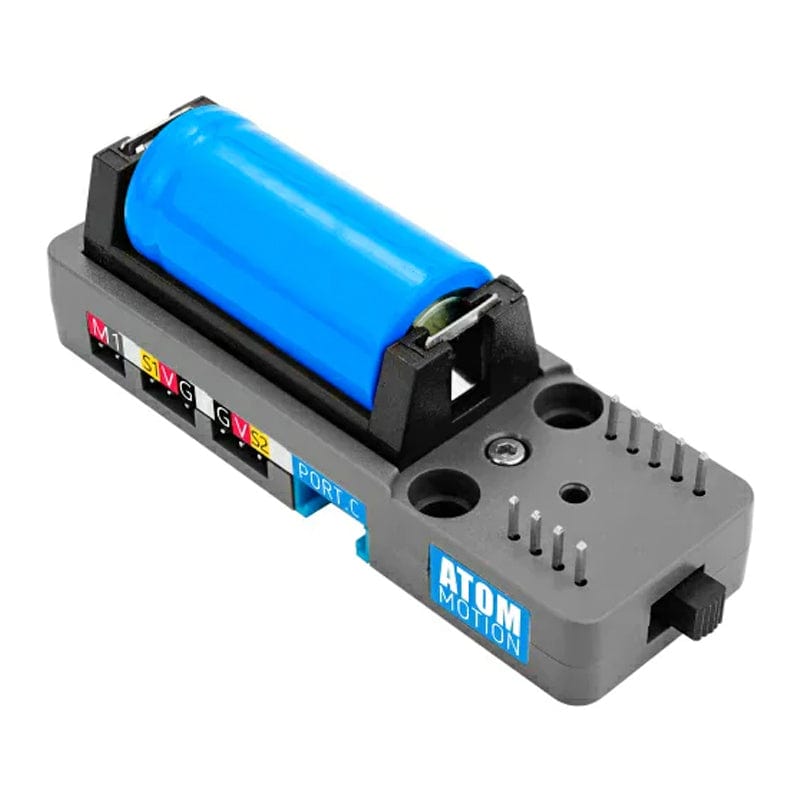

The Atomic Motion Base is designed as a servo and DC motor driver made to work with the ATOM series controllers. It features an integrated STM32 control chip and utilises I2C communication for control. This base supports 4 servo channels and 2 DC motor interfaces, making it ideal for applications requiring the management of multiple servos or motor drivers, such as multi-axis servo robotic arms or small car motor controls.

For power, the base is equipped with an internal 16340 lithium battery that has a 700mAh capacity, allowing it to operate independently of an external power source and it provides portability. Additionally, it includes two HY2.0-4P interface extensions that provide 4-Pin pins, suitable for connecting sensors and other expansion devices.


Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

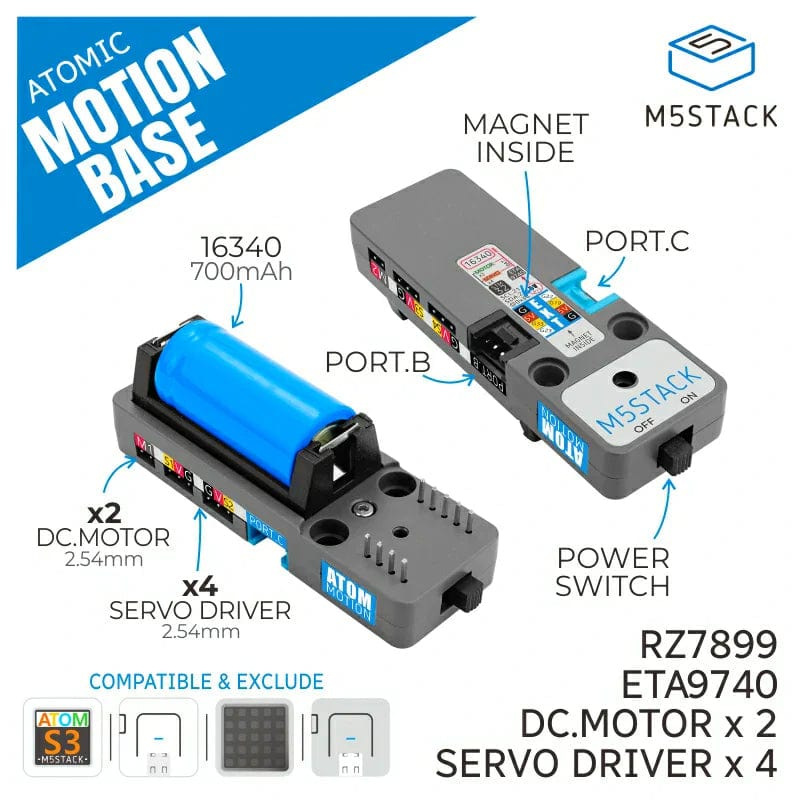

Features

  • Applicable to AtomS3/AtomS3 Lite/Atom Lite/Atom Matrix
  • 4-channel servo control
  • 2-channel DC motor control

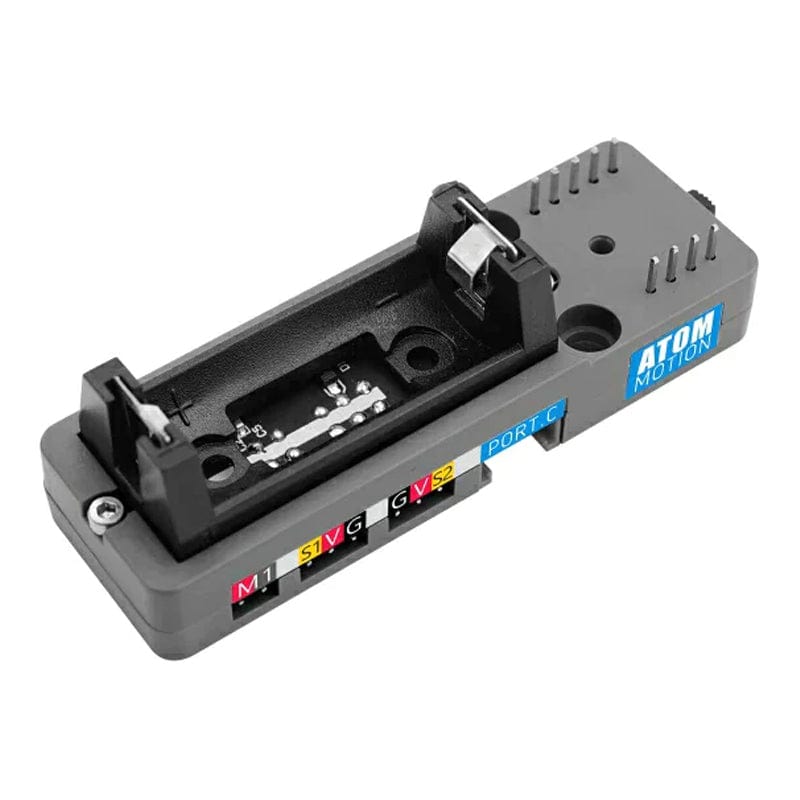

  • Removable lithium battery

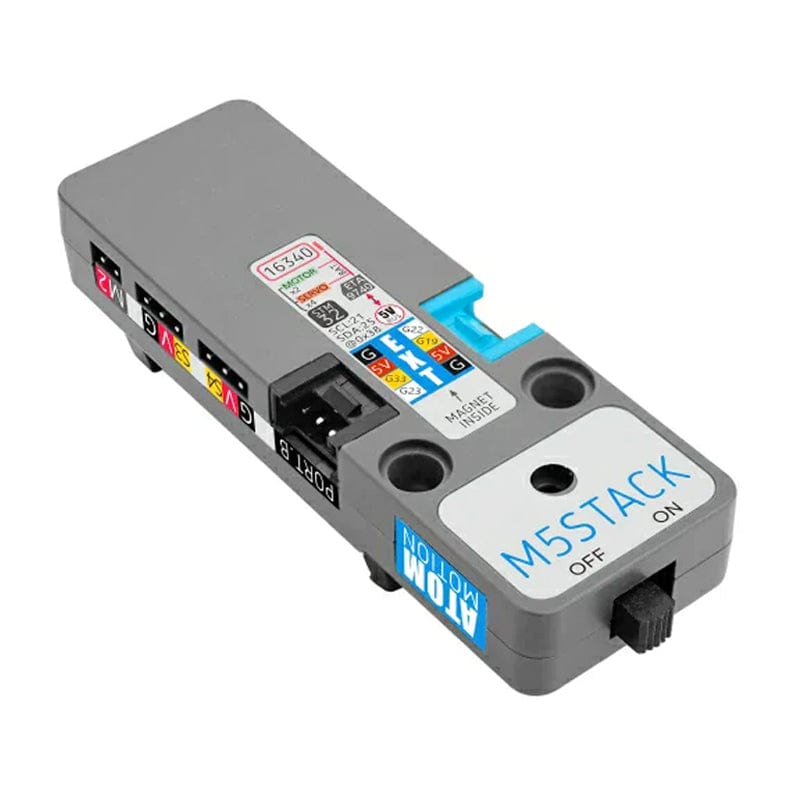

  • Magnetic back design

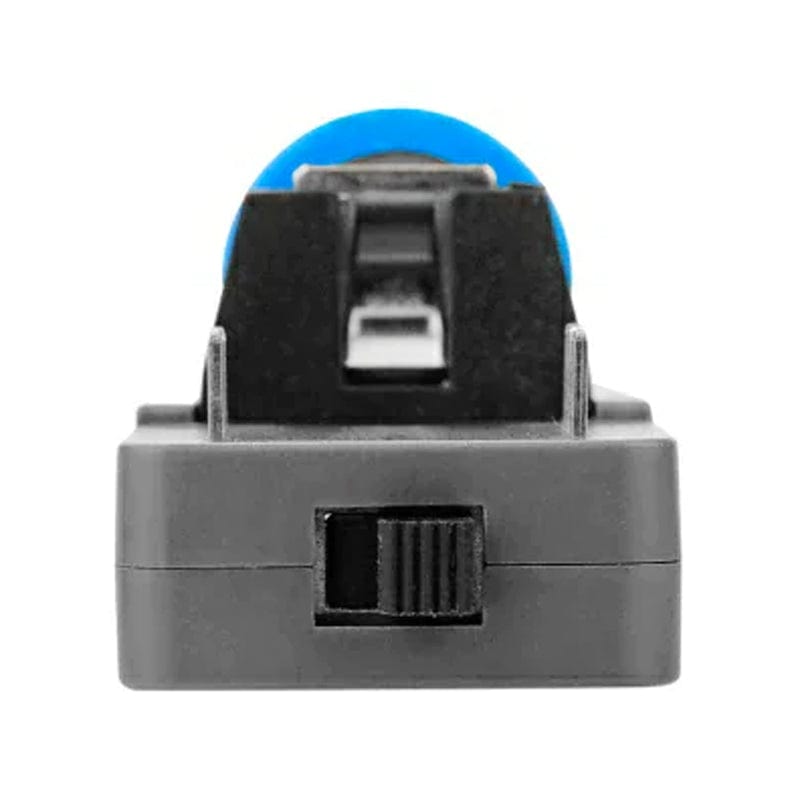

  • Independent power switch

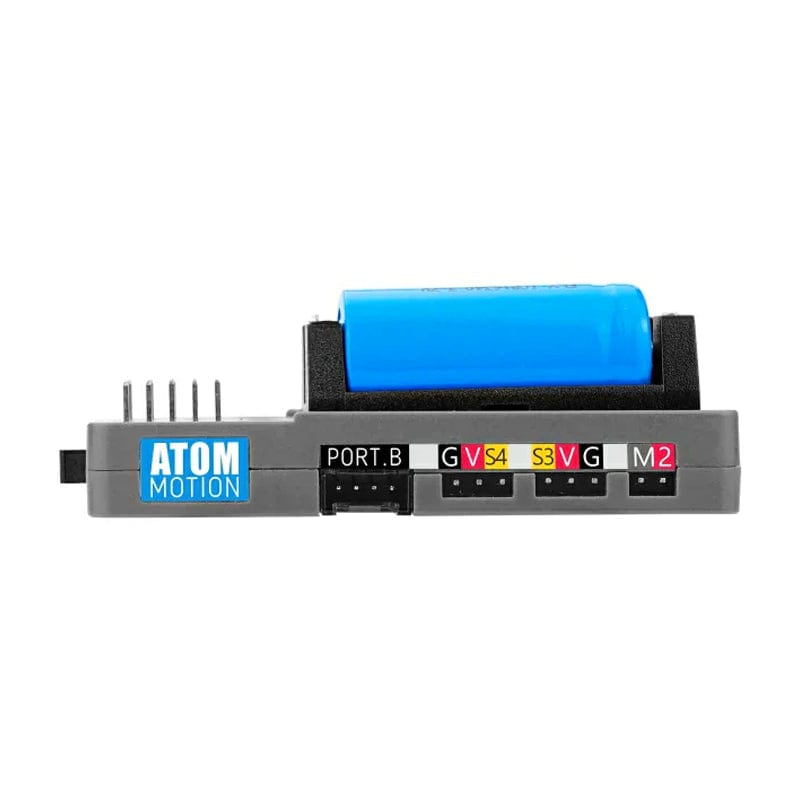

  • 2 way HY2.0-4P expansion interface

Specifications

Removable lithium battery Specification: 16340, capacity 700mAh
Motor interface PIN spacing 2.54mm
Full load steering current 3A
Single-channel motor operating peak current 1A
Single channel servo working peak current 0.4A

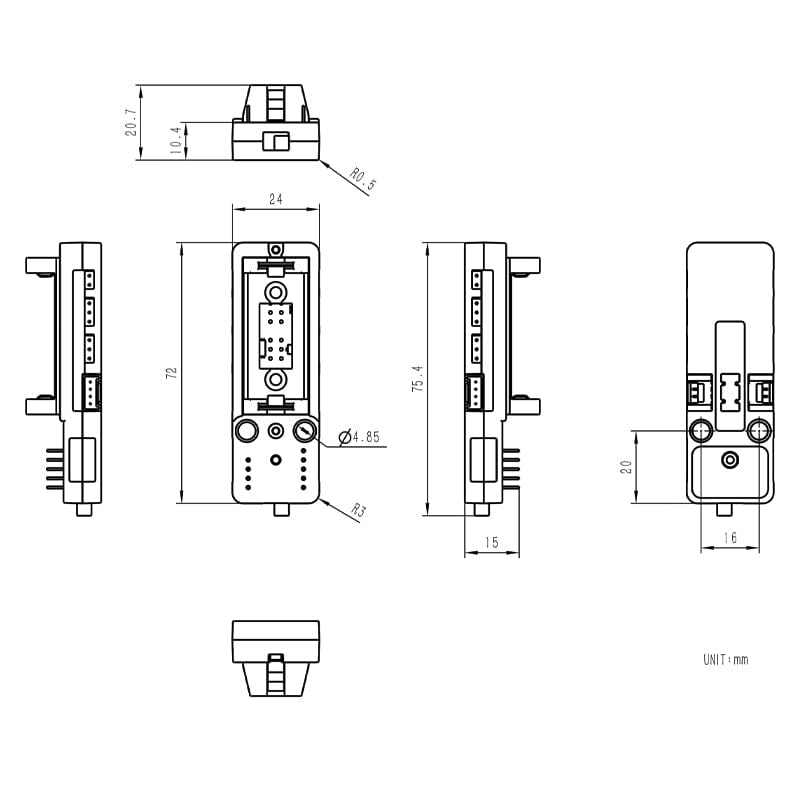

Product Size 74 x 24 x 20.7mm
Package Size 136 x 92 x 13mm
Product Weight 35g
Package Weight 37g

Resources

Package Contents

  • 1x Atomic Motion Base
