ATOMS3 Dev Kit with 0.85" Display

Price:
Sale price £15.40
incl. VAT
excl. VAT
Stock:
Only 16 units left
Quantity:

Awesome Extras

ATOM Lite ESP32 Development Kit - The Pi HutATOM Lite ESP32 Development Kit - The Pi Hut
M5StackM5Stack ATOM Lite ESP32 Development Kit
Sale price £9 incl. VAT excl. VAT
ATOM Matrix ESP32 Development Kit - The Pi HutATOM Matrix ESP32 Development Kit - The Pi Hut
M5StackM5Stack ATOM Matrix ESP32 Development Kit
Sale price £15 incl. VAT excl. VAT
ATOM TailBat - The Pi HutATOM TailBat - The Pi Hut
M5StackM5Stack ATOM TailBat
Sale price £9.50 incl. VAT excl. VAT

The AtomS3 is a highly integrated programmable controller based on the ESP32-S3 main control, which includes the ESP32-S3 main control, integrated WiFi function, and an 8M on-chip FLASH.

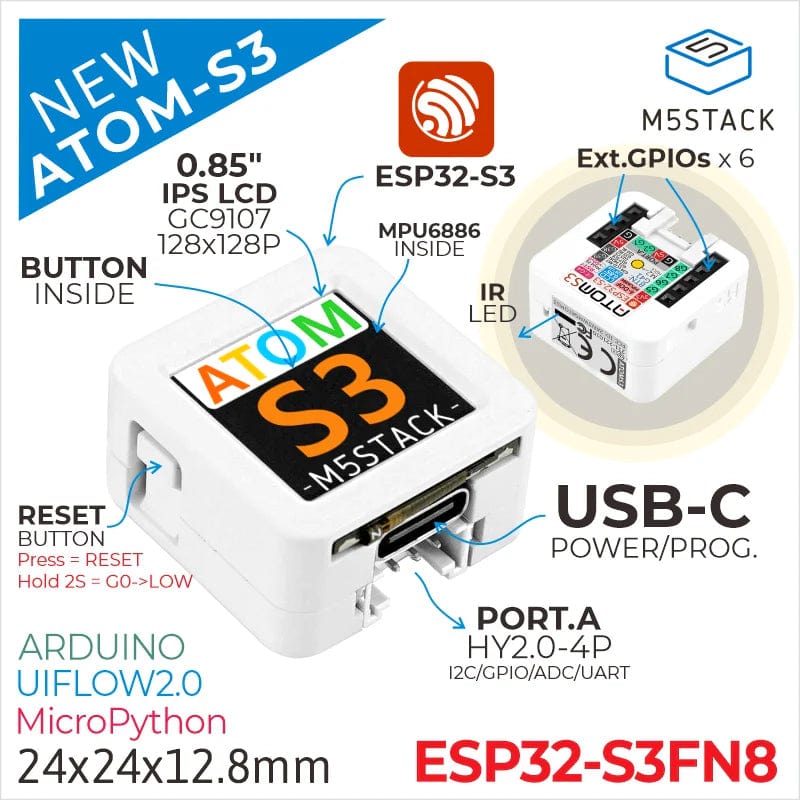

The AtomS3 features a 0.85" IPS display, a programmable button function at the bottom of the screen, a built-in 5V to 3.3V circuit, a 6-axis gyro sensor MPU6886, an on-board Type-C interface, a power supply port, one HY2.0 4-pin expansion port, 6 GPIOs and power pins reserved at the bottom to enable expansion applications.

It measures 24 x 24mm, which is suitable for various embedded smart device applications.

Note: If you need to burn the firmware, please press and hold the reset button (about 2 seconds) until the internal green LED lights up, and then you can release it. At this time the device has entered download mode.

Features

  • Developed based on ESP32-S3FN8
  • Comes with a USB download function
  • Built-in 3-axis gyroscope and 3-axis accelerometer (MPU6886)
  • Programmable keys
  • 0.85 inch LCD screen
  • Infrared emission function
  • Expandable pins and interfaces
  • Development platform: Arduino, UIFlow

Specifications

Resources Parameters
MCU ESP32-S3FN8
DCDC SY8089
IMU MPU6886
LCD N085-1212TBWIG06-C08
Operating temperature 0°C ~ 40°C
Resolution 128(H)RGB x 128(V)
support voltage 5V
Power supply mode TYPE C
output voltage 3.3V
IO interface × 6 G5/G6/G7/G8/G38G39
Screen communication protocol SPI
Product Size 24mm × 24mm × 13mm
Package Size 65mm × 44.5mm × 14mm
Product Weight 6.8g
Package Weight 10.9g

Resources

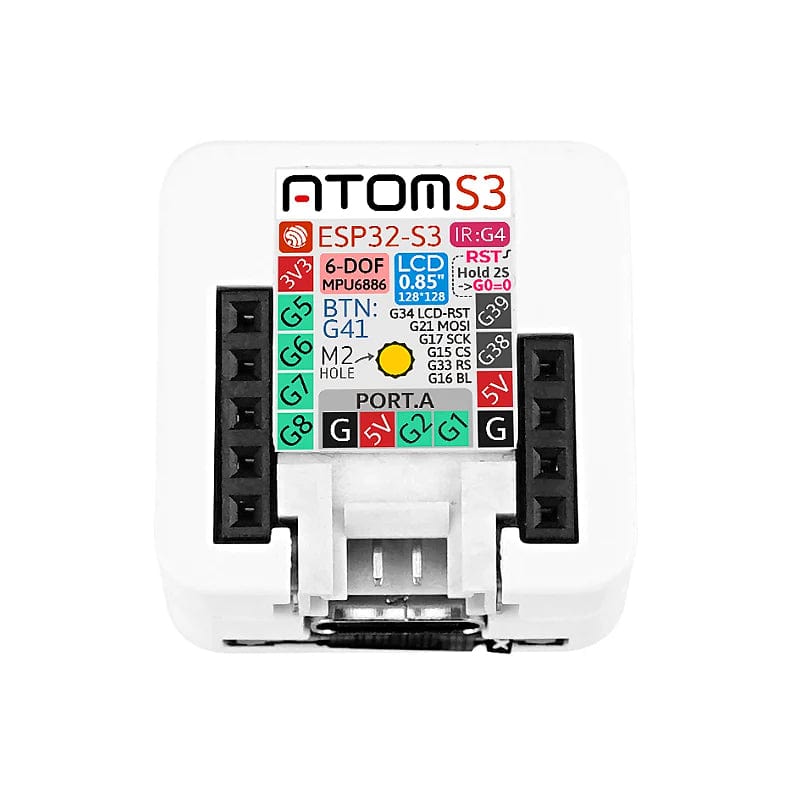

Pinout

Package Contents

  • 1x AtomS3
