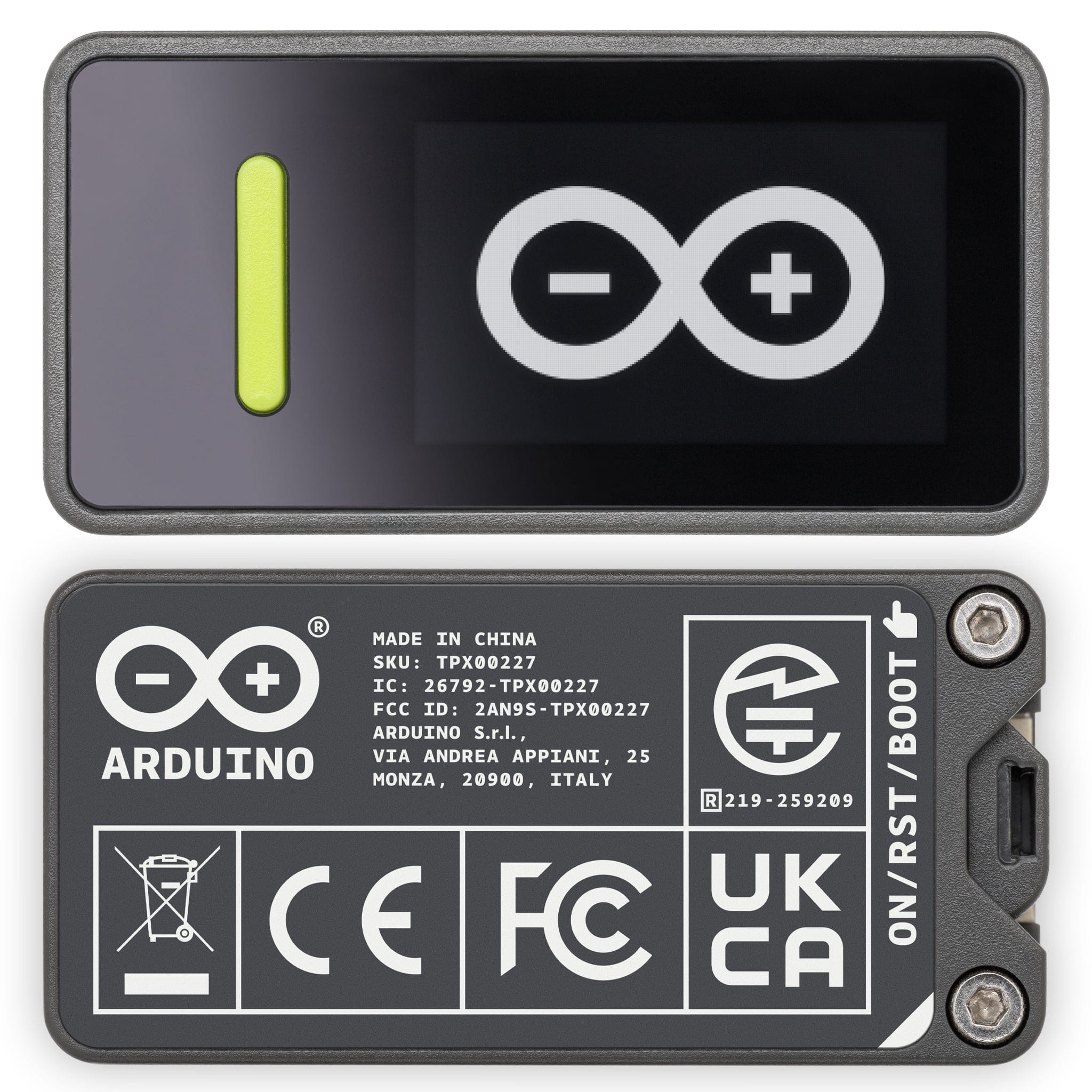

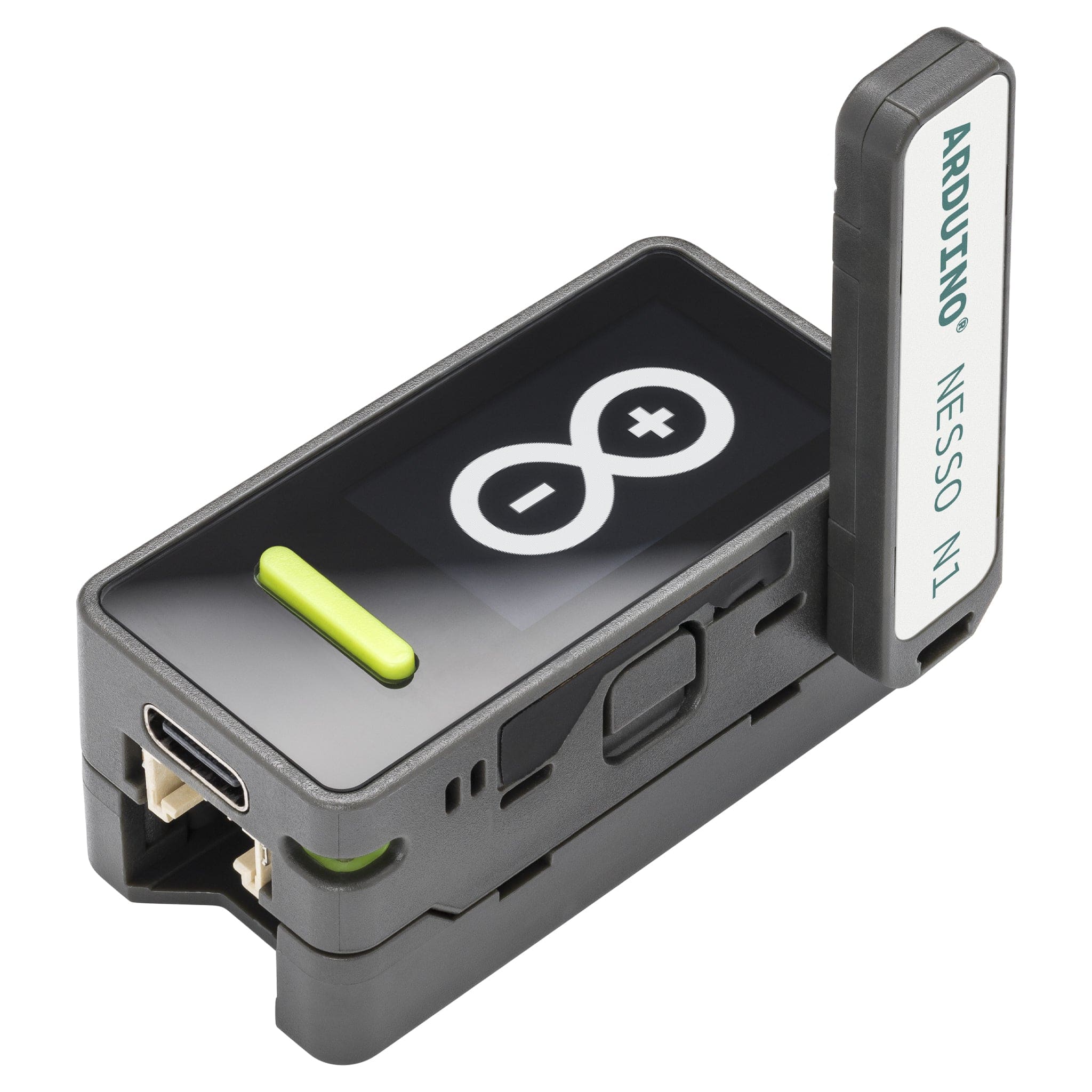

The ArduinoNesso N1 is a compact IoT development kit built around the ESP32-C6, designed for connected projects in smart home, industrial, and educational settings. Developed with M5Stack, it supports Wi-Fi® 6, Bluetooth® 5.3 LE, 802.15.4 (Thread/Zigbee®), and LoRa®, making it suitable for multiprotocol communication across local and remote environments.
It includes a 1.14” colour touch display, programmable buttons, a built-in IMU, IRtransmitter, RGB LED, buzzer, and a rechargeable 250mAh lithium battery, giving you a self-contained and interactive platform for development and testing. Expansion is handled through GroveandQwiic connectors, with compatibility for Arduino Modulino nodes, third-party modules, and the wider M5Stack 8-pin HAT ecosystem. Integration with Arduino Cloud allows for remote monitoring and data visualisation.
Support for Arduino IDE, MicroPython, and UIFlow provides flexibility in how you develop and deploy projects, letting you focus on building and iterating rather than initial configuration.
USB-C cable required but not included
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
ESP32-C6 microcontroller Dual 32-bit RISC-V processors with up to 160 MHz HP core and 20 MHz LP core

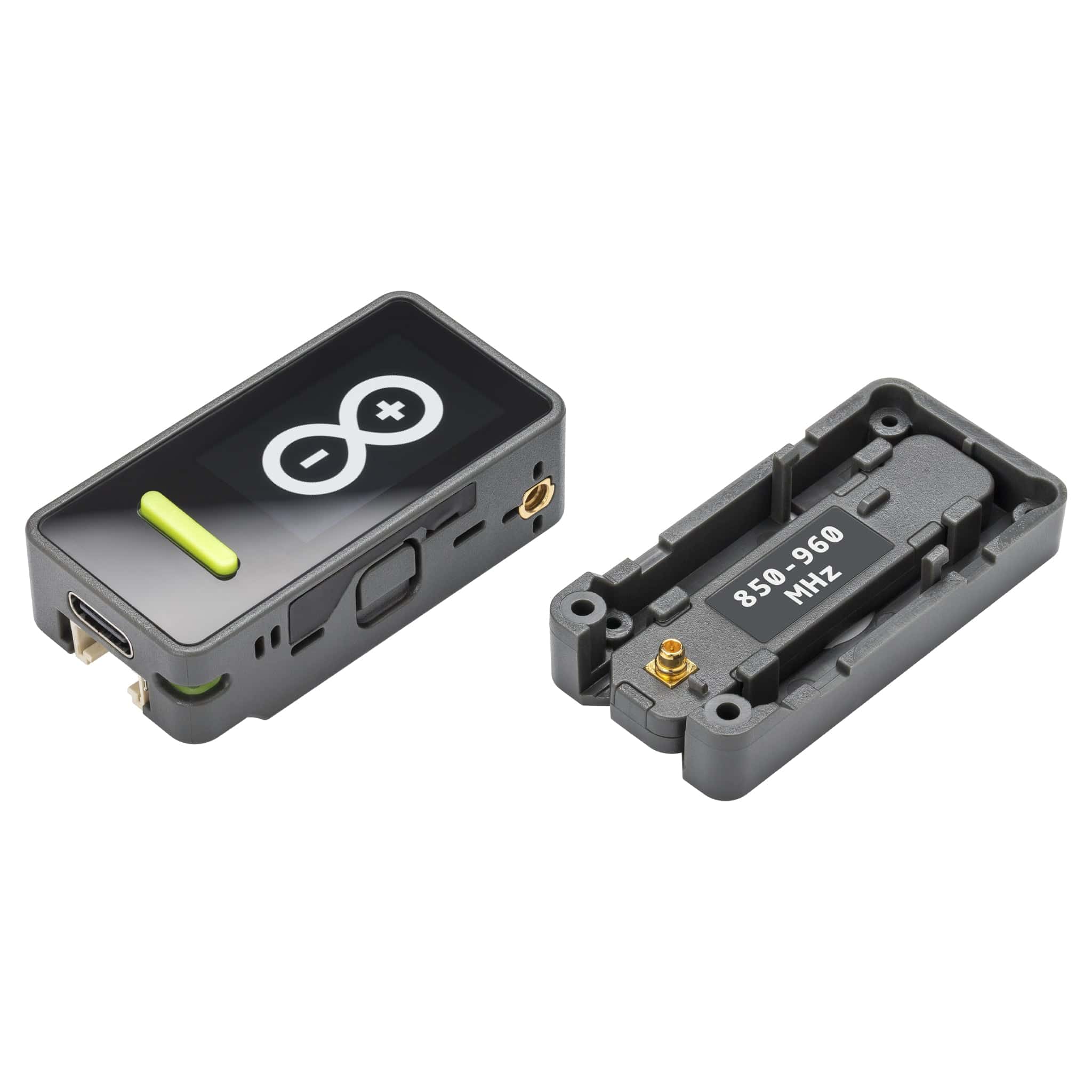

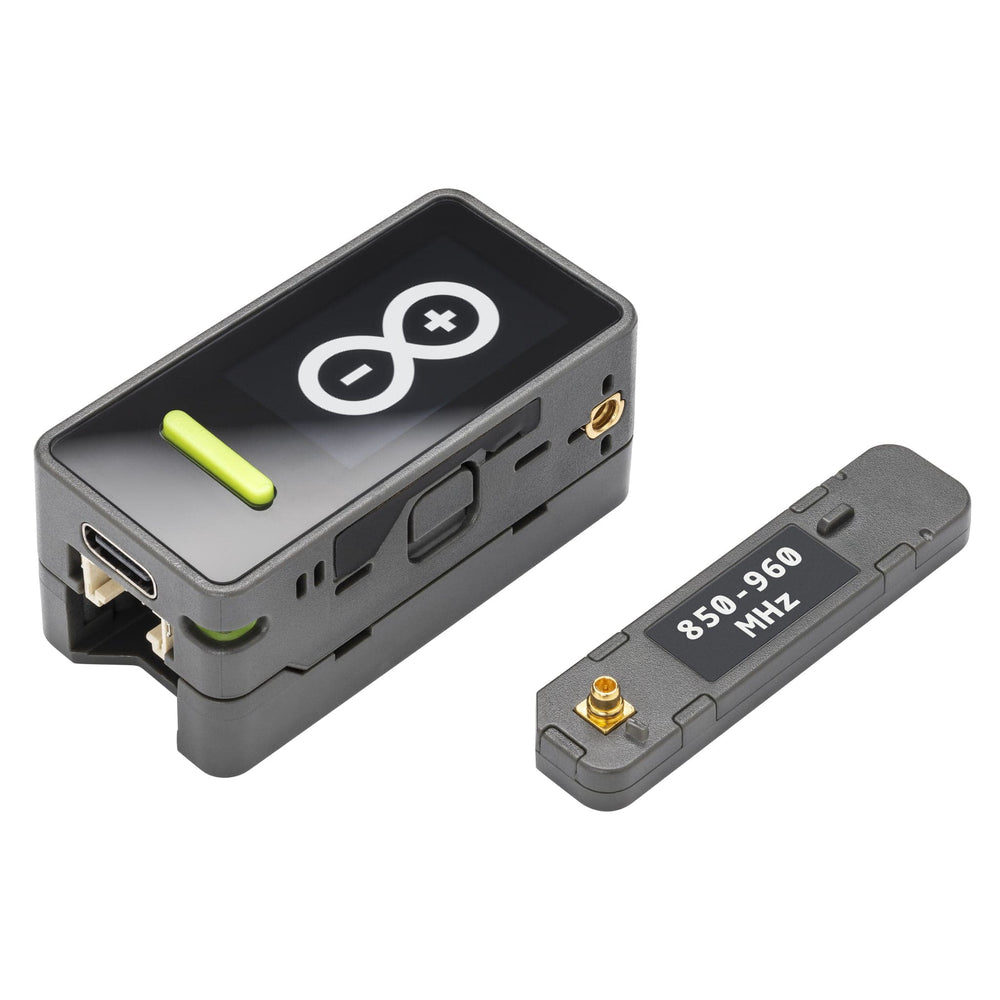

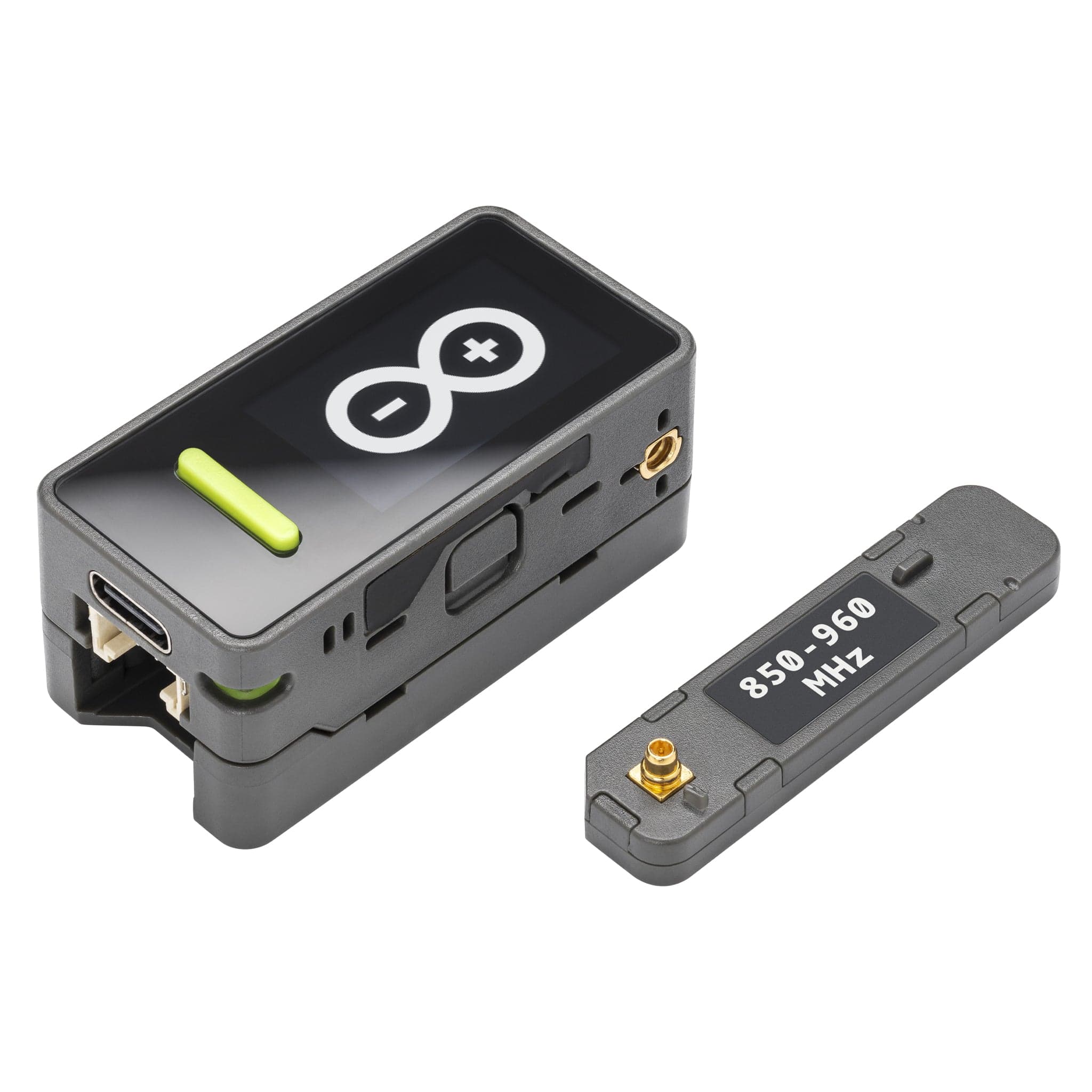

Wireless connectivity Wi-Fi® 6 (2.4 GHz), Bluetooth® 5.3, Thread® 1.4, LoRa® (850–960 MHz via SX1262), and Zigbee 3.0

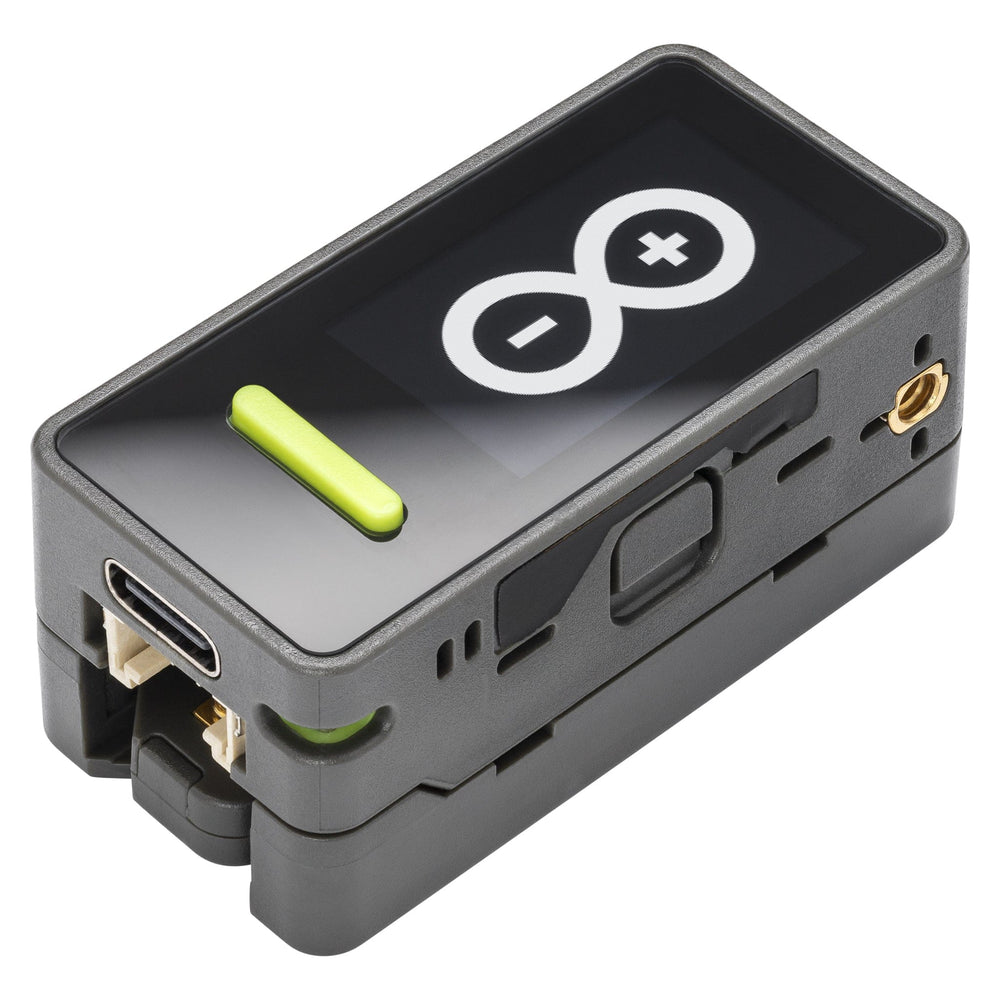

Integrated display 1.14” touch screen for direct interaction and feedback
Onboard controls Two programmable buttons plus a power / reset / boot button
Built-in sensors and outputs 6-axis IMU, IR transmitter, RGB LED, and passive buzzer
Memory 16 MB NOR flash and 512 KB SRAM

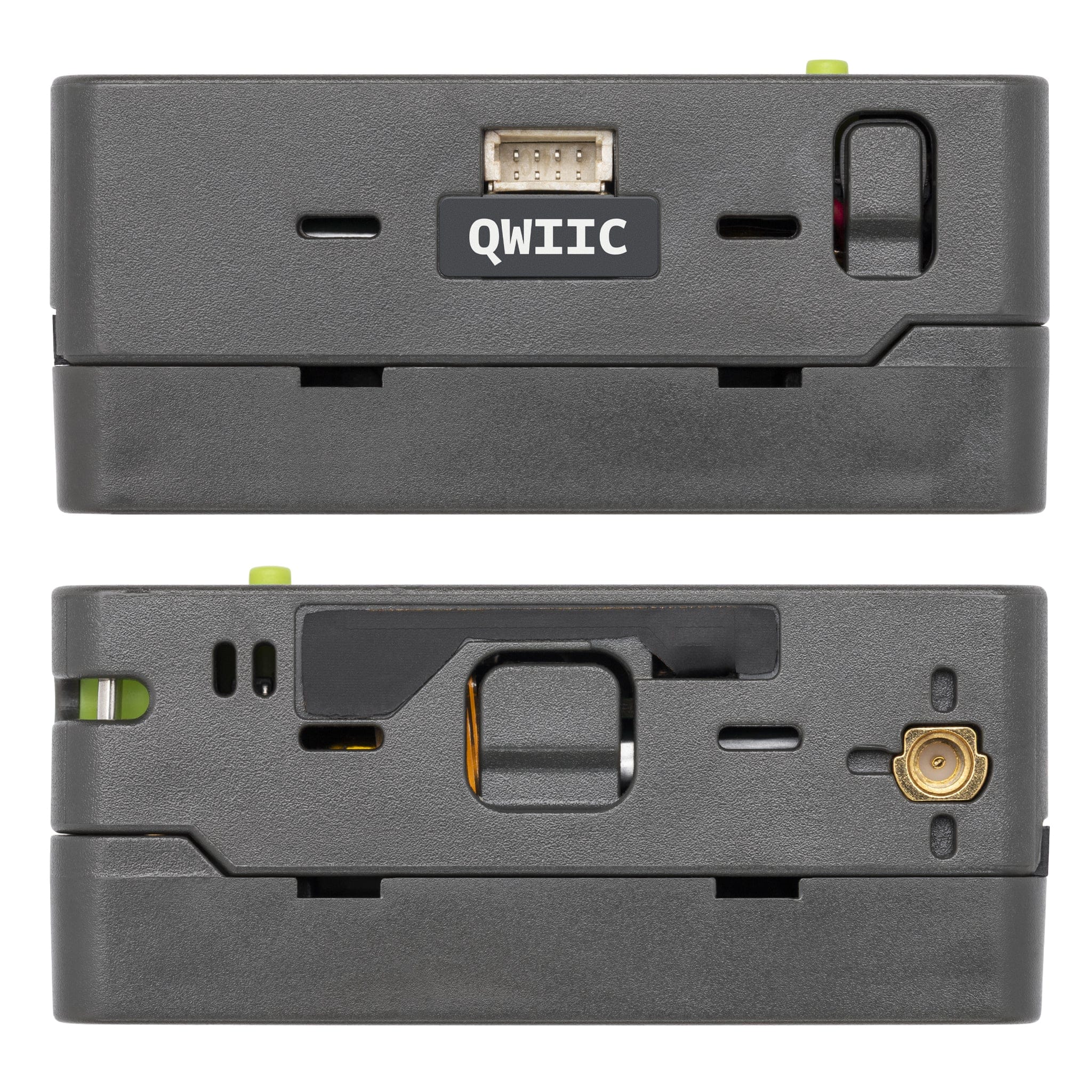

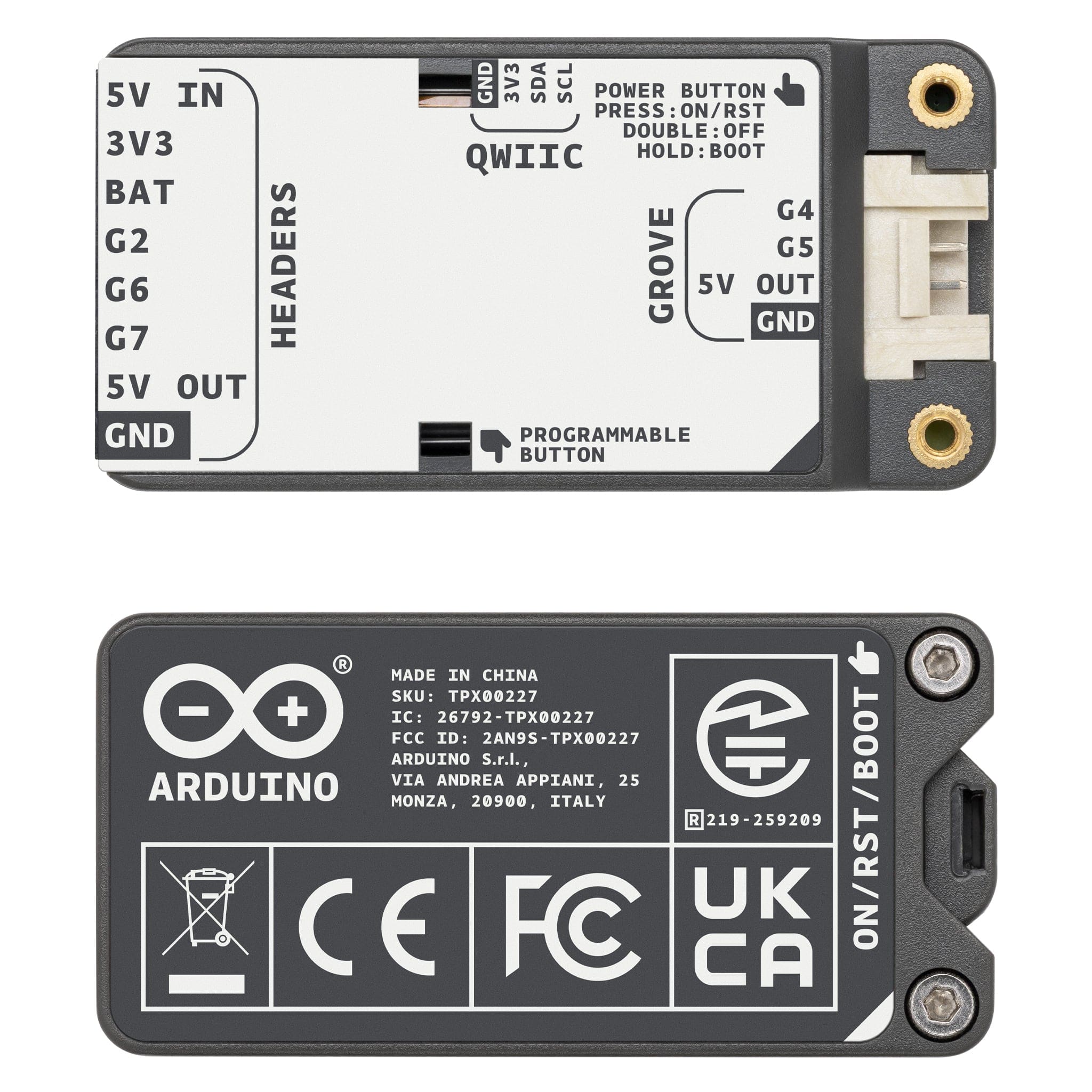

Expandable I/O Grove and Qwiic connectors compatible with Arduino Modulino nodes and M5Stack sensor-hat ecosystem
Battery powered Built-in lithium polymer battery with nominal 5V input
USB connectivity USB-C connector for power and programming
Software support Compatible with Arduino IDE, MicroPython, UIFlow, and Arduino Cloud
Ready-to-use hardware Pre-assembled device with display and enclosure for immediate prototyping
Compact size 18 mm × 45 mm
Specifications
Note on Connectors: The Qwiic, and 8-pin expansion port connectors operate at 3.3 V. Connecting modules or devices that use higher logic levels, such as 5 V, may permanently damage the board.
Note on GPIO Current: Be mindful of the current limits for the GPIO pins. Exceeding the specifications in the ESP32-C6 datasheet may damage the pin or the board.
