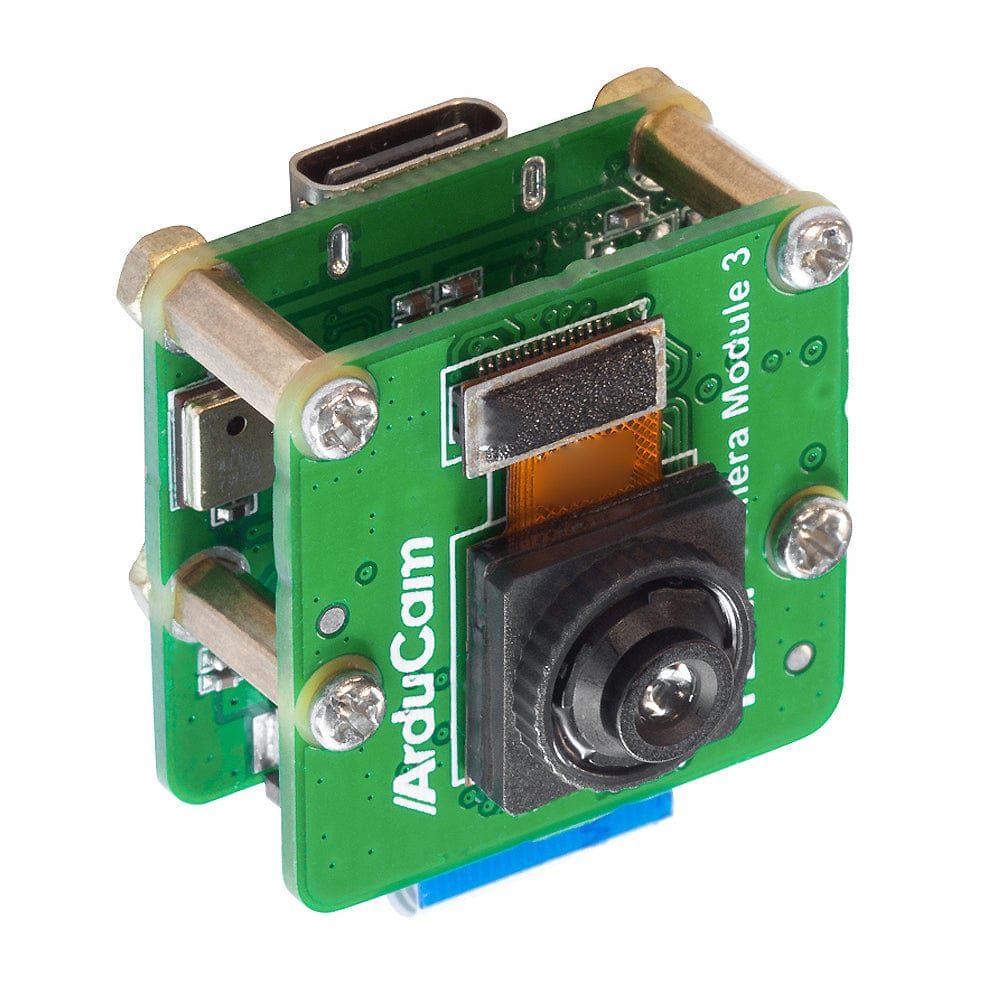

This camera module for the Raspberry Pi uses the same IMX708 sensor and footprint as the official Raspberry Pi Camera Module 3, however Arducan has given it a bit of a remix with USB-C UVC connection, a fixed focus lens and a built-in microphone!
The USB-C UVC connection means you can use this camera module as a USB webcam, with all the plug n' play convenience you expect. Use it on your Raspberry Pi, Windows machine, Linux, Mac and more! The module has a small built-in microphone as well, making this a great 'hacky' webcam alternative!
The 66° (HFOV) fixed-focus lens offers an alternative to the autofocus on the RPi Camera Module 3, offering faster focussing speed and a more stable image quality.
The camera comes with a USB-C to USB-A cable to go with it.
Compatible with All Platforms: Adopting UVC protocol, compatible with various platforms and operating systems, such as Windows, Linux, Mac, Android and more
Plug and Play: Only the USB device driver needs to be installed, no additional drivers are needed depending on the platform. Just plug-and-play after the installation is completed.
High-Quality Images: Based on SONY 12MP IMX708 Image Sensor. Max Resolution: 4608×2592. The high resolution allows you to get sharper and more recognizable images at a greater distance.
Fixed Focus: Equipped with a 66°(HFOV) Fixed Focus Lens. Compared with the Autofocus Lens, the Fixed Focus Lens has a faster-focusing speed and more stable image quality.

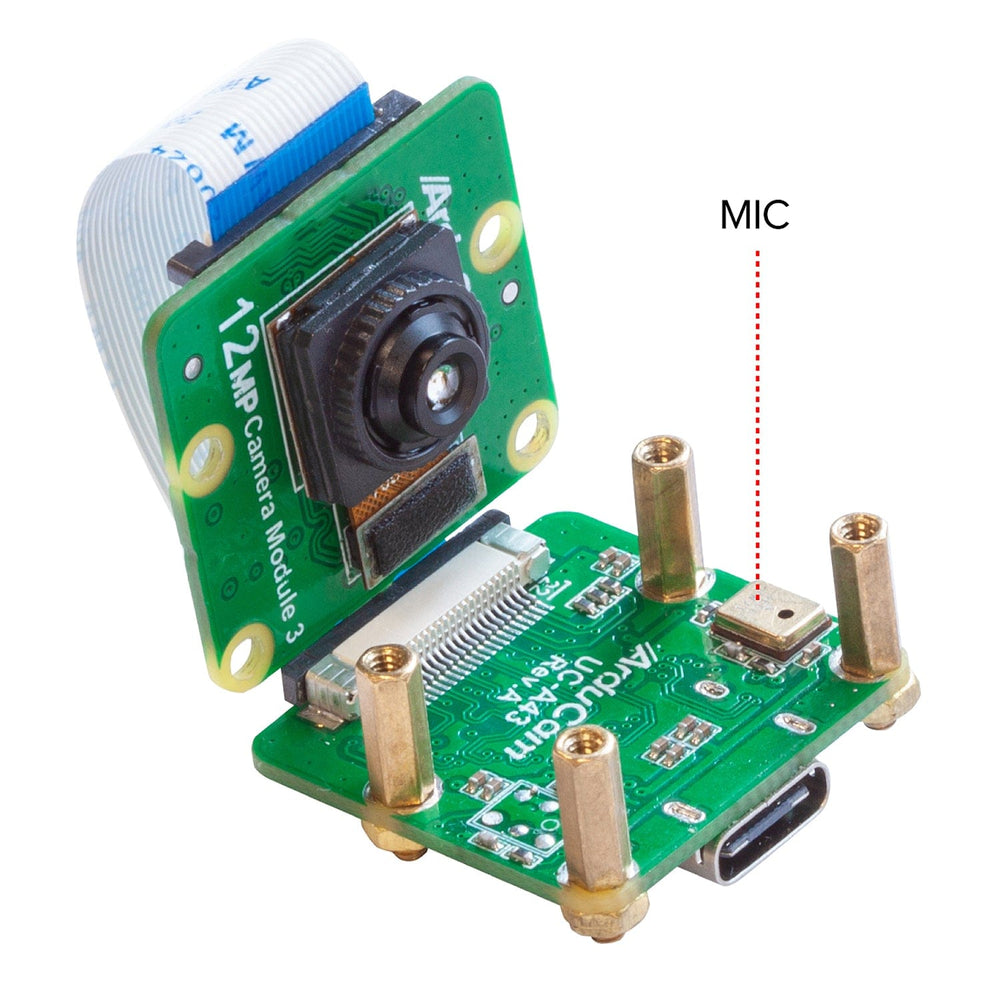

Audio Function: We have equipped this USB camera kit with a microphone module that supports High-Quality audio input/output.
Specifications
Sensor
IMX708
Resolution
12MP
Colour Filter Type
Colour
Shutter Type
Rolling Shutter
Optical Size
1/2.43”
Output Format
MJPG/YUV
Pixel Size
1.4μm × 1.4μm
Sensor Active Area
4608 × 2592
Frame Rate
4608×2592@10fps, 2304×1296/
1920×1080/1600×1200/1280×720@30fps
Focus Type
Fixed Focus
FOV
75°(D)x66°(H)x41°(V)
Lens Mount
Stock Lens
F.NO
F1.8
E.F.L
/
Focal Length
4.74mm
IR Sensitivity
Integral IR-cut Filter, visible light only
Interface
USB2.0 Device
Adapter Board Size
38mm x 38mm
UVC Complaint
No additional drivers is required
Operating Voltage
DC 5V +/- 5%
Working Current
Max 300mA
Operating Temp.
-4℉-158℉(-20°C to 70°C)

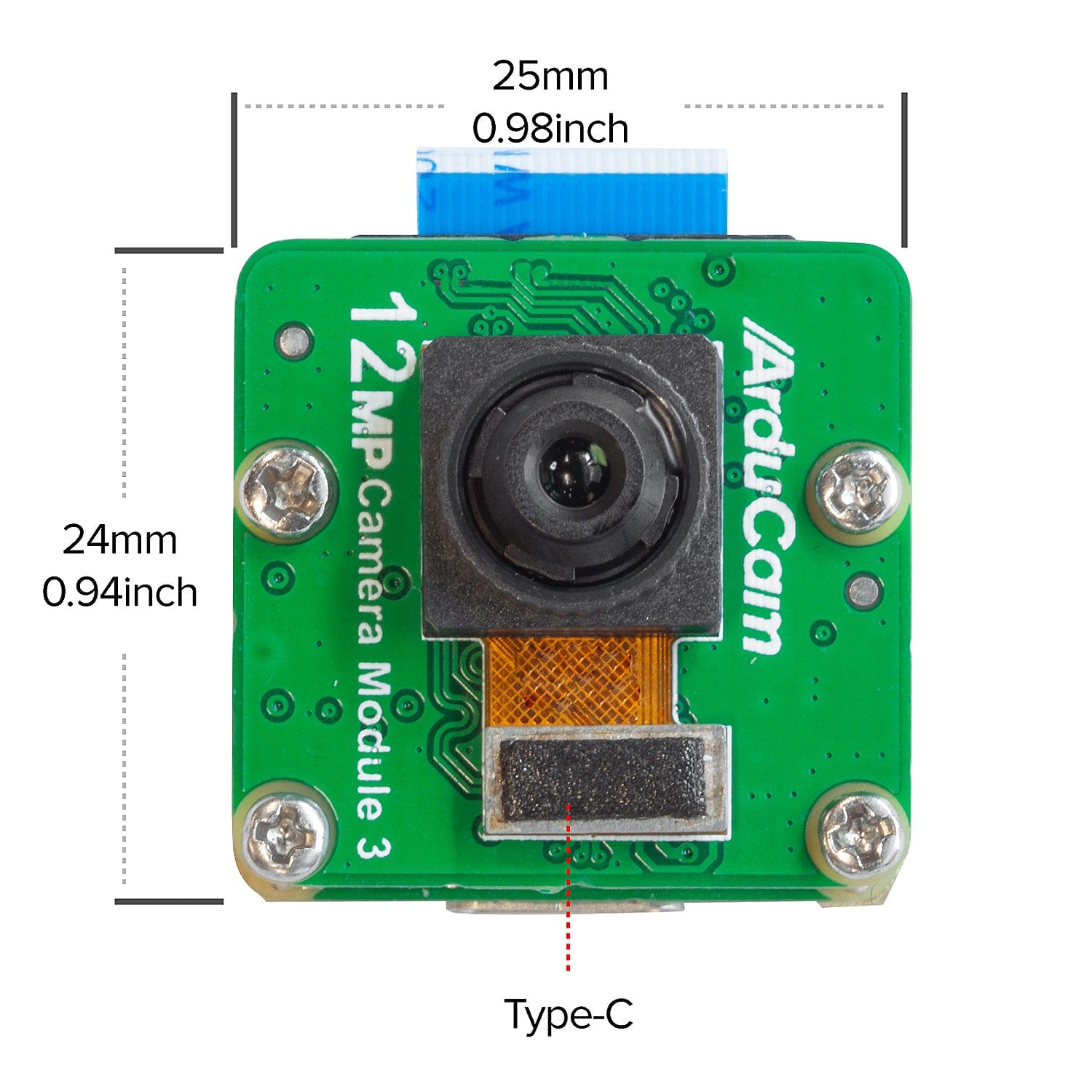

Camera Board Size
24mmx25mm
Audio
Single Microphone
Supported OS
Windows, Linux, Android and MAC
Sample Application
Amcap-Windows Camera application for Video and Still Capture
UVC Controls
Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Gain, Exposure, Focus
Package Contents
1x Arducam IMX708 Fixed Focus Camera Module with UVC adapter board
