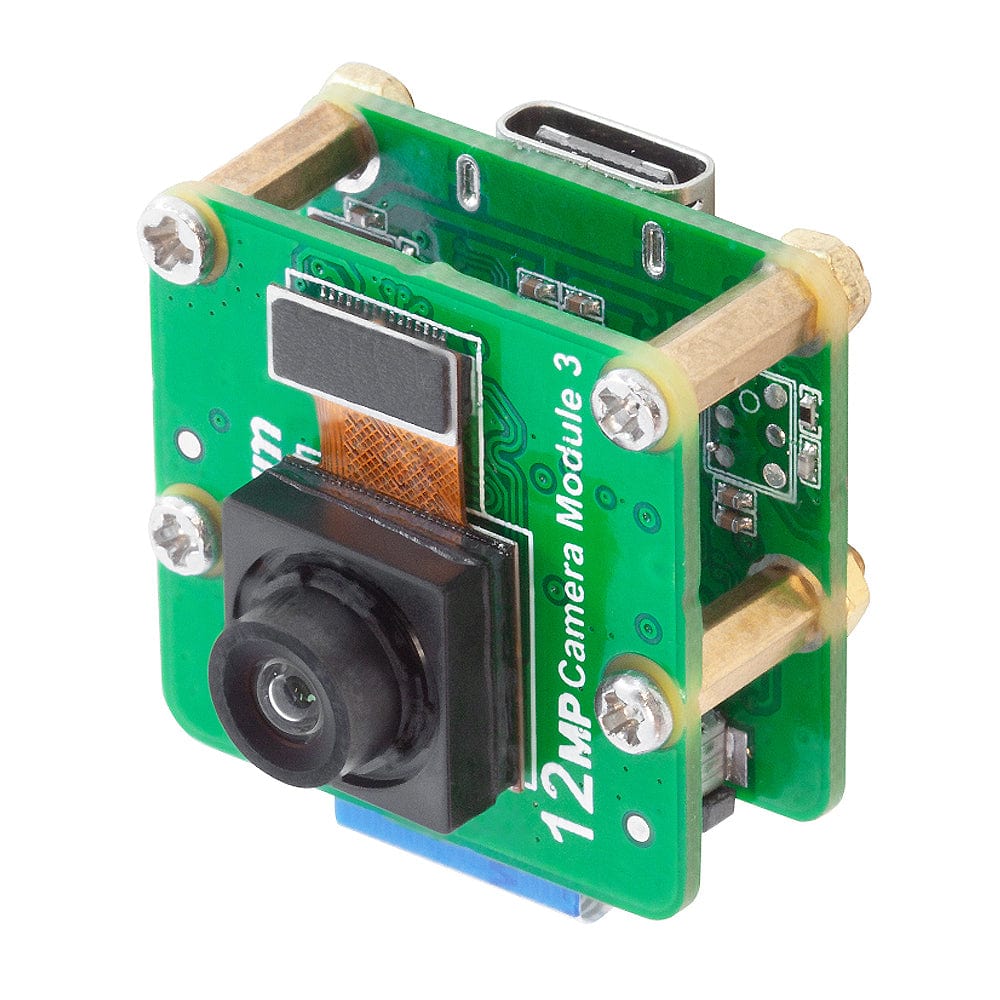

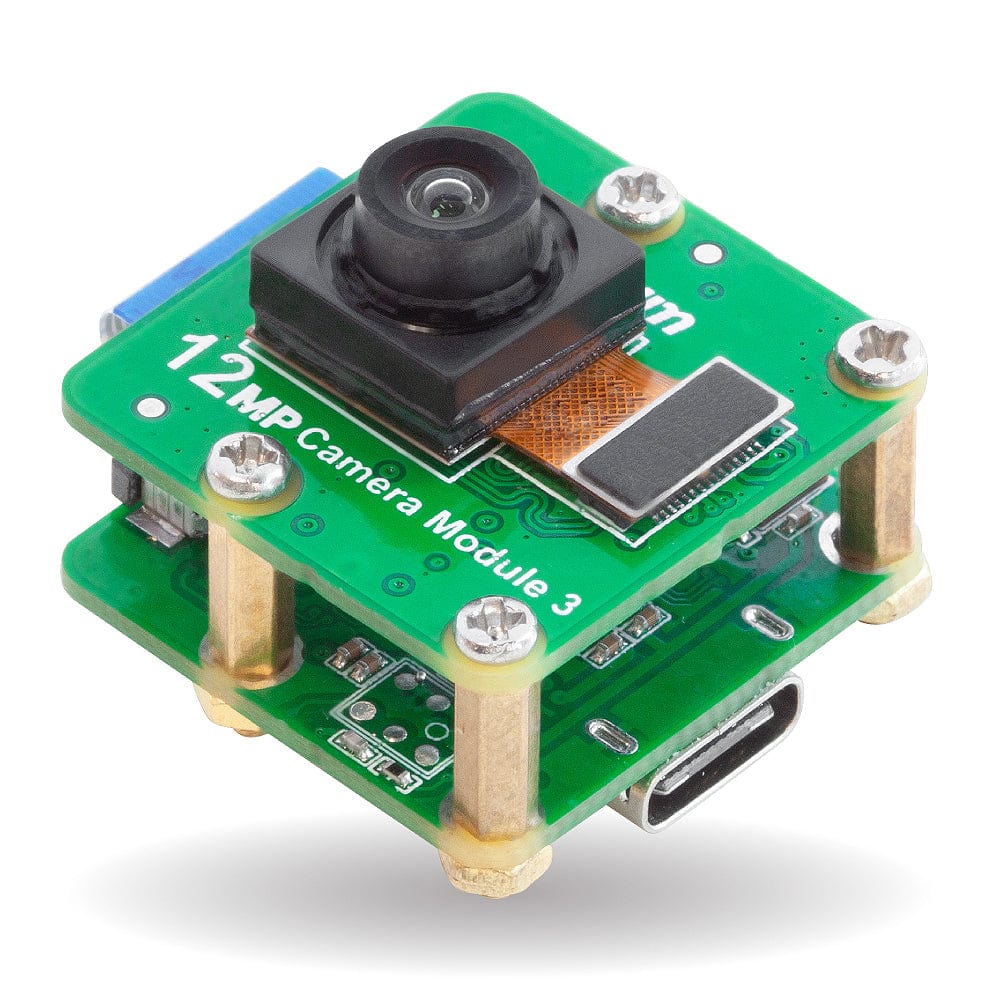

This wide angle camera module for the Raspberry Pi uses the same IMX708 sensor and footprint as the official Raspberry Pi Camera Module 3, however Arducan has given it a bit of a remix with USB-C UVC connection, a wide angle fixed focus lens and a built-in microphone!

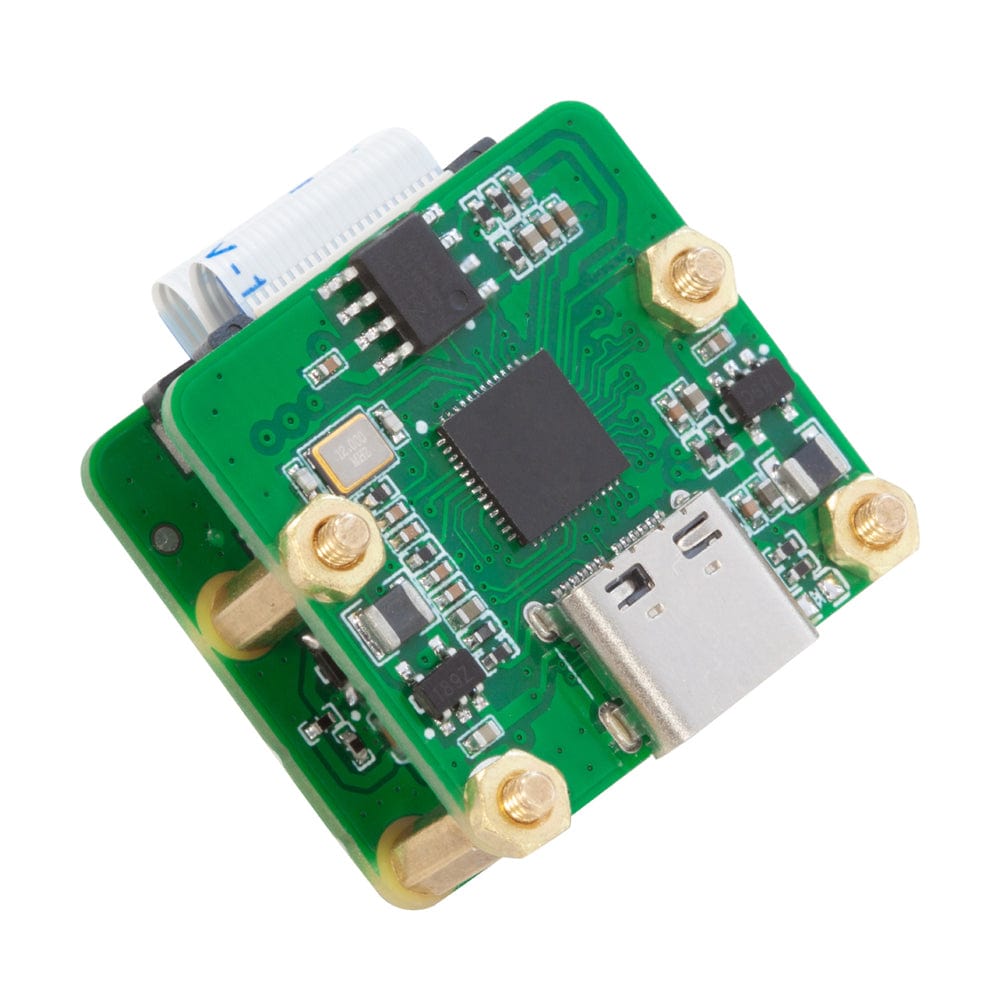

The USB-C UVC connection means you can use this camera module as a USB webcam, with all the plug n' play convenience you expect. Use it on your Raspberry Pi, Windows machine, Linux, Mac and more! The module has a small built-in microphone as well, making this a great 'hacky' webcam alternative!
The wide-angle 102° (HFOV) fixed-focus lens offers an alternative to the autofocus on the RPi Camera Module 3, offering faster-focussing speed and a more stable image quality.
Compatible with All Platforms: Adopting UVC protocol, compatible with various platforms and operating systems, such as Windows, Linux, Mac, Android and more
Plug and Play: Only the USB device driver needs to be installed, no additional drivers are needed depending on the platform. Just plug-and-play after the installation is completed.
High-Quality Images: Based on SONY 12MP IMX708 Image Sensor. Max Resolution: 4608×2592. The high resolution allows you to get sharper and more recognizable images at a greater distance.

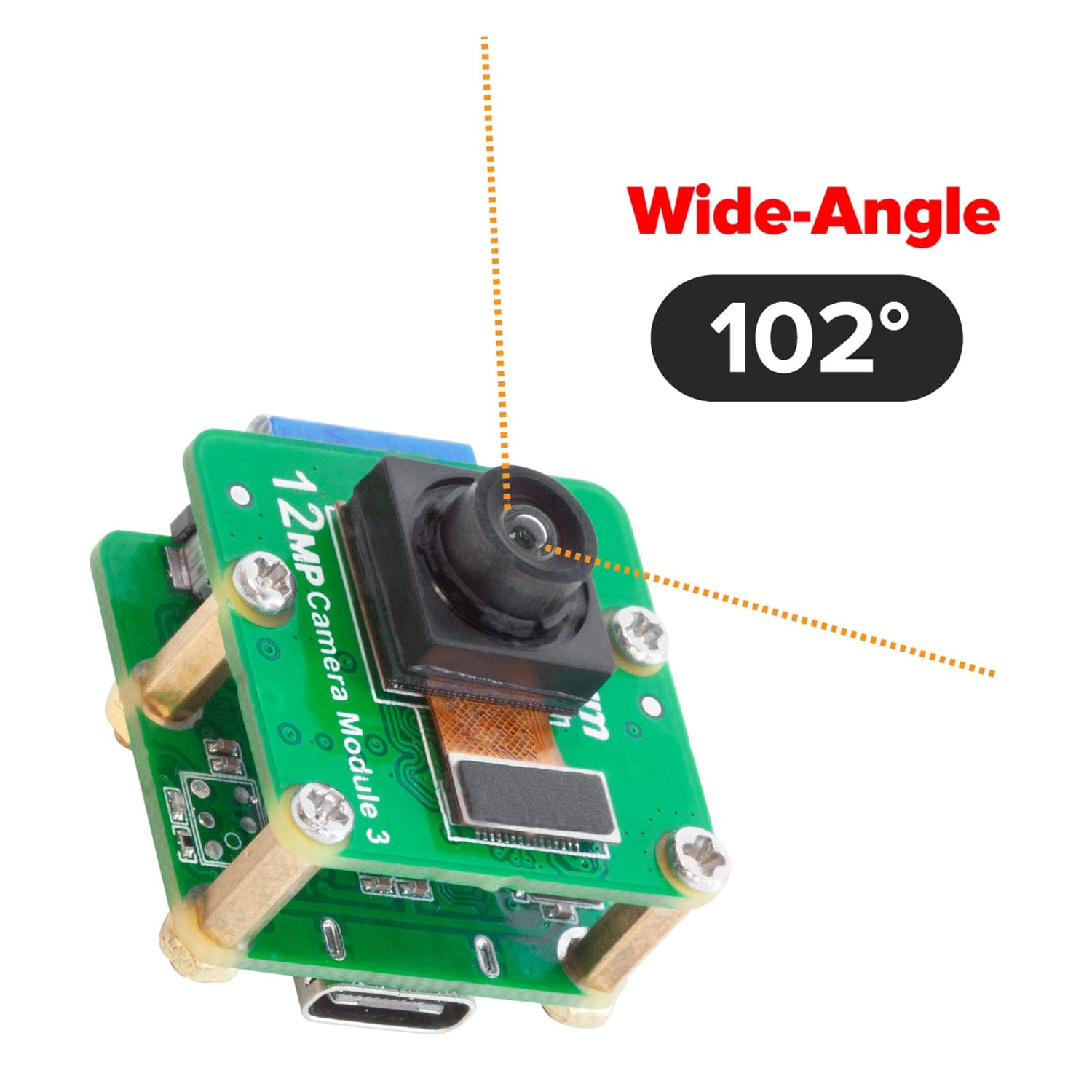

Wide Angle: Equipped with a 102° Wide Angle Fixed Focus Lens. Wide-angle Lens allows you to use the camera to get a wider field of view, especially for wide-area projects.

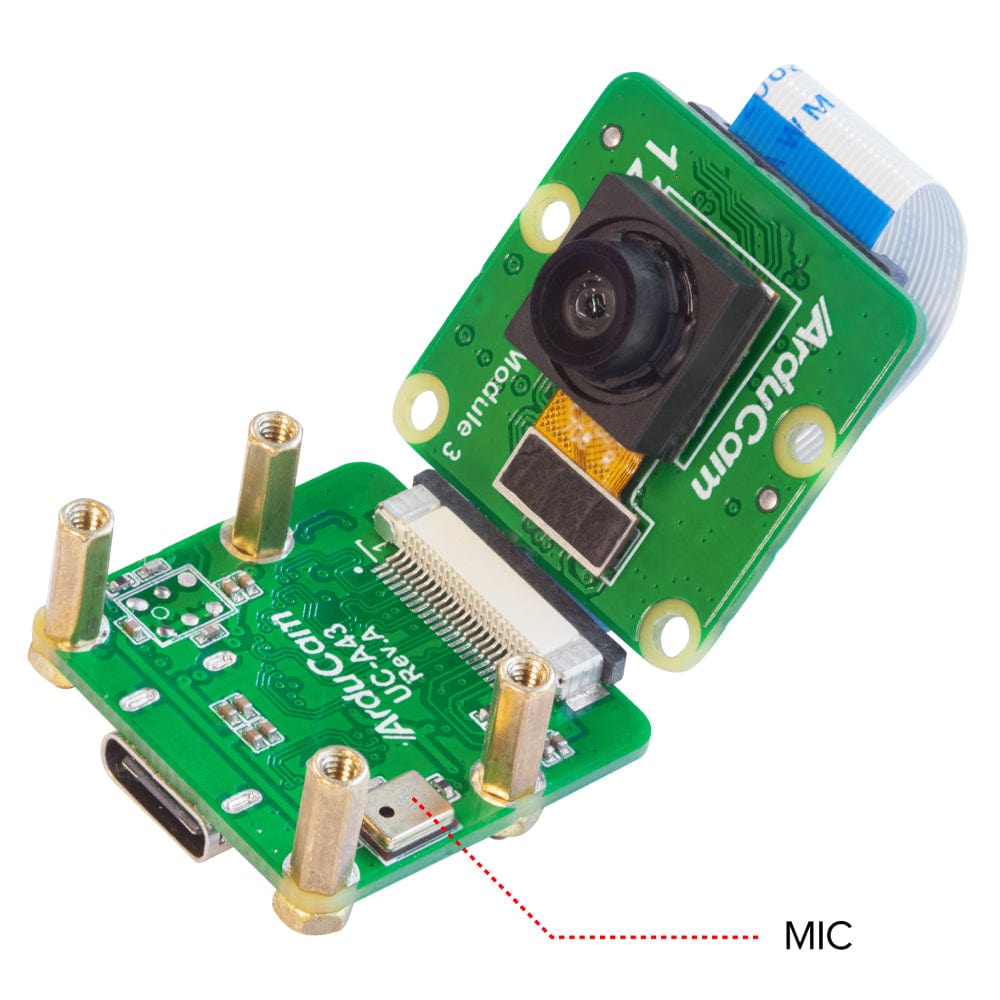

Audio Function: We have equipped this USB camera kit with a microphone module that supports High-Quality audio input/output.
Specifications
Sensor
IMX708
Resolution
12MP
Colour Filter Type
Colour
Shutter Type
Rolling Shutter
Optical Size
1/2.43”
Output Format
MJPG/YUV
Pixel Size
1.4μm × 1.4μm
Sensor Active Area
4608 × 2592
Frame Rate
4608×2592@10fps, 2304×1296/
1920×1080/1600×1200/1280×720@30fps
Focus Type
Fixed Focus
FOV
120°(D)x102°(H)x67°(V)
Lens Mount
Stock Lens
F.NO
F2.2
E.F.L
/
Focal Length
2.75mm
IR Sensitivity
Integral IR-cut Filter, visible light only
Interface
USB2.0 Device
Adapter Board Size
38mm x 38mm
UVC Complaint
No additional drivers is required
Operating Voltage
DC 5V +/- 5%
Working Current
Max 300mA
Operating Temp.
-4℉-158℉(-20°C to 70°C)

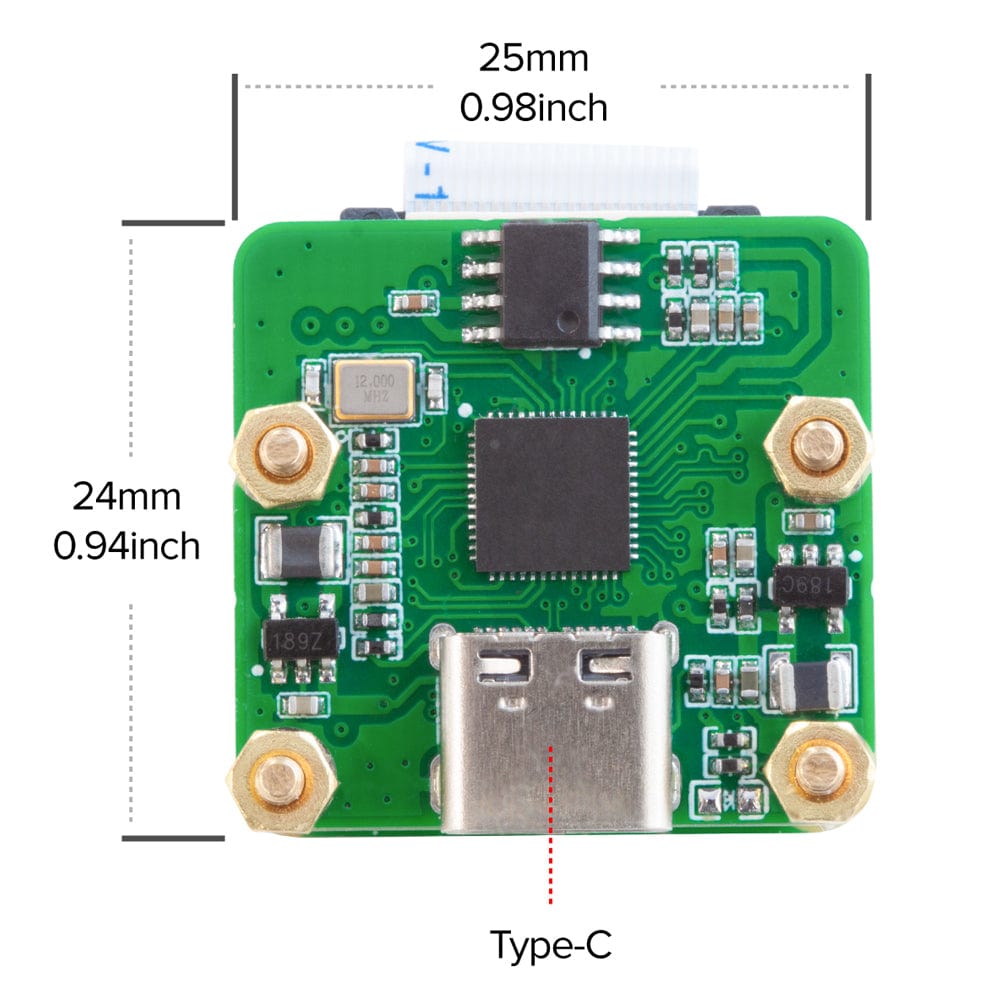

Camera Board Size
24mmx25mm
Audio
Single Microphone
Supported OS
Windows, Linux, Android and MAC
Sample Application
Amcap-Windows Camera application for Video and Still Capture
UVC Controls
Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Gain, Exposure, Focus
Package Contents
1x Arducam IMX708 Wide-Angle Fixed Focus Camera Module with UVC adapter board
