Adafruit QMC5883P - Triple Axis Magnetometer

AdafruitSKU: ADA6388
Price:
Sale price £5.80
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

Qwiic/STEMMA QT-Compatible Cable - JST-SH 4-Pin (50mm) by The Pi Hut - The Pi HutQwiic/STEMMA QT-Compatible Cable - JST-SH 4-Pin (50mm) by The Pi Hut - The Pi Hut
JST SH 4-pin Cable with Alligator Clips - STEMMA QT / Qwiic by The Pi Hut - The Pi HutJST SH 4-pin Cable with Alligator Clips - STEMMA QT / Qwiic by The Pi Hut - The Pi Hut
Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi HutAutosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi Hut
Adafruit Feather RP2040 by Adafruit - The Pi HutAdafruit Feather RP2040 by Adafruit - The Pi Hut
AdafruitAdafruit Feather RP2040
Sale price £11.50 incl. VAT excl. VAT

The Triple-Axis Magnetometer (QMC5883P Breakout) detects magnetic fields from ±2 to ±30 Gauss with 16-bit ADC resolution, I2C communication, and Qwiic/STEMMA QT connectors. It supports 3.3V or 5V logic and includes mounting holes and header options.


Sense the magnetic fields that surround us with this handy triple-axis magnetometer (compass) module. Magnetometers can sense where the strongest magnetic force is coming from, generally used to detect magnetic north, but can also be used for measuring magnetic fields. This sensor tends to be paired with a 6-DoF (degree of freedom) accelerometer/gyroscope to create a 9-DoF inertial measurement unit that can detect its orientation in real space thanks to Earth's stable magnetic field.

We based this breakout on the QMC5883P, a magnetometer we see used in many Quadcopter and robotic builds. This compact sensor uses I2C to communicate, and it's very easy to use. Simply download our library and connect the SCL pin to your I2C clock pin, the SDA pin to your I2C data pin, and upload our test program to read out magnetic field data.

This sensor can sense ranges from +-2 Gauss (+- 200 uTesla) up to +-30 Gauss (+- 3000 uT or 3.0 mT). With 16-bit ADC and settings for over-sampling and down-sampling, you can set it up to get just the right range and precision.

To make life easier so you can focus on your important work, we've taken the QMC5883P and put it onto a breakout PCB along with support circuitry to let you use this little wonder with 3.3V (Feather/Raspberry Pi) or 5V (Arduino/ Metro328) logic levels. Additionally, since it speaks I2C you can easily connect it up with two wires (plus power and ground!).  We've even included SparkFun Qwiic-compatible STEMMA QT connectors for the I2C bus, so you don't even need to solder! Just wire up to your favourite micro and you can use our CircuitPython/Python or Arduino drivers to easily interface with the QMC5883P and get magnetic measurements ASAP. QT Cable is not included, but we have a range of options available here

It's fully assembled and tested.  Comes with a bit of 0.1" standard header in case you want to use it with a breadboard or perfboard.  Four 2.5mm (0.1") mounting holes for easy attachment.

Specification

  • Product Dimensions: 25.4mm x 17.6mm x 4.7mm
  • Product Weight: 1.7g

Resources

Package Contents

  • 1x Adafruit QMC5883P - Triple Axis Magnetometer - STEMMA QT

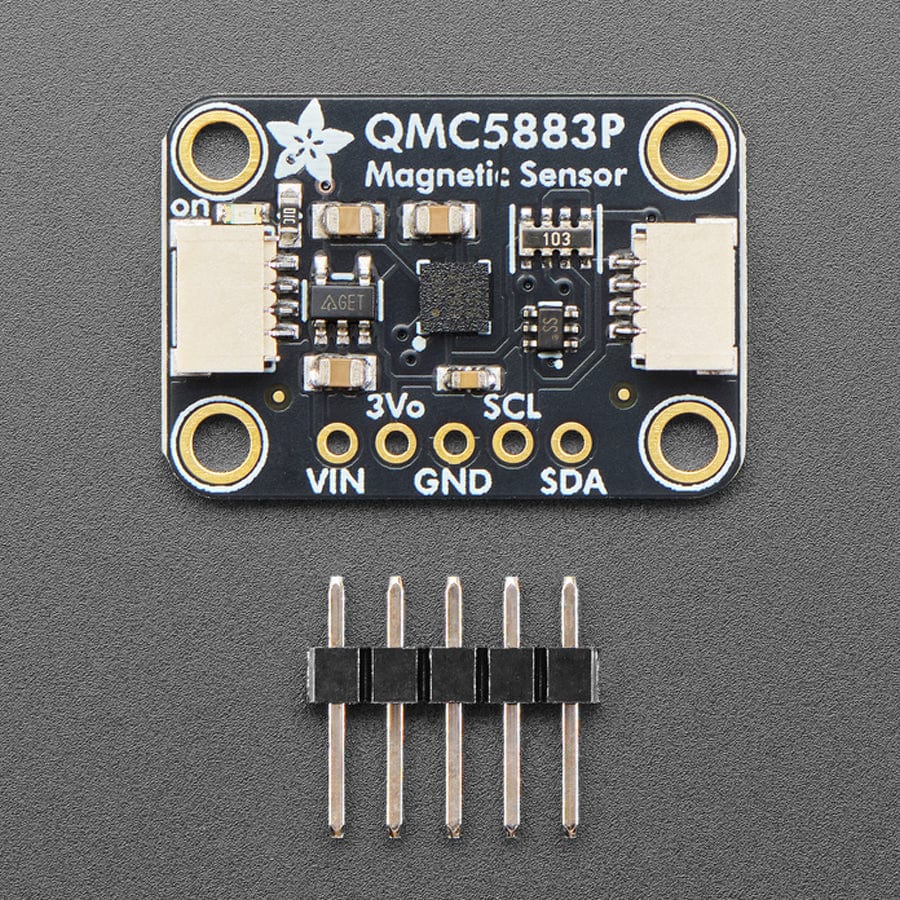

  • 1x 6-pin header
