4.3" DSI Capacitive Touchscreen Display for Raspberry Pi (800x480)
Price:
Sale price
£38.90
Stock:
Quantity:
Awesome Extras
This compact capacitive touchscreen display for the Raspberry Pi offers an impressive 800x480 resolution squashed into a 4.3" IPS panel and is driven via the DSI port on your Raspberry Pi.
To use this DSI display with a Raspberry Pi 5, you will need to buy this adapter cable! Also please see this guidance for the Raspberry Pi 5 before buying.
With a decent resolution for the size of the panel, combined with IPS technology, 160° viewing angles and toughened glass, this display is a great choice for those looking for a small display without the usual quality drawbacks of mini screens.
The 5-point capacitive touch opens it up to projects that require interaction without the need for traditional USB peripherals, whilst the DSI interface leaves your full GPIO header completely free for HATs, components and more.
The online Wiki will help you get set up and configure your Raspberry Pi for the display.,
Features
- 4.3" IPS display
- 800x480 hardware resolution
- Capacitive touch - supports 5-point touch
- Supports all Raspberry Pi models with a DSI connector - Pi 4, 3B+, 3A+, 3
- DSI interface - refresh rate up to 60Hz.
- Supports Raspberry Pi OS

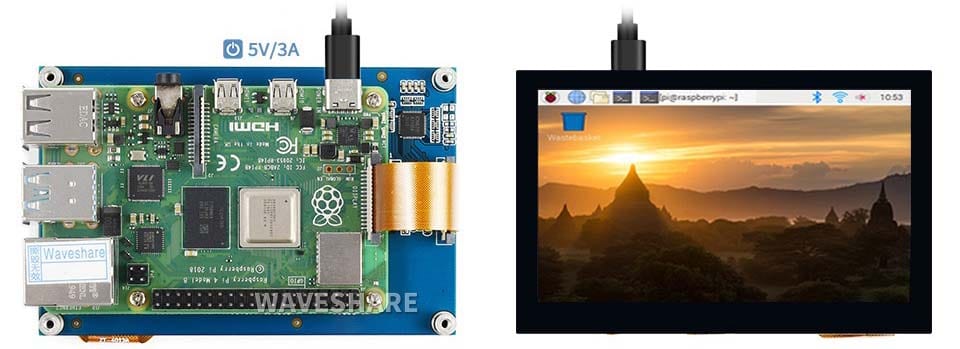

Connection Example
Specifications
- Screen size: 4.3"
- Resolution: 800x480
- Display Type: DSI
- Display Panel: IPS
- Viewing angles: 160°
- Touch type: Capacitive
- Touch points: 5
- Touch port: I2C
- Touch panel: Toughened Glass
Package Contents
- 1x 4.3" DSI LCD
- 1x 15-pin FPC cable - 1.0 pitch 50mm (opposite sides)
- 1x Screws pack
Raspberry Pi not included
Resources
Payment & Accreditations
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Accreditations
Overall product rating out of 5: 4.00
Based on 10 reviews
Write Review
Sort
Clear Filters
Order By
Newest First
Oldest First
Most Popular
Highest Rating
Breakdown
6
1
1
1
1
Product Reviews
4.3" DSI Capacitive Touchscreen Display for Raspberry Pi (800x480)
Love this display - use it in a number of projects.
Was this review helpful?
7 months ago
4.3" DSI Capacitive Touchscreen Display for Raspberry Pi (800x480)
Simple to mount my Pi 3B to the back of this. The DSI cable provided is all you need to connect the screen. I've printed a screen mount for this inside my Ender 5 S1 as it just about fits and runs Klipperscreen.
Was this review helpful?
2 years ago
4.3" DSI Capacitive Touchscreen Display for Raspberry Pi (800x480)
Everything worked first time, no issues, speedy delivery. Impressed with the resolution at the size.
Was this review helpful?
2 years ago
4.3" DSI Capacitive Touchscreen Display for Raspberry Pi (800x480)
The screen is OK, but not perfect. Its resolution is fine for 4.3" size and the colours are OK. But it has issues with refreshing, which causes insane tearing during scrolling and the "glass" scratches easily. Feels more like plastic than glass, tbh.
Was this review helpful?
2 years ago
4.3" DSI Capacitive Touchscreen Display for Raspberry Pi (800x480)
Excellent small screen for use with klipperscreen and Voron 2.4 printers. Offers enough resolution to be useful, while being small enough to fit below the printer doors.
Was this review helpful?
2 years ago
4.3" DSI Capacitive Touchscreen Display for Raspberry Pi (800x480)
Super clear, crisp and responsive touch screen, works flawlessly directly connected to the Raspberry with the flat ribbon, no drivers required, a well made accessory's.
Was this review helpful?
2 years ago
4.3" DSI Capacitive Touchscreen Display for Raspberry Pi (800x480)
Reviewer didn't leave any comments
Was this review helpful?
3 years ago
4.3" DSI Capacitive Touchscreen Display for Raspberry Pi (800x480)
The touch function of mine is gone in 2 weeks. :/
Was this review helpful?
3 years ago
