Uctronics 5V 5A PoE+ NVMe HAT for Raspberry Pi 5 (with Active Cooler)

Give your Raspberry Pi 5 PoE+ power and M.2 NVMe capability in a single, compact HAT!

The Uctronics 5V 5A PoE+ NVMe HAT delivers up to 5V 5A (max) via PoE+ (with IEEE 802.3at or above) through a single Ethernet cable, while the M.2 NVMe slot (2230/2242) offers up to 800MB/s read/write speeds for an installed NVMe SSD.

Designed for Raspberry Pi 5, it connects via the PCIe 16-pin interface, supports Gen2/Gen3 modes, features an included active cooler, and LED indicators for power/activity.

The HAT comes with the included active cooler, standoffs and fixings, riser headers and thermal pads. PoE+ network power sourcing equipment is required to provide the PoE+ input.

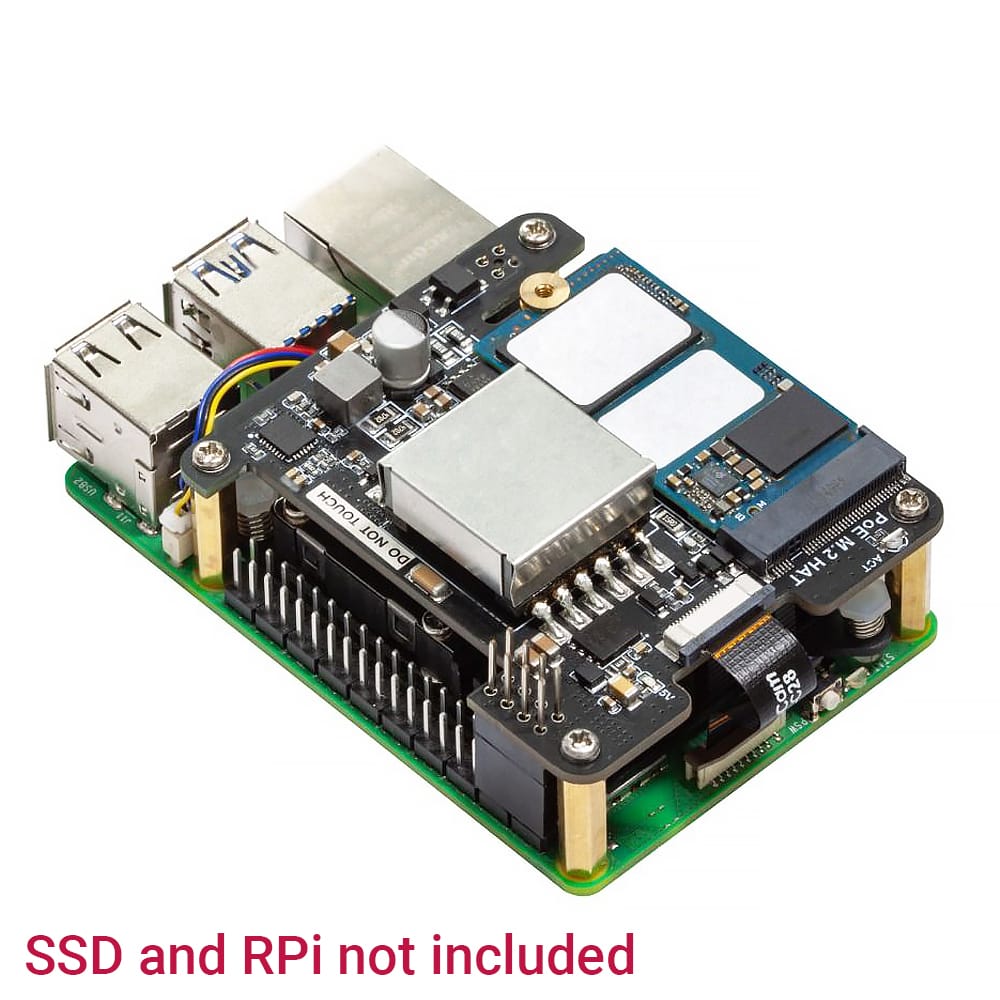

Raspberry Pi and SSD not included.

Features

• High output power: fully isolated switch-mode power supply (SMPS), delivering up to 25W, 5V/5A (MAX) output
  • Note: To achieve 5A output, use an IEEE 802.3at or higher PoE input device
  • Do NOT connect a power supply to USB-C on the Pi 5 board when you are using PoE+ HAT as a power supply
• Power over Ethernet (PoE+) support: supports IEEE 802.3af/at standards, delivering both power and data through a single Ethernet cable

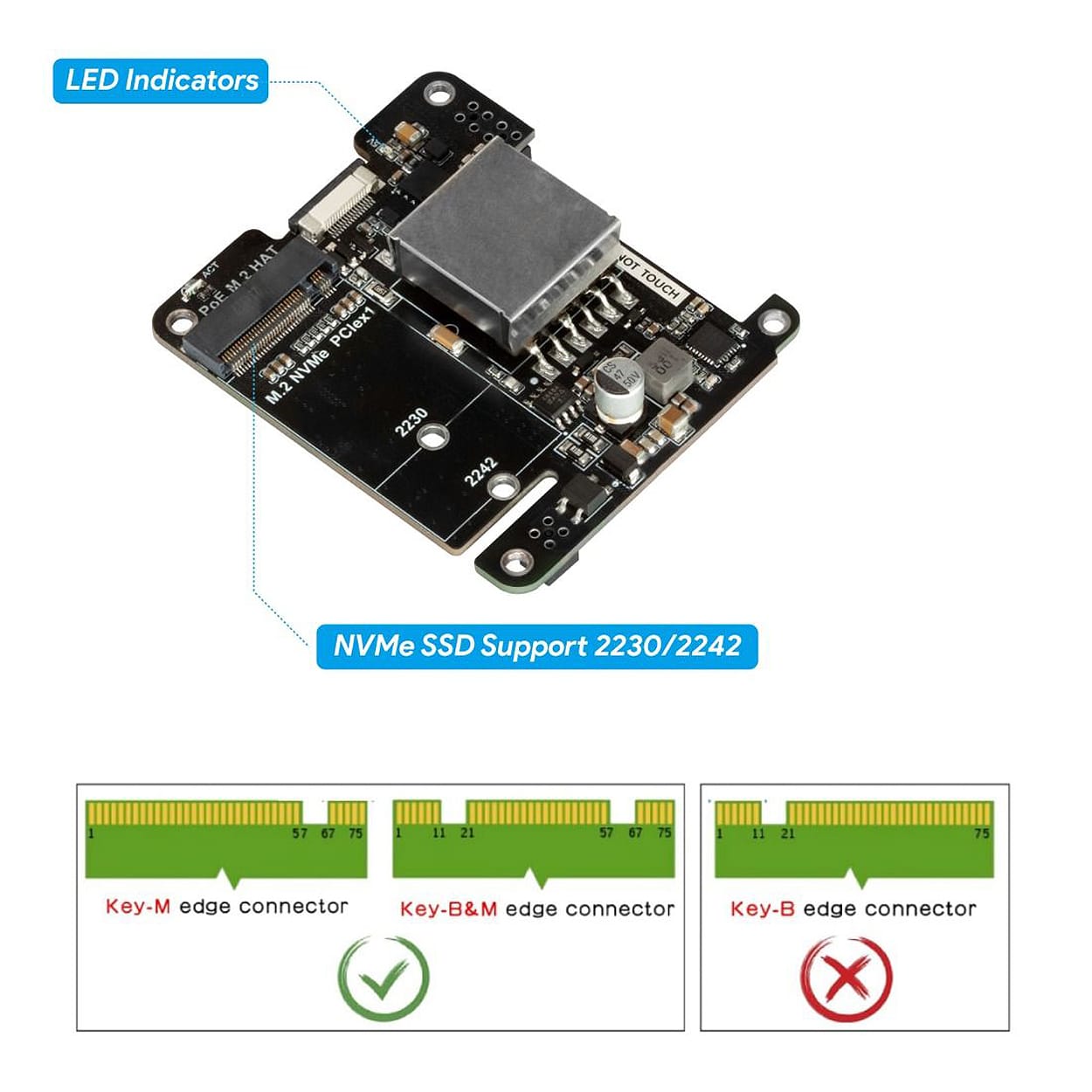

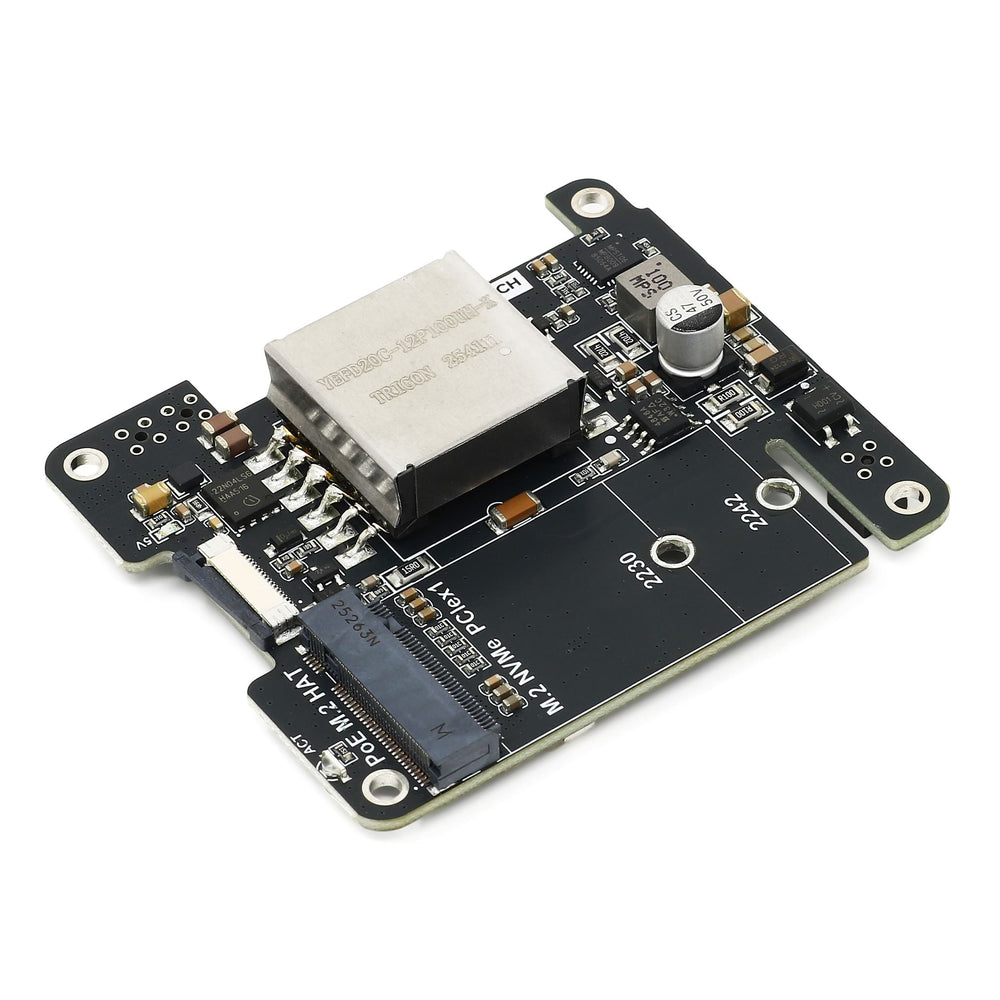

• High-Speed NVMe slot: supports M.2 NVMe SSDs (2230/2242 sizes, M-Key / B+M Key)

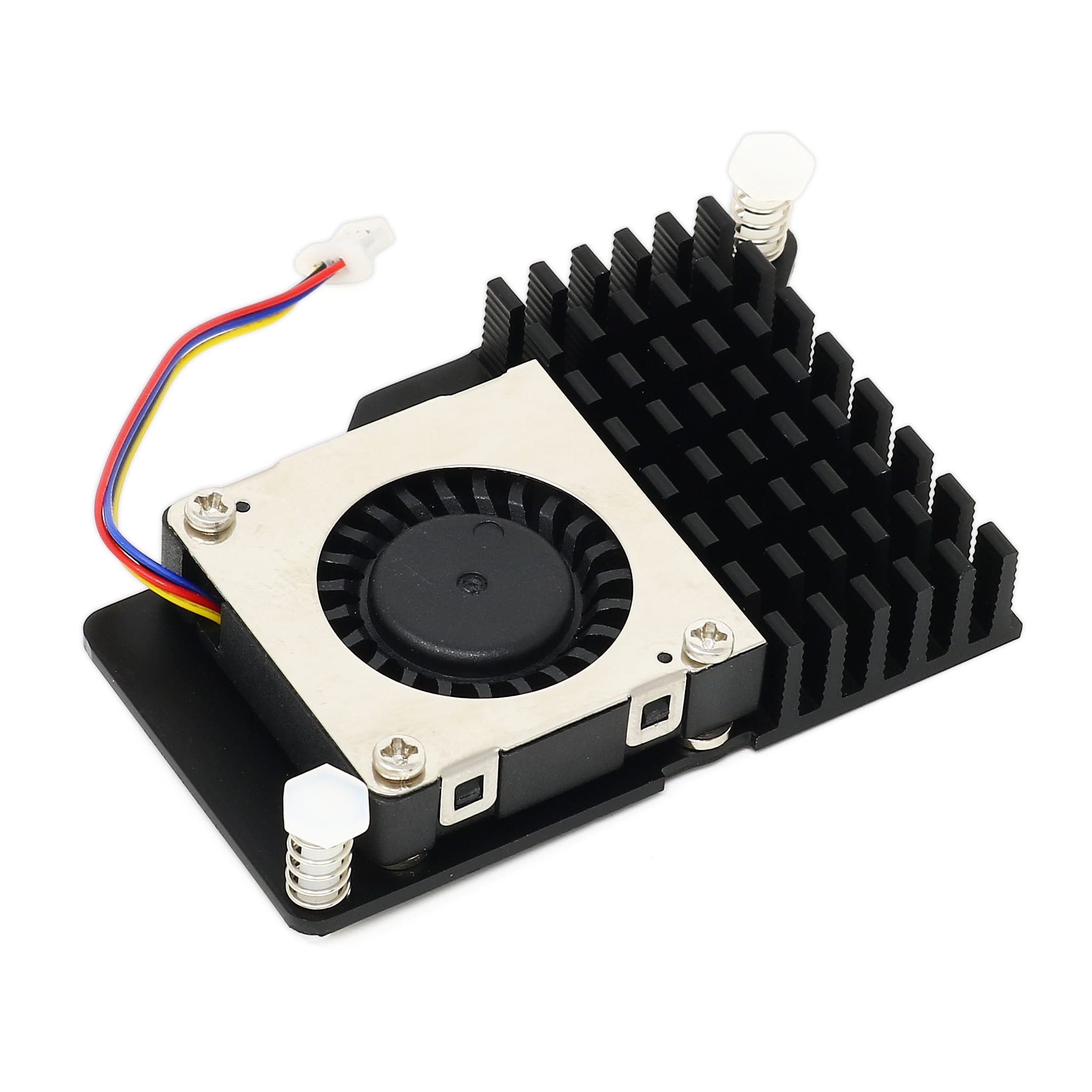

• Efficient heat dissipation: comes with an active cooler that combines an aluminium heatsink with a PWM fan
• Compact layout: Suitable for most cases, also compatible with Uctronics rack mounts (U6123, U6195, U6264)

Specifications

Resources

• Product manual

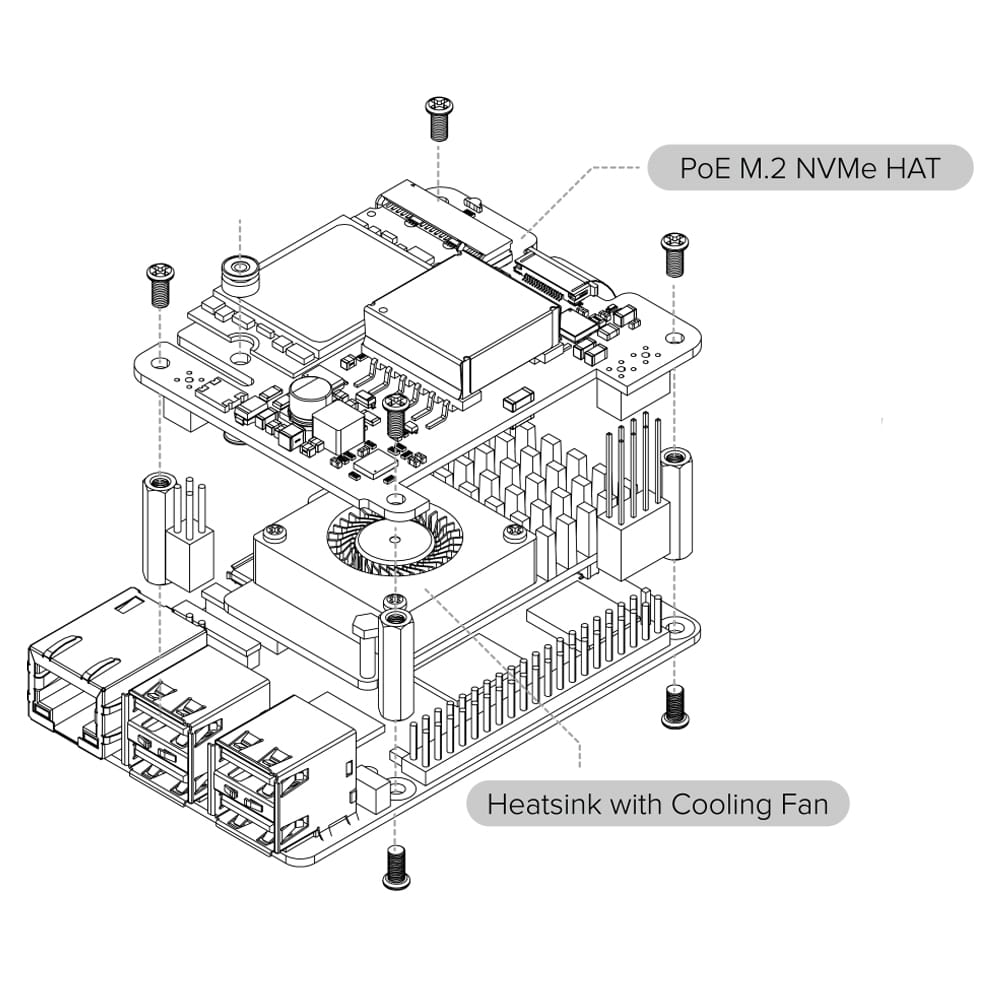

• Assembly Guide

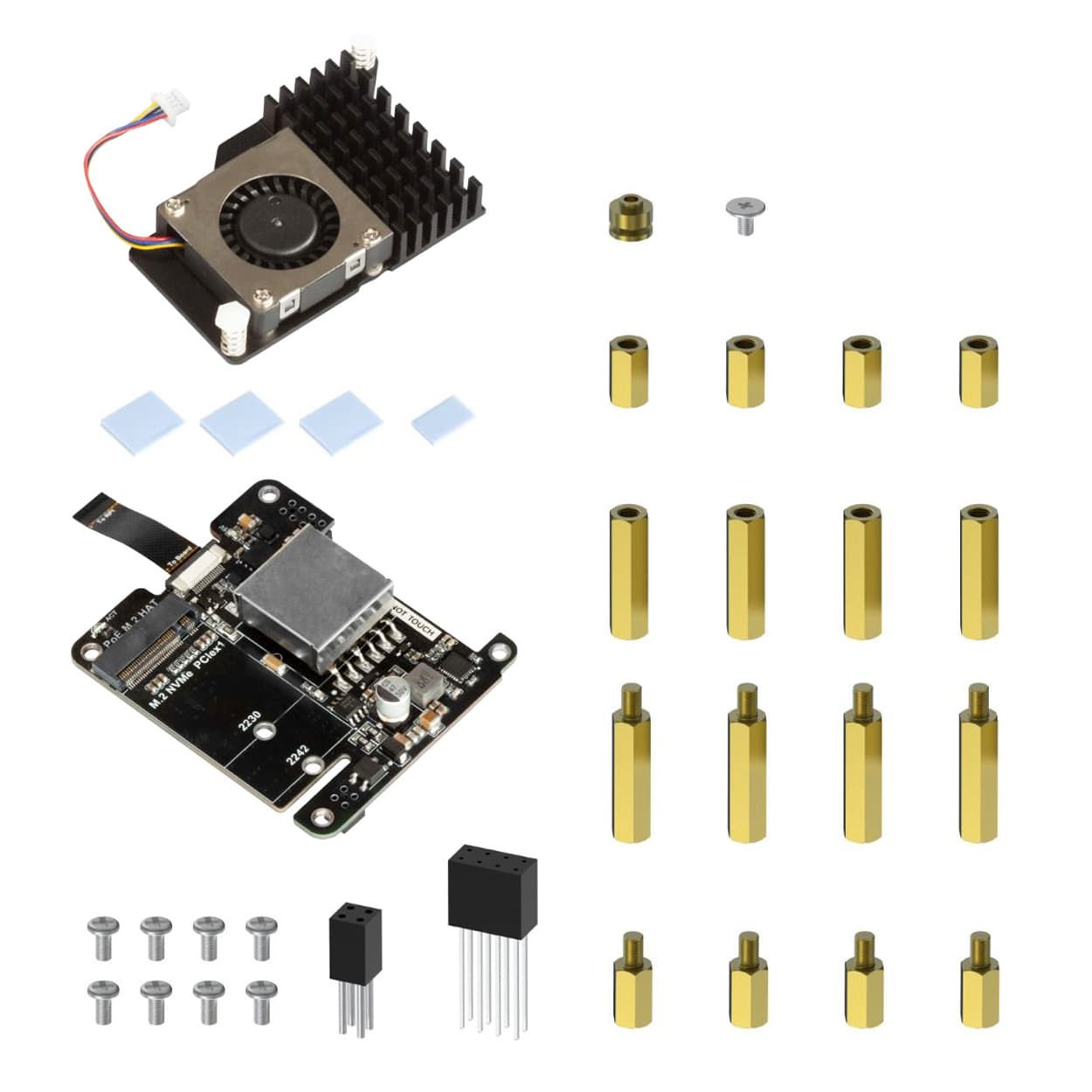

Package Contents

• 1x PoE+ M.2 NVMe HAT
• 1x 30mm PCIe cable
• 1x Active cooler (with thermal pads)
• 1x SSD mounting screw
• 1x 2x2-pin header
• 1x 4x2-pin header
• 1x Screws pack

Raspberry Pi and SSD not included.
