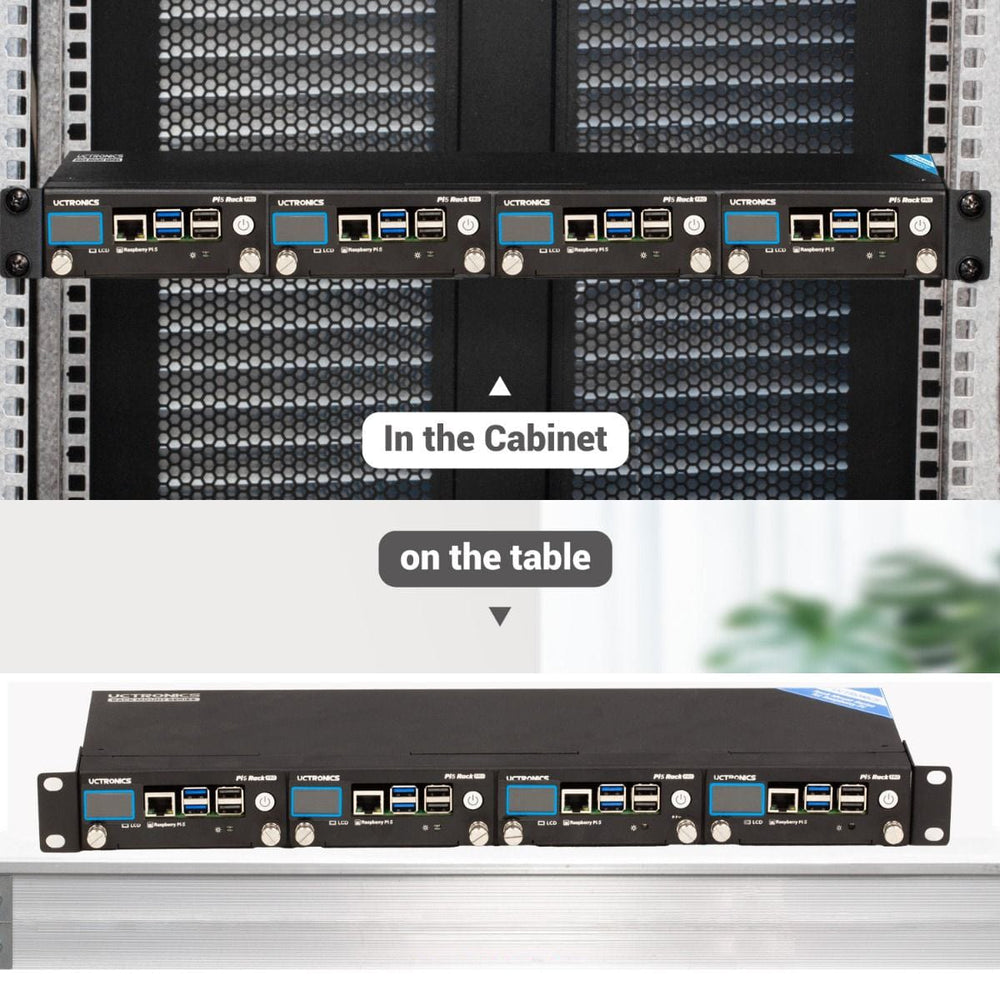

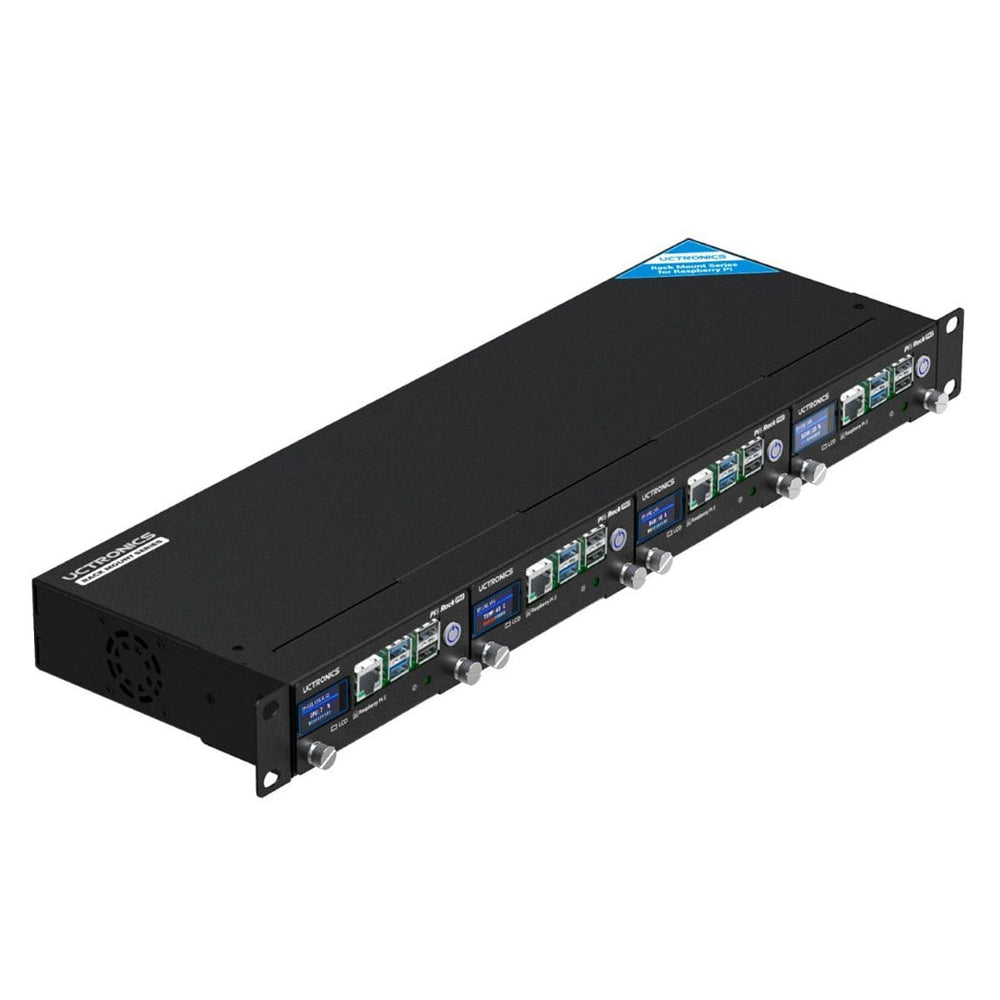

A 1U 19" enclosed rackmount solution designed to house up to four Raspberry Pi 5 boards with M.2 NVMe SSDs. This setup makes it easy to build a compact NAS, cluster, or lab server using the Raspberry Pi’s native PCIe interface.
Each slot includes a pre-installed power button and 0.96" colour LCD display for monitoring system status. The display shows live information such as CPU usage, temperature, RAM and disk usage, and IP address. The power button supports safe software-based shutdown and startup (with appropriate configuration).

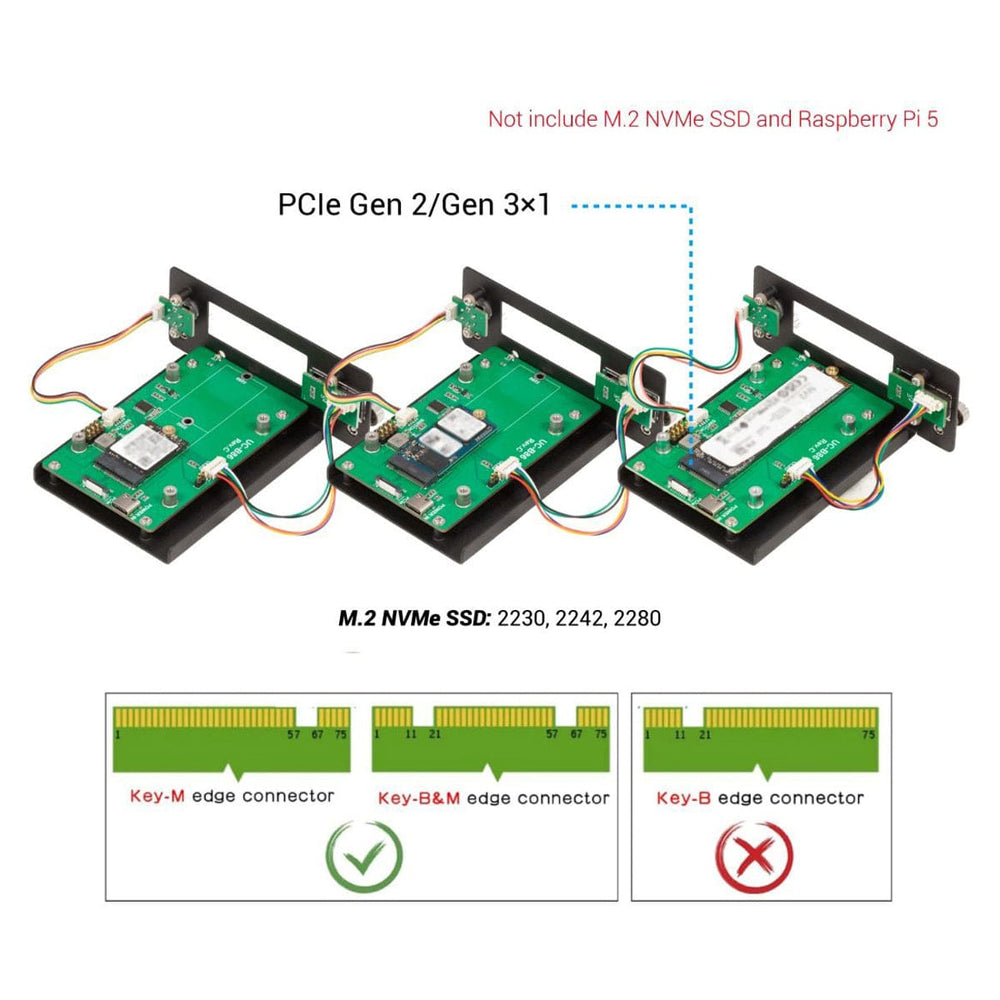

The NVMe HATs mount underneath each Pi, keeping the GPIO pins free for add-ons such as Active Coolers or HATs. Each drive slot supports M.2 NVMe SSDs in 2230, 2242, or 2280 sizes via a PCIe x1 interface.
Raspberry Pi boards and SSDs not included.
Features
19" 1U rackmount design for up to four Raspberry Pi 5 boards and four NVMe SSDs (not included)
Uses the Raspberry Pi 5’s native PCIe interface via FFC connection
Supports M.2 NVMe SSDs (M-key) in sizes 2230, 2242, and 2280
PCIe Gen2 and Gen3 support via x1 link
Pre-installed power button for safe software-controlled shutdown/startup
0.96" colour LCD screen displays live stats and IP address
LED indicators show NVMe drive activity
NVMe HAT mounts under the Pi to preserve access to GPIO
Powered via USB-C (from Pi or NVMe base), complies with 3.3V/3A M.2 power spec
