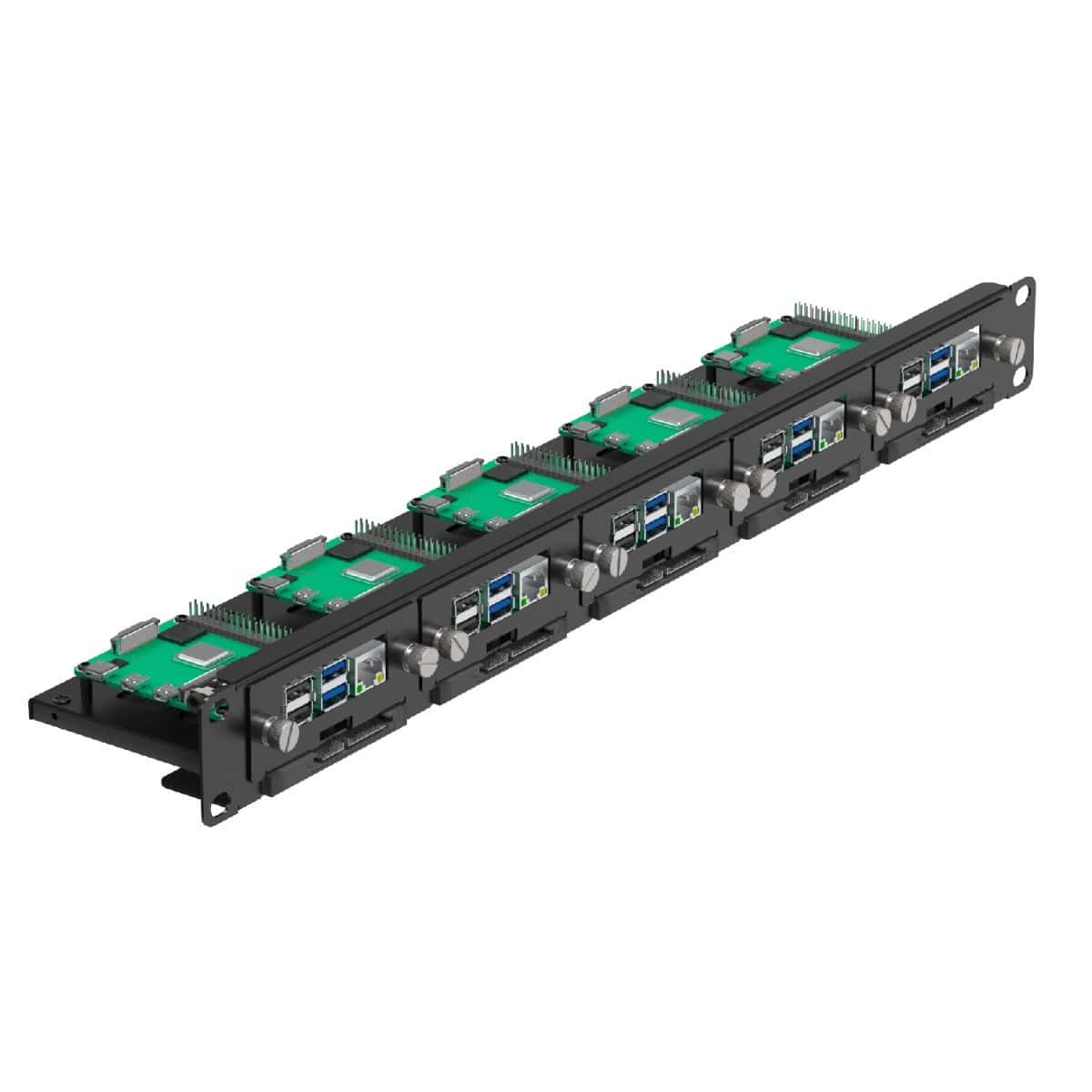

The Uctronics 1U Rack Mount is designed to house fiveRaspberry Pi boards and five2.5” SSDs (7mm thickness).

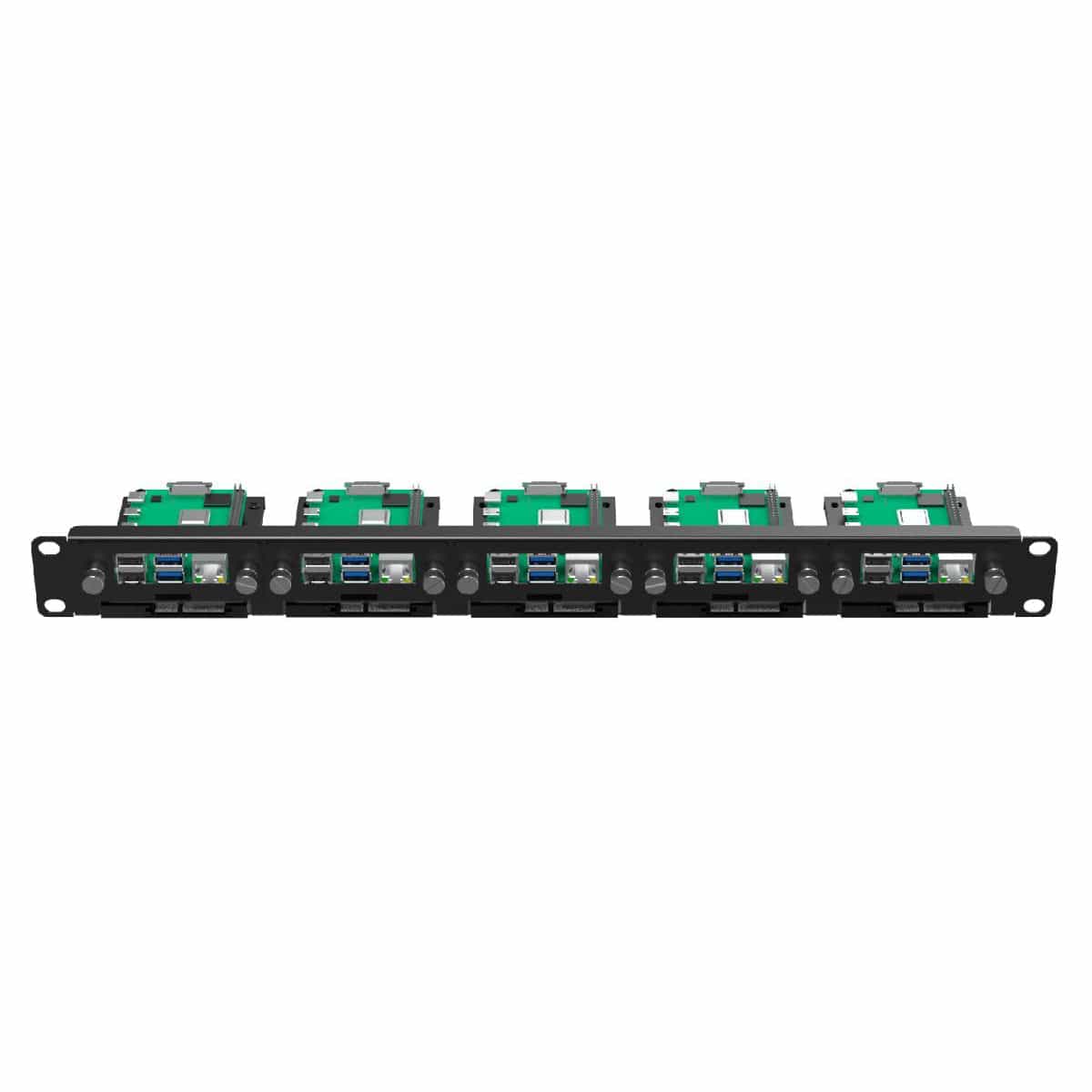

Your boards and SSDs are mounted in the 19" standard 1U rack, which provides a hardware solution to optimise your workspace for a Raspberry Pi cluster, home media server, home automation system and many more projects!

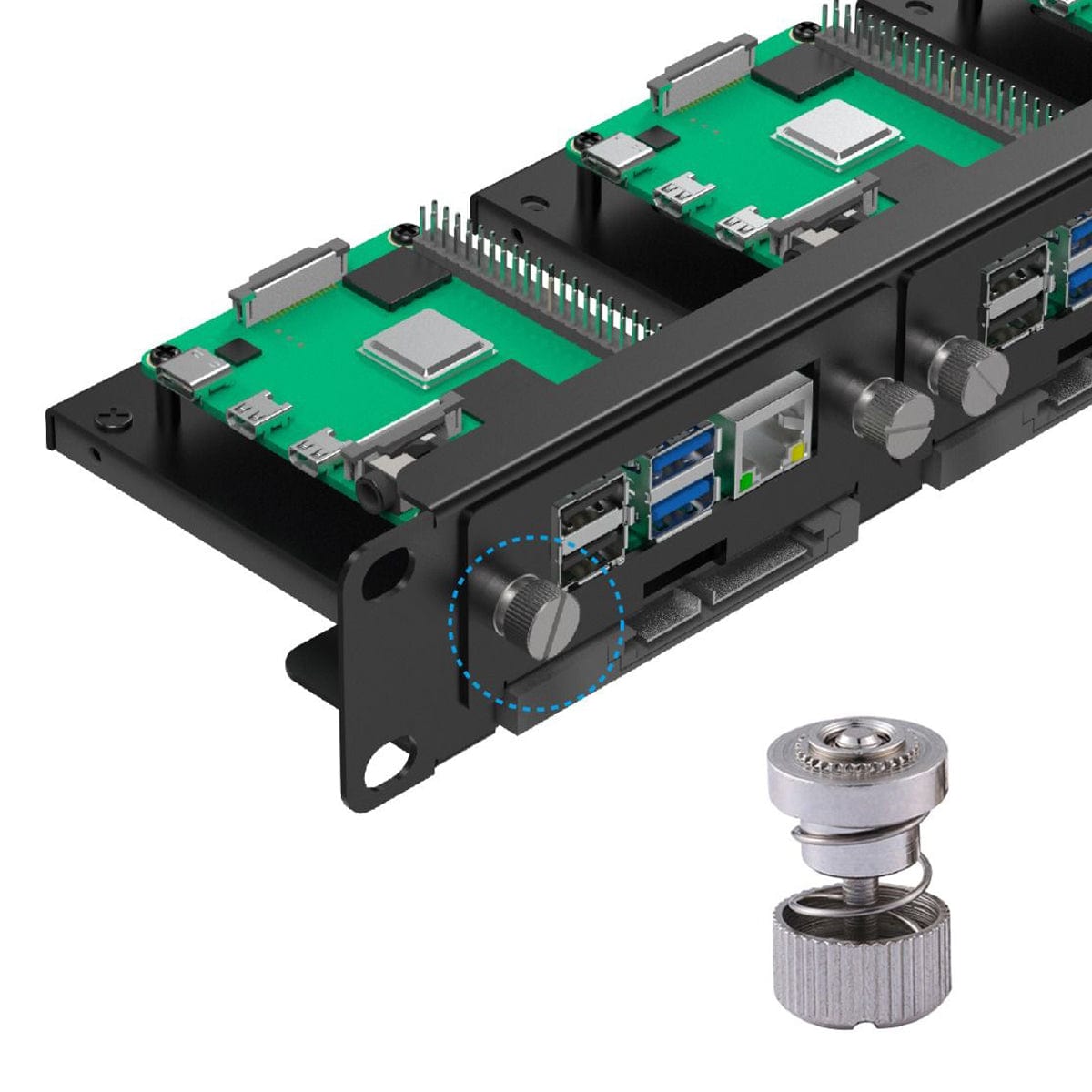

With 10 thumbscrews, each Raspberry Pi can be removed from the front without taking everything apart for maintenance. House up to five SSDs (you will need SSD USB adapter cables to connect them to your Raspberry Pis).
The rack is made of 1.2mm carbon steel with a matte black powder-coated finish (plate corners are rounded off smooth).
Raspberry Pi boards, SSDs and adapters are not included.
Does not work with 9mm SSDs!
Features

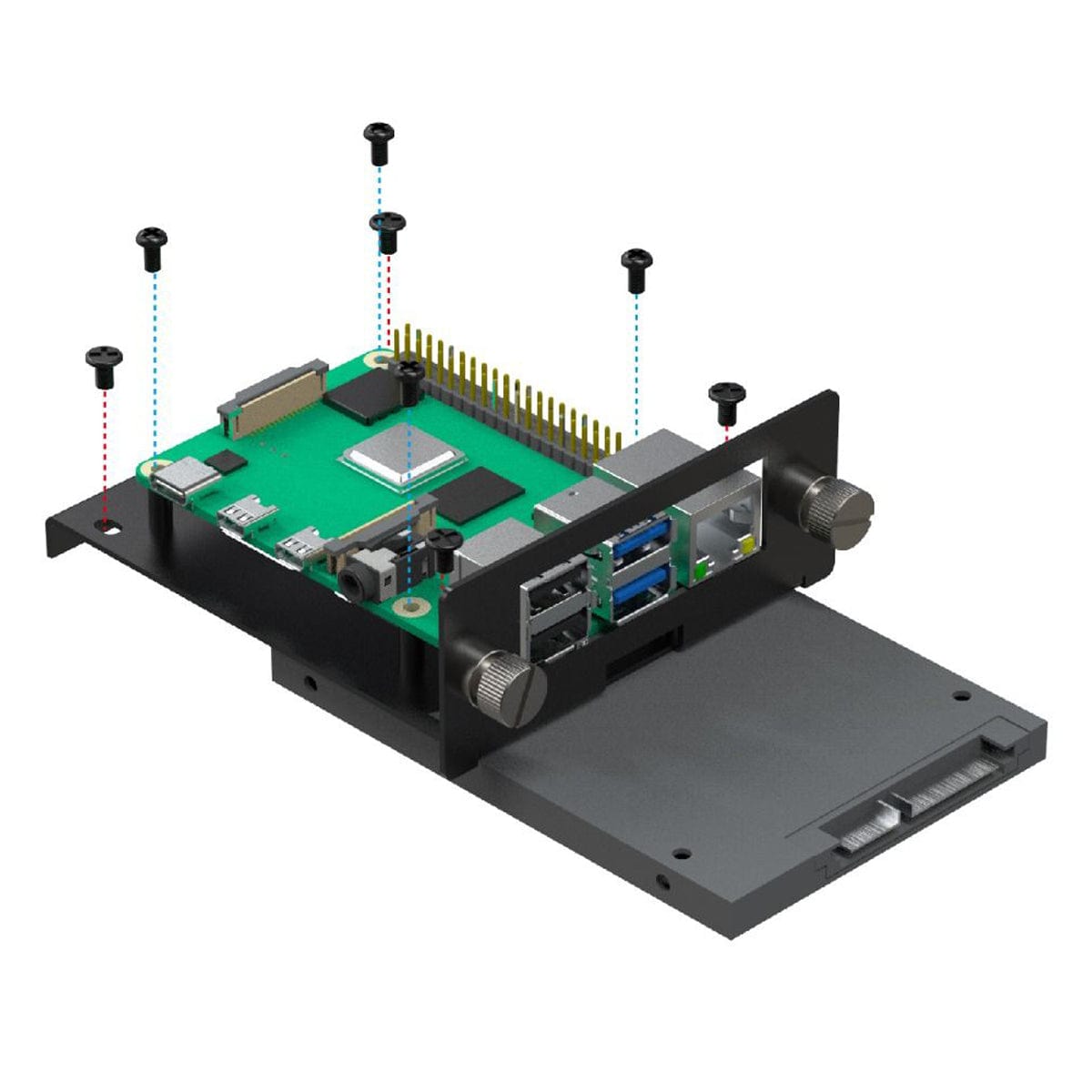

Design for Raspberry Pi: Supports installation of 5 Raspberry Pis and 5 SSDs, compatible with any 2.5” Solid State Drive (7mm only) and RPi 4B/3B+, and other B/B+ models
The SSD mounting bracket also has two holes reserved for the optional SD card extension adapter, which allows you to access the SD card from the front of the rack

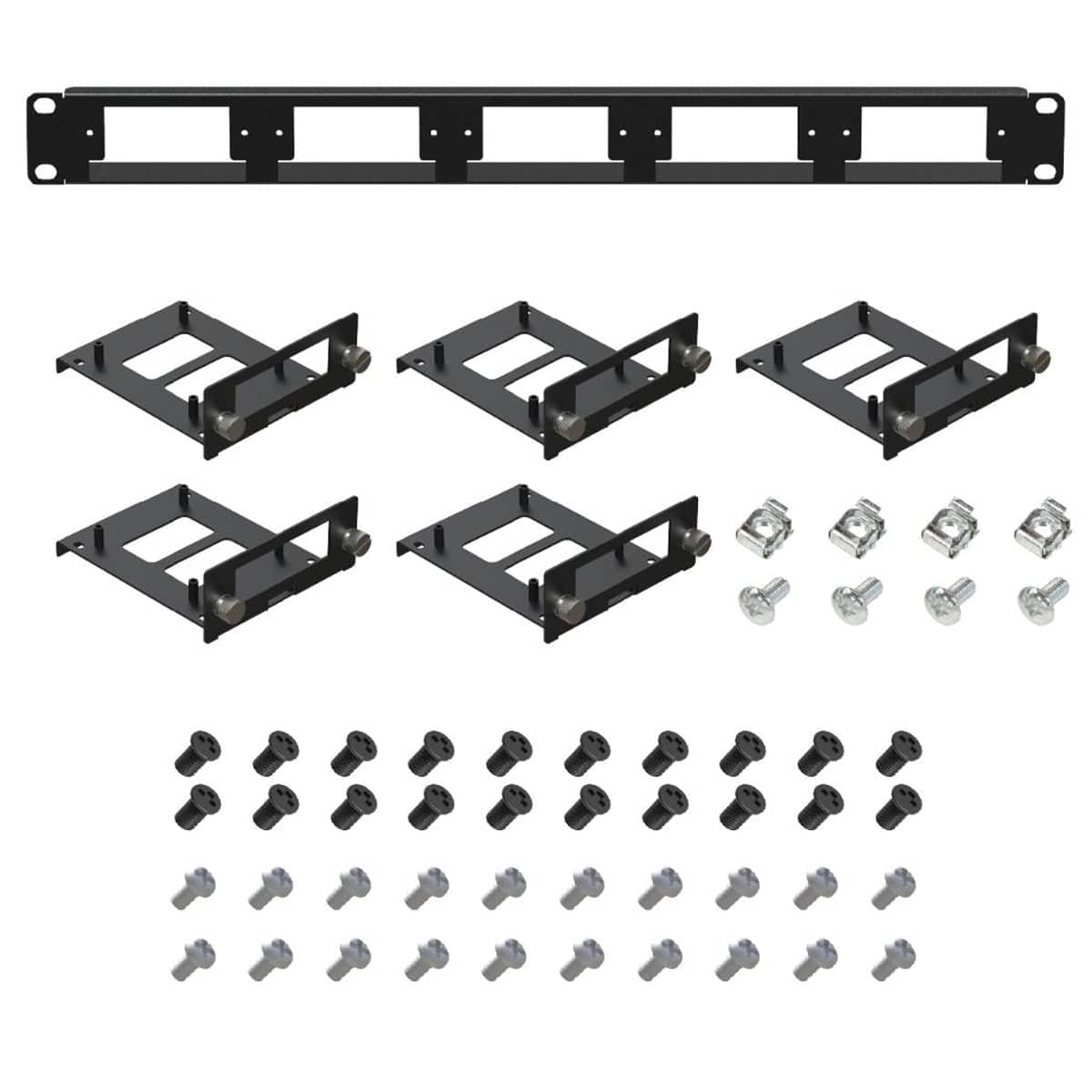

Easy to Setup: Just use two included thumbscrews to mount the rackmount, which adopts a screw-in design, which helps you install and replace quickly and easily
Applications: This is a hardware solution to get ingenious use of the Raspberry Pi, with this kit and open source software OpenMediaVault, you can use the Pi as a NAS Server, Surveillance station, or even a Web server
Optional accessories:
Micro SD card extension adapter. The Raspberry Pi bracket has an opening cut specifically for this adapter, allowing you to access the SD card from the front without having to remove the mounting plate and Raspberry Pi.
