What's the difference between all these Pis?

With the release of yet another Raspberry Pi, we though it would be nice to show you they key difference between them all.

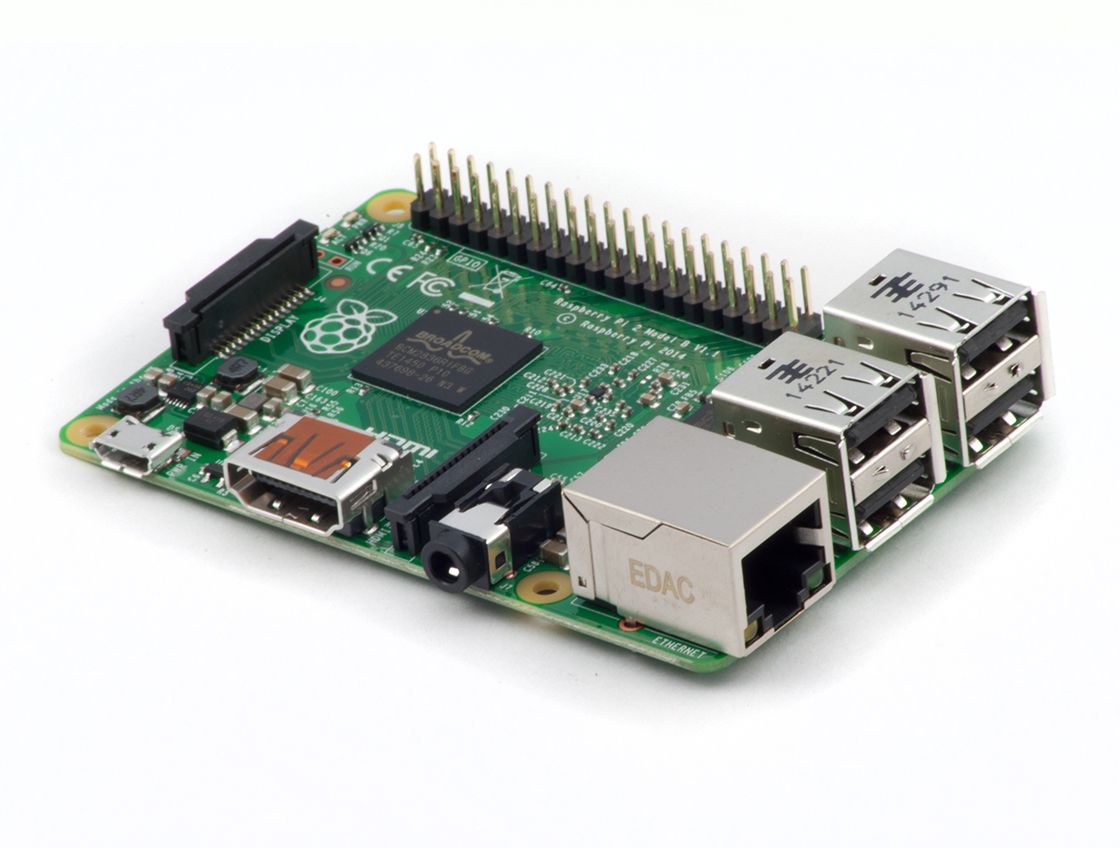

Raspberry Pi 2
Model B

Raspberry Pi
Model B+

Raspberry Pi
Model A+

Raspberry Pi
Model B

Raspberry Pi
Model A

Processor Chipset

Broadcom BCM2836 ARMv7 Quad Core Processor powered Single Board Computer running at 900 MHz

Broadcom BCM2835 ARMv6 SoC full HD multimedia applications processor

Broadcom BCM2835 ARMv6 SoC full HD multimedia applications processor

Broadcom BCM2835 ARMv6 SoC full HD multimedia applications processor

Broadcom BCM2835 ARMv6 SoC full HD multimedia applications processor

GPU

Videocore IV

Videocore IV

Videocore IV

Videocore IV

Videocore IV

Processor Speed

QUAD Core @900 MHz

Single Core @700 MHz

Single Core @700 MHz

Single Core @700 MHz

Single Core @700 MHz

RAM

1GB SDRAM @ 450 MHz

512 MB SDRAM @ 400 MHz

256 MB SDRAM @ 400 MHz

512 MB SDRAM @ 400 MHz

256 MB SDRAM @ 400 MHz

Storage

MicroSD

MicroSD

MicroSD

SDCard

SDCard

USB 2.0

4x USB Ports

4x USB Ports

1x USB Ports

2x USB Ports

1x USB Ports

Power Draw / voltage

1.8A @ 5V

1.8A @ 5V

1.8A @ 5V

1.2A @ 5V

1.2A @ 5V

GPIO

40 pin

40 pin

40 pin

26 pin

26 pin

Ethernet Port

Yes

Yes

No

Yes

No
