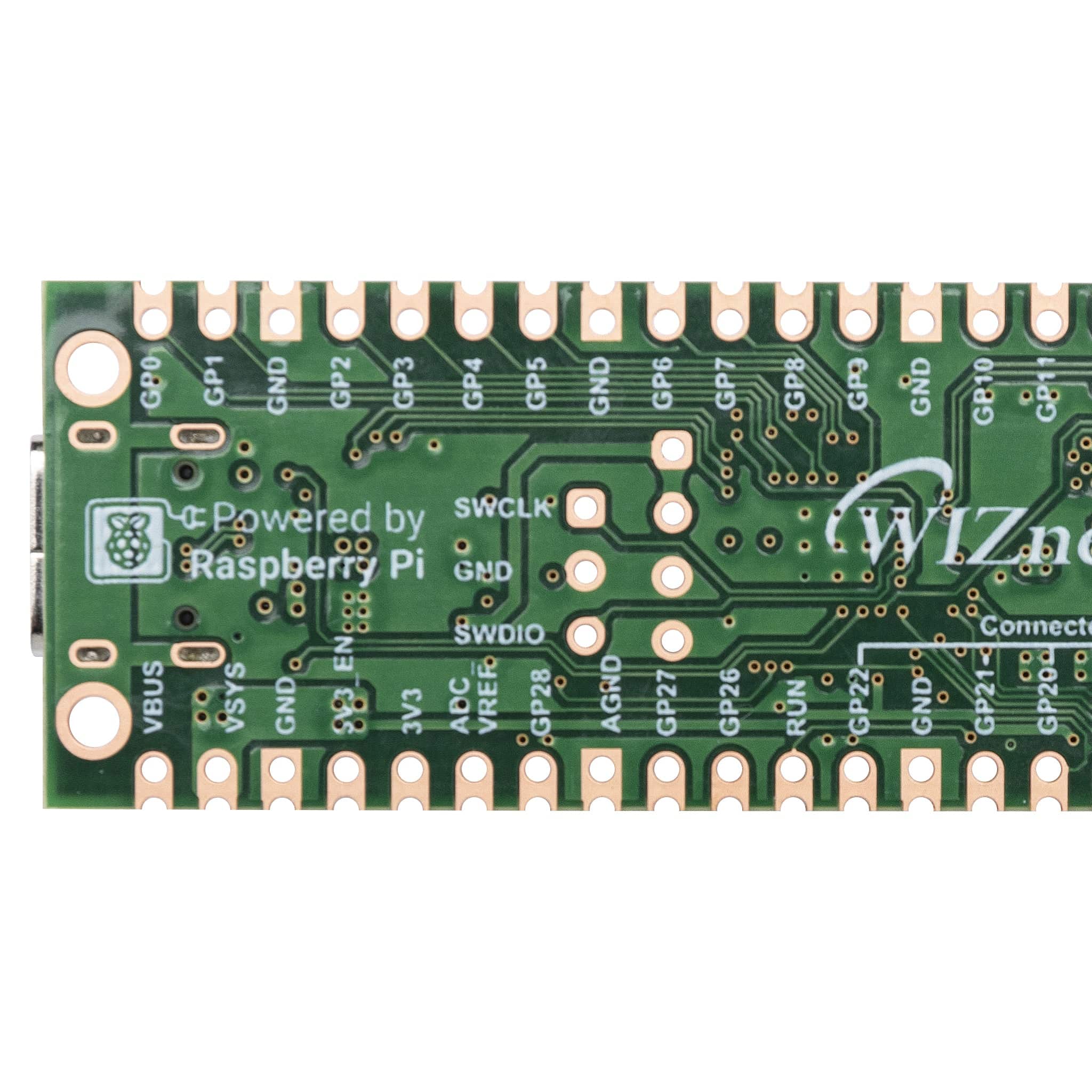

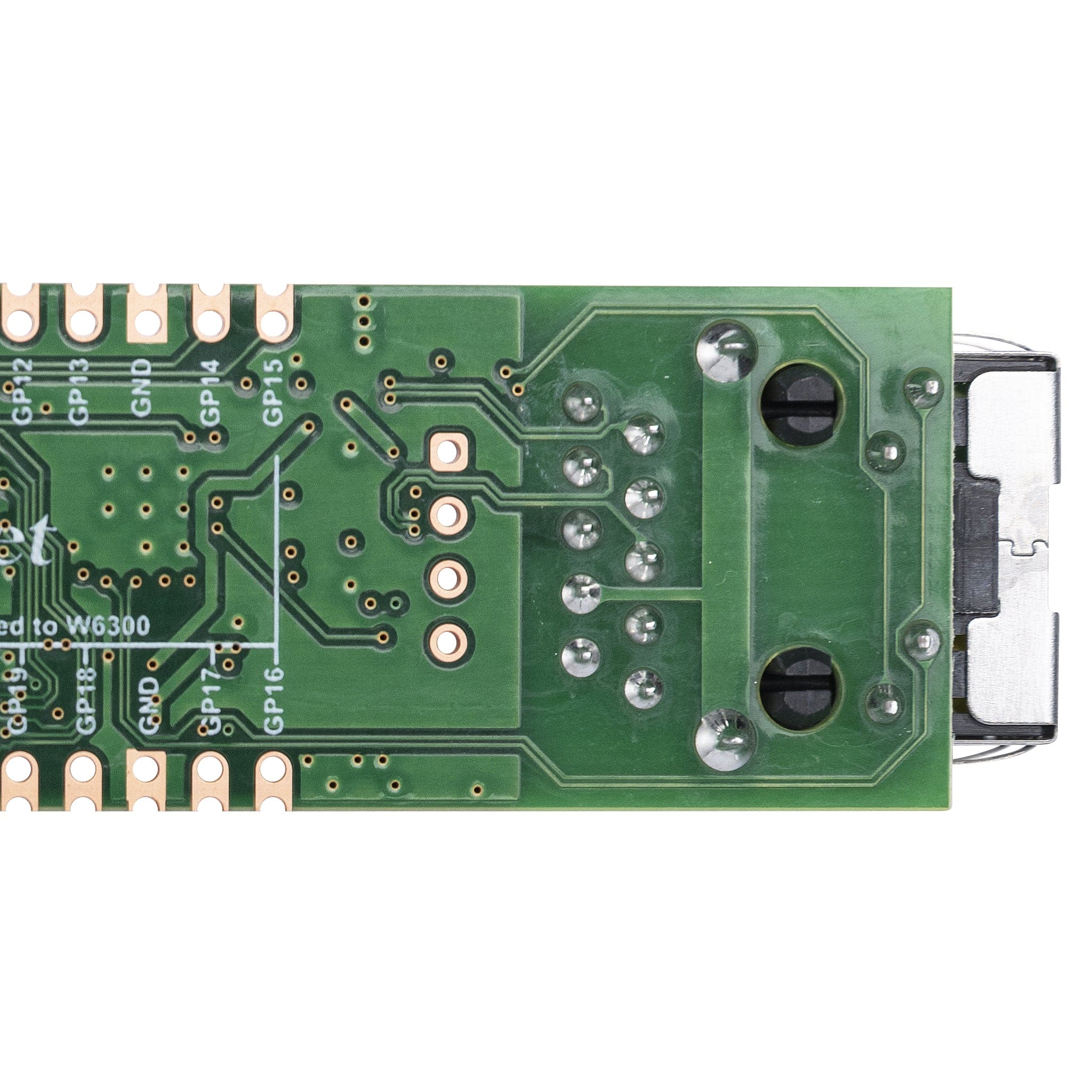

WIZnet W6300-EVB-Pico2

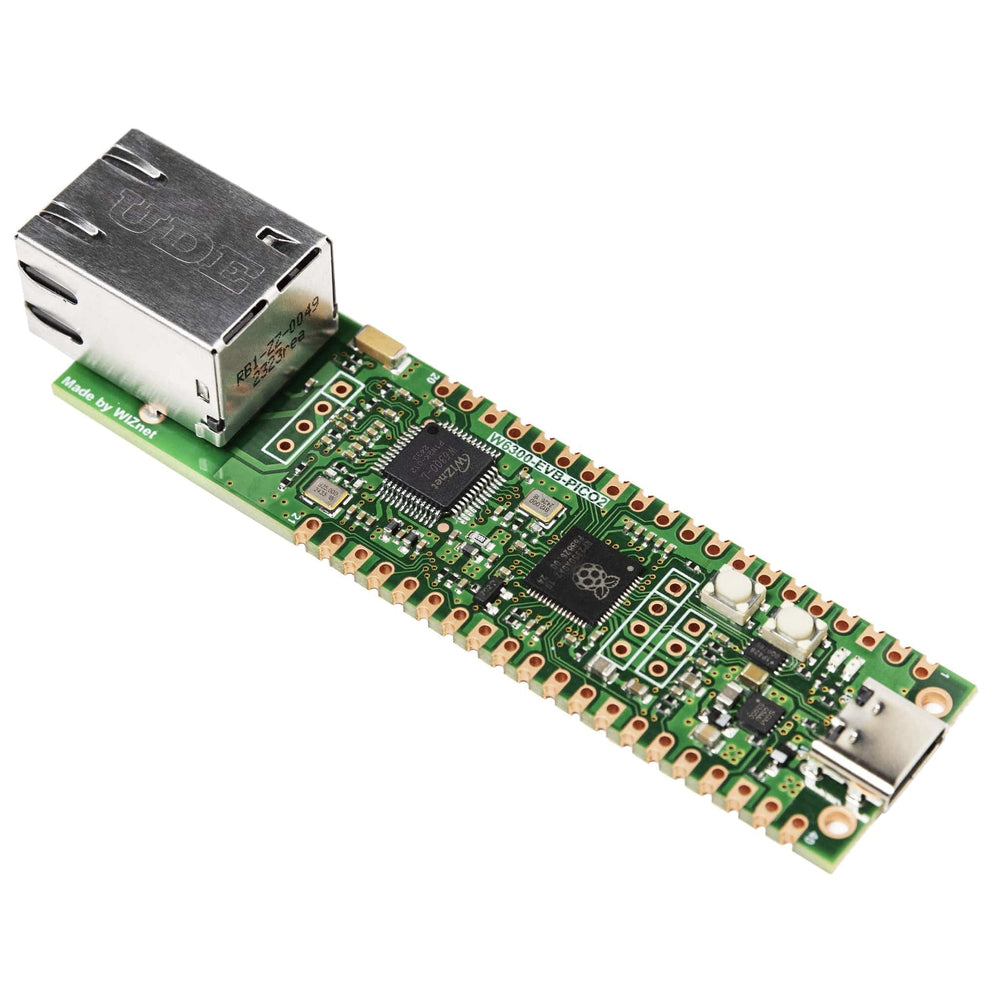

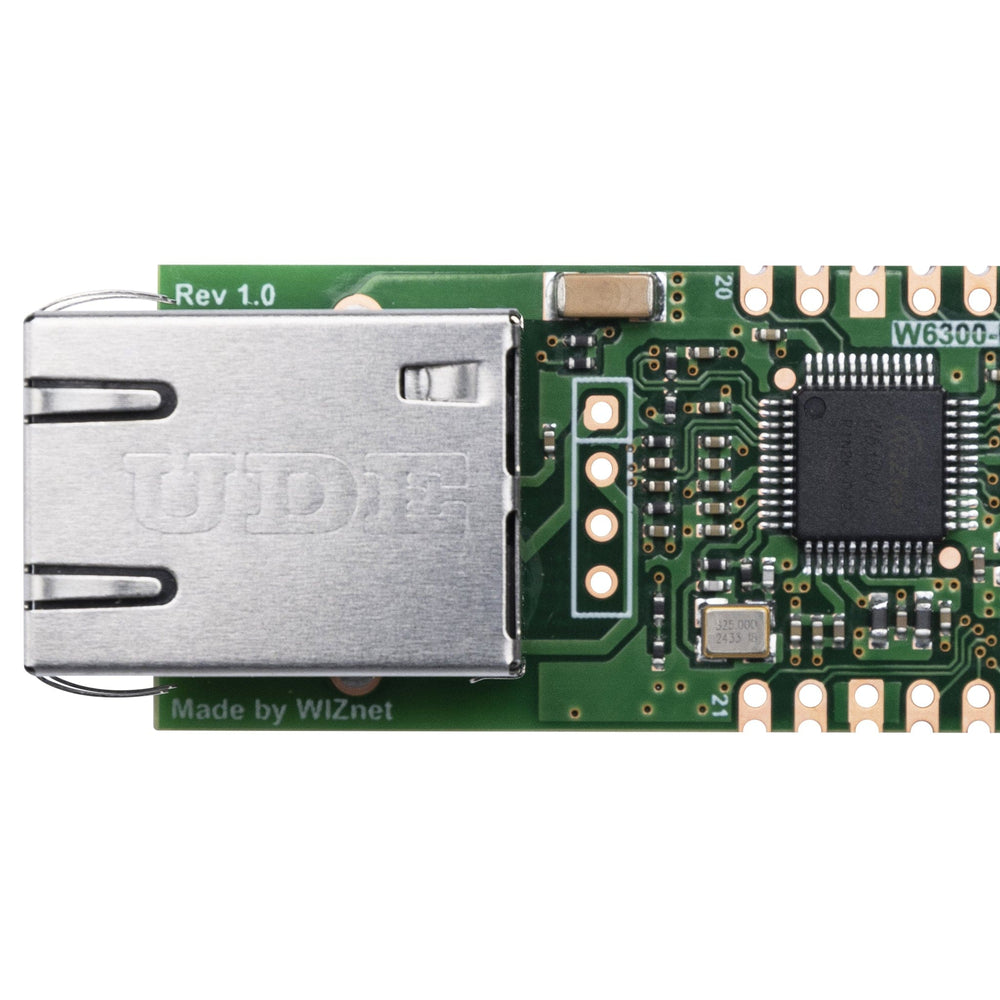

The WIZnet W6300‑EVB‑Pico2 is an RP2350-based, Pico 2–compatible development board featuring the WIZnet W6300 hardwired TCP/IP Ethernet controller - it essentially works the same as Raspberry Pi Pico 2 board, but with USB-C and the addition of Ethernet via a W6300 chip and Ethernet port.

The W6300 supports hardwired Internet protocols such as TCP, UDP, IPv6/IPv4, ICMPv6/ICMPv4, IGMP, MLDv1, ARP and PPPoE, offering eight independent simultaneous sockets with 64KB memory, 32KB of internal TX/RX buffer memory, and an SPI interface.

The W6300‑EVB‑Pico2 also has an AWS IoT Core Qualification! See the entry on the AWS website here, or head over to the getting started guide for AWS IoT Core here.

We also offer an RP2040-based version in the store, along with the rest of the WIZnet range.

Features

• RP2350 microcontroller with 16MByte Flash
  • Symmetric dual Arm Cortex-M33 cores at up to 150MHz
  • 520kByte multi-bank high performance SRAM
  • External Quad-SPI Flash with eXecute In Place (XIP) capabilities
  • Enhanced performance full-crossbar bus fabric
  • Up to 48 multi-function General Purpose IO (8 can be used for ADC on RP2350-B)
    • 1.8-5.0V IO Voltage
  • One Time Programmable (OTP) Memory: Used for boot configuration and secure key storage.
  • Secure Boot: Ensures that only authenticated software can run on the device, utilizing OTP for key verification.
  • Arm TrustZone Technology: Provides hardware isolation between secure and non-secure software, enhancing security for critical applications.
  • 12-bit 500ksps Analogue to Digital Converter (ADC)
  • 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM channels
  • 1 × Timer with 4 alarms, 1 × Real Time Counter
  • 3 × Programmable IO (PIO) blocks, 12 state machines total
  • Flexible, user-programmable high-speed IO
  • Can emulate interfaces such as SD Card and VGA
• W6300 Ethernet Controller
  • Support Hardwired TCP/IP Protocols : TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
  • Support IPv4/IPv6 Dual Stack
  • Support 8 independent SOCKETs simultaneously with 64KB Memory
  • Support SOCKET-less Command: ARP, PING, ICMPv6(PING, ARP,DAD,NA,RS) Command for IPv6 Auto-configuration& Network Monitoring
  • Support Ethernet Power Down Mode & System Clock Switching for power save
  • Support Wake on LAN over UDP
  • Support Serial & Parallel Host Interface: High Speed QSPI(MODE 0/3), System Bus with 2 Address signal & 8bit Data
  • Internal 32Kbytes Memory for TX/ RX Buffers(total 64Kbytes Memory)
  • 10BaseT / 10BaseTe / 100BaseTX Ethernet PHY Integrated
  • Support Auto Negotiation (Full and half duplex, 10 and 100-based )
  • Support Auto-MDIX only on Auto-Negotiation Mode
  • Not support IP Fragmentation
  • 3V operation with 5V I/O signal tolerance
  • Network Indicator LEDs (Full/Half Duplex, Link, 10/100 Speed, Active)
  • 48 Pin LQFP & QFN Lead-Free Package
• Connectivity

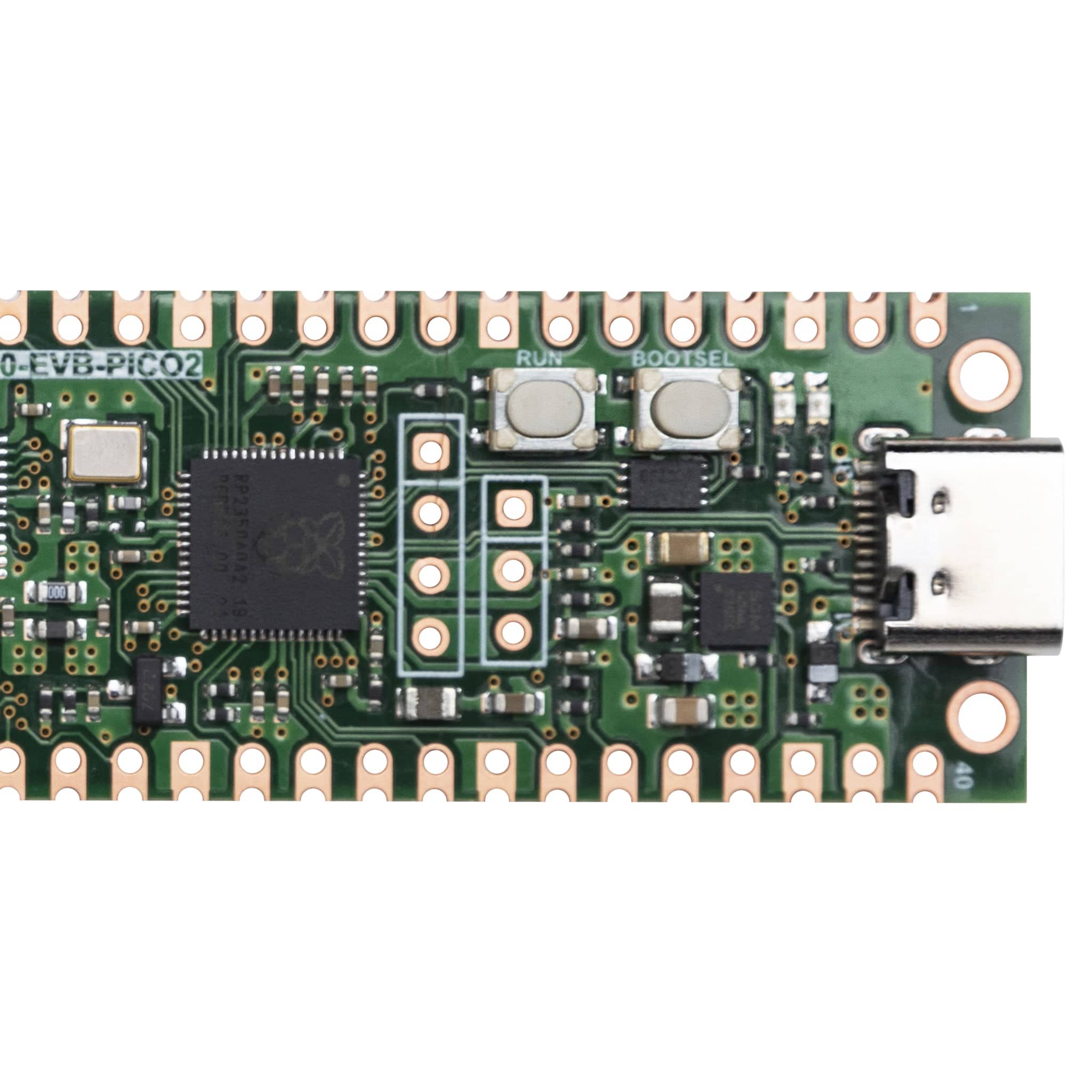

  • USB-C port for power and data (and for reprogramming the Flash)
  • 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellation
  • 3-pin ARM Serial Wire Debug (SWD) port
• Networking
  • 10 / 100 Ethernet PHY embedded
  • Supports Auto Negotiation
    • Full / Half Duplex
  • Built-in RJ45
• Power Supply
  • Built-in Switch-mode DC-DC converter (replacing LDO for enhanced power efficiency)

Resources

• Documentation
• Pinout
• Schematic
• 3D File
• Dimensions
• W6300 Datasheet

Firmware examples

• Ethernet Examples
• FreeRTOS Examples
• AWS Examples
• Azure Examples
• Chip Performance(iperf3) Examples

Package Contents

• 1x WIZnet W6300-EVB-Pico-2
