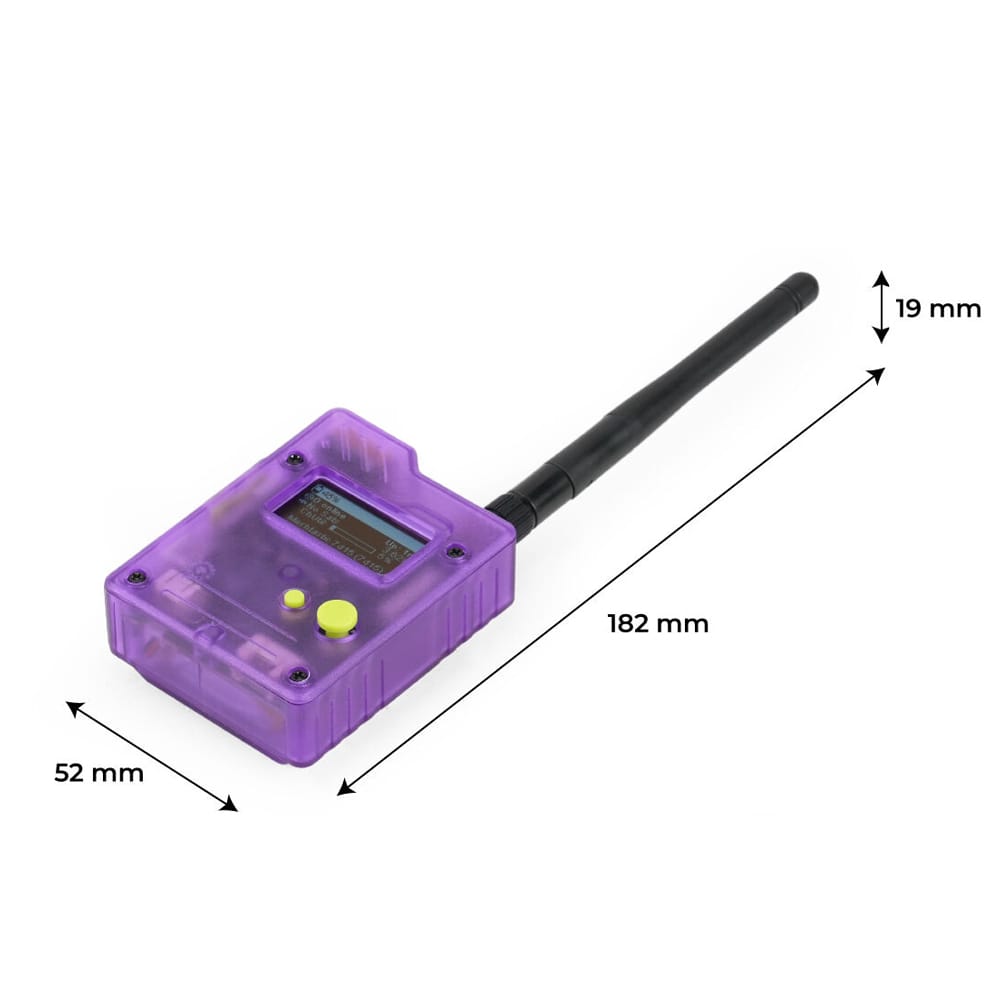

The Seeed Violet Wio Tracker L1 Pro is a ready-to-use Meshtastic device for long-range off-grid messaging and location tracking during outdoor adventures and remote projects.
The SeeedViolet Wio Tracker L1 Pro is a fully integrated Meshtastic node built for off-grid communication and outdoor tracking. It pairs a long-range LoRa radio (862 to 930 MHz) with Nordic's nRF52840 processor and an L76K GPS module, giving a reliable messaging and accurate positioning anywhere a cell signal can't reach.

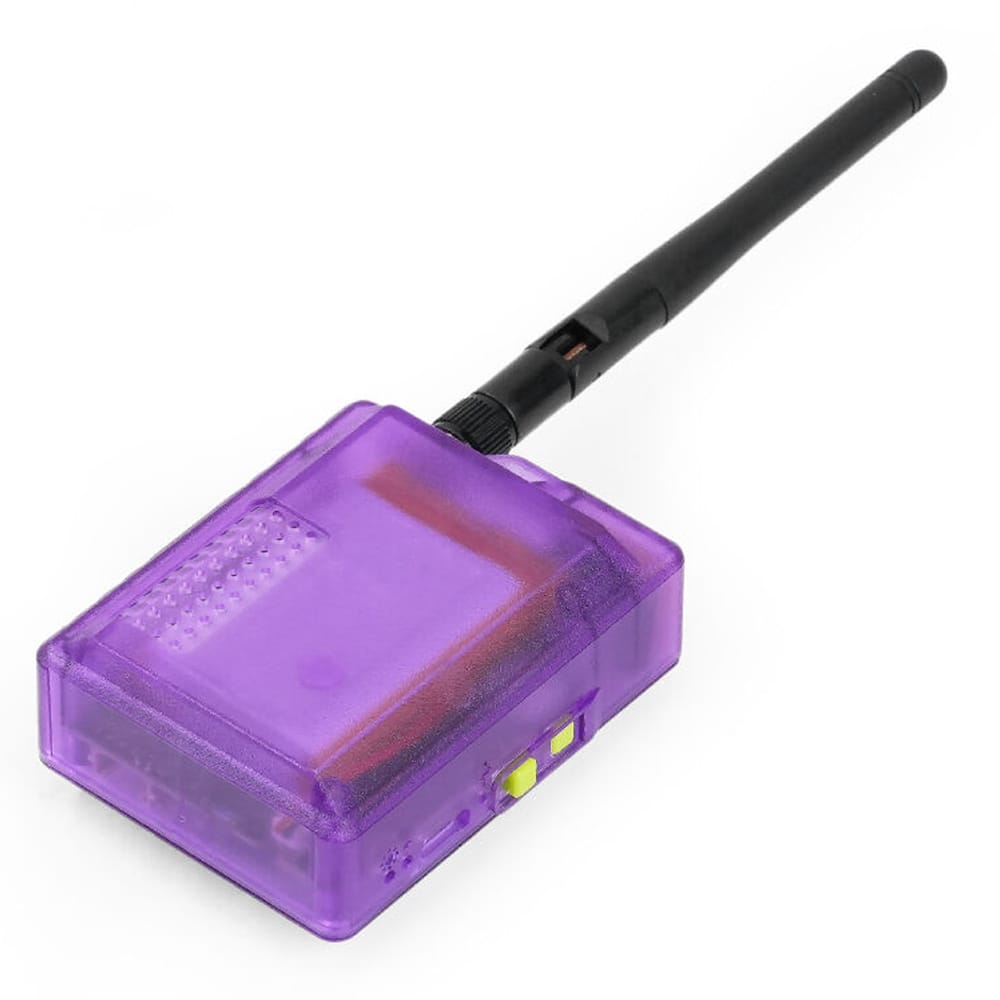

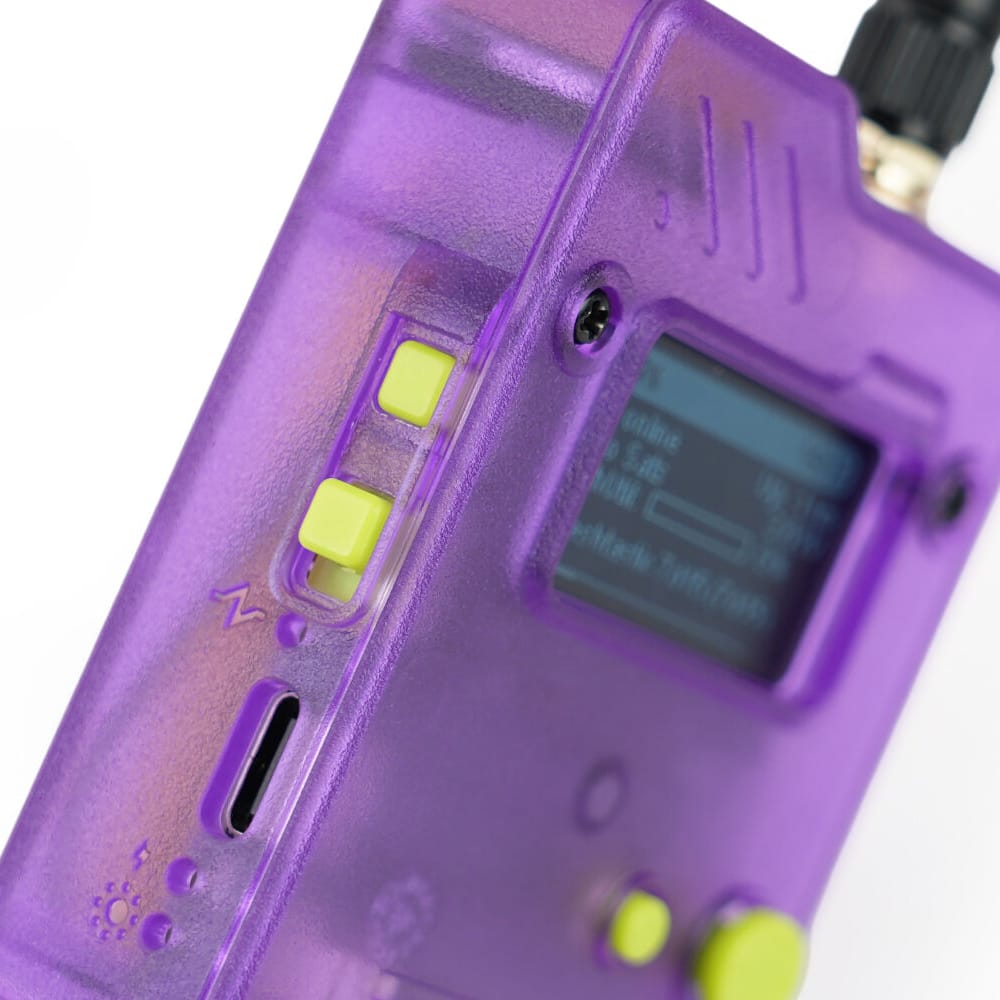

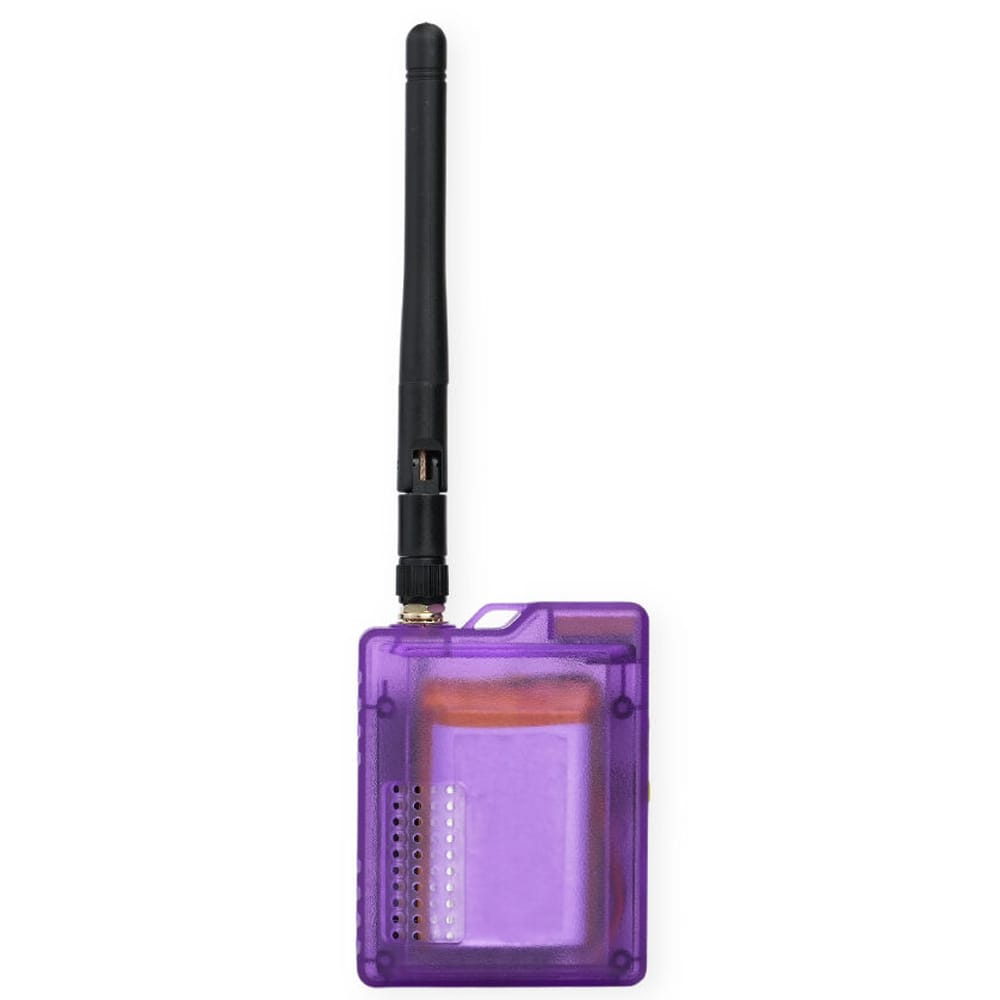

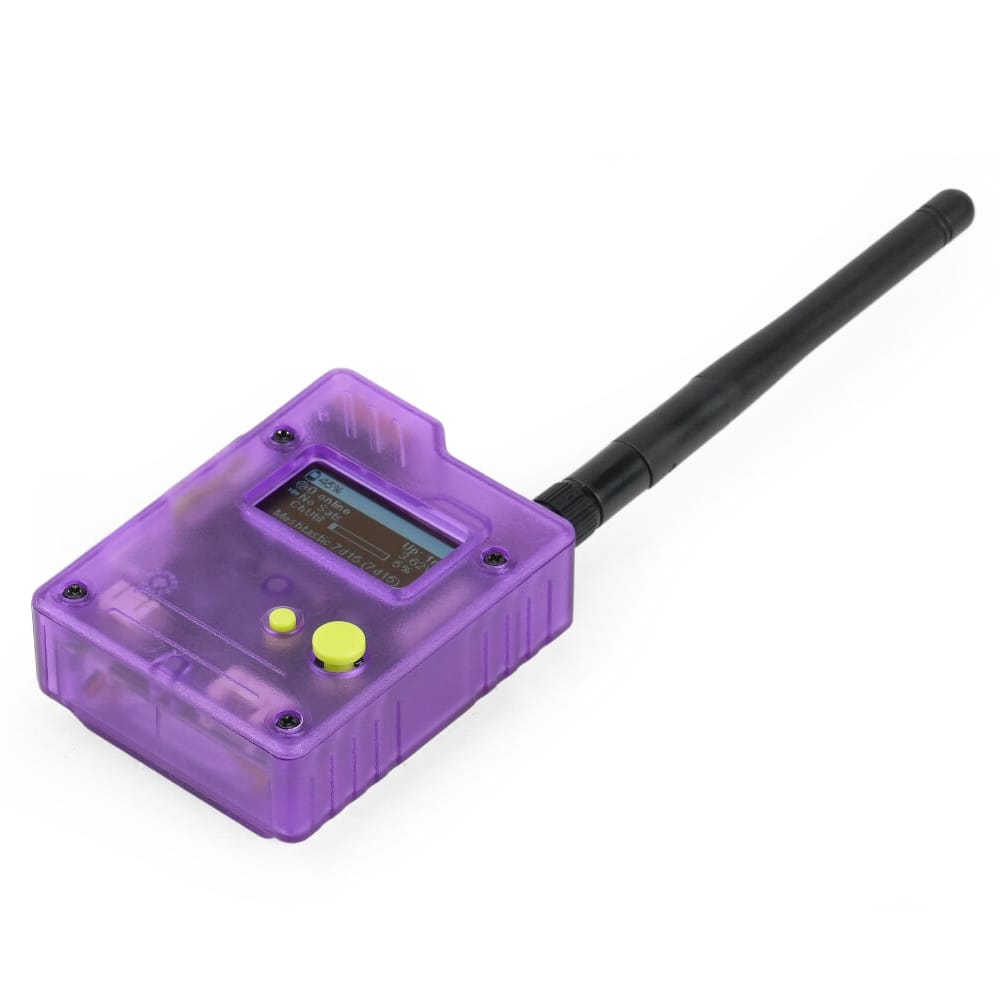

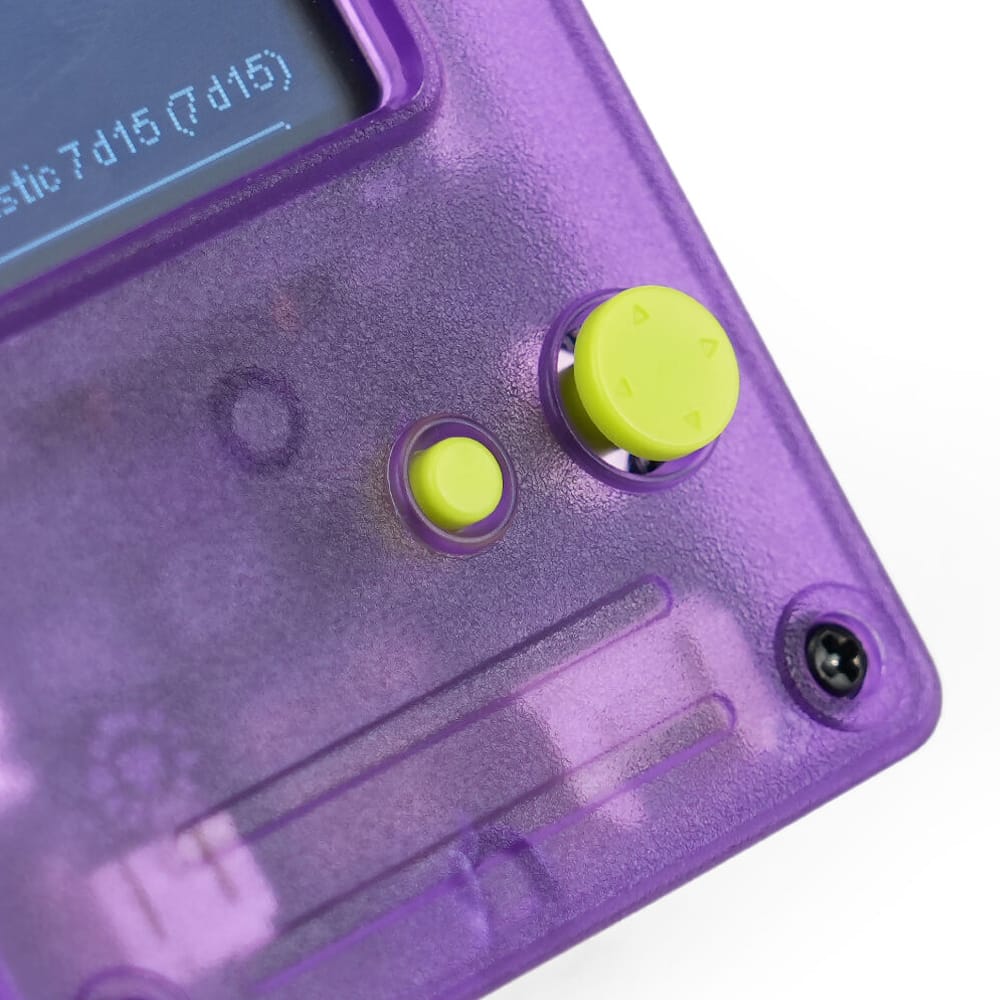

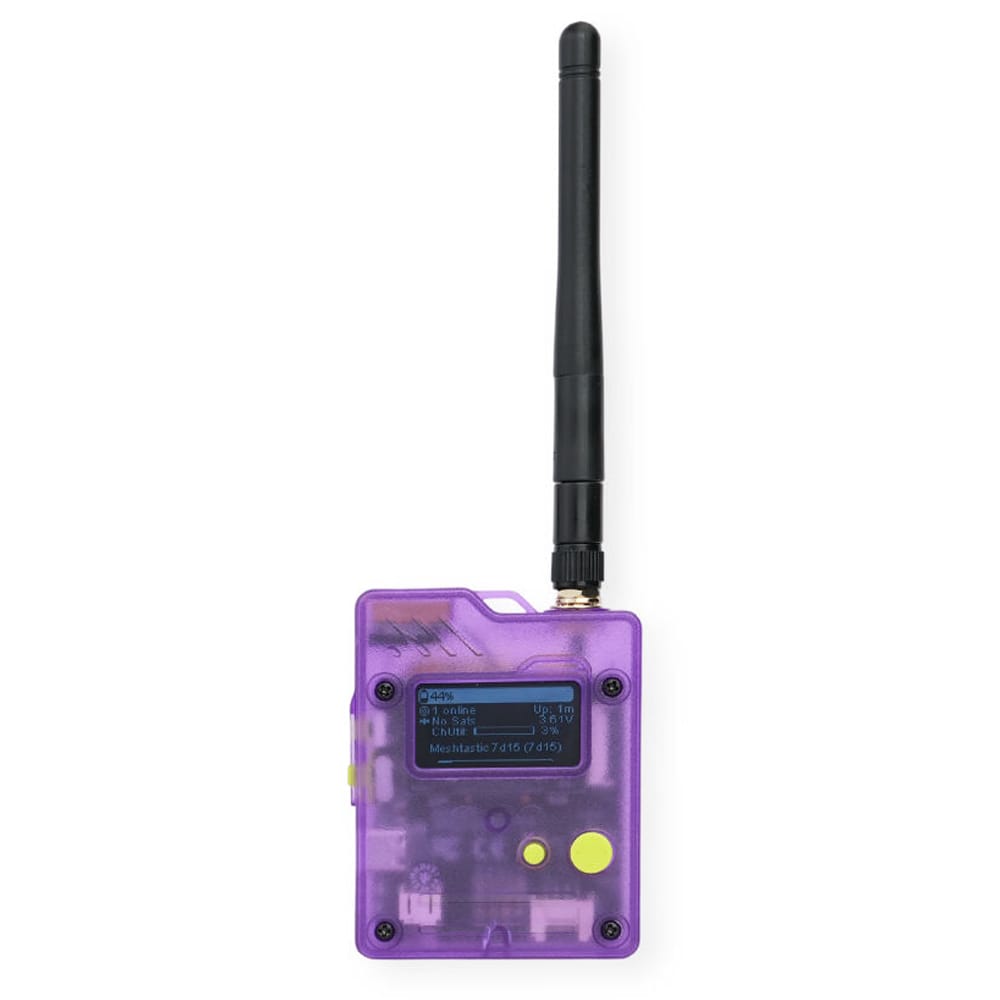

Housed in a durable PC+ABS injection-moulded enclosure and finished in a translucent violet shell, this version adds a splash of colour to the same rock-solid hardware.
It ships pre-flashed with Meshtastic firmware, so it's ready to join a mesh network straight out of the box. No soldering or manual setup required.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
Upgraded Enclosure - The Wio Tracker L1 Pro now features a PC+ABS injection-moulded enclosure, offering better durability and consistency than traditional 3D-printed nylon housings
Pre-flashed with Meshtastic firmware - Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup
Triple Power Supply Options - Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use
Fully compatible with the Grove Ecosystem (The list of supported sensors is provided below.), and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development
Specifications
Processor
Nordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz
On-chip Memory
1 MB flash and 256 kB RAM
Wireless
LoRa: Based on Wio-SX1262, supports 862-930MHz Bluetooth 5.0
GPS
L76K(GPS,BeiDou,GLONASS,QZSS)
OLED Display
Size: 1.3 inch Resolution: 128*64 pixels* *Active Area(mm): L34.5*W23.0*H1.47
Power
Type-C: 5v---1A Solar energy interface(2.0mm 2p):5V---1A Battery interface(1.0mm 2p JST): 3.7v---1A
