USB Module with MAX3421E v1.2

M5StackSKU: M020-V12
£11.80
incl. VAT
excl. VAT
Only 10 units left

Awesome Extras

M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi HutM5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut
M5StackM5Stack CoreS3 ESP32S3 loT Development Kit
£57.90 incl. VAT excl. VAT
ESP32 Basic Core loT Development Kit V2.7 - The Pi HutESP32 Basic Core loT Development Kit V2.7 - The Pi Hut
M5StackESP32 Basic Core loT Development Kit V2.7
£38.50 incl. VAT excl. VAT
Male to Male USB 3.0 Cable (Type A to A) - The Pi Hut
The Pi HutMale to Male USB 3.0 Cable (Type A to A)
From £3 incl. VAT excl. VAT
M5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm - The Pi HutM5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm - The Pi Hut
M5StackM5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm
From £2 incl. VAT excl. VAT

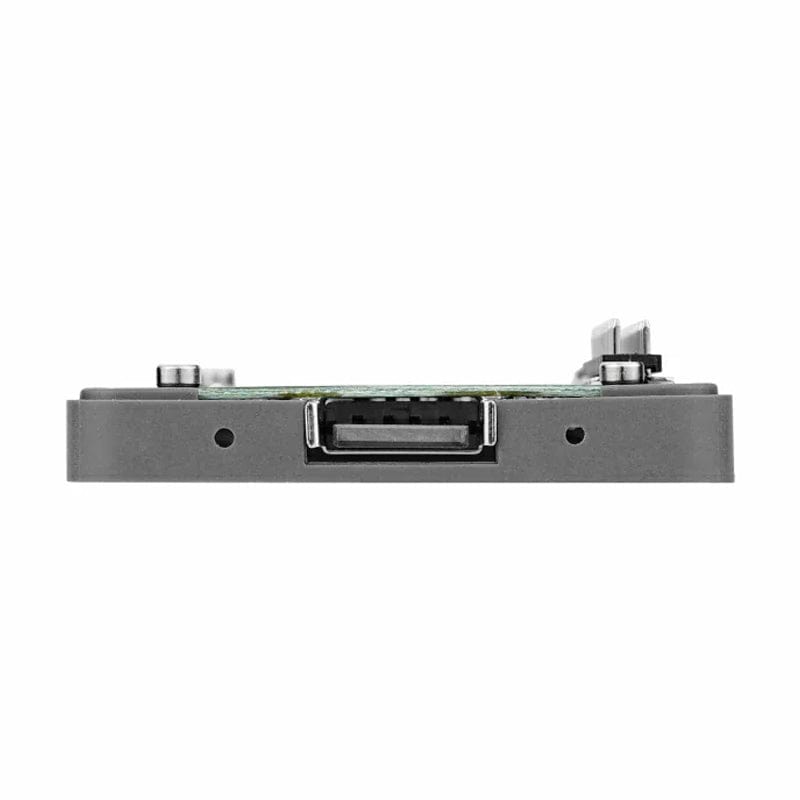

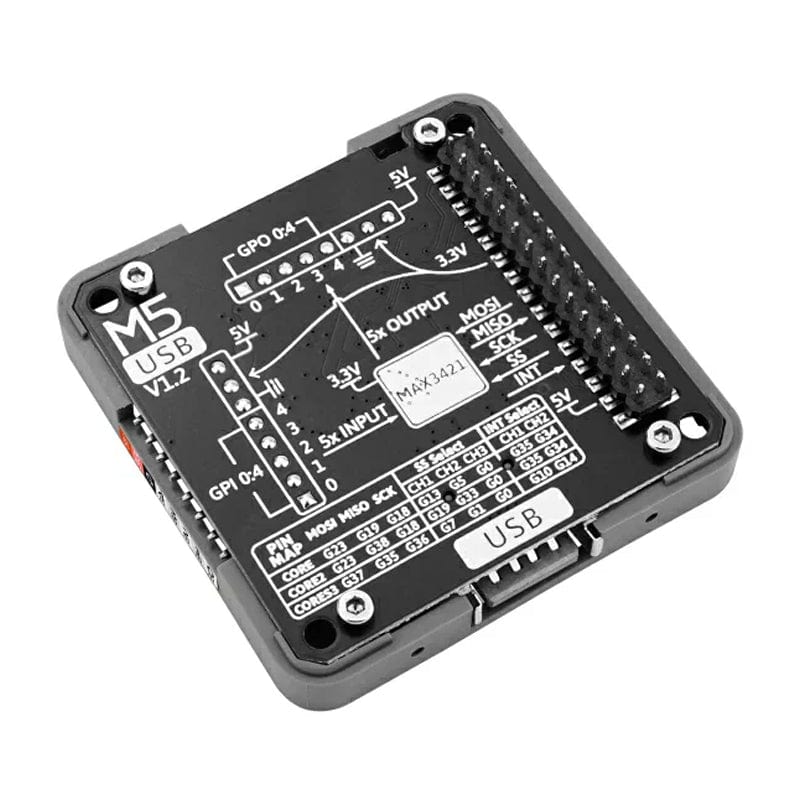

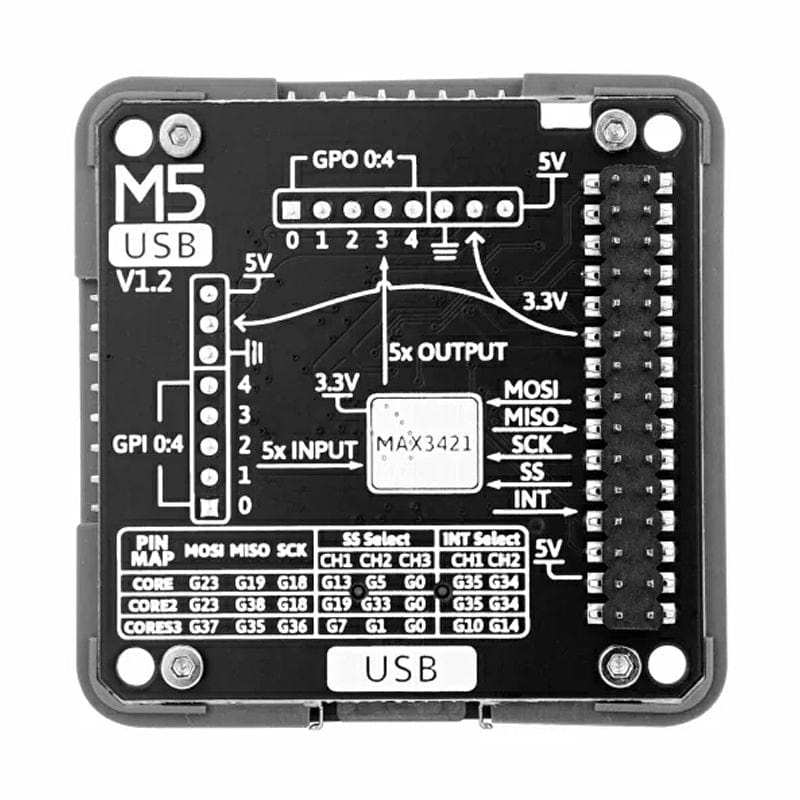

The USB v1.2 Module is a USB driver module with the MAX3421E chip. It has a standard USB interface and supports both USB host and peripheral functions, providing compatibility with a wide range of USB devices and operating systems.

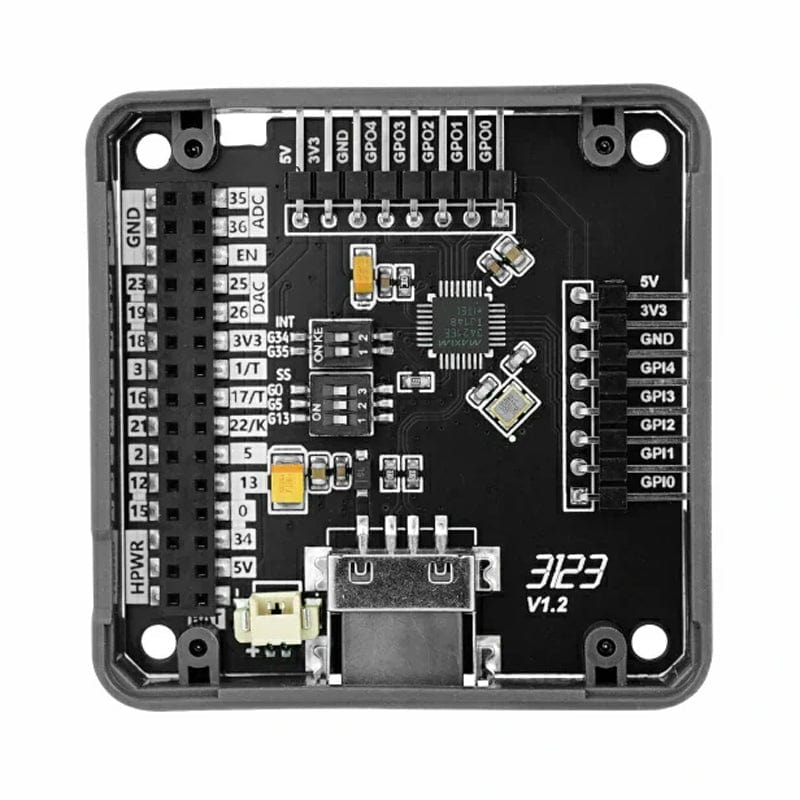

The module connects to the system via SPI communication and is equipped with two dip switches, it can adapt to different M5 series hosts and includes reserved pins for controlling or monitoring external devices. Additionally, it features a battery holder, increasing its flexibility and practicality. This module suits projects in smart homes, industrial control, consumer electronics, medical devices, and education.

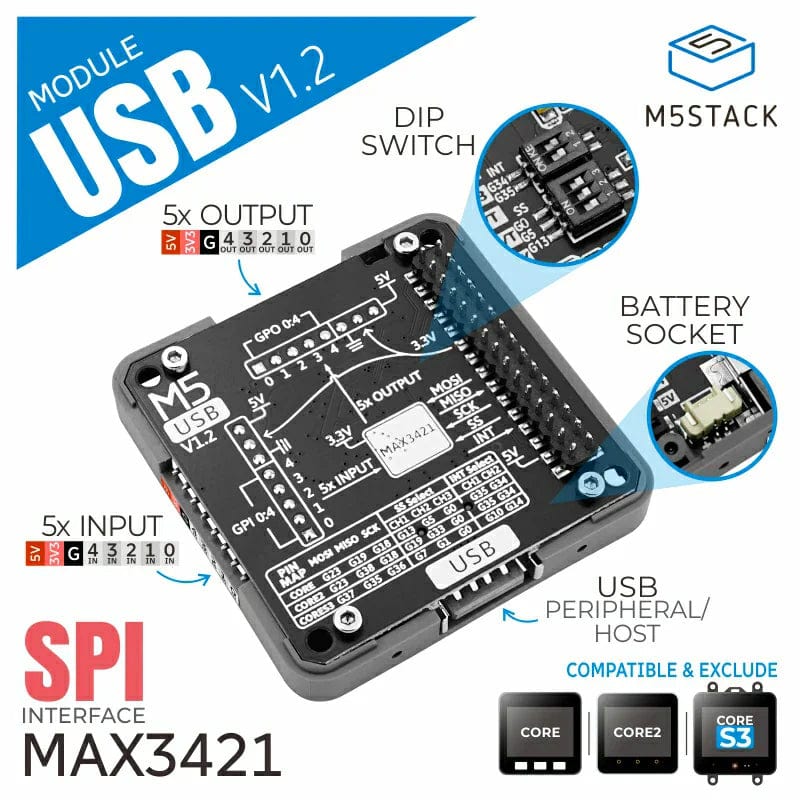

Features

  • Standard USB 2.0 interface
  • SPI communication protocol

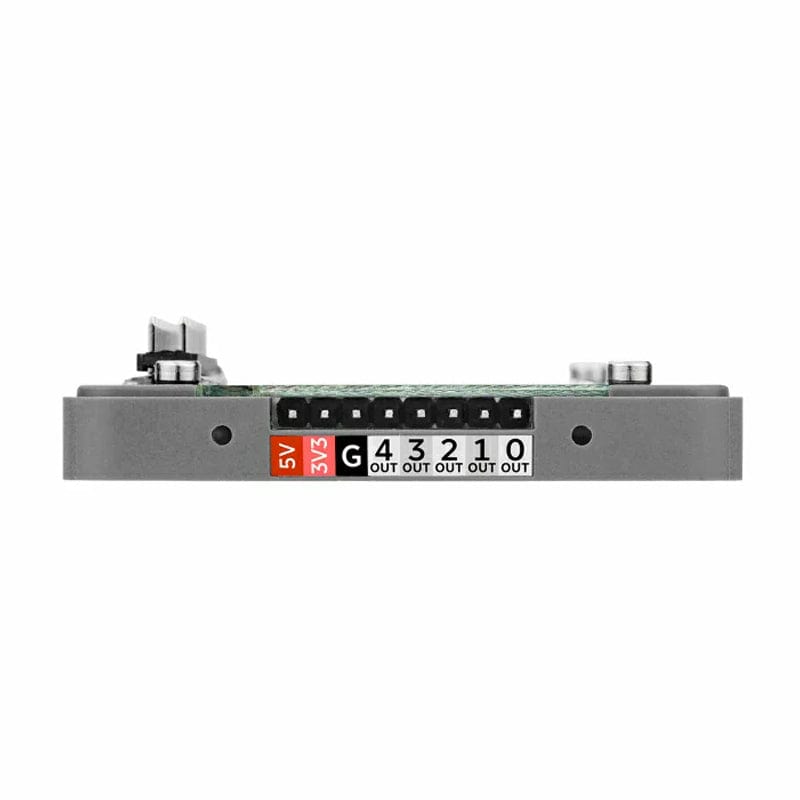

  • GPIO Pin expansion (5x input, 5x output)
  • Lithium battery seat
  • Toggle the switch to adjust different hosts

Specifications

Resources Parameters
Chip MAX3421E
Supported USB standard USB 2.0
Interface Type SPI
Operating Temperature 0-40°C
Product Size 54.2 x 54.2 x 12.8mm
Package Size 60 x 57 x 17mm
Product Weight 13g
Package Weight 25g

Package Contents

  • 1x USB v1.2 Module
