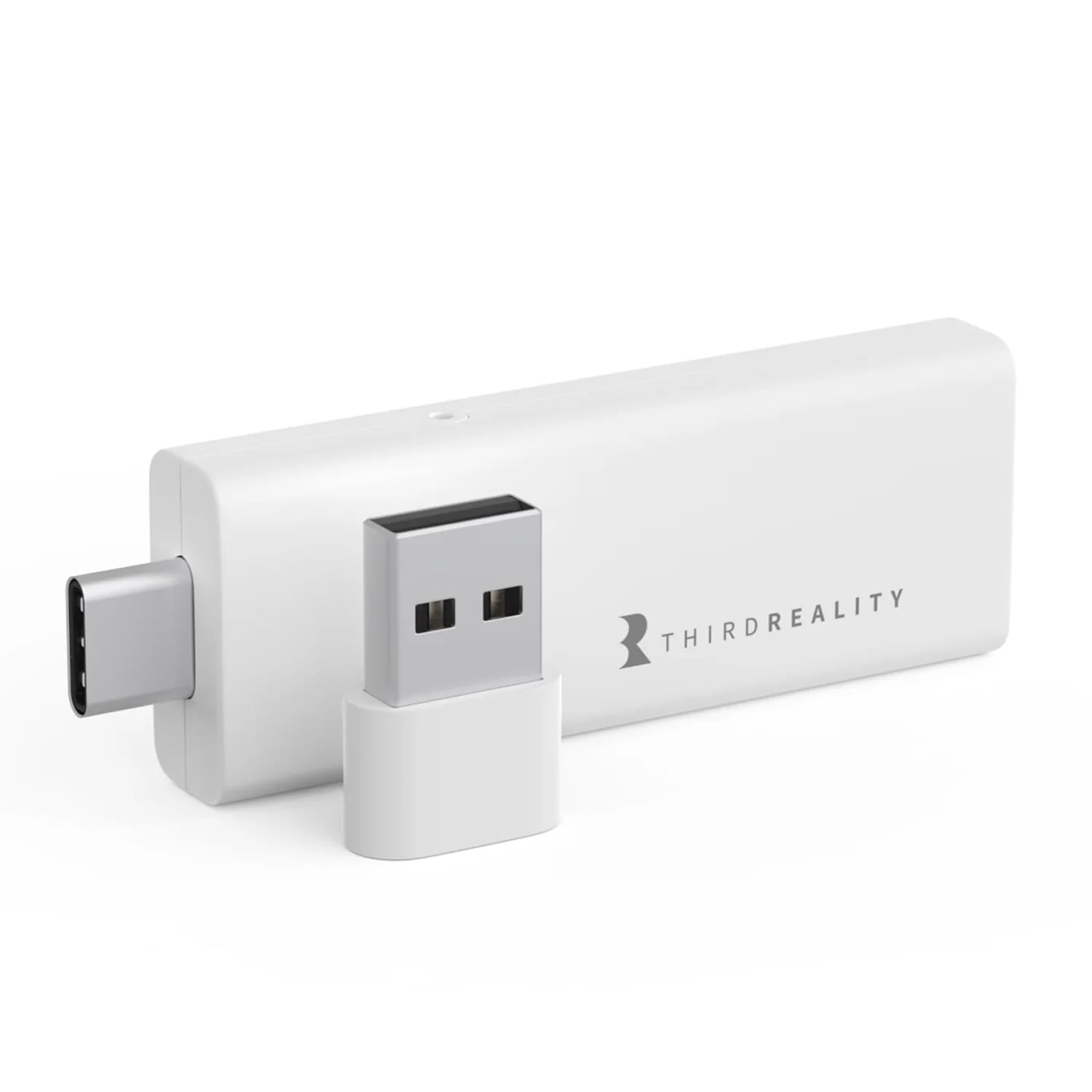

Add Zigbee functionality to your home automation host device with this USB-C/USB-A Zigbee dongle from ThirdReality.

Compatible with Home Assistant ZHA and Zigbee2MQTT, the gateway provides Zigbee 3.0 support, providing an easy solution for host devices without Zigbee built-in.

The dongle has a USB-C connection to support modern host devices with USB-C ports, but also includes a USB-A adapter to allow it to be used with other devices such as the Raspberry Pi. Software updates are also supported.

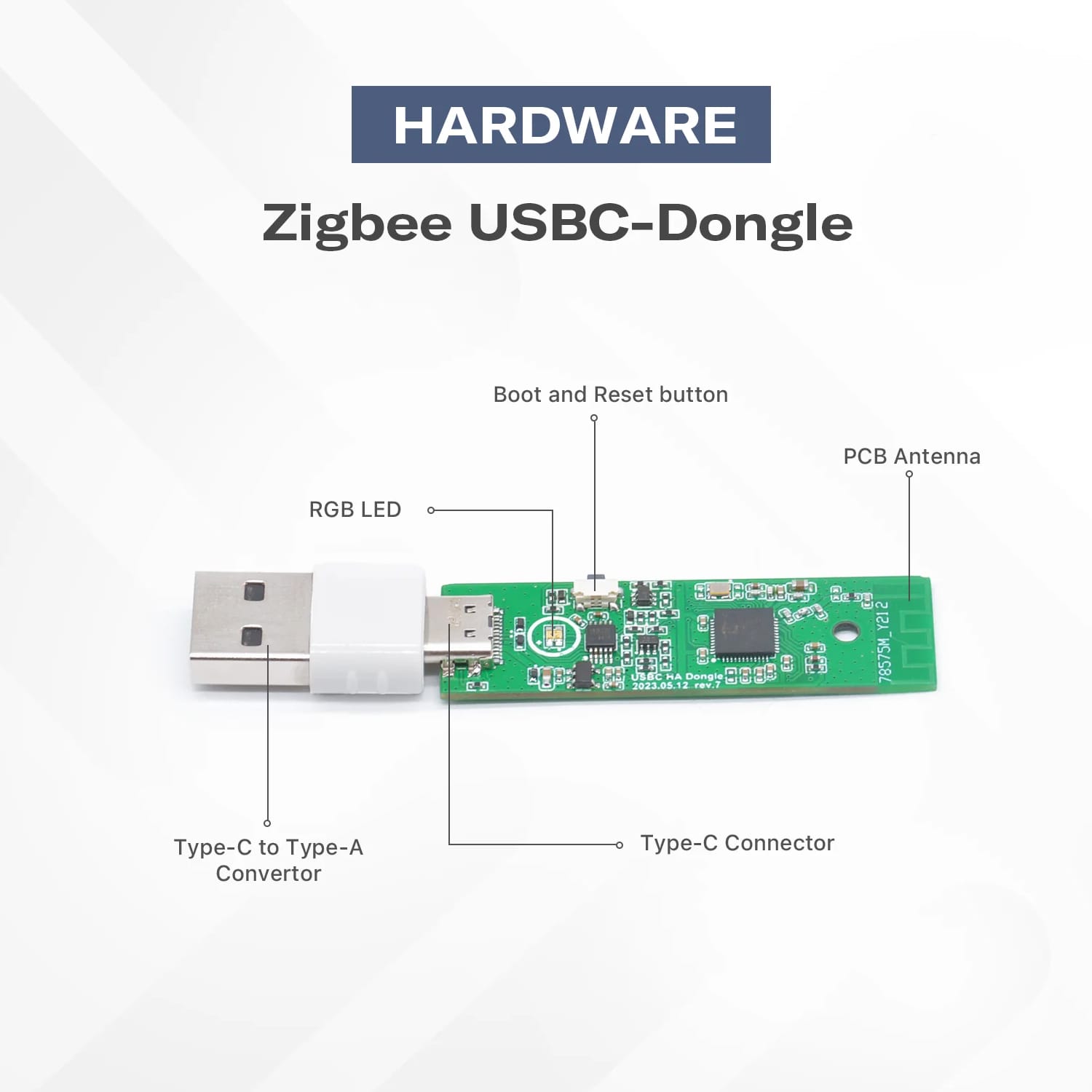

The dongle measures just 60mm x 20mm x 9mm and includes a boot and reset button, RGB LED, and PCB antenna.

Features

Zigbee 3.0 USB dongle
USB-C connection with USB-A adapter
Compatible with Home Assistant ZHA and Zigbee2MQTT
Software update support
Boot and reset buttons
RGB LED
PCB antenna
Dimensions: 60mm x 20mm x 9mm

Specifications

Operating temperature	0 to 50 °C
Minimum operating voltage	4.5V
Maximum operating voltage	5.5V
Typical current consumption	60mA
Dimensions	6cm x 2cm x 0.9cm
Zigbee operating frequency	2.4GHz
Model number	3RZD02032Z

Resources

GitHub guide
Product manual
EAN: B0C9D56QJ4

Package Contents

1x ThirdReality USB-C Zigbee Dongle
1x USB-C to USB-A adapter
1x Pin tool
