Terminal Block Board for FireBeetle 2 ESP32-E

DFRobotSKU: DFR0923
Price:
Sale price £19.10
incl. VAT
excl. VAT
Stock:
Only 11 units left
Quantity:

Awesome Extras

FireBeetle 2 ESP32-E IoT Microcontroller by DFRobot - The Pi HutFireBeetle 2 ESP32-E IoT Microcontroller by DFRobot - The Pi Hut
DFRobotFireBeetle 2 ESP32-E IoT Microcontroller
Sale priceFrom £9.50 incl. VAT excl. VAT
Fermion: 1.8" 128x160 IPS TFT LCD Display with MicroSD Slot by DFRobot - The Pi HutFermion: 1.8" 128x160 IPS TFT LCD Display with MicroSD Slot by DFRobot - The Pi Hut
Prototyping Wire Spool Set - 6 Spool Solid Core by The Pi Hut - The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core by The Pi Hut - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT
Multifunction Wire Strippers by The Pi Hut - The Pi HutMultifunction Wire Strippers by The Pi Hut - The Pi Hut
The Pi HutMultifunction Wire Strippers
Sale price £6 incl. VAT excl. VAT

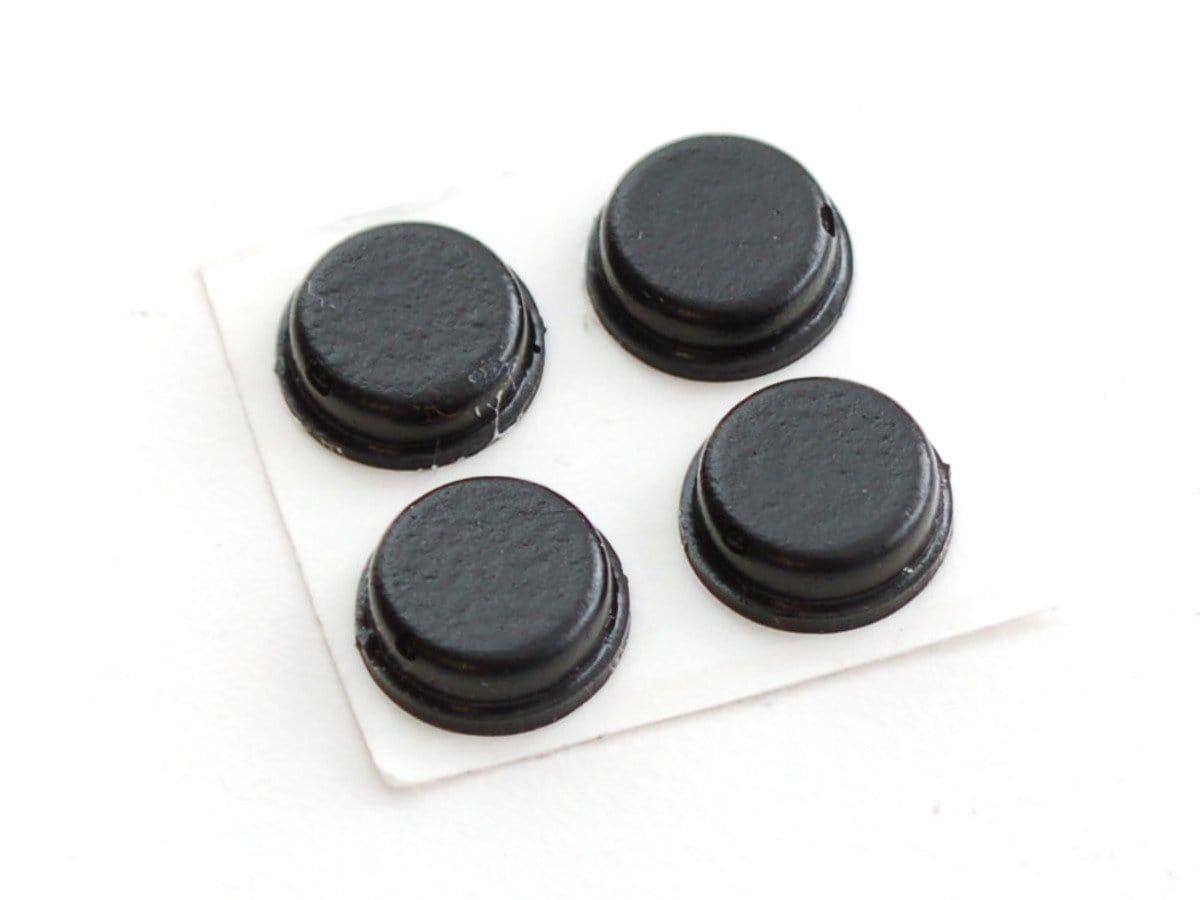

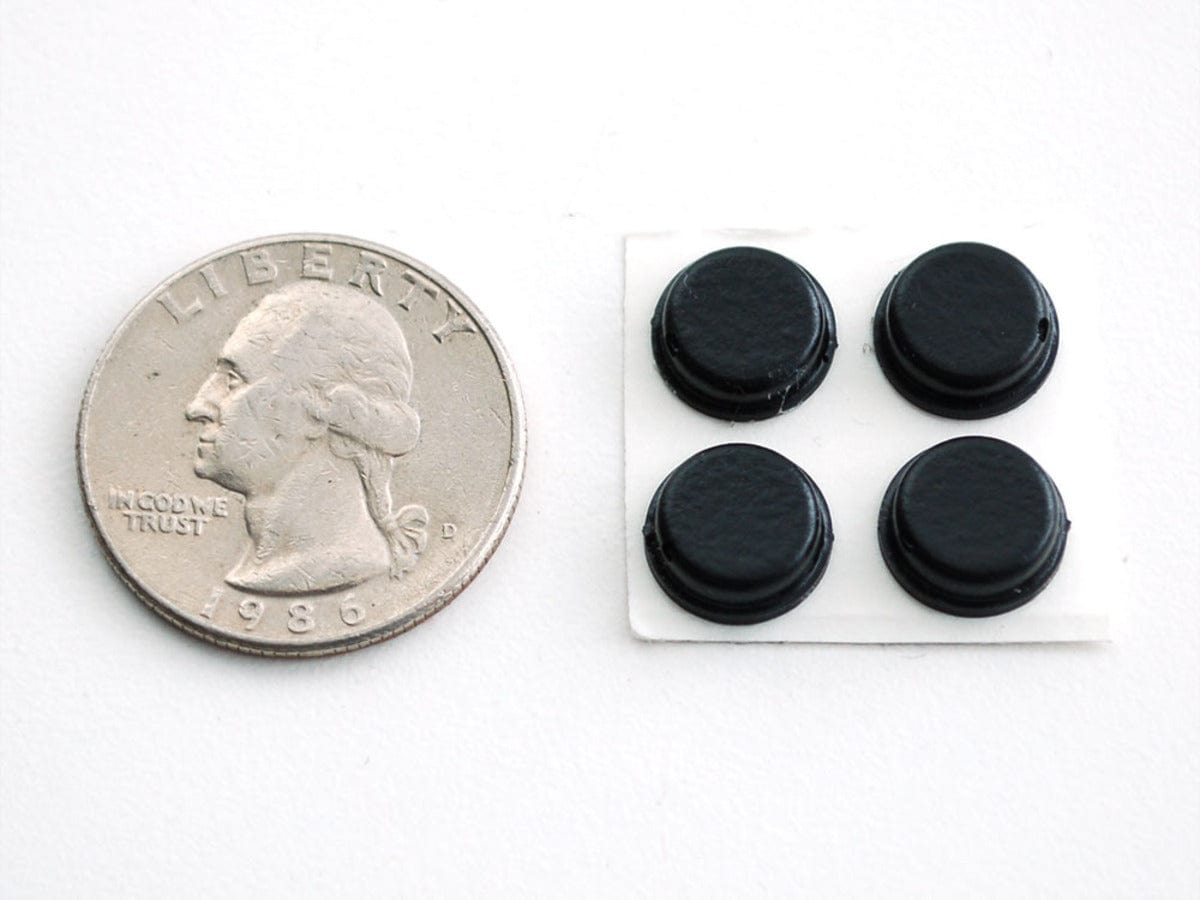

Rubber Bumper Feet - Pack of 4 by The Pi Hut - The Pi HutRubber Bumper Feet - Pack of 4 by The Pi Hut - The Pi Hut
The Pi HutRubber Bumper Feet - Pack of 4
Sale price £0.90 incl. VAT excl. VAT
USB-A to USB-C Cable - Black by The Pi Hut - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT

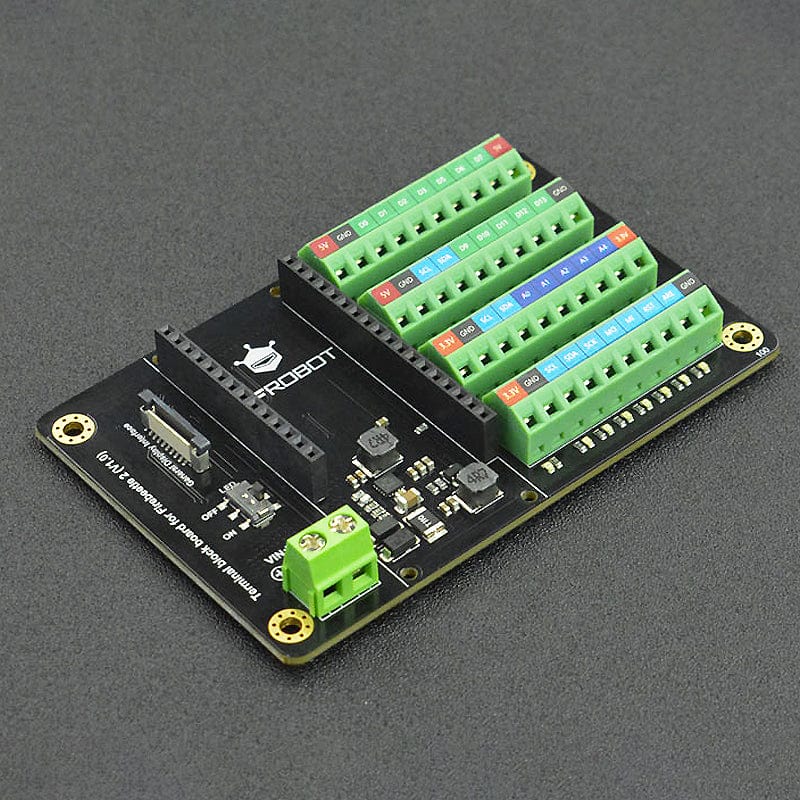

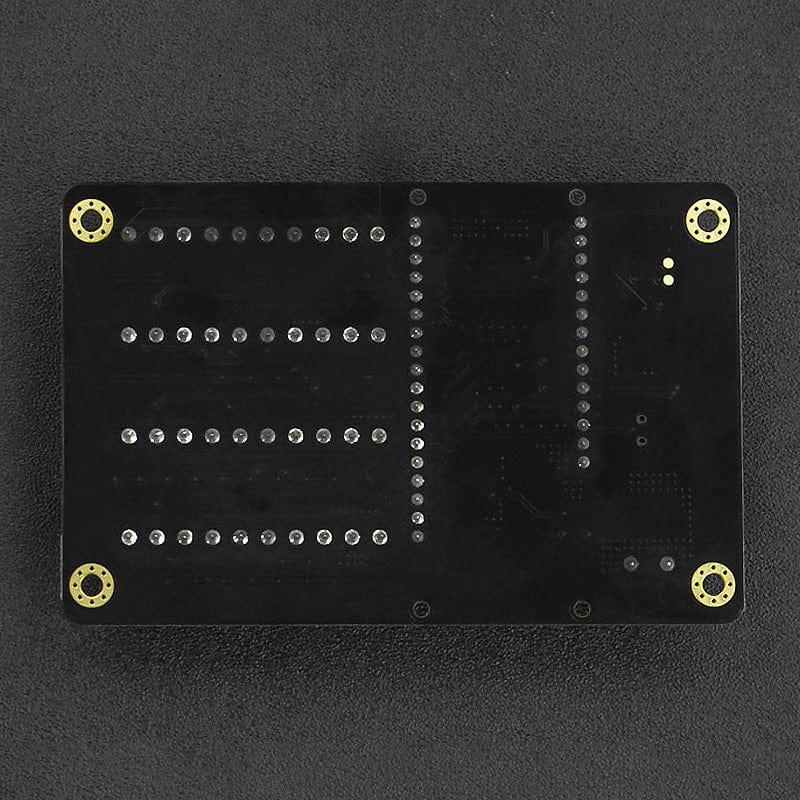

This expansion shield for the FireBeetle 2 ESP32-E microcontroller is just right for makers who love using terminal blocks for wiring up their projects!

Compared with the previous shield version, this terminal block board comes with an additional 7-24V external voltage input, GDI port and adopts terminal blocks to secure wires so as to make connections more stable and reliable.

Each terminal block (except GND) has an LED for status indication. Since these LEDs also consume power, which leads to higher power consumption, an LED switch is designed on the board to allow users to turn off the LED when not required.

Note: The expansion shield is ONLY compatible with the FireBeetle 2 ESP32-E IoT Microcontroller.

Interface Function Notes
FireBeetle Female Pin Socket Connect FireBeetle 2 /
GDI Connect screen with GDI port /
Onboard LED Switch Control all terminal block status indicators /
VIN Indicator LED turns on when there is power input on VIN port Red

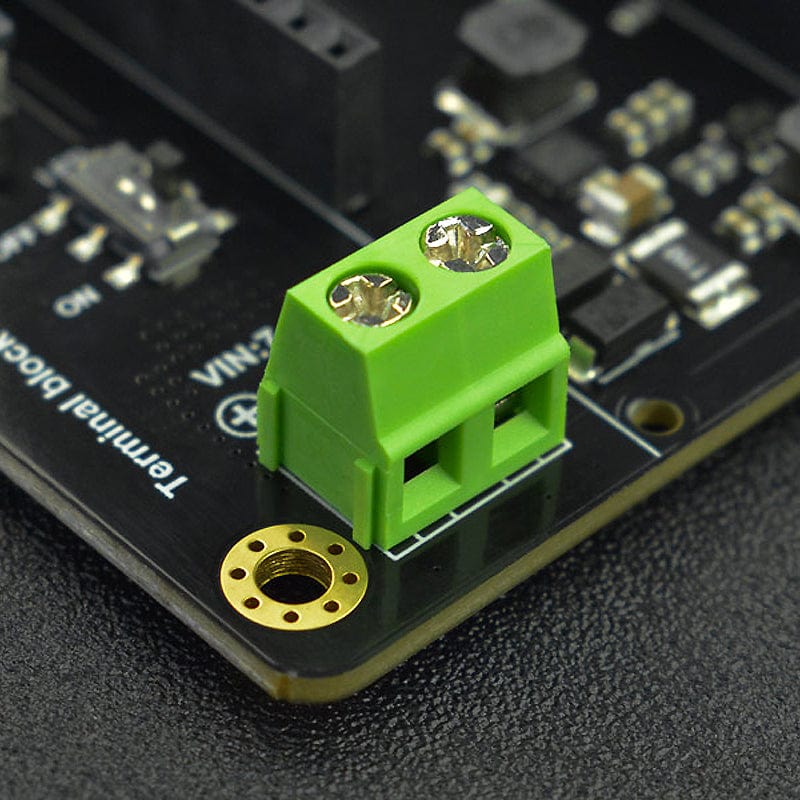

VIN Input Terminal Block Connect 7-24V external power /

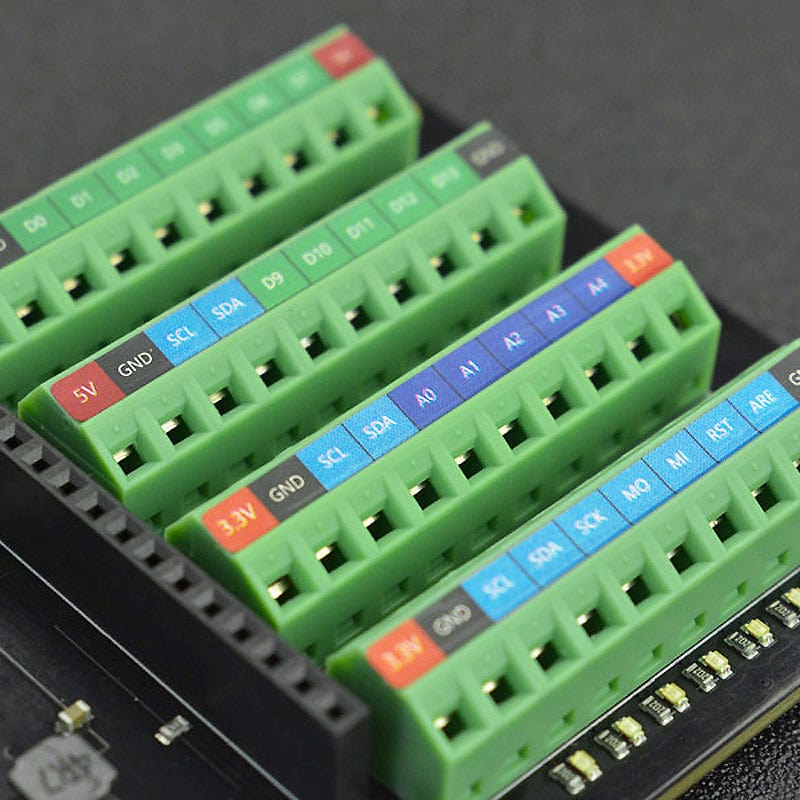

Terminal Block Extend all ports of FireBeetle to terminal blocks with more stable connections /
Terminal Block Indicator Each terminal has an LED for indicating level status Power: Red, GPIO: Blu

Features

  • Terminal block board, more stable and reliable connections
  • All pins of the mainboard are broken out
  • External Voltage Input: 7-24V
  • GDI for connecting the display
  • Clear colourful silkscreen
  • Terminal block status indicator
  • Terminal block status indicator switch

Specifications

  • External Voltage Input: 7-24V
  • Screen Port: GDI
  • 5V Port x3
  • 3.3V Port x3
  • GND Port x6
  • Digital Port x12
  • Analog Port x5
  • I2C x3
  • SPI x1
  • Port Indicator x34
  • Port Indicator Color: blue, red
  • Default ON Port Indicator: 5V, 3.3V, D0, D1, D5, D6, A4, RST

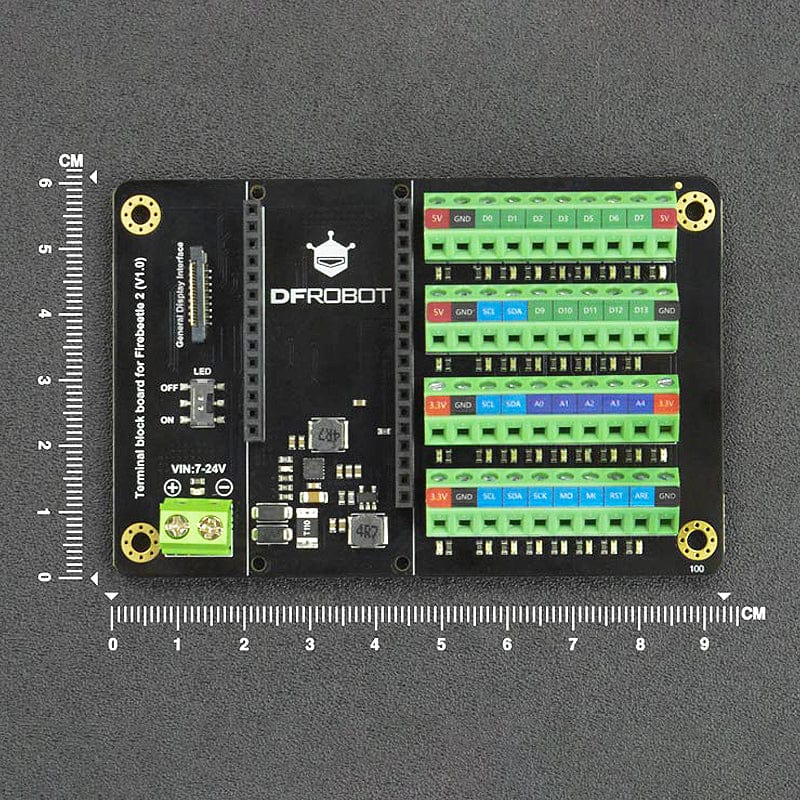

  • Dimension (Without Package): 61 x 93.5mm

Resources

Package Contents

  • 1x Terminal Block Board for FireBeetle 2 ESP32-E
