SX1303 868MHz LoRaWAN Gateway HAT for Raspberry Pi
Price:
Sale price
£96
Stock:
Quantity:
Awesome Extras
Save 10%
The SX1303 868MHz LoRaWAN Gateway HAT adds high-performance LoRaWAN capabilities to your Raspberry Pi. With multi-channel support, built-in GPS, fine timestamping, and exceptional sensitivity, it’s ideal for building your own long-range, high-capacity gateway with geolocation support.
This SX1303 868MHz LoRaWAN Gateway HAT is a compact, high-performance solution for building your own LoRaWAN gateway with a Raspberry Pi. It combines the SX1303 concentrator chip with the SX1250 radio front-end, supporting long-range communication, high node capacity, and excellent sensitivity down to -141dBm. The module supports concurrent multi-channel communication and features onboard PA and LNA for improved RF performance.
This version includes a HAT designed specifically for Raspberry Pi boards, featuring a 40-pin GPIO connector and an integrated L76K GPS/BD module for accurate timing and location data. The SX1303 also supports Fine Timestamping, enabling time-difference-of-arrival (TDOA) network positioning for geolocation applications.
The included SX1303 module connects via a mini-PCIe socket and includes four onboard LED indicators for system status. It comes with C-based development resources to help you get started.
Raspberry Pi not included
Features
- Integrates Semtech SX1303 normal band and SX1250 radio RF front-end chip
- Onboard PA and LNA with +26dBm transmit power and -141dBm high-sensitivity receive gain
- SX1303 supports Fine Timestamp and network positioning via Time Difference of Arrival (TDOA)
- Mini-PCIe socket for easy integration into embedded systems
- Four onboard LED indicators for module operating status
- Includes online development resources and manual (C examples)
HAT Features
- Standard Raspberry Pi 40-pin GPIO header; supports all Raspberry Pi series boards
- Includes L76K module with GPS/BeiDou support, providing accurate clock and location data
- Includes online development resources and manual (C examples)

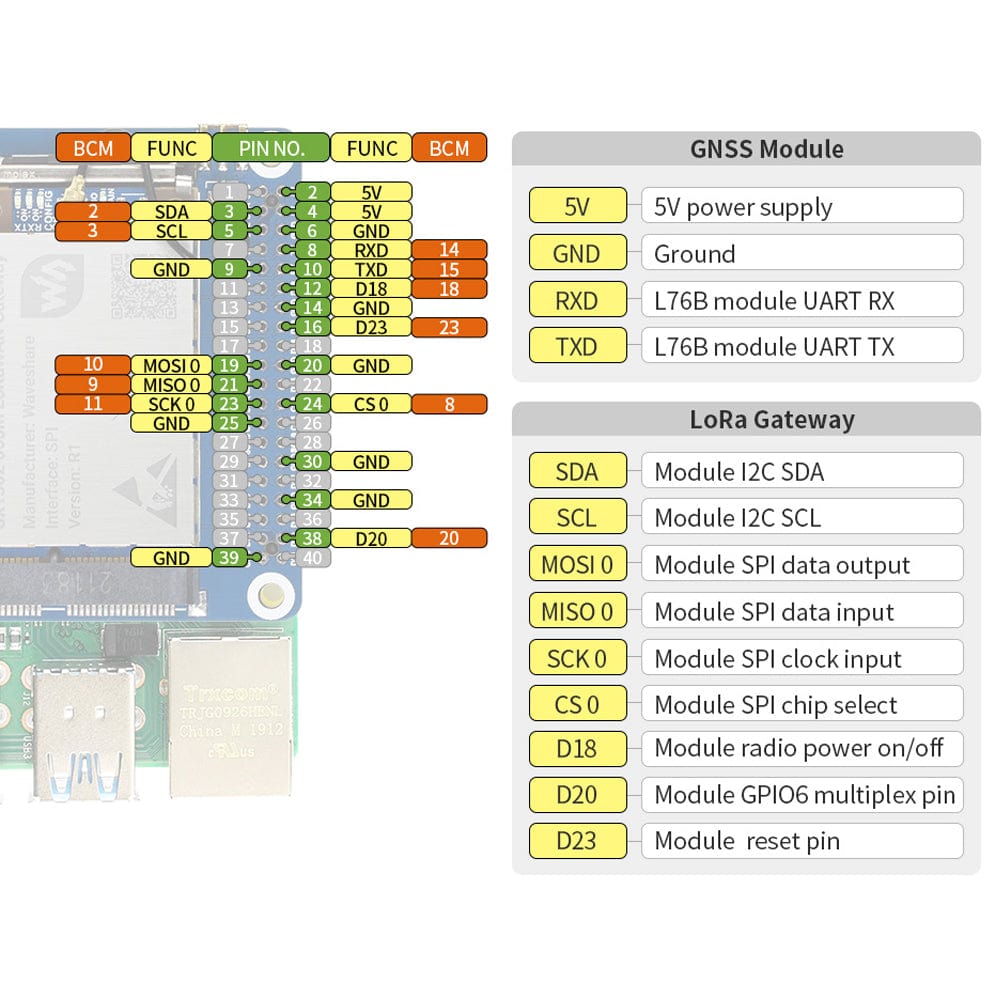

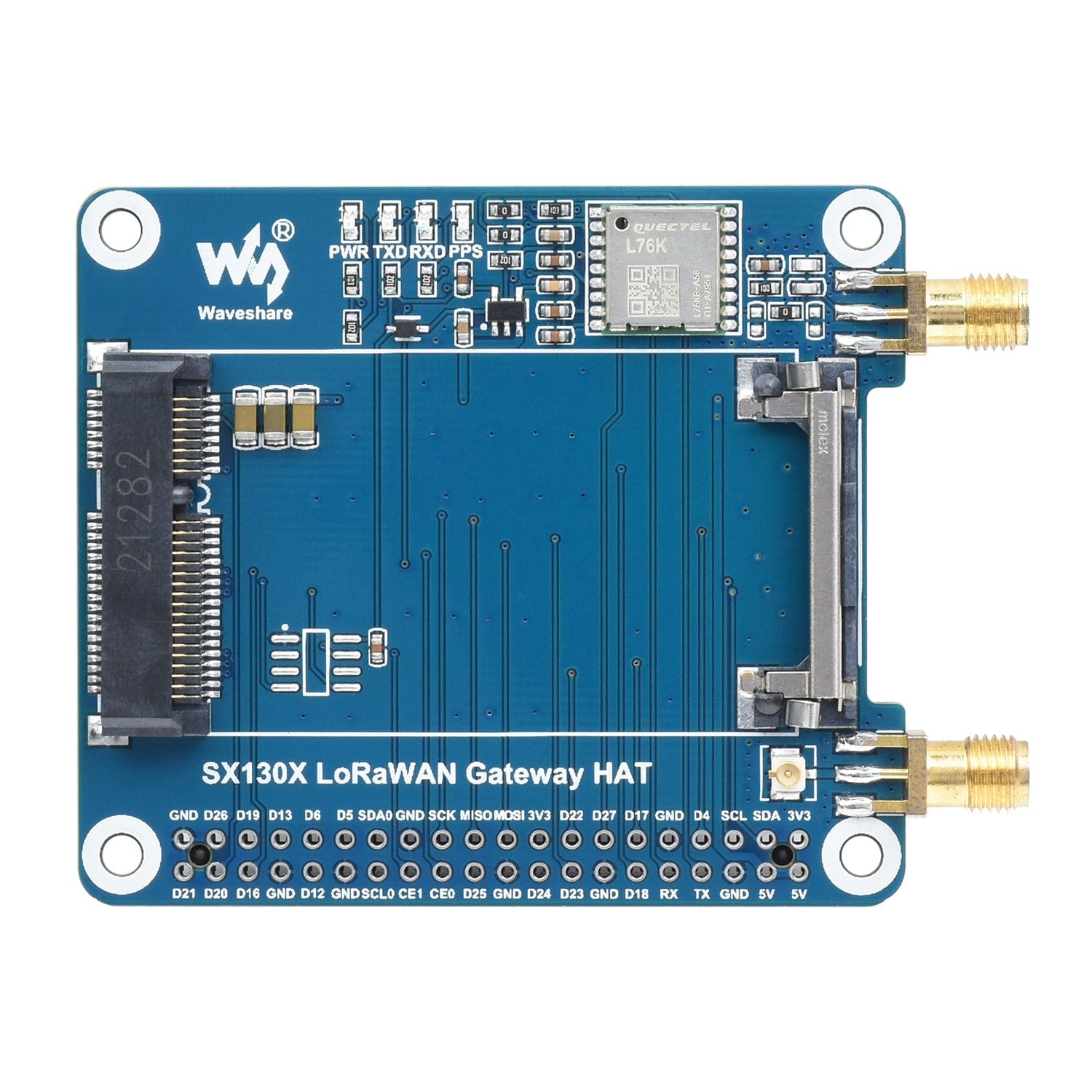

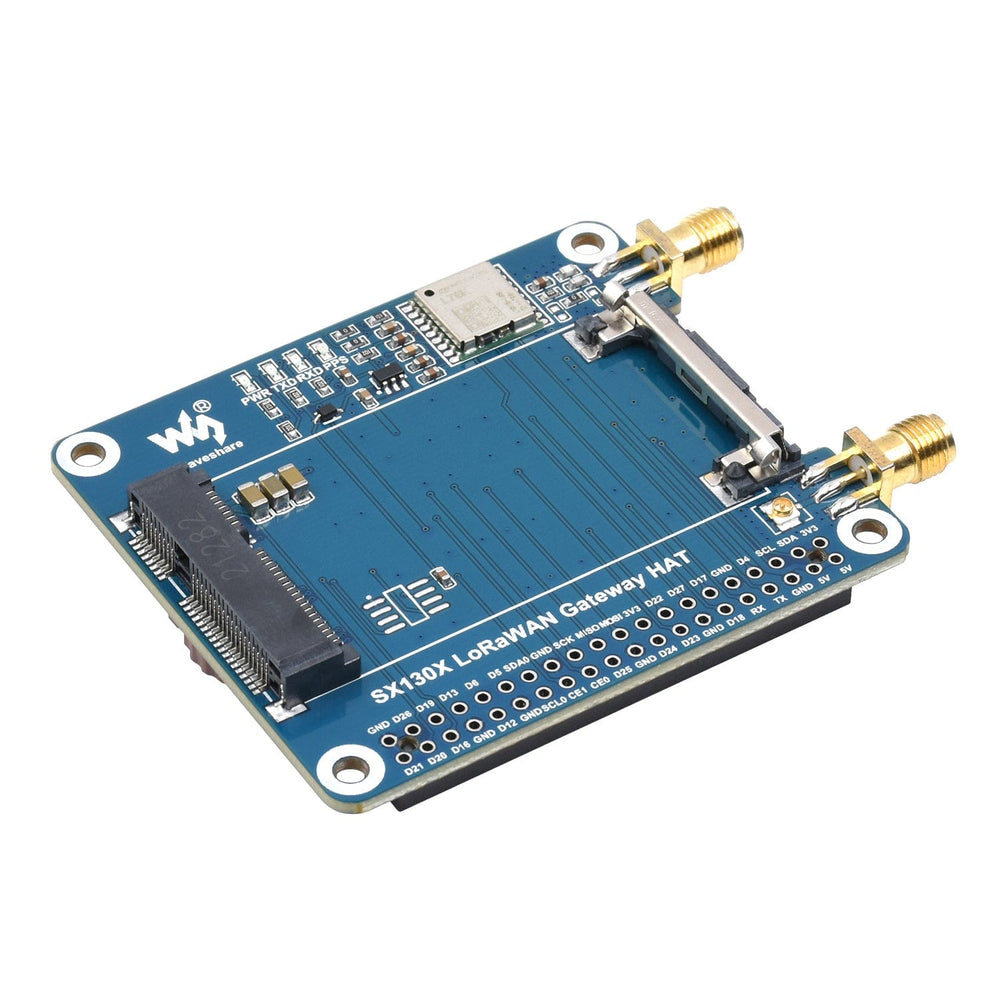

What's onboard?

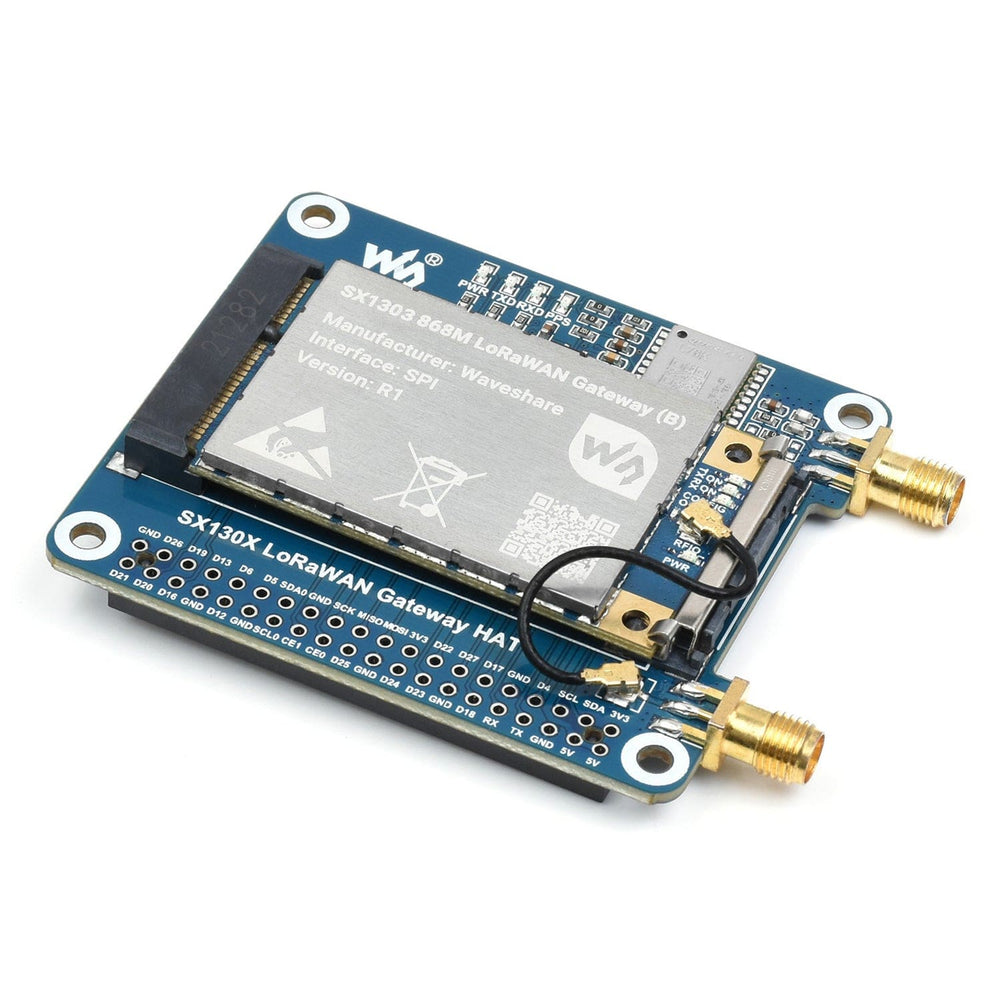

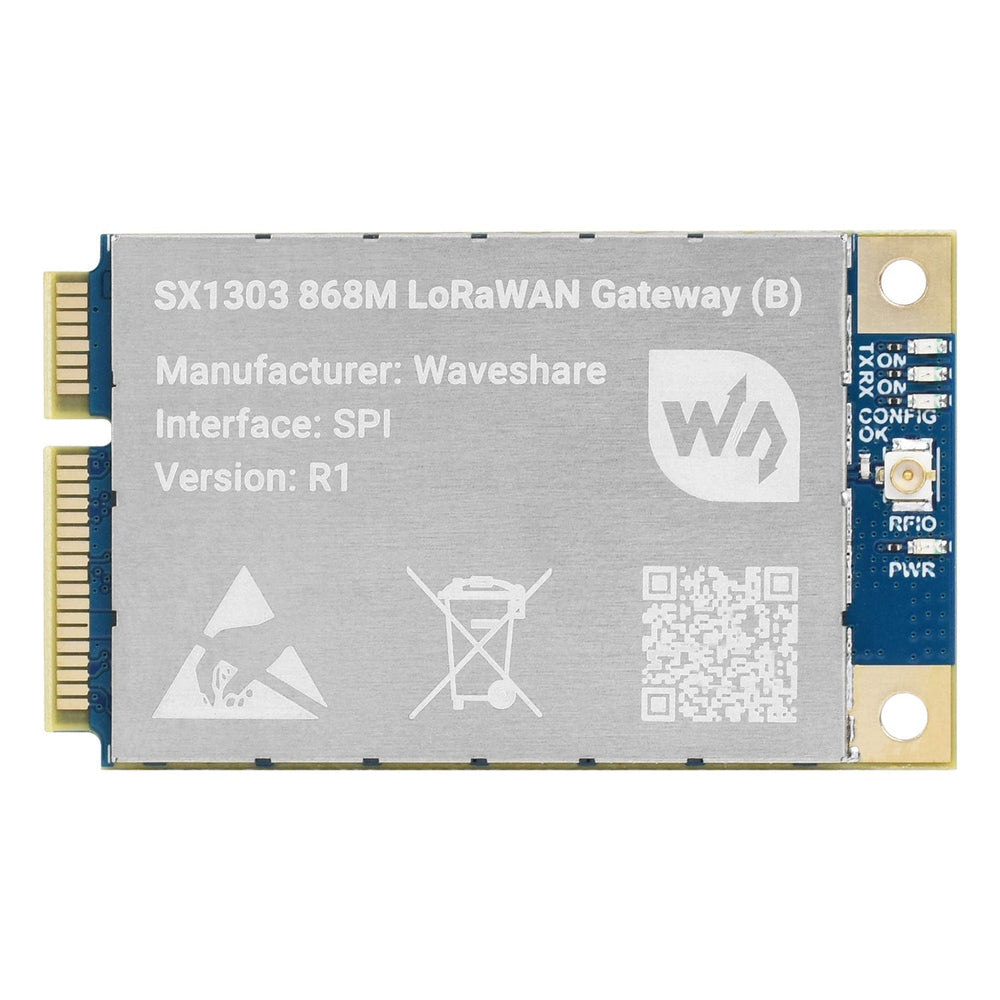

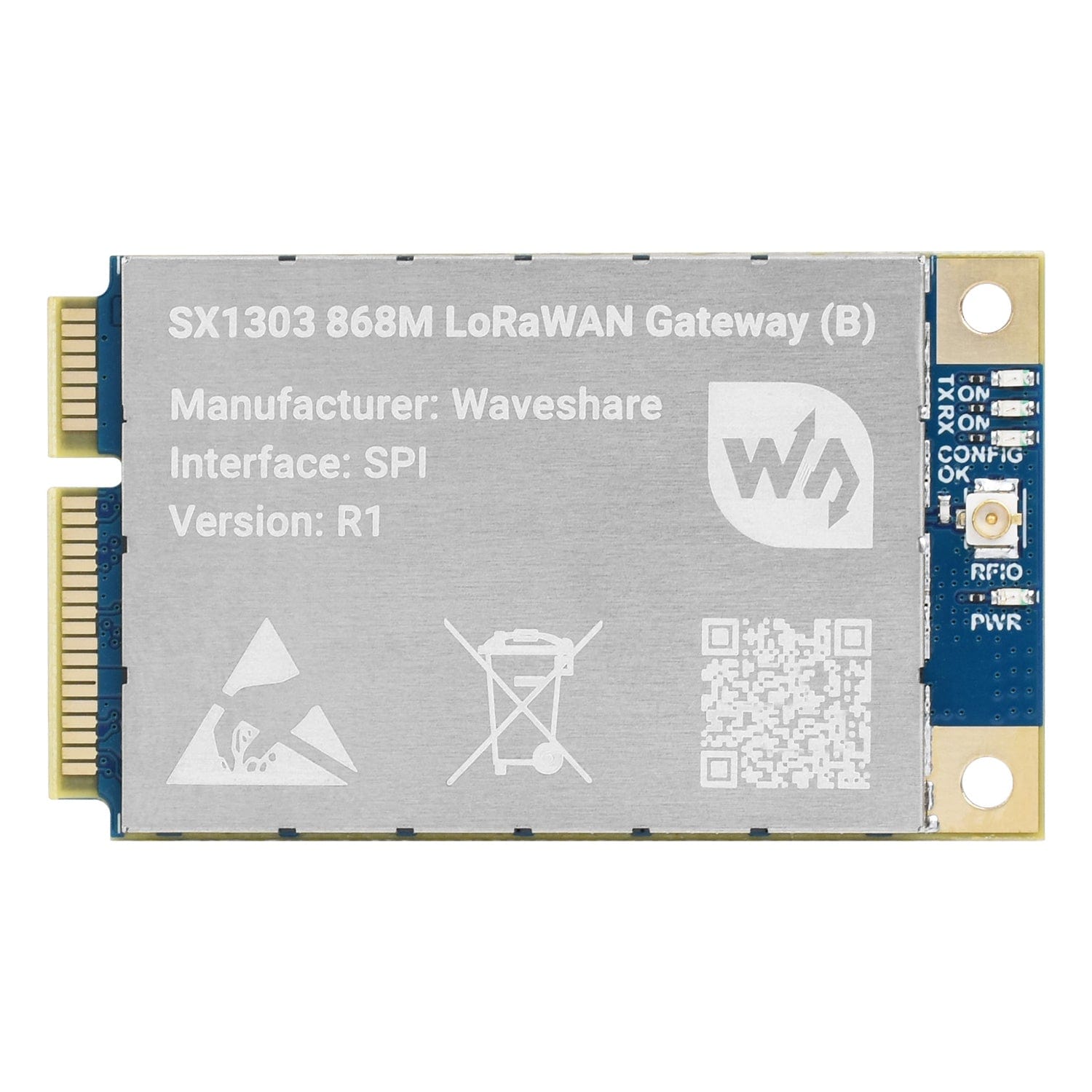

- SX1303 LoRaWAN Gateway module (SX1302 shown in image)
- Mini-PCIe socket and buckle
- L76K module
- RT9193-33 power chip
- Status indicator
- PWR: power indicator
- RXD/TXD: UART RX/TX indicator
- PPS: GPS status indicator
- Raspberry Pi GPIO header
for connecting with Raspberry Pi series boards - L76K antenna connector
- LoRa Gateway antenna connector
- Battery holder - supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
Specifications
| Band chip | SX1303 |
| Frequency range | 868M: EU868, IN865, RU864 |
| Power supply | 5V |
| Modulation | LoRa(G)FSK |
| Emit power | +26dBm@5V |
| Receiving sensitivity | -141dBm@125KHz/SF12 -121dBm@125KHz/SF5 |
| Overall power consumption | emitting: 427mA@5V receiving: 40mA@5V sleep: 8mA@5V |
| Communication bus | SPI, I2C |
| External connector | Mini-PCIe |
| Operating temperature | -40~85°C |
| Dimensions | 50.95 × 30mm |
Resources

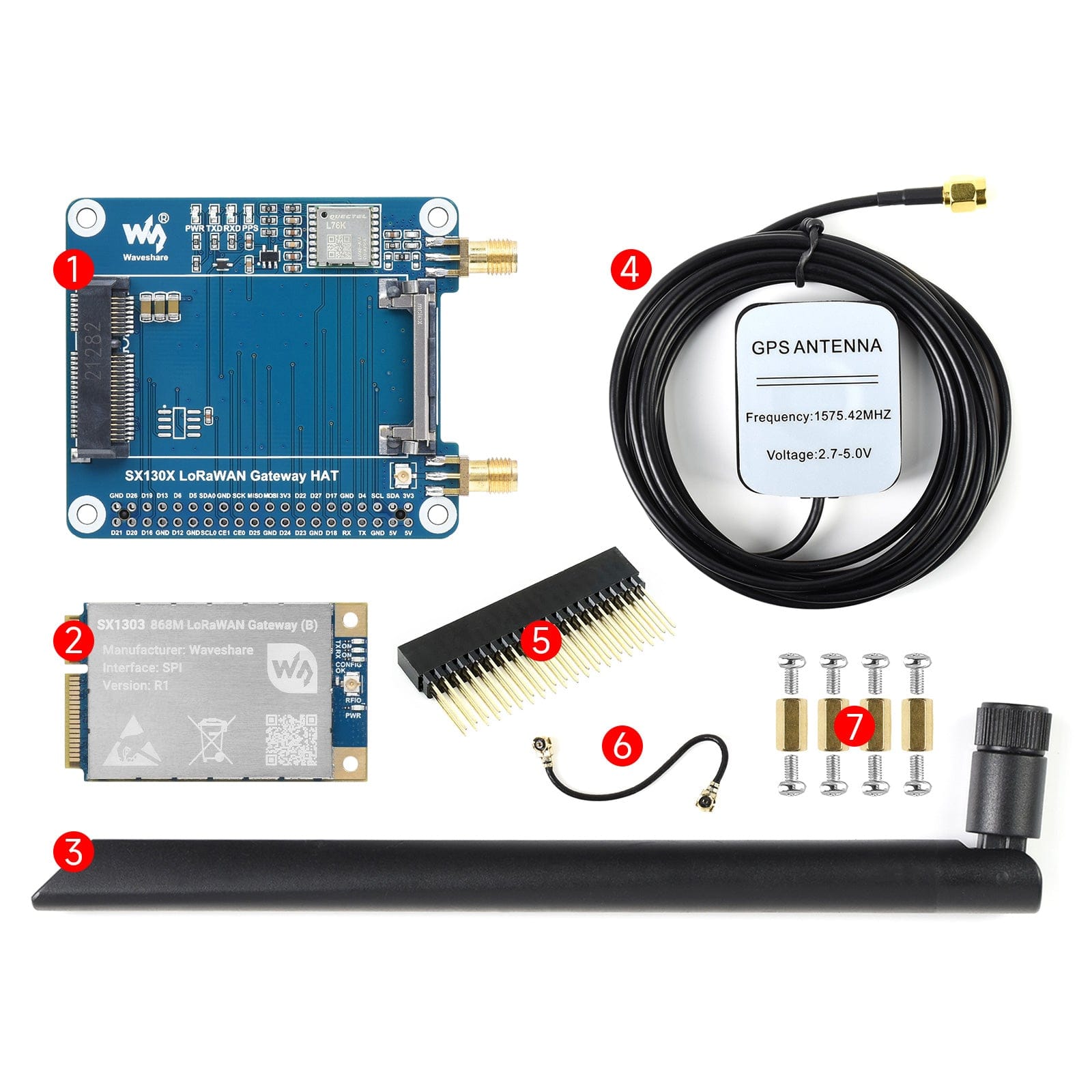

Package Contents
- 1x SX130x LoRaWAN Gateway HAT
- 1x SX1303 868MHz LoRaWAN Gateway Module (B)
- 1x Antenna 868MHz 5dBi
- 1x GPS antenna
- 1x GPIO header
- 1x Dual IPEX1 wire
- 1x Screws pack
Raspberry Pi not included
