SenseCAP Card Tracker T1000-E for LoRaWAN

SeeedSKU: 106472
Price:
Sale price £38.90
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

Awesome Extras

Snap Hook for SenseCAP T1000 Tracker by Seeed - The Pi HutSnap Hook for SenseCAP T1000 Tracker by Seeed - The Pi Hut
SeeedSnap Hook for SenseCAP T1000 Tracker
Sale price £2.10 incl. VAT excl. VAT
SenseCAP Indicator for Meshtastic & LoRa by Seeed - The Pi HutSenseCAP Indicator for Meshtastic & LoRa by Seeed - The Pi Hut
SeeedSenseCAP Indicator for Meshtastic & LoRa
Sale price £58.50 incl. VAT excl. VAT
USB 3.0 Extension Cable by The Pi Hut - The Pi HutUSB 3.0 Extension Cable by The Pi Hut - The Pi Hut
The Pi HutUSB 3.0 Extension Cable
Sale priceFrom £3 incl. VAT excl. VAT

The SenseCAP Card Tracker T1000-E is a compact, versatile LoRaWAN-enabled tracker built for asset monitoring, environmental sensing, and logistics applications. It comes preloaded with LoRaWAN firmware and supports an open hardware design, giving developers the flexibility to use official or community-maintained firmware platforms.

With support for multiple GNSS constellations (GPS, GLONASS, Galileo, BeiDou, QZSS), Wi-Fi, and Bluetooth, the T1000-E delivers accurate location data both indoors and outdoors. It includes onboard sensors for temperature, ambient light, and motion (3-axis accelerometer), making it useful for environmental and movement tracking.

The device can be configured using the SenseCraft App over Bluetooth v5.1 and features a single multifunctional button for basic operations such as power control and SOS triggering. Its IP65-rated enclosure houses a 700mAh rechargeable battery, offering up to 3 months of runtime with hourly GNSS updates. A magnetic USB charging cable is included for recharging.

Designed for use on public or private LoRaWAN networks, the T1000-E transmits data over long distances (up to 5km depending on environment and gateway), making it well suited to remote asset tracking, field deployment, and logistics chain monitoring. It supports channel plans including IN865, EU868, US915, AU915, AS923, KR920, and RU864.

We also stock the SenseCAP Card Tracker T1000-E for Meshtastic.


Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?


Features

  • Preloaded with LoRaWAN firmware and supports open-source firmware ecosystems
  • Compact and lightweight design (85 x 55 x 6.5 mm, 32g)
  • LoRaWAN® (v1.0.4 Class A) with multi-region support (IN865, EU868, US915, AU915, AS923, KR920, RU864)
  • GNSS positioning (GPS, GLONASS, Galileo, BeiDou, QZSS) with ~1m accuracy
  • Wi-Fi and Bluetooth-based indoor positioning

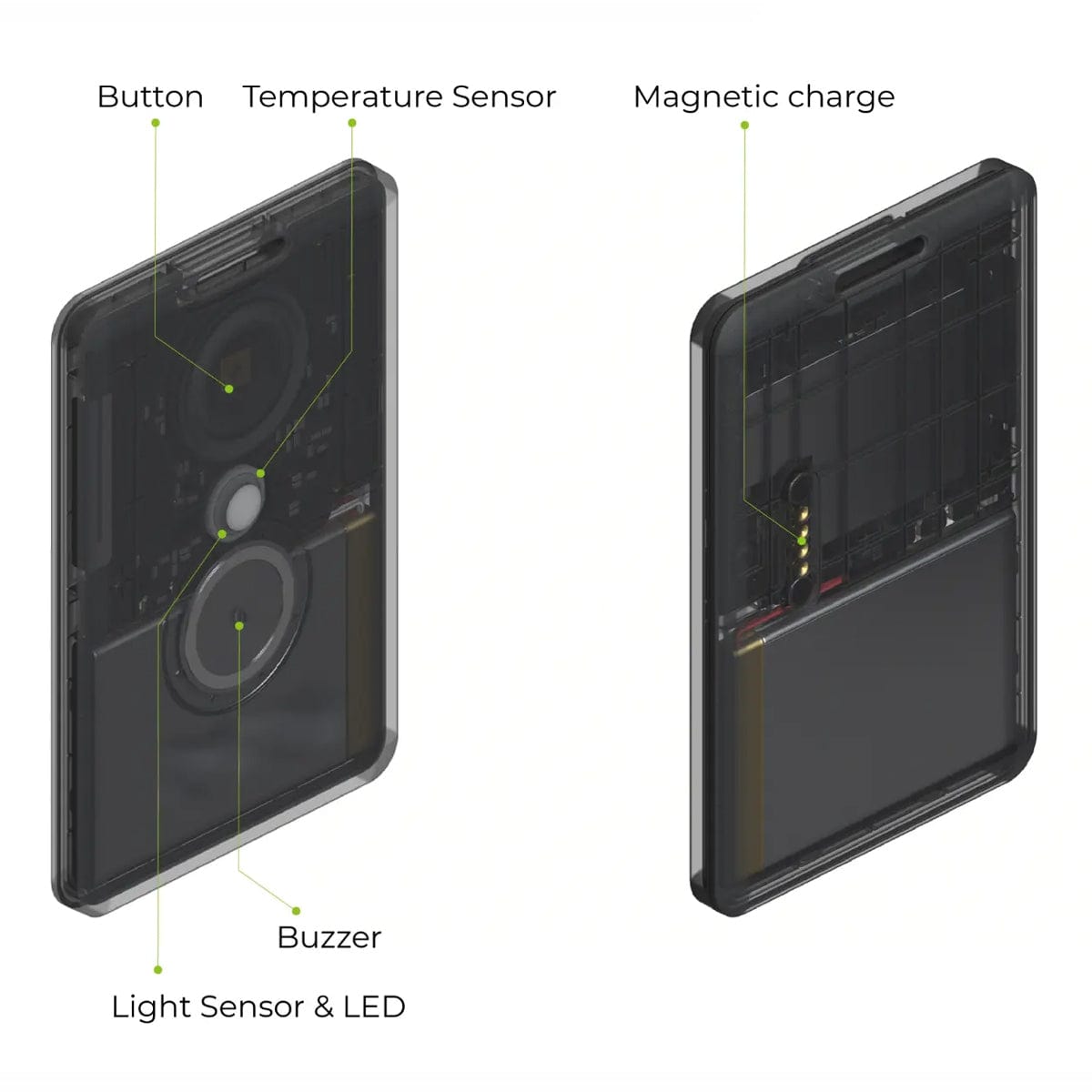

  • Built-in temperature sensor (±1℃ accuracy), ambient light sensor, and 3-axis accelerometer
  • Bluetooth v5.1 for configuration via SenseCraft App
  • Rechargeable 700mAh lithium battery with up to 3 months runtime (hourly uplinks)
  • Magnetic USB charging cable included (1m length)
  • Button for power control, Bluetooth setup, and SOS alarm
  • LED and buzzer indicators for device status

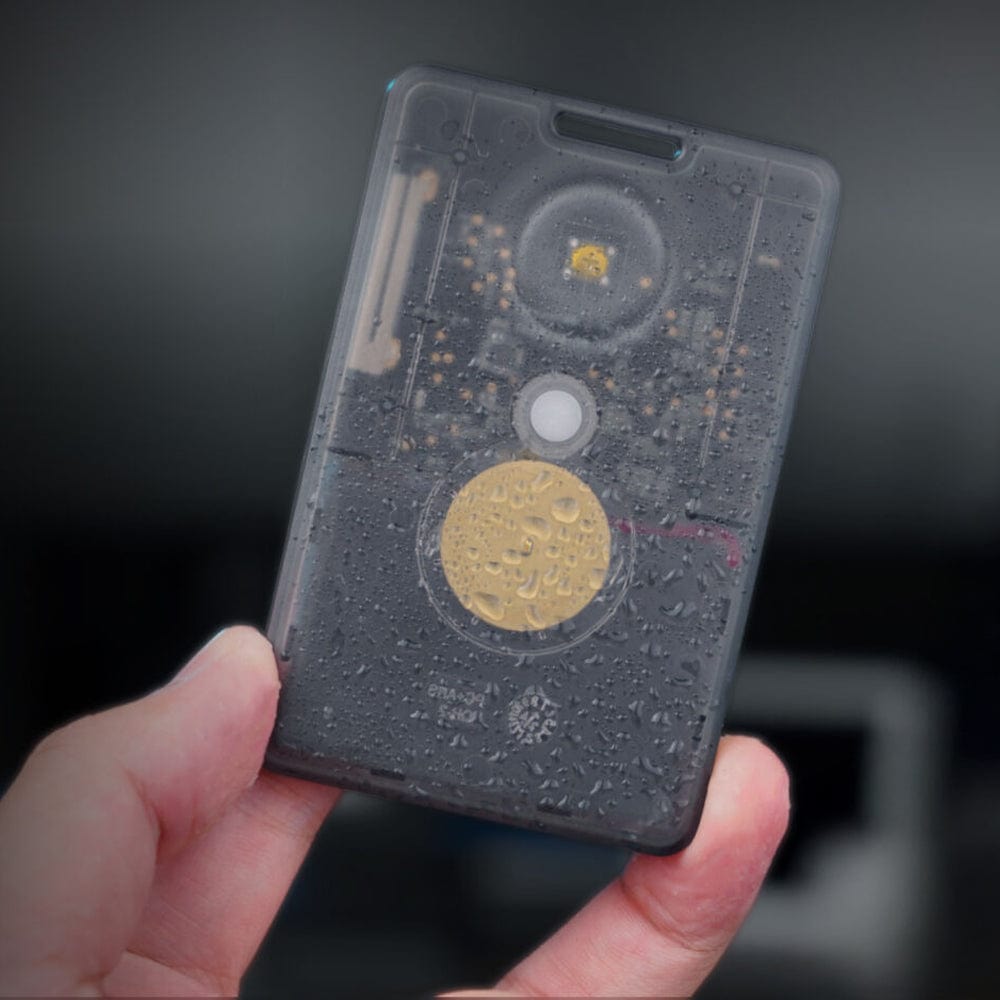

  • IP65-rated enclosure for water and dust resistance
  • Periodic battery level reporting via LoRaWAN
  • Supports remote environmental and logistics monitoring via cloud platforms

Specifications

Product Model T1000-E
Backhaul LoRaWAN® (v1.0.4 Class A)
Bluetooth Bluetooth v5.1, setting via SenseCraft App
LoRaWAN Channel Plan IN865/EU868/US915/AU915/AS923/KR920/RU864
Temperature Range: -20 to 60℃; Accuracy: ±1℃; Resolution: 0.1℃
Light 0 to 100% (0 is dark, 100% is brightest)
3-Axis Accelerometer Detects movement
LED and Buzzer 1× LED and 1× buzzer to indicate status
Button 1× button to operate and trigger events (SOS)
Antenna Internal (GNSS/LoRa/Wi-Fi/BLE)
Communication Distance 2 to 5km (depending on gateway antenna, installation, and environments)
IP Rating IP65

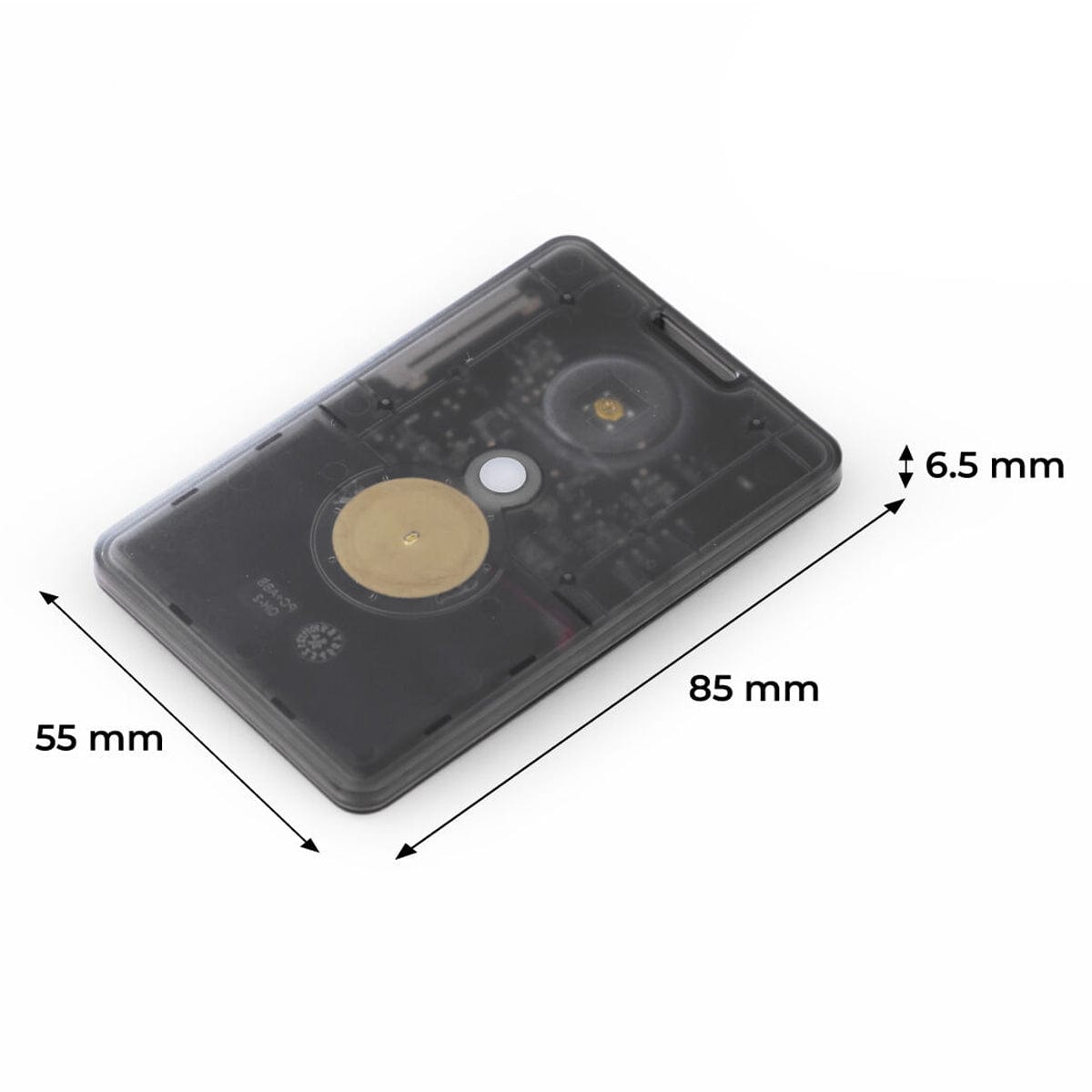

Dimensions 85 × 55 × 6.5 mm
Device Weight 32g
Operating Temperature -20℃ to +60℃
Operating Humidity 5% – 95% (No condensation)
Certification CE / FCC / RoHS
GNSS Constellation GPS / GLONASS / Galileo / BeiDou / QZSS
GNSS Sensitivity -145 dBm cold start / -160 dBm tracking
GNSS Location Accuracy ~1m CEP, GPS, -130 dBm
Wi-Fi Positioning Passive scanning, uploads the scanned 3–5 MAC addresses
Bluetooth Positioning Uploads the scanned 3 best signal MAC addresses of Beacon
Battery Capacity Rechargeable lithium battery, 700mAh
Battery Life Estimates Up to 3 months on a single charge (uplink every 1 hour, GNSS data only)
Battery Life Monitoring Periodic uplink of battery level
Charge Cable USB magnetic charging cable, 1 metre (adapter not included)
Power Input Voltage 4.7 to 5.5V DC
Charging Temperature 0 to +45℃

Resources

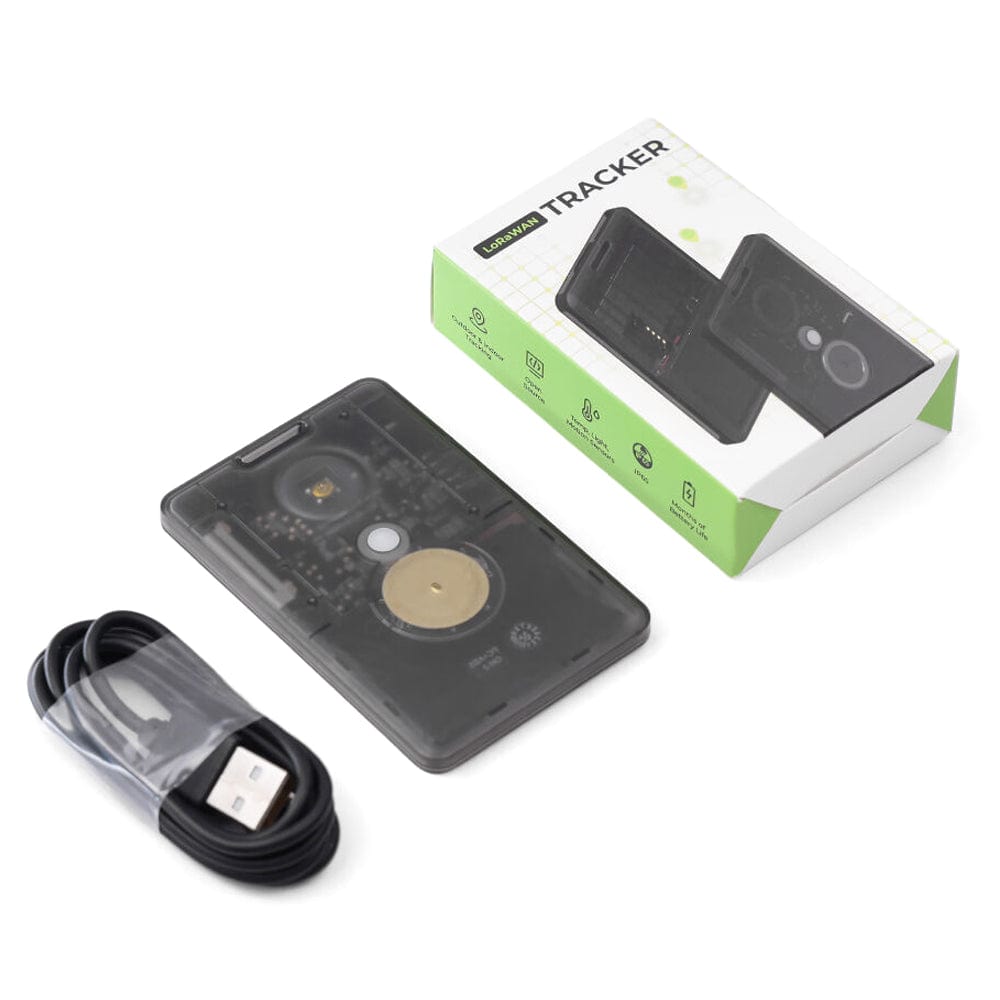

Package Contents

  • 1x SenseCAP Card Tracker T1000-E for LoRaWAN
  • 1x USB Cable
