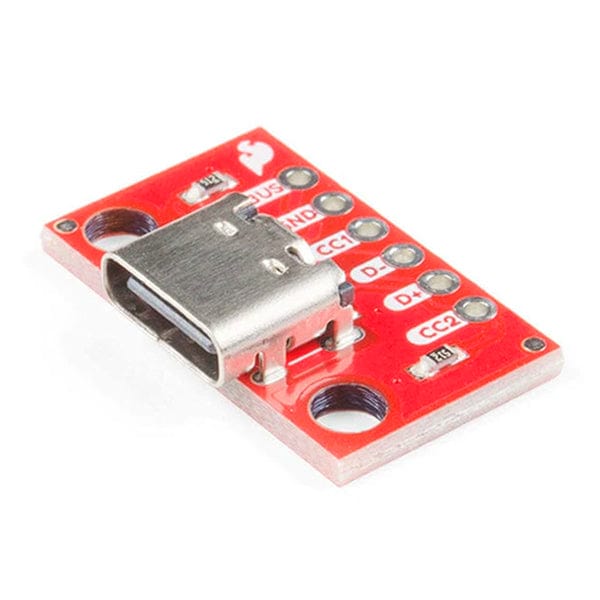

SparkFun USB-C Breakout - Horizontal

With this USB breakout, you will finally be able to incorporate a USB-C connector into your projects without needing to solder each tiny SMD pad. The SparkFun USB-C Breakout supplies up to three times the power as previous USB iterations and also solves the universally frustrating dilemma of plugging a USB cable in correctly because it's reversible!

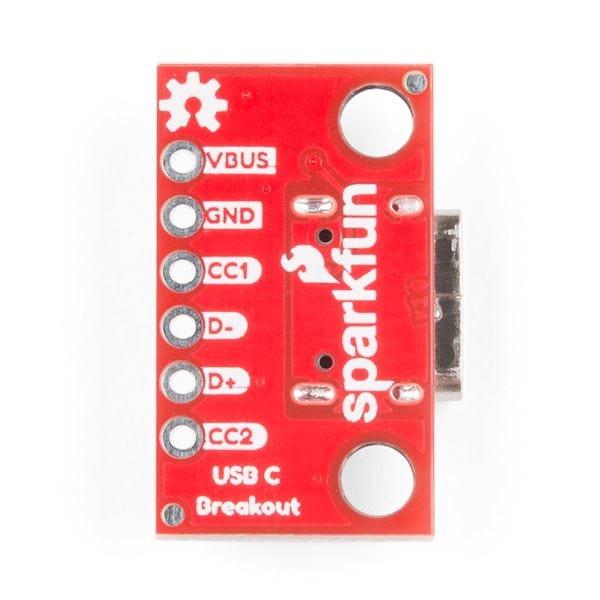

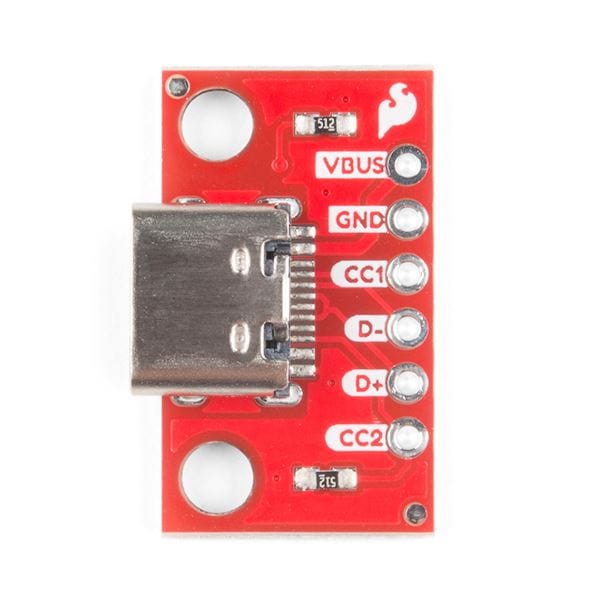

This board breaks out the USB-C connector's VBUS, GND, CC1, CC2, D+, and D- pins intro a 0.1" pitch header while providing up to a nominal 1.5A of power and up to 3A depending on the upstream device.

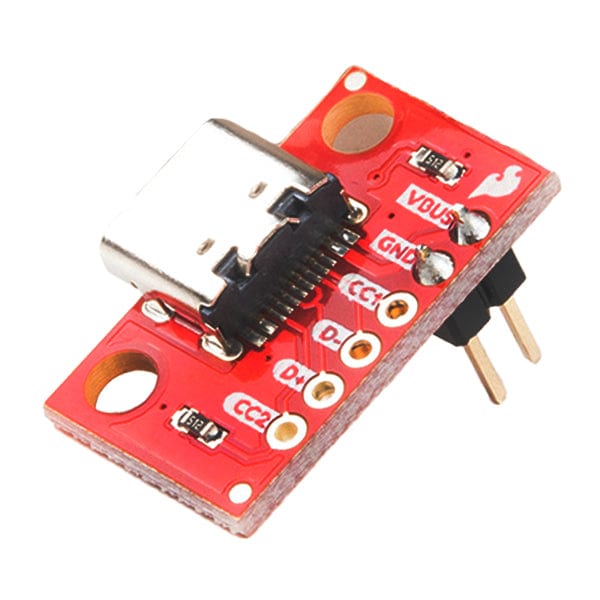

We also stock a vertical version!

Features

• Connector: USB Type-C

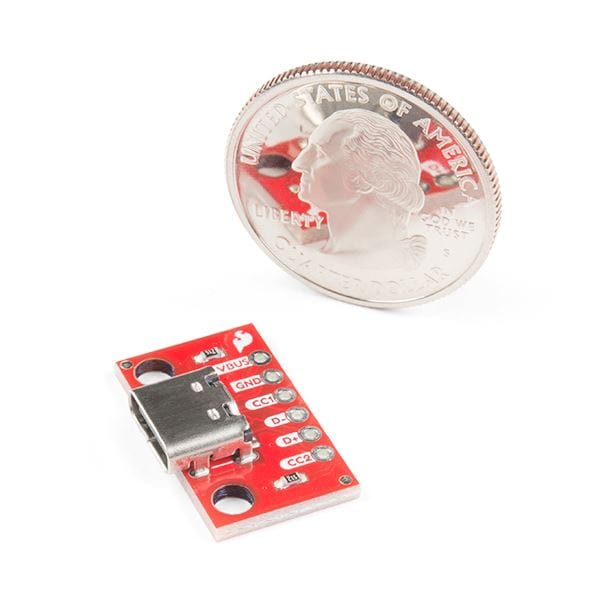

• Dimensions: 22.1mm x 14mm x 4.9mm (0.87in x 0.55in x 0.19in)
• Weight: 1.35g

Resources

• Schematic
• Eagle Files
• USB Type C General datasheet
• USB Connector Datasheet
• Github
