SparkFun Micro 6DoF IMU Breakout - BMI270

SparkfunSKU: SEN-22398
Price:
Sale price £14.10
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

STEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi HutSTEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi Hut
SparkFun 6DoF IMU Breakout - BMI270 - The Pi HutSparkFun 6DoF IMU Breakout - BMI270 - The Pi Hut
SparkfunSparkFun 6DoF IMU Breakout - BMI270
Sale price £13.70 incl. VAT excl. VAT
STEMMA QT / Qwiic JST SH 4-pin Cable with Premium Female Sockets - 150mm Long - The Pi HutSTEMMA QT / Qwiic JST SH 4-pin Cable with Premium Female Sockets - 150mm Long - The Pi Hut

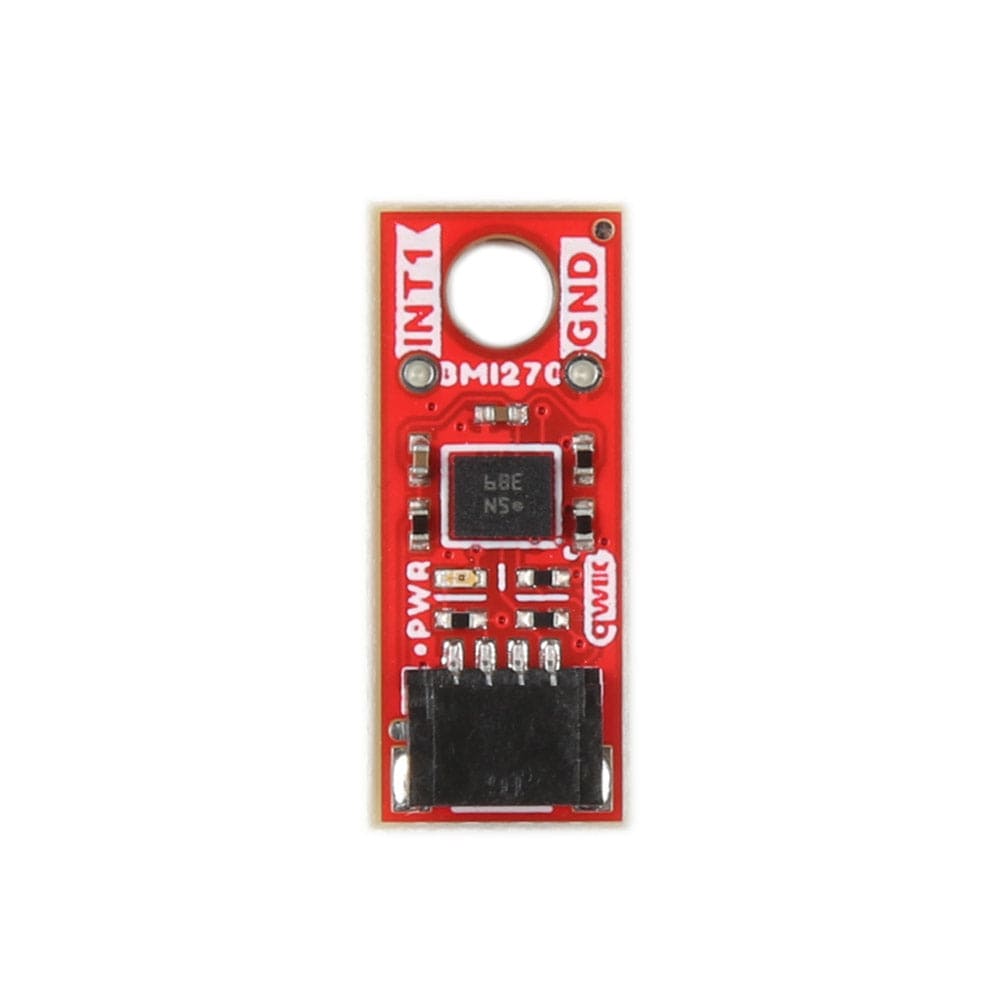

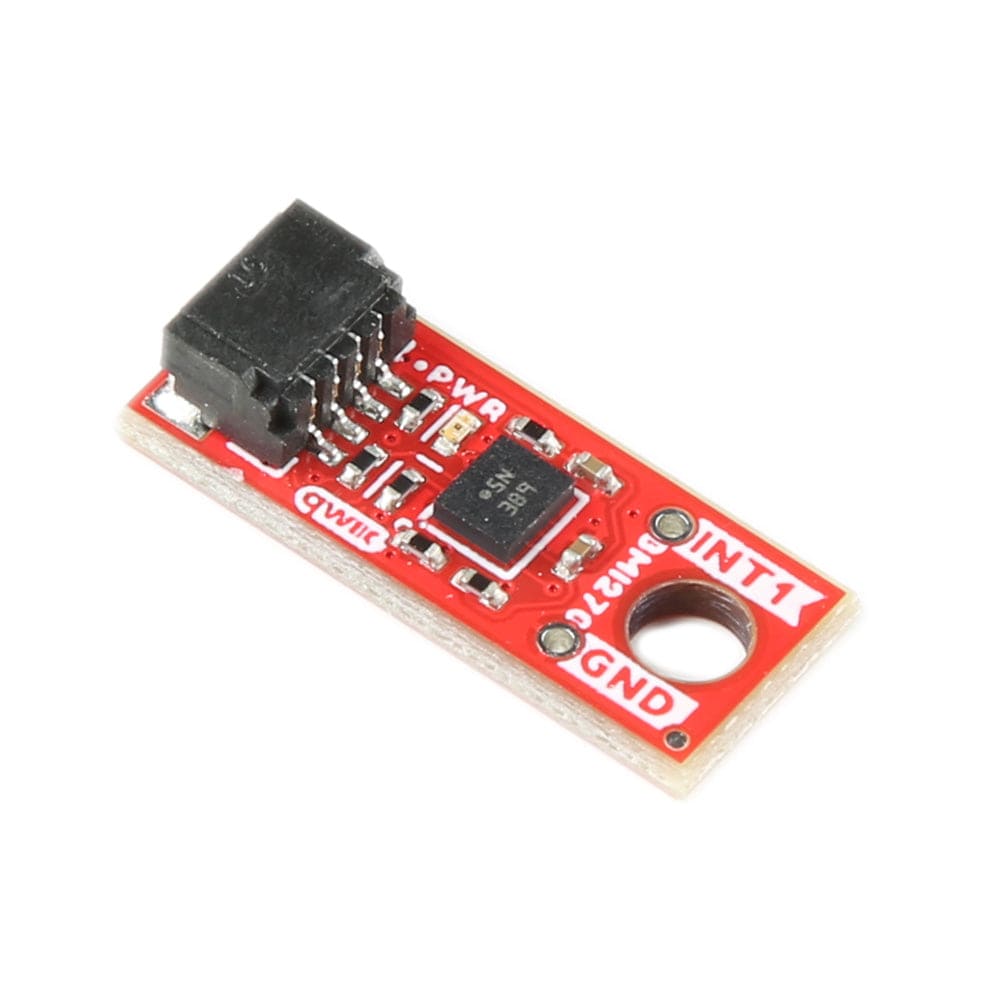

The SparkFun BMI270 Micro 6DoF IMU Breakout is a Qwiic-enabled breakout board based on the ultra-low power BMI270 from Bosch. This chip is a highly integrated, low-power IMU optimized for wearables providing precise acceleration, angular rate measurement, and intelligent on-chip motion-triggered interrupt features. Not only does the BMI270 comprise a fast and sensitive accelerometer and gyro pair, but it also contains several intelligent, on-chip motion-triggered interrupt features.

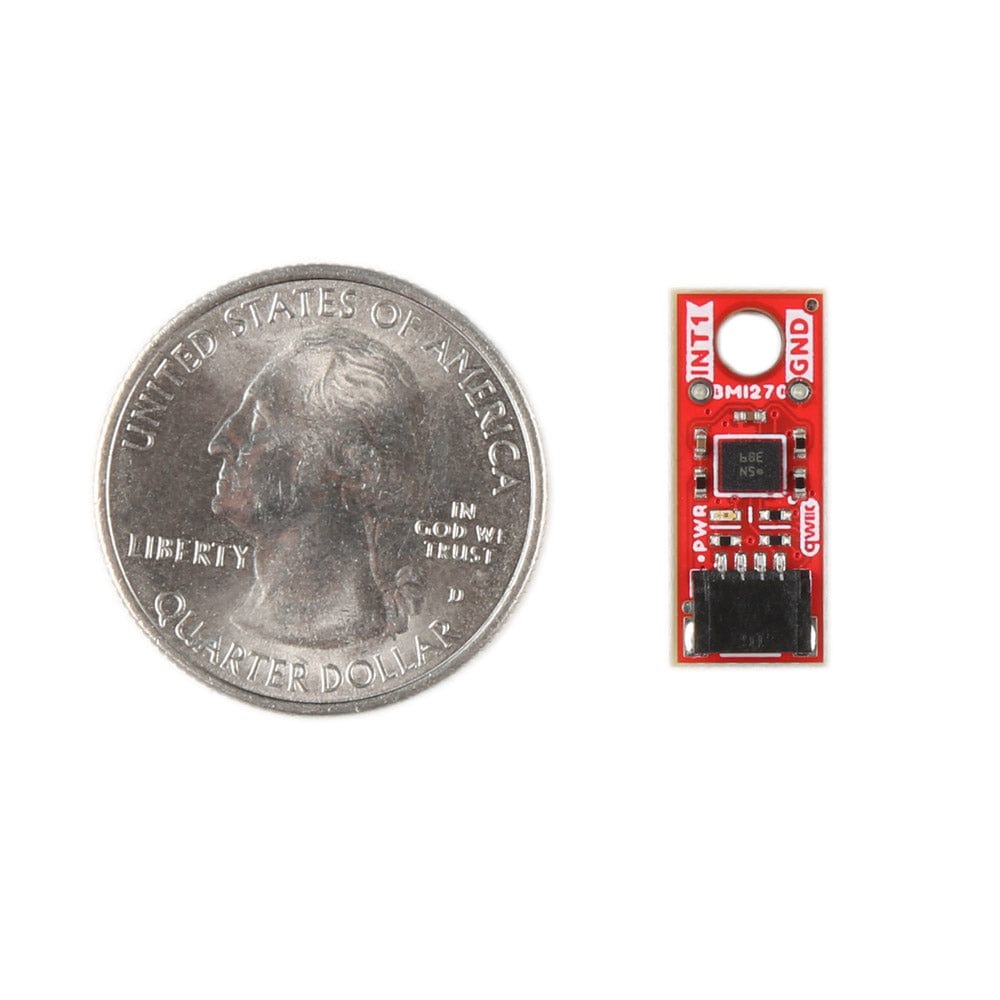

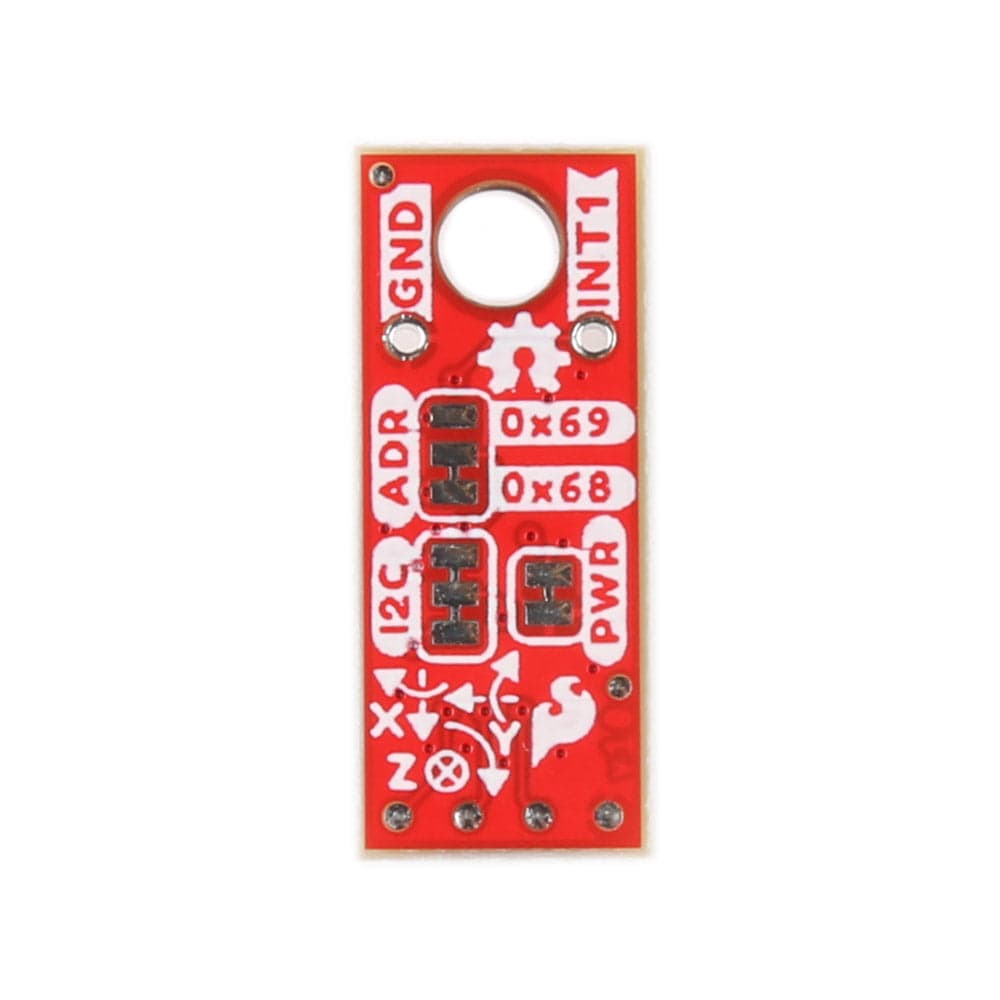

Our Micro-sized 0.3in. x 0.75in. footprint makes this breakout board an ideal option for your smallest projects using our solderless Qwiic cables and compatible controllers. On-board solder jumpers allow you to easily select the device address, remove the I²C pull-ups, and disable the power LED if need be.

The 6-axis sensor combines a 16-bit tri-axial gyroscope and a 16-bit tri-axial accelerometer featuring Bosch’s automotive-proven gyroscope technology. BMI270 includes several functionalities, such as an integrated plug-and-play step counter/detector and gesture detection for wrist-worn devices. Moreover, the IMU suits wearables, smart clothes, smart shoes, smart glasses, and ankle bands.

Features

  • Qwiic Micro Sized Board (0.75in x 0.30in / 19.05mm x 7.62mm)
  • 16-bit 3-axis accelerometer with ±2g/±4g/±8g/±16g range
  • 16-bit 3-axis gyroscope with ±125dps/±250dps/±500dps/±1000dps/±2000dps range
  • 400kHz AUX sensor interface with hardware synchronization
  • I2C Addresses: 0x68 (default), 0x69
  • 1.8V and 3.3V operation
  • Ultra-low current consumption
  • Smart features
  • Significant motion / Any motion / Motion detect
  • No motion / Stationary detect
  • Wristwear wakeup / Wrist-worn step counter
  • Activity change recognition
  • Wrist gesture recognition
  • 1x Horizontal Qwiic Connector
