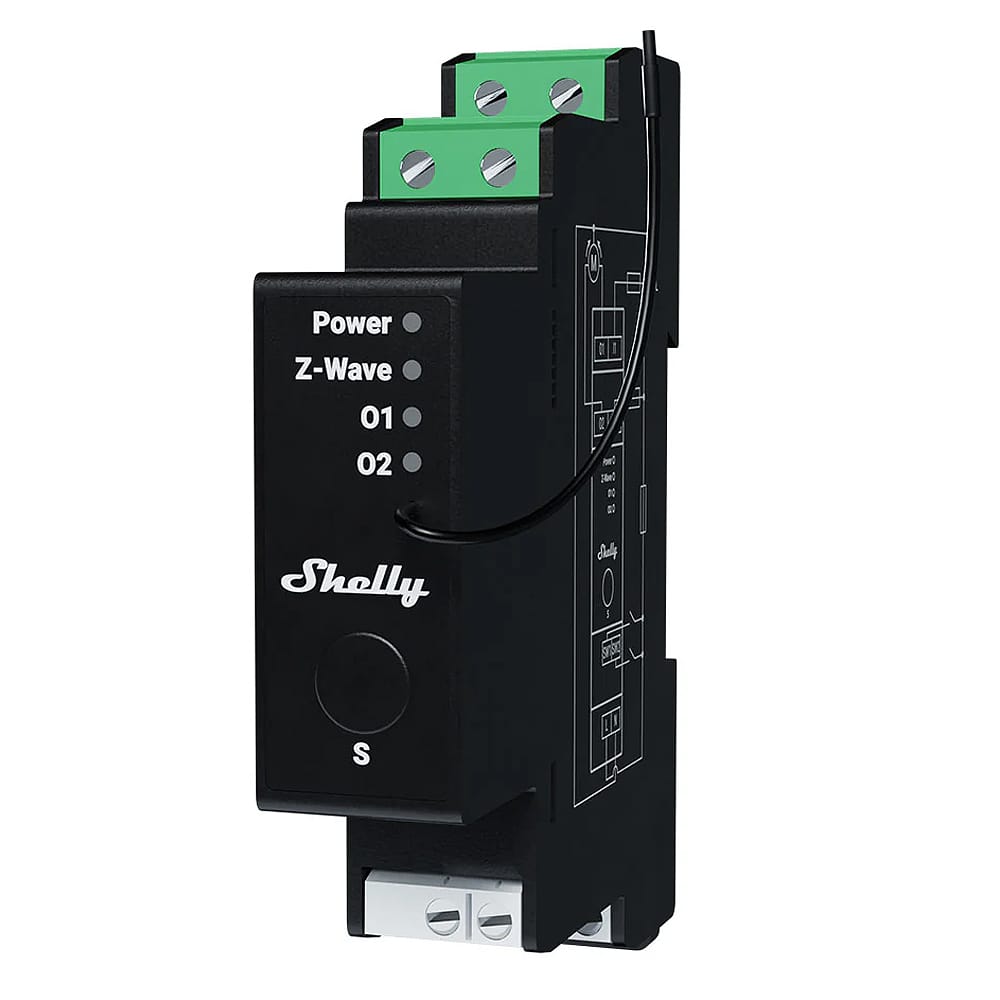

The Shelly Wave Pro Shutter LR is a professional DIN rail shutter control with power metering and Z-Wave Long Range. Ideal for home/facility automation of blinds, shutters, awnings, and more.
This device is a high-performance relay supporting up to 16A per channel, ideal for controlling motorised rollers, shutters, and blinds. It features an integrated power meter for precise energy monitoring per channel. With support for Z-Wave Long Range, it ensures reliable communication even in large installations.
Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs, via the Shelly smart home ecosystem, including the Shelly Smart Control app - or link it with a popular home automation software such as Home Assistant via a Raspberry Pi!
Note: You may require a neutral wire to use this product. Please research the device and your home wiring (safely, see below) before purchasing.
View our entire range of Shelly Pro and other professional home automation products.
Key features include:
-
Z-Wave operated - include the device to your Z-Wave network and control it remotely.
-
Custom schedules - set up your blinds to work automatically by creating personalised schedules aligned with your daily routine or synchronise with sunrise/sunset (gateway required).
-
Smart scenes - set custom scenes by combining the device with any other Z-Wave devices (gateway required).
-
Position control - set the desired position of your blinds, roller shutters, screens, awnings, and other devices powered by bi-directional AC motors.
-
Z-Wave Long Range - the range of the device is exceeding 1 km (line of sight). ZWLR works as a star network.
-
Slats angle control - use the device with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
Works with all certified Z-Wave Gateways
Shelly Wave Pro Shutter LR is retrofit and designed to fit behind some switches or sockets. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control it from anywhere using your smartphone or tablet. Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.
-
To take advantage of the Z-Wave Long Range feature, you will need a Long Range compatible receiver - such as the Home Assistant ZWA-2.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: www. z-wavealliance.org
Blinds that follow your office hours
Improve your work environment and bring added comfort to your office with automated blinds that integrate into your daily schedule.
Program the Device to open and close blinds at specific times, matching your office's operating hours. With Z-Wave Long Range support, it ensures reliable performance and extended reach, making it suitable even for larger office spaces. Enhance productivity and maintain a comfortable atmosphere throughout the day.
Personalisation at its best
Experience full control with position-adjustable blinds, allowing you to fine-tune natural light and create the ideal workspace atmosphere.
The device supports both manual operation via switches or push-buttons and remote control through your smart home app. You can adjust the position and angle of venetian blinds directly from your desk. With Z-Wave Long Range support, enjoy reliable control even across large office areas—helping maintain focus and productivity throughout the day.
Enhance the security of your home with smart scenes
Concerned about leaving your home unprotected while on vacation or a business trip? Enhance your home’s safety by integrating the Device with other devices to establish the “Vacation Scene.”
When you’re away, your window coverings will adjust automatically at pre-determined times daily, and both indoor and outdoor lights will illuminate every evening. This will give the impression that someone is at home, deterring potential intruders. Secure peace of mind along with your property, even when you're miles away.
Shelly Pro - Five-year manufacturer warranty
All Shelly Pro products carry a five-year manufacturer warranty.
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.
⚠️Caution - Read Before Buying⚠️
- Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
-
Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
-
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
- Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
- Do not connect the device to appliances exceeding the given max load.
- Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
- Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
- Control the tilt position (angle) of the venetian blind slats
- Supports push-buttons/momentary switches, and toggle switches
- Power metering
- Supports Z-Wave Long Range - maintains a strong connection over distances exceeding 1 km (line of sight)
- Dual Z-Wave frequency options: choose between 864 MHz (ZWLR) or 868.4 MHz ( Z-Wave Plus)
- Energy efficient: uses only up to 0.3 W of power

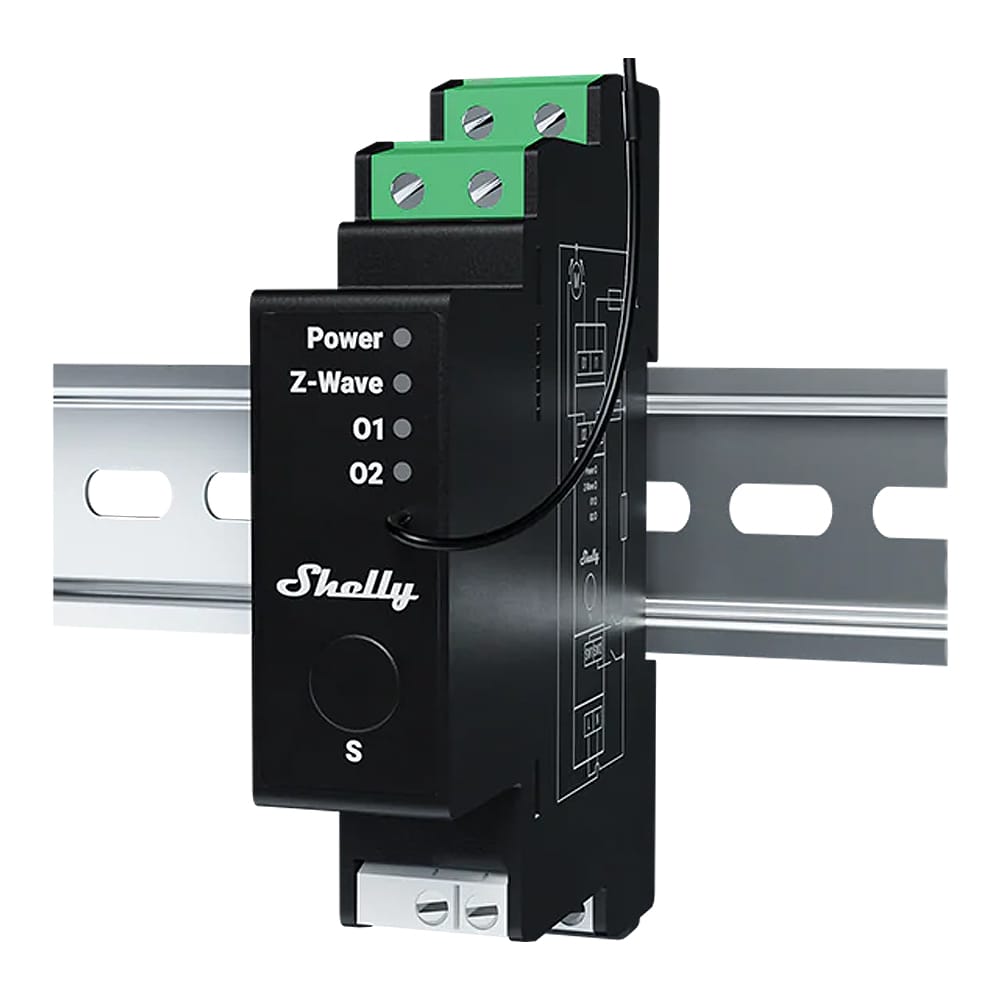

- DIN-rail mountable
- Latest technology: Z-Wave 800 Series
- Easy set up with SmartStart - just scan and go
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates
- A Z-Wave™ gateway is not included. A gateway (smart hub) is required for the configuration of the device.
Specifications
| Power consumption |
< 0.3 W |
| Power measurement [W] |
Yes |
| Max. switching voltage AC |
240V |
| Max. switching current AC |
16A per channel |
| Overheating protection |
Yes |
| Overcurrent protection |
Yes |
| Overvoltage protection |
Yes |
| Long range network distance (depends on local condition) |
Up to 80m indoors and 1000m outdoors |
| Long range network Z-Wave® repeater |
No |
| Long range network Z-Wave® frequency bands |
864 MHz |
| Mesh network distance (depends on local condition) |
Up to 40m indoors (131 ft.) |
| Mesh network Z-Wave® repeater |
Yes |
| Mesh network Z-Wave® frequency bands |
868.4 MHz |
| CPU |
Z-Wave® S800 |
| Maximum radio frequency power transmitted in frequency band(s) |
< 25 mW |
| Size (H x W x D) |
94x19x69 ± 0.5 mm |
| Weight |
75 g / 2.65 oz. |
| Mounting |
DIN rail |
| Screw terminals max. torque |
0.4 Nm / 3.54 lb″ |
| Conductor cross section |
0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
0.5 to 1.5 mm² / 20 to 16 AWG (white connectors) |
| Conductor stripped length |
6 to 7 mm (green connector)
5 to 6 mm (white connectors) |
| Shell material |
Plastic |
| Colour |
Black |
| Ambient temperature |
-20°C to 40°C |
| Humidity |
30% to 70% RH |
| Max. altitude |
2000 m |
Resources
Handy Shelly Resources

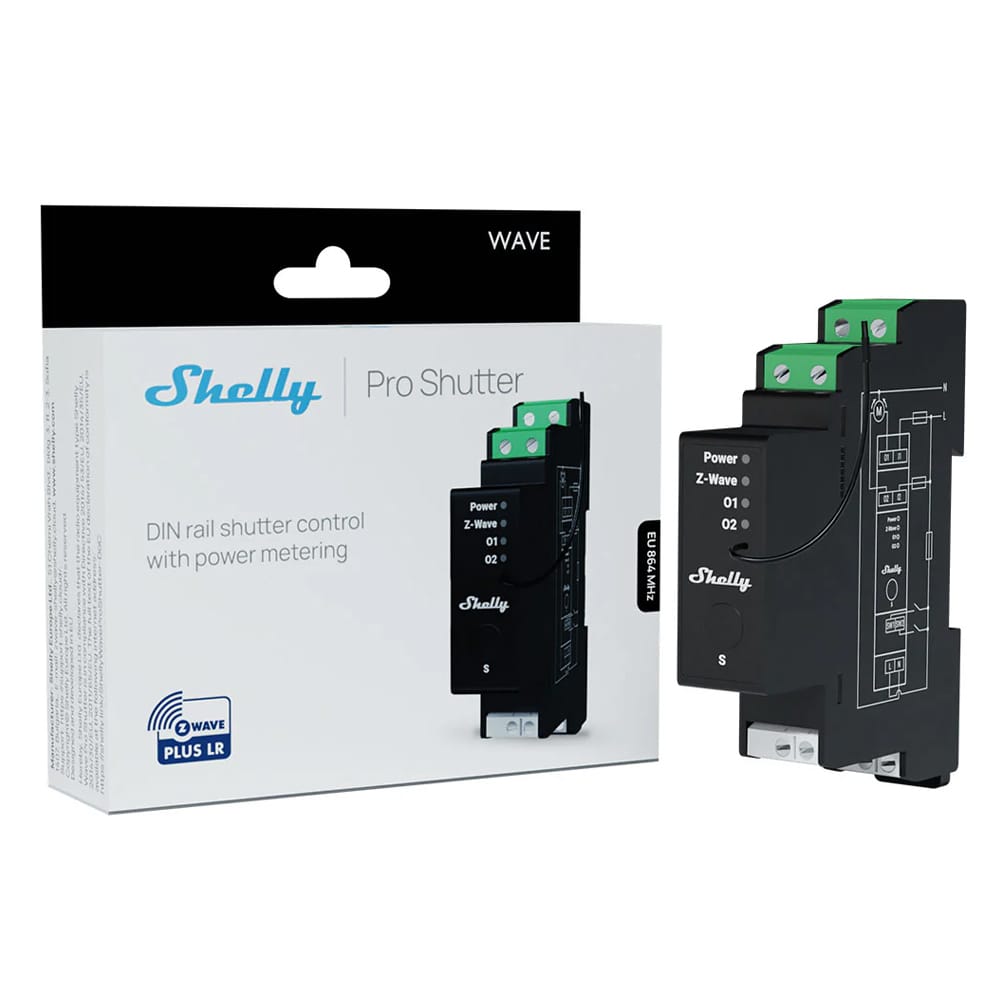

Package Contents
- 1x Shelly Wave Pro Shutter LR
