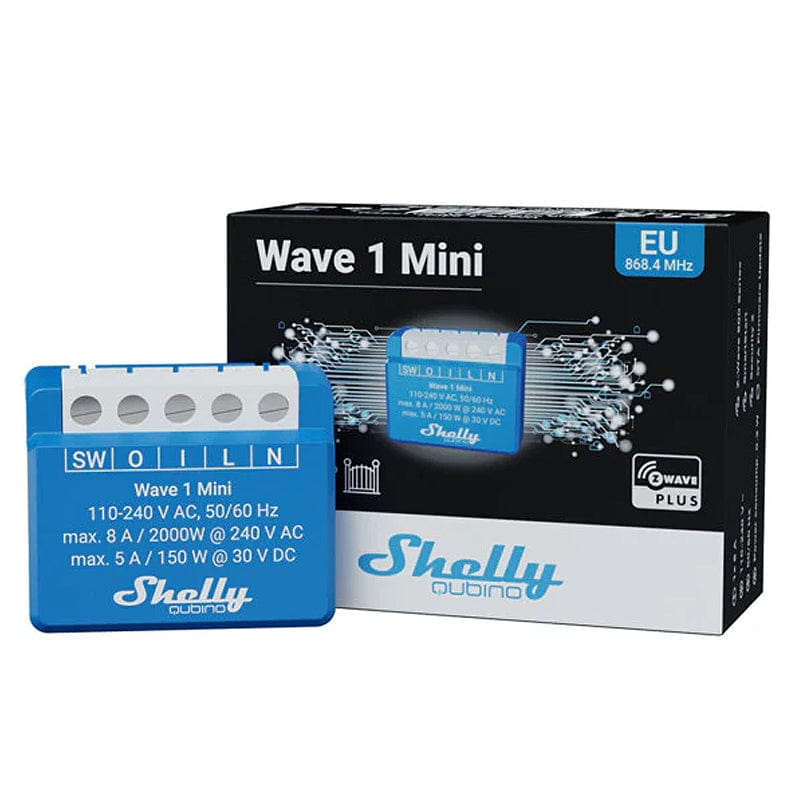

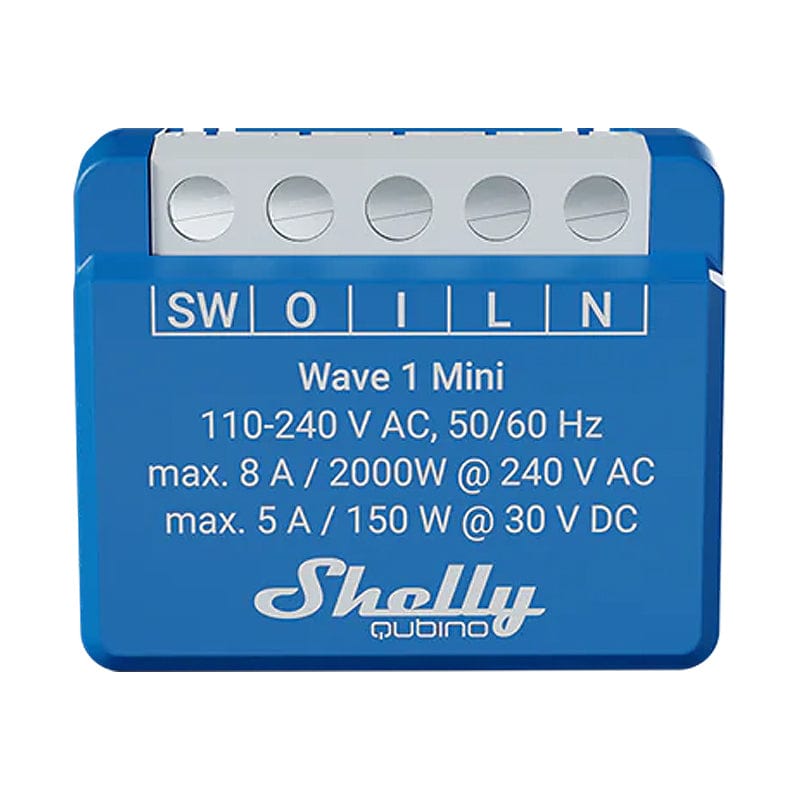

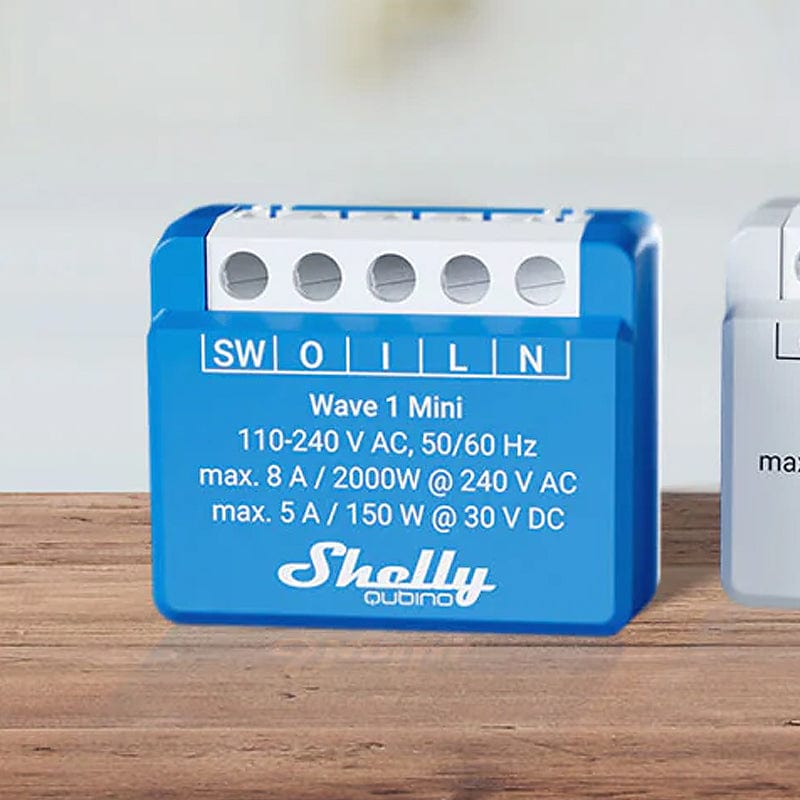

The ShellyWave1 Mini is a super-compact, secure, energy-efficient Z-Wave smart switch compatible with all certified Z-Wave gateways. A perfect fit for even the smallest switch boxes and/or appliances, and still able to switch loads up to 8A 240V AC or 5A 30V DC.

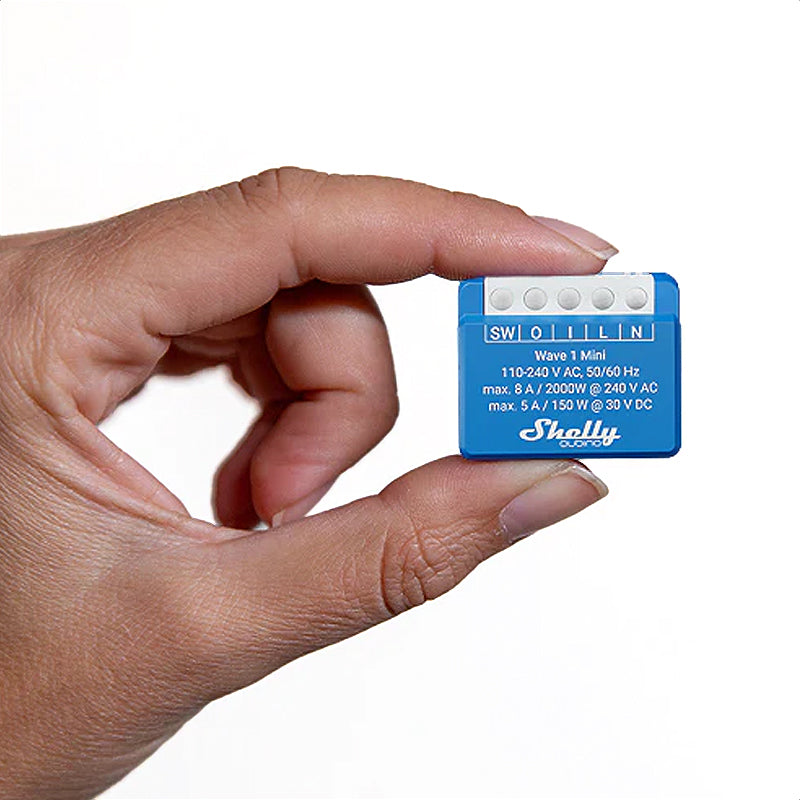

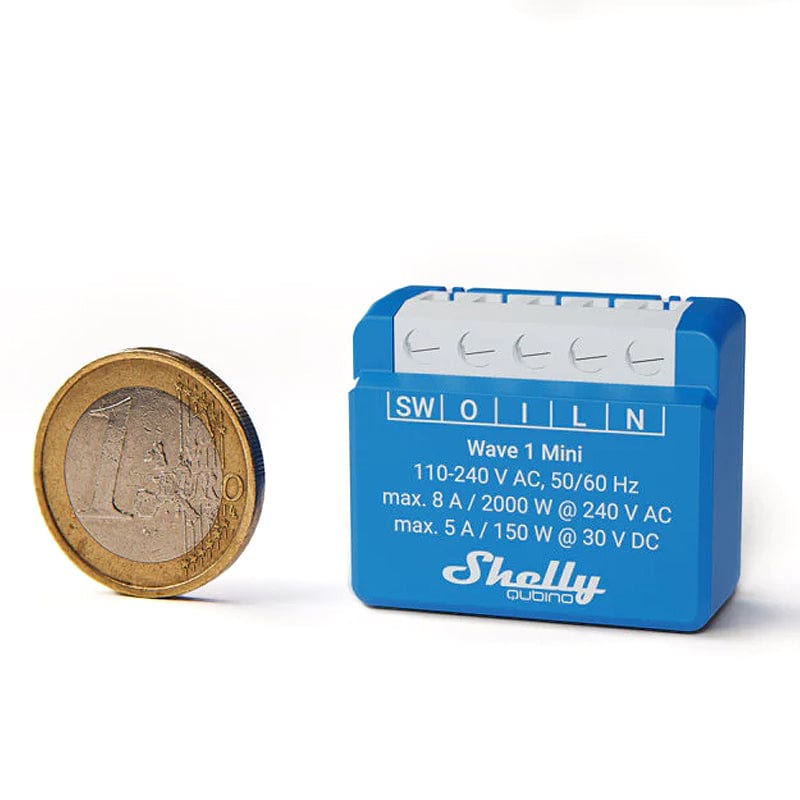

Designed with convenience in mind, this mini switch has similar capabilities (albeit lower current switching ability) to the Shelly Wave 1 fit into a compact and space-saving form factor. With its size reduced by 35% compared to its predecessor, Wave 1 Mini is perfect for those tight spaces where traditional modules simply won't fit. Despite their small size, Wave Mini devices don't compromise on performance or functionality, just a lower switching current of 8A 240VAC.
Once installed, include it in yourZ-Wavenetwork (Z-Wave gatewayis required) and control connected appliances with a popular home automation software such as Home Assistant via a Raspberry Pi!
Note:You may require a neutral wire to use this product.Please research the device and your home wiring (safely, see below) before purchasing.
Works with all certified Z-Wave Gateways
Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub.For more information, please visit the official Z-Wave website: z-wavealliance.org
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution.The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee(if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Highlights
Z-Wave operated -Include Wave 1 Mini to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways
Dry Contacts - Connect different power supply loads to the device up to 8A 240V AC or 5A 30 VDC
Wide range of voltage support - Use a wide range of output voltage levels. Supports low voltages.
Associations- Establish direct communication between devices in your Z-Wave local network and set actions with no gateway present!
Smart Schedules - Create personalized schedules aligned with your daily routine or synchronize with sunrise/sunset to manage your lighting (gateway required).
Smart scenes- Set custom scenes by combining Wave 1 Mini with any other Z-Wave devices (gateway required)
Features
Supports up to 8A at 240V AC and 5A at 30V DC
Dry contacts (potential-free)
Extremely low power consumption: < 0.3 W
Z-Wave frequency band: 868.4 MHz (CEPT countries)
Latest technology: Z-Wave 800 Series
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Supports over-the-air firmware updates

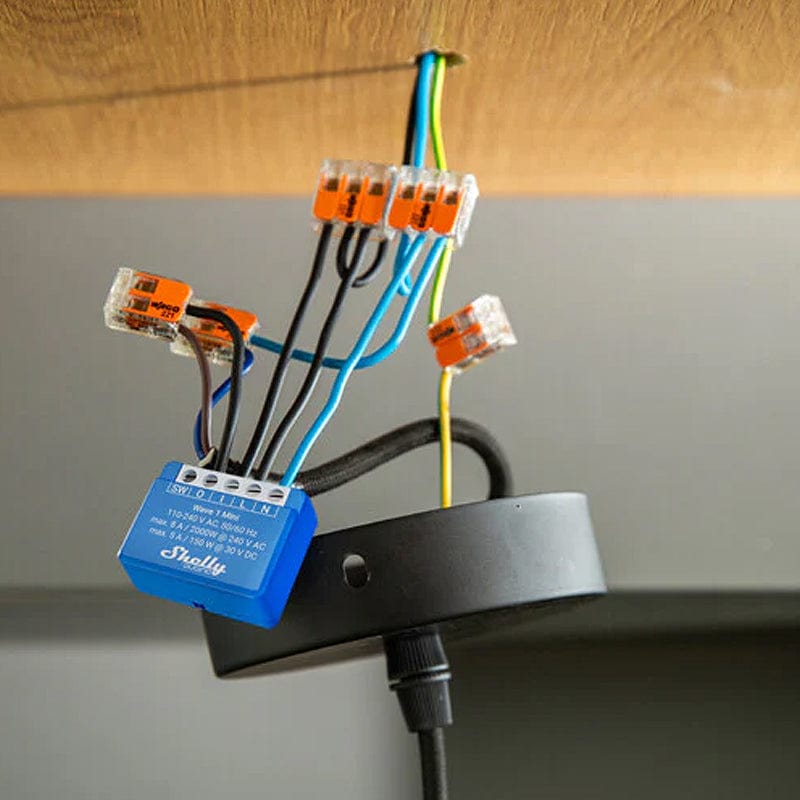

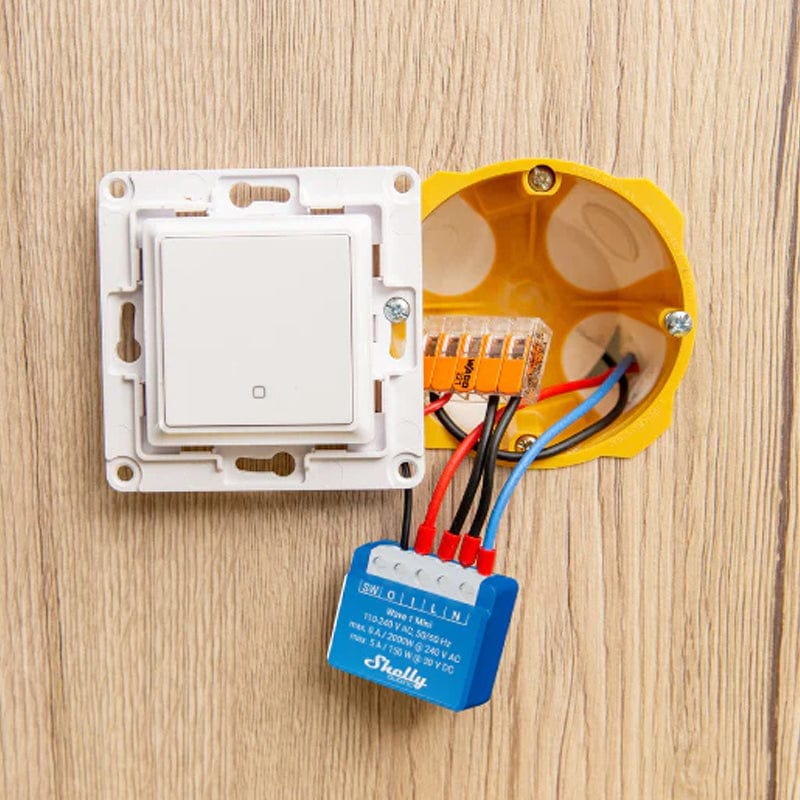

Fast and simple installation in most electrical boxes and switches
Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
A Z-Wave™ gateway is not included. A gateway (smart hub) is required for the configuration of the device.
Specifications
Power supply
110 - 240 V AC, 50/60 Hz
Power consumption
< 0.3 W
Max. switching voltage AC
240V
Max. switching current AC
8A
Max switching power AC
2000W
Max. switching voltage DC
30V
Max. switching current DC
5A
Overheating protection
Yes
Distance
Up to 40 m indoors (131 ft.) (depends on local conditions)
Z-Wave® repeater:
Yes
CPU
Z-Wave® S800
Z-Wave® frequency band:
868.4 MHz
Maximum radio frequency power transmitted in frequency band(s)
