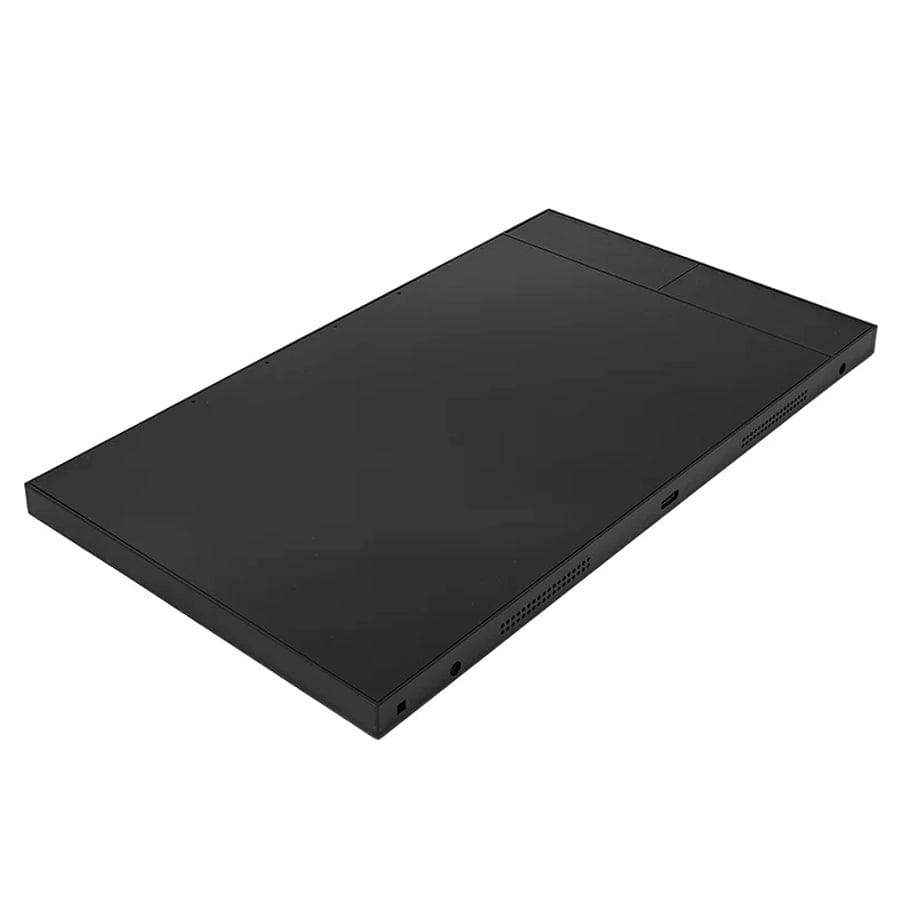

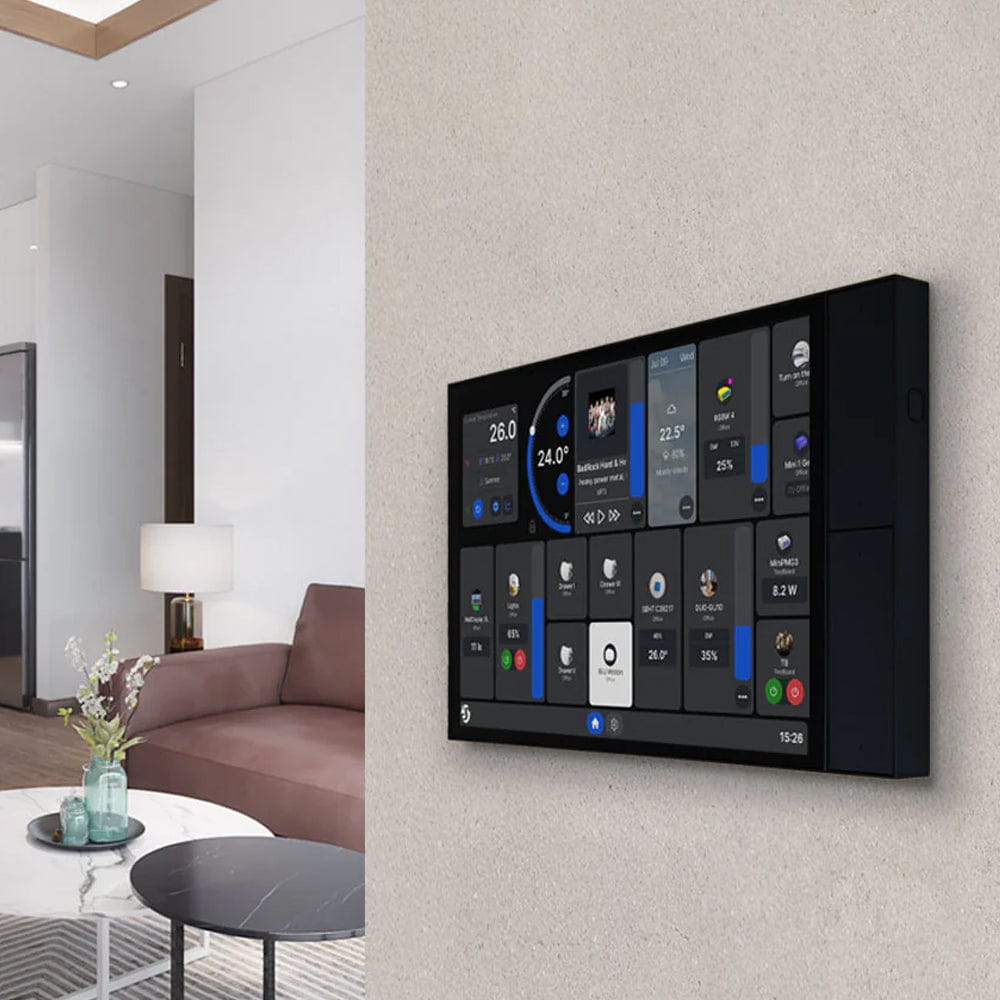

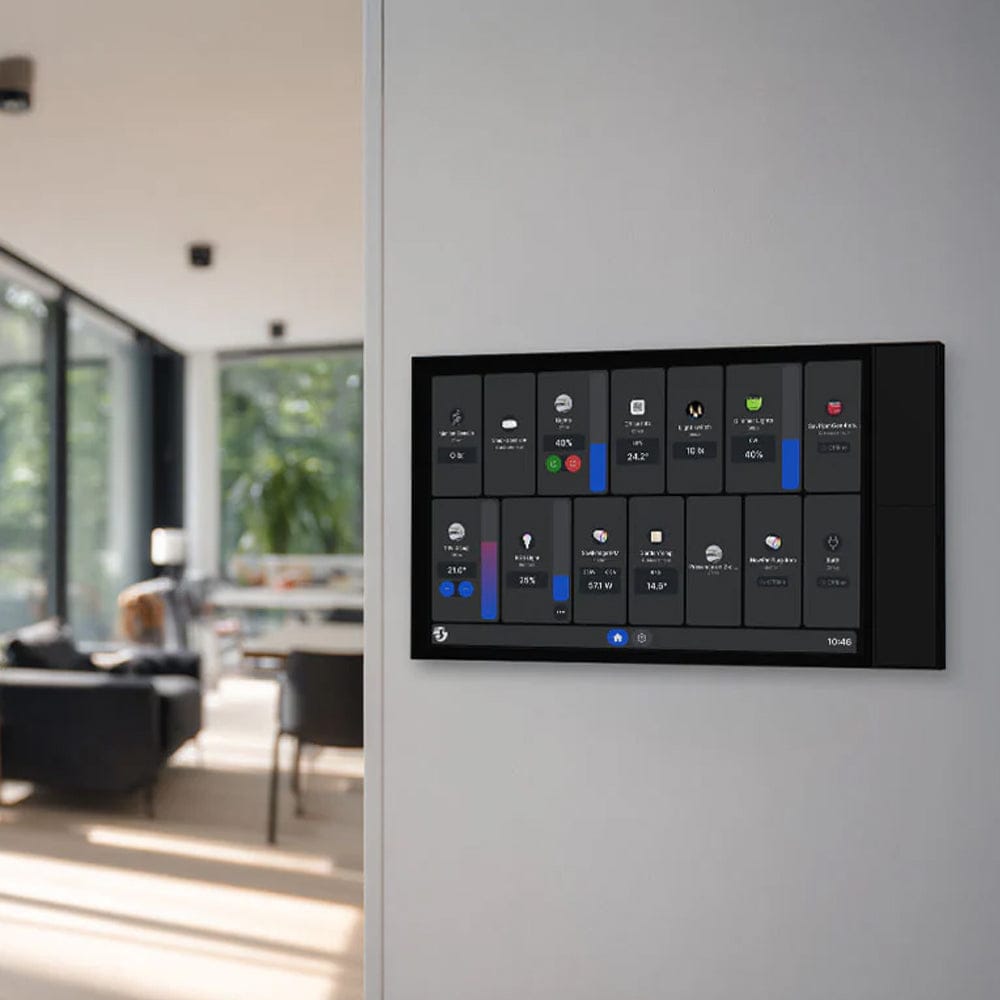

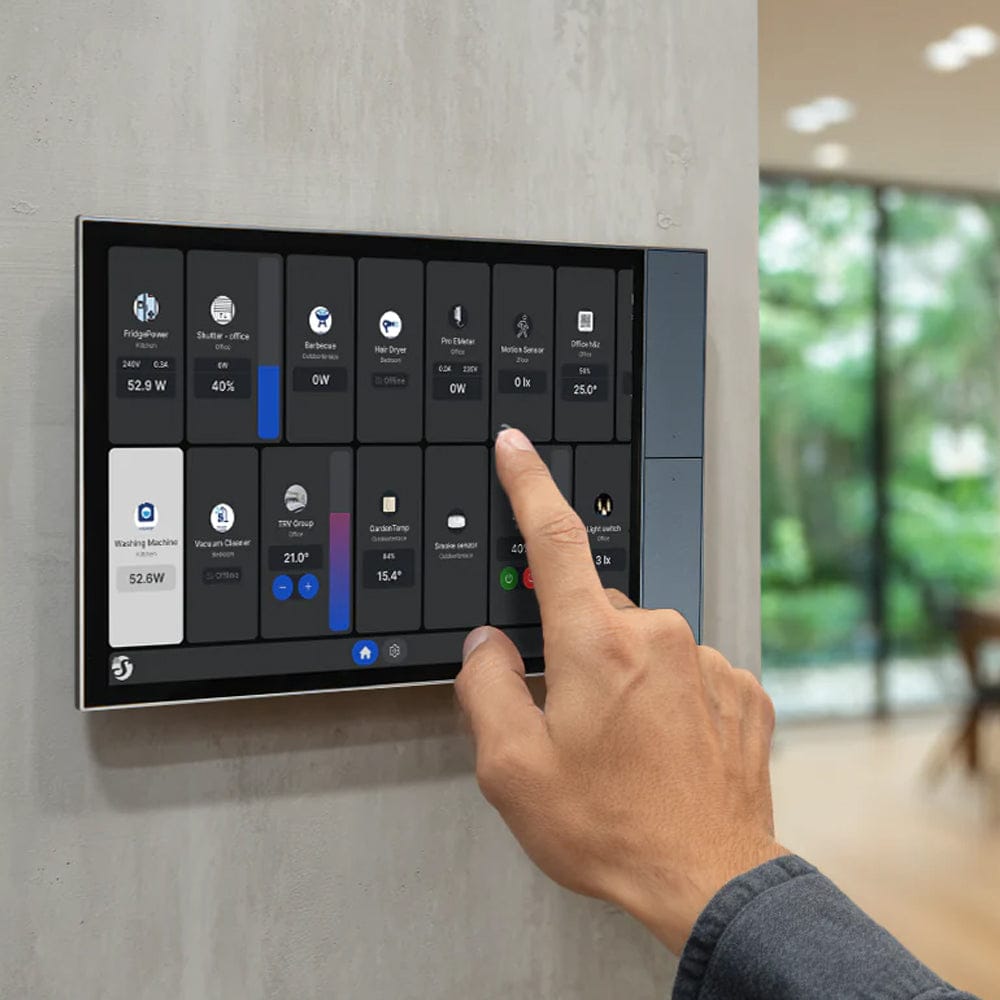

The ShellyWall Display XL is a smart home control panel with a 10.1” touch display, built-in 5A relay, integrated speakers and four customisable buttons that installs in a standard electrical wall box and gives you full, easy control over your Shelly devices-ideal for houses, apartments, hotels, and commercial spaces.
The Wall Display XL centralises control of lights, HVAC, scenes, and more into a single, wall-mounted panel. See real-time power usage in each room to cut own on energy waste, and manage everything remotely through Shelly Smart Control App.
With support for Wi-Fi, MQTT, and Home Assistant, it works perfectly in open home automation ecosystems. The Shelly Wall Display XL also features four customisable physical buttons, offering quick, app-free access-ideal for kids, guests, or shared spaces.
Control devices and scenes with a tap Manage lights, appliances, HVAC, and more from one central screen-no need to walk room to room.
View and reduce energy usage See real-time power consumption for each room and make smarter decisions to lower energy costs.
Integrate with your existing smart system Works over Wi-Fi and Bluetooth, with support for MQTT, Webhooks, and Home Assistant.
Use physical buttons for fast actions Assign up to four customisable buttons to your most-used functions, like turning off all lights, unlocking a door, or activating a scene.
Monitor and control remotely Stay connected to your home or building from anywhere via the Shelly Smart Control app.

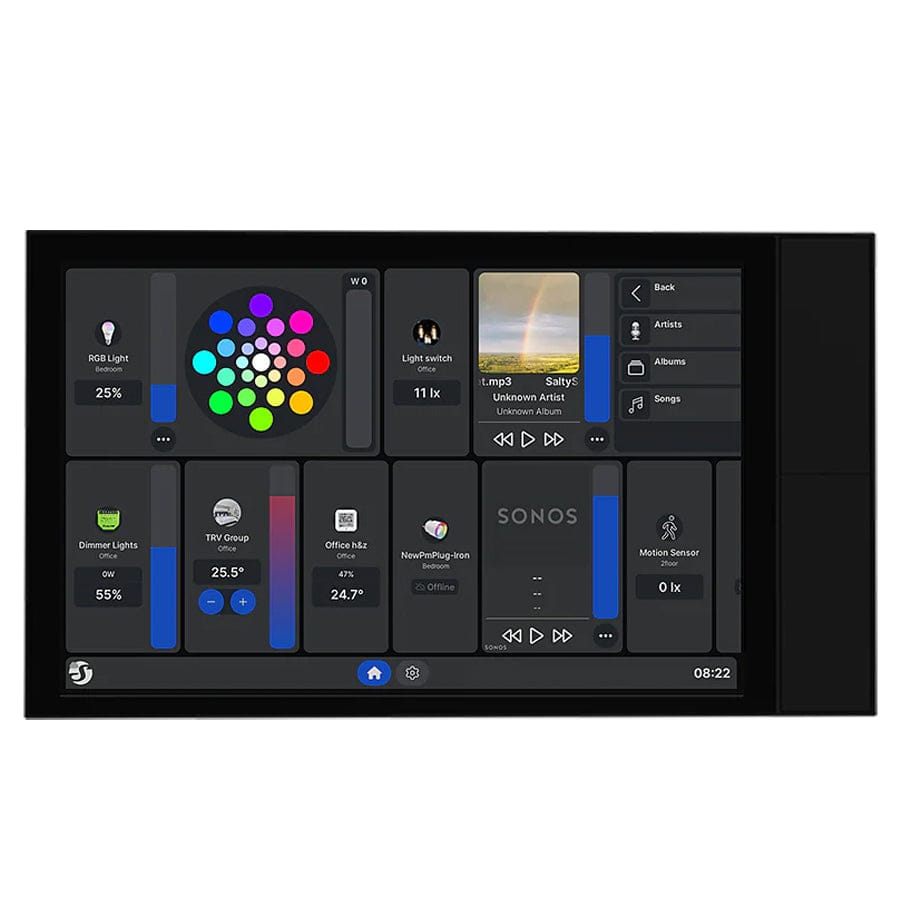

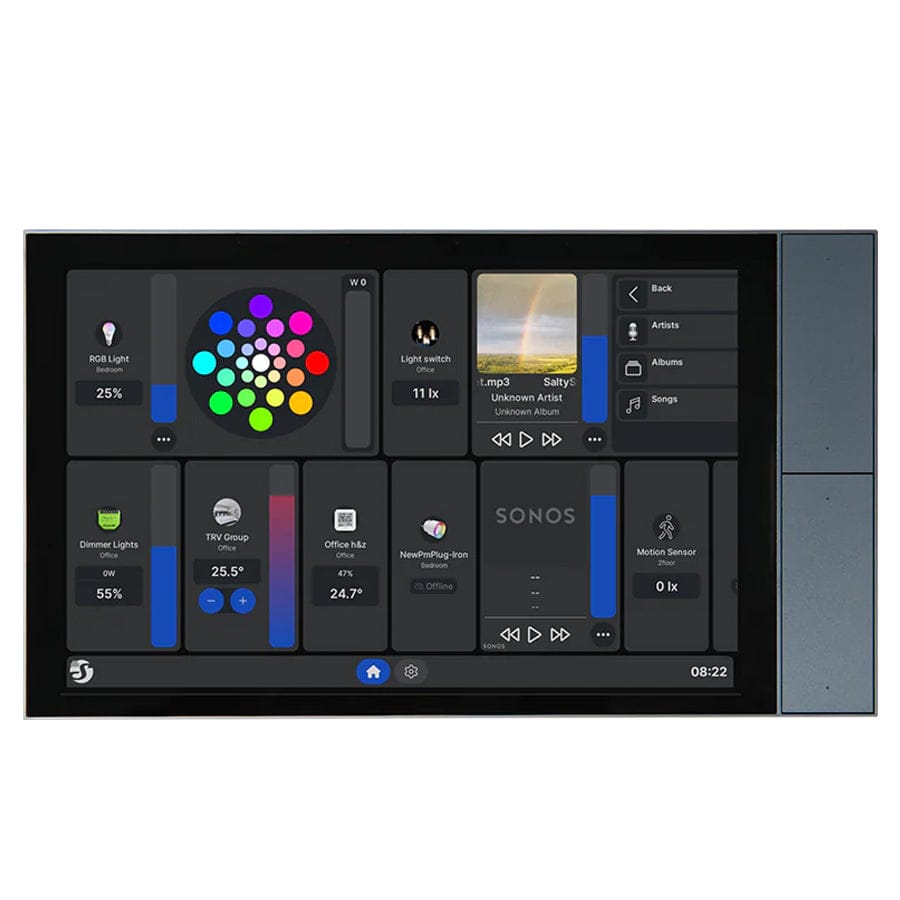

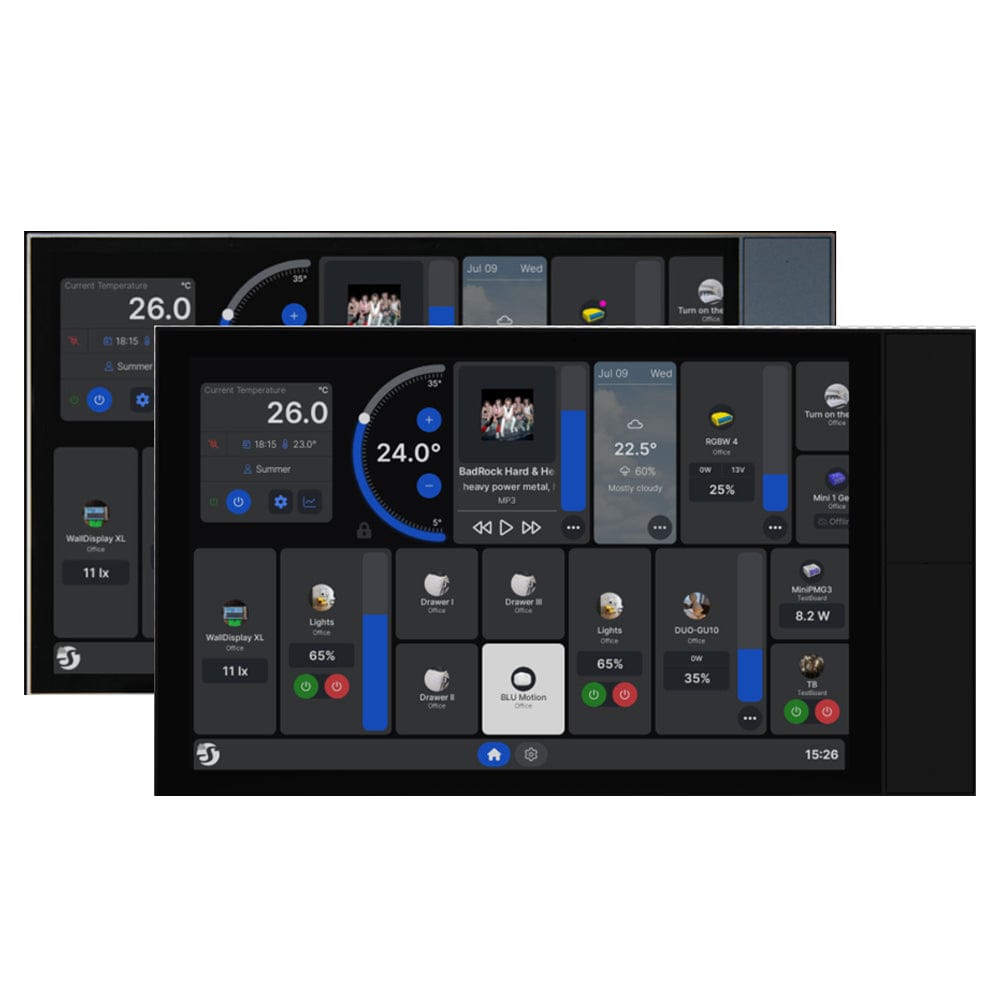

Customize the home screen Personalize your layout with widgets, buttons, and device groups to match your lifestyle and habits.
Note:You may require a neutral wire to use this product.Please research the device and your home wiring (safely, see below) before purchasing.
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution.The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee(if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
10.1" responsive HD colour touchscreen display
Ultra-fast quad-core CPU for instant response

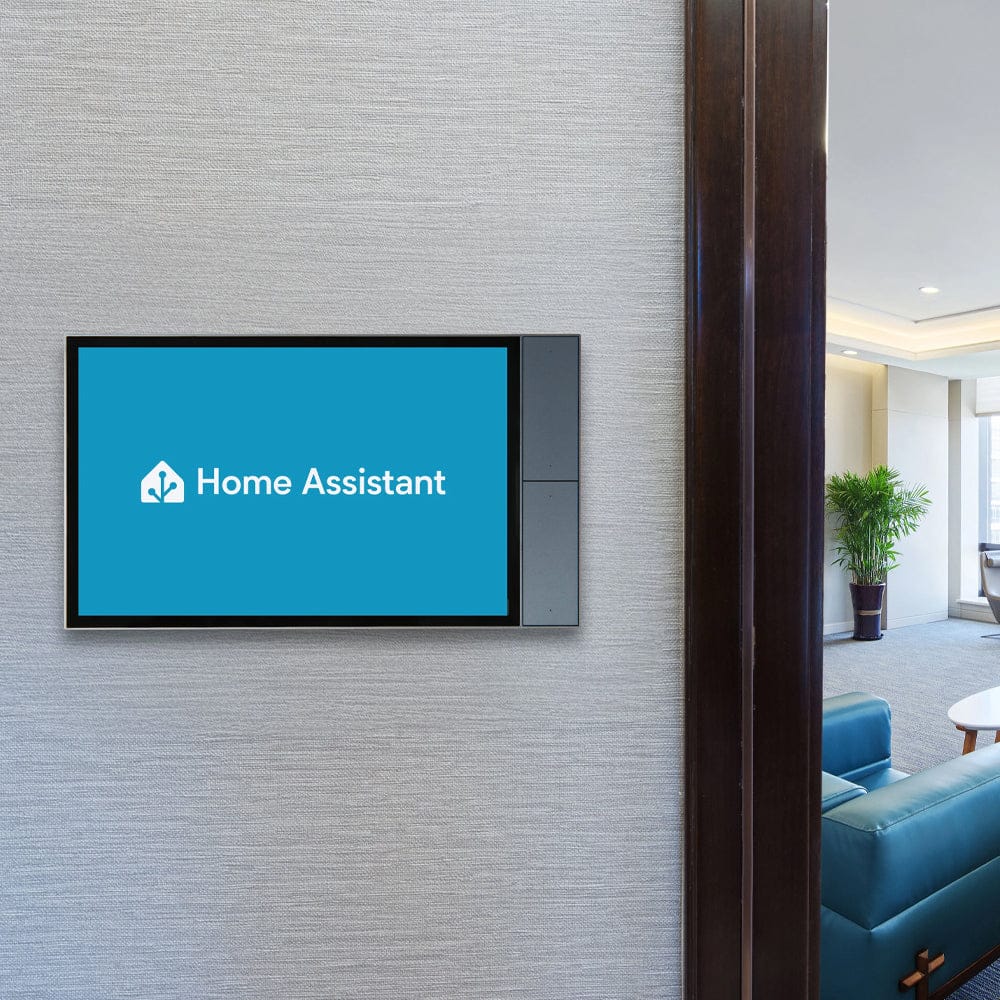

Home Assistant Integration
Wall-mount design compatible with EU standard switch boxes

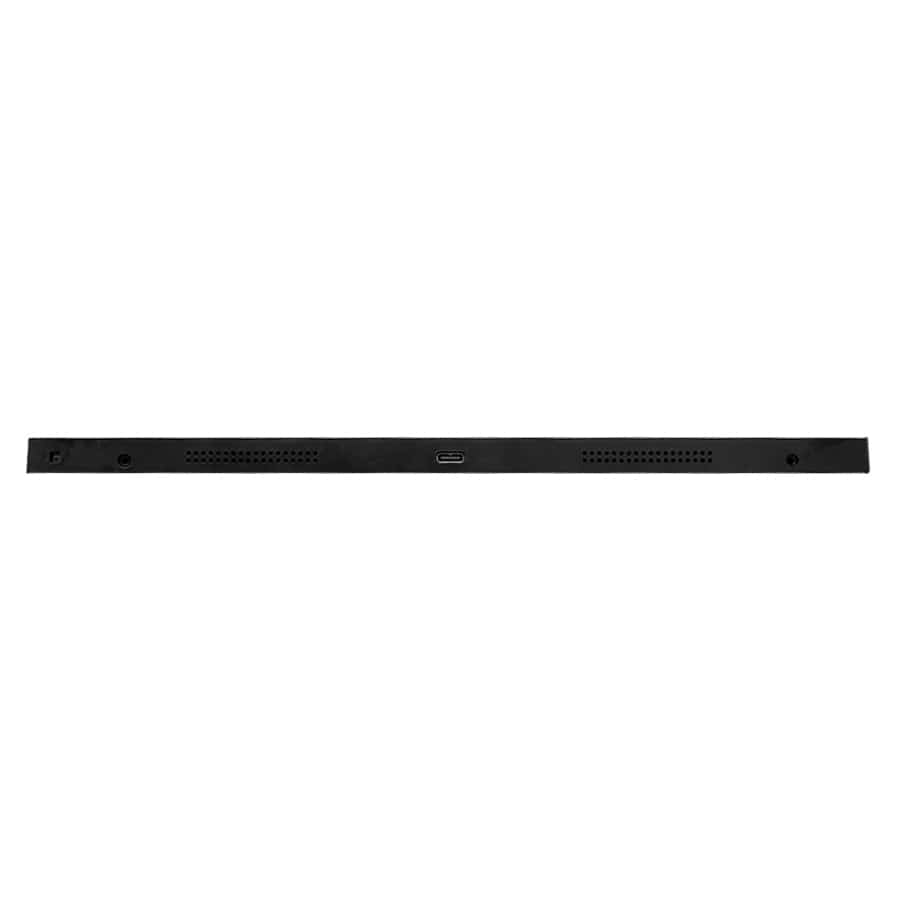

Integrated dual 2W high-quality stereo speakers
Bluetooth and SONOS speakers support
Dual connectivity: Bluetooth 5.4 and Dual Band Wi-Fi 6 (2.4GHz & 5GHz)
Built-in relay controlling appliances up to 1500W
4 customisable buttons for quick actions & scenes
Built-in proximity & brightness (lux) sensors
Power monitoring function of connected Shelly PM devices
Fully customisable screen interface for device management
Integrated media player & internet radio support
Specifications
Physical
Size (H × W × D)
155.8 × 272.5 × 38.3 mm
Weight
920 g
Touch screen
5-point capacitive screen, G+FF touch
Screen resolution
1280 × 752 px
Screw terminals max torque
0.4 Nm
Conductor cross section
0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length
15 mm
Mounting
Wall box
Shell material
Metal stamping, PC with coating, glass
Shell colour
Black with Grey frame Black with Black frame
Speaker
2 × 2 W (BOX sound cavity)
Environmental
Ambient working temperature
-20°C to 40°C
Humidity
30% to 70% RH
Max. altitude
2000 m
Electrical
Power supply
100–240 V~ 50/60 Hz
Power consumption
< 15 W
USB-C power supply
5 V⎓ / 3 A
Power button
1 button for turning screen On/Off
Control buttons
4 functional buttons for setting
Output circuits ratings
Max. switching voltage
240 V~
Max. switching current
5 A
Output (AC)
100–240 V~ 50/60 Hz
Output (USB-C)
5 V⎓ / 0.5 A
Sensors and meters
Internal-temperature sensor
No
Ambient temperature sensor
No
Humidity sensor
No
Light sensor
Yes
Microphone
Yes (four-microphone line array)
G-sensor
No
Proximity sensor
Yes (≤ 1 metre)
Radio
Wi-Fi protocol
Wi-Fi 6 Dual Band
Wi-Fi RF band
2.4 & 5 GHz
Wi-Fi max. RF power
< 20 dBm
Wi-Fi range
Up to 30 m indoors and 50 m outdoors (depends on local conditions)
Bluetooth protocol
5.4
Bluetooth RF band
2402–2480 MHz
Bluetooth max. RF power
< 4 dBm
Bluetooth range
Up to 10 m indoors and 30 m outdoors (depends on local conditions)
