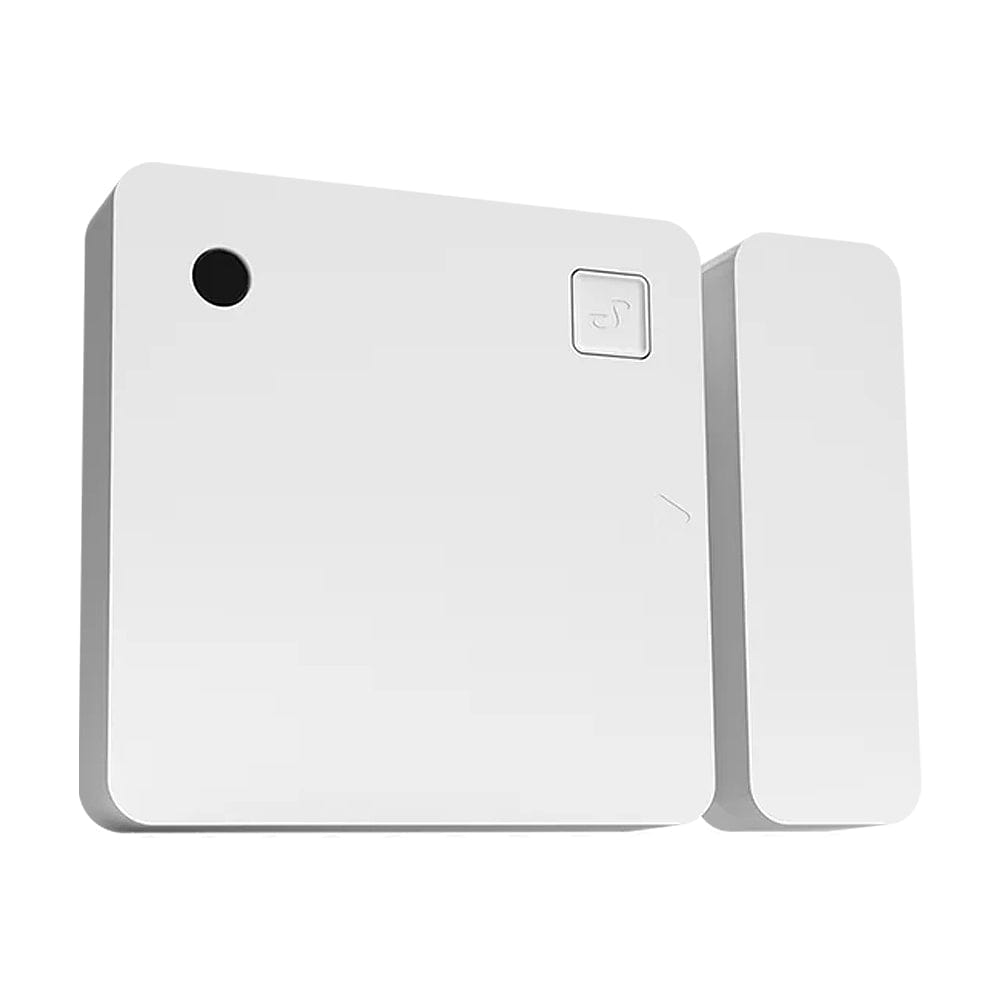

The Shelly BLU Shelly BLU Door/Window sensor, with LUX and tilt angle measurement, is designed to detect openings and report them immediately, triggering home automation scenarios accordingly.

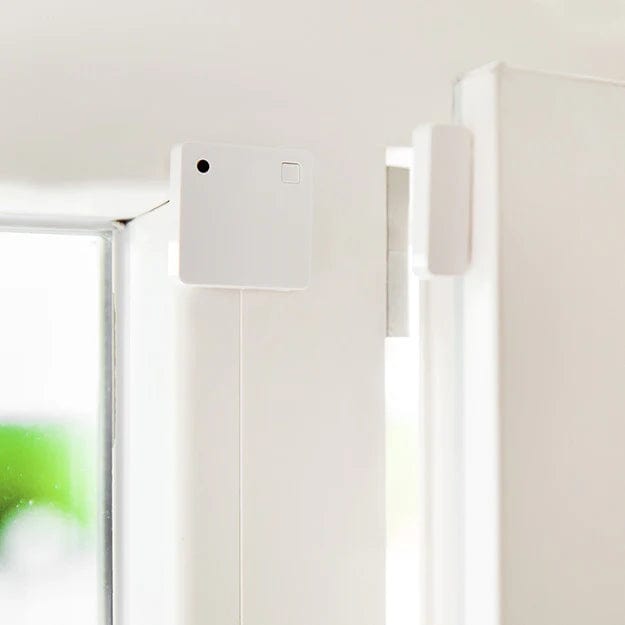

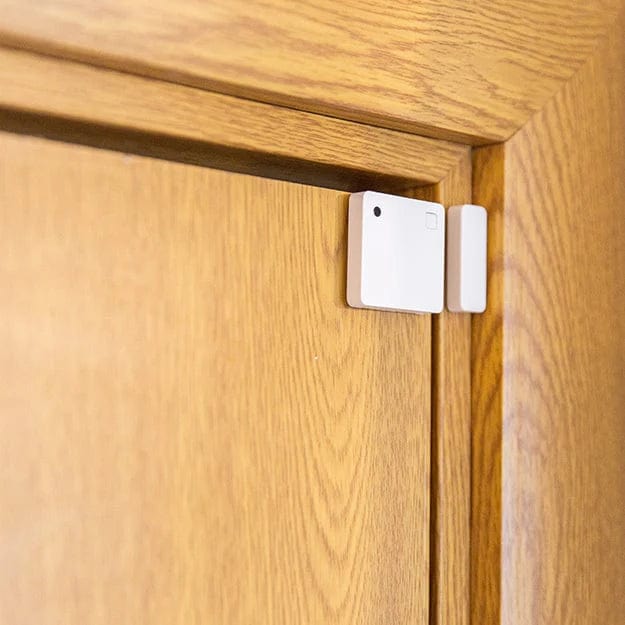

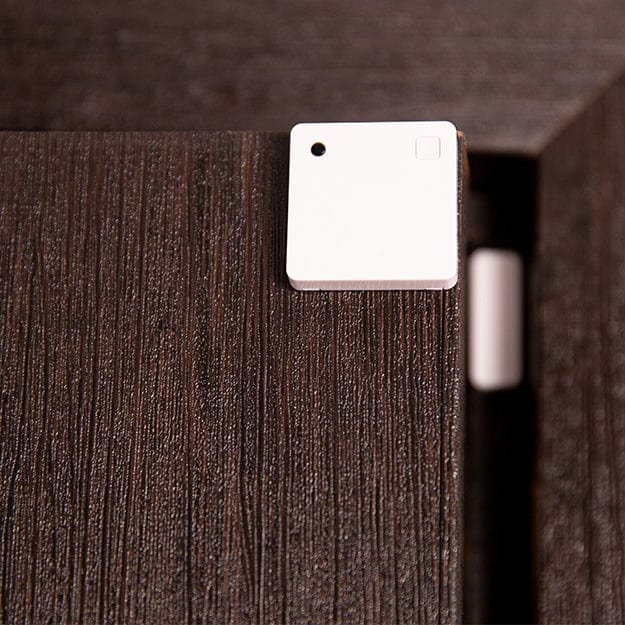

Whether you want to enhance home security, automate lighting, or monitor access, the Shelly BLU Door/Window sensor adapts to your unique needs. Its compact and stylish design allows for easy installation on doors, windows, safety gates, garage doors, and more. With its seamless integration into any interior, it effortlessly fits the aesthetics of your living space.
The sensor can also connect to your wider Shelly network over WiFi by using another Shelly WiFi-enabled device as a gateway, such as a Shelly BLU Gateway, or any Shelly Plus, Pro or Gen3 device (excluding sensors). Once connected to your Shelly network, you can use it with your Shelly smart home ecosystem, including the Shelly Smart Control app - or link it with a popular home automation software such as Home Assistant via a Raspberry Pi!
The sensor is powered by a single CR2032 lithium battery, which is included in the package.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?
Features
Detects and reports opening or closing of doors/windows
Measures tilt angle and luminosity
Battery: 1x 3V CR2032 (included)
Battery life - up to 5 years
Easy control through the Shelly Smart Control app, BTHome protocol or various platforms
Can be integrated into automation scenarios and scenes
To use this device with the Shelly Smart Control app, a gateway is necessary. Compatible gateways are Shelly BLU Gateway, or any Shelly Plus, Pro or Gen3 device (excluding sensors).
Specifications
Size (HxWxD)
35x35x7 mm ±0.5 mm (Sensor unit)
35x12x7 ±0.5 mm (Magnet)
Weight
10 g ±1 g / 0.35 ±0.05 oz (Device with the battery)
8 g ±1 g / 0.28 ±0.05 oz (Magnet)
Shell material
Plastic
Colour

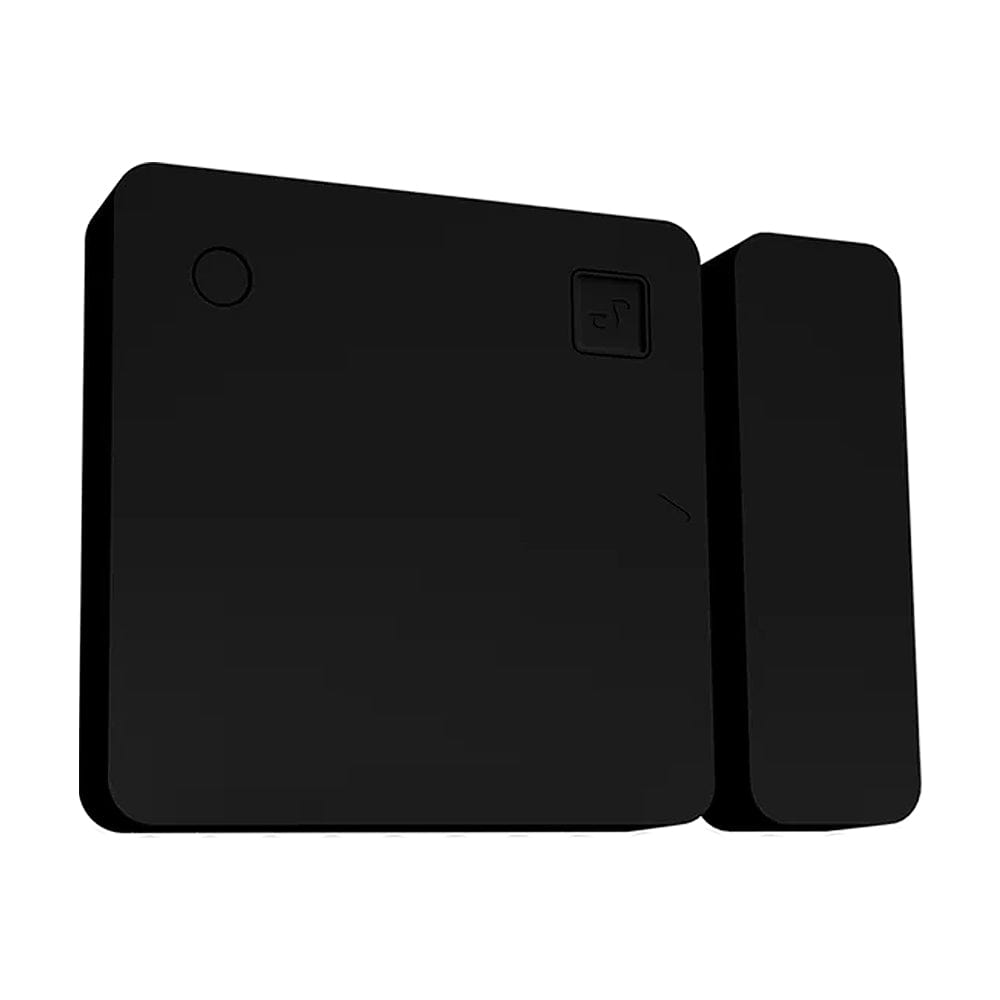

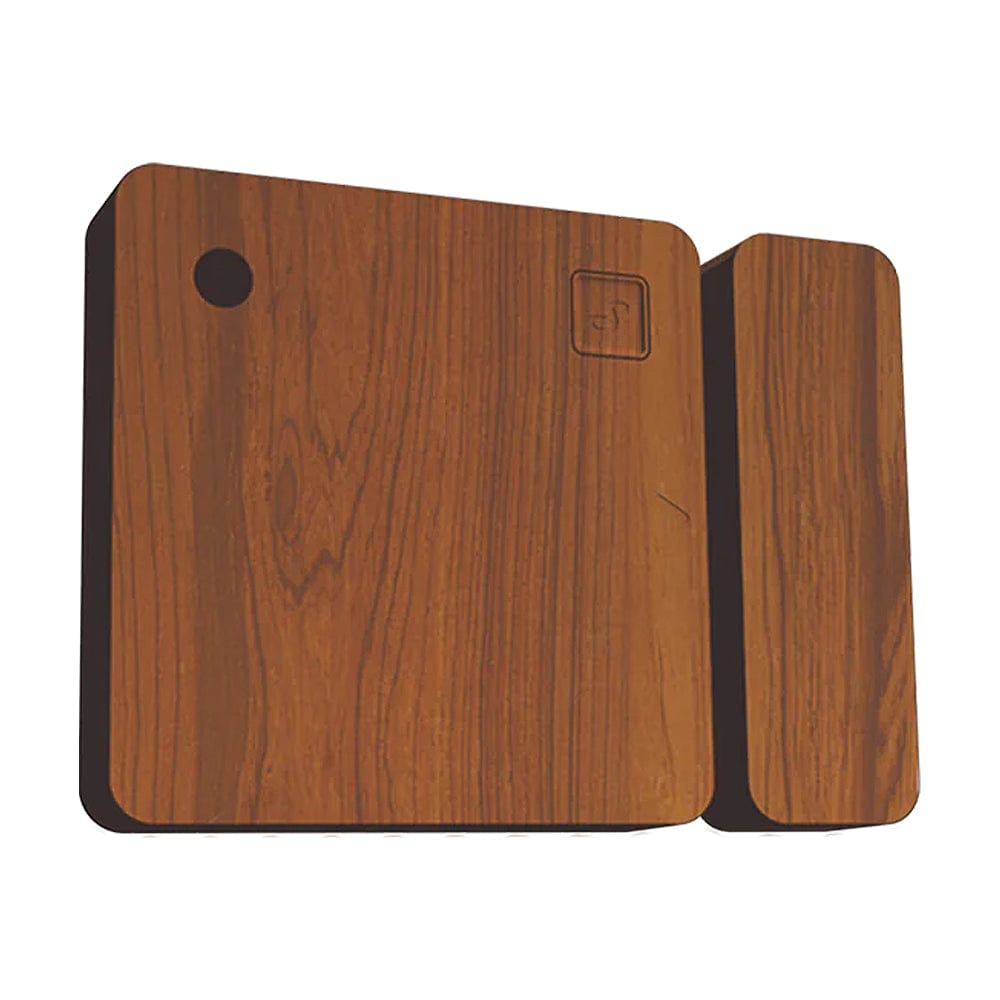

White, black, brown
Ambient temperature
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH
Power supply
1x 3 V CR2032 battery (included)
Battery life
5 years
Reed switch
Yes
G-sensor
Yes
Light sensor
Yes
RF band
2400 - 2483.5 MHz
Max. RF power
<4 dBm
Bluetooth Protocol
4.2
Bluetooth Range
Up to 10 m / 33 ft indoors Up to 30 m / 100 ft outdoors
