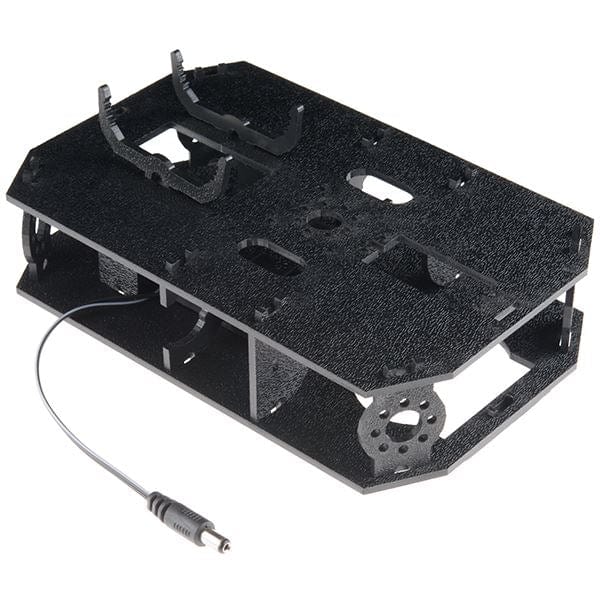

Shadow Chassis

The Shadow Chassis is a marvellously durable and modular robot platform from RobotZone. The chassis plates and mounts are cut from ABS plastic and utilize the Actobotics 0.77" and 1.50" hub patterns for sensors, controllers, power, etc.

Simply snap each panel together and you'll be able to attach your motors and favourite robotics controller. With the included "snap-on” micro-controller mounts, you can attach an Arduino, Raspberry Pi, SparkFun RedBoard, or SparkFun RedBot Mainboard! This kit even has a mounting hole for a standard size servo as well as a holder with barrel jack termination for 4x AA batteries.

Unlike its predecessor, the Shadow Chassis does not require you to use any additional tools. Everything snaps soundly into place!

Note: The Shadow Chassis does require assembly. You can find detailed instructions in the Documents section below.

• 196mm L x 126mm W x 44mm H (53.25mm w/ Nub Caster)

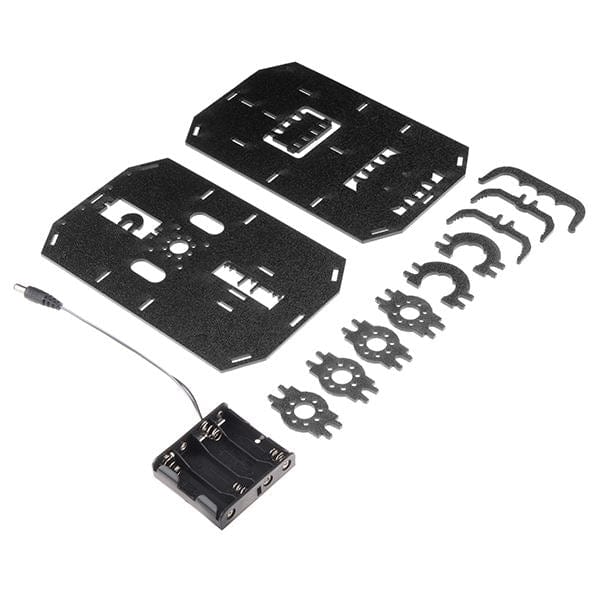

Package Contents

• 1x Top Chassis Plate
• 1x Bottom Chassis Plate
• 2x Front Motor Mount
• 2x Rear Motor Mount
• 4x Side Strut
• 2x Encoder Mount
• 2x Micro-Controller Mount
• 1x Battery Pack Clip
• 1x Line Follower Mount
• 1x Line Follower Mount Plate
• 1x Nub Caster
• 1x 4xAA Battery Holder
