SC15 17kg High Torque Programmable Serial Bus Servo

WaveshareSKU: WAV-21568
Price:
Sale price £19.40
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

WaveshareSerial Bus Servo Driver Board
Sale price £4.80 incl. VAT excl. VAT
WaveshareESP32 Servo Driver with WiFi and Bluetooth
Sale price £17.30 incl. VAT excl. VAT
WaveshareSC09 Serial Bus Servo (2.3kg)
Sale price £8.60 incl. VAT excl. VAT

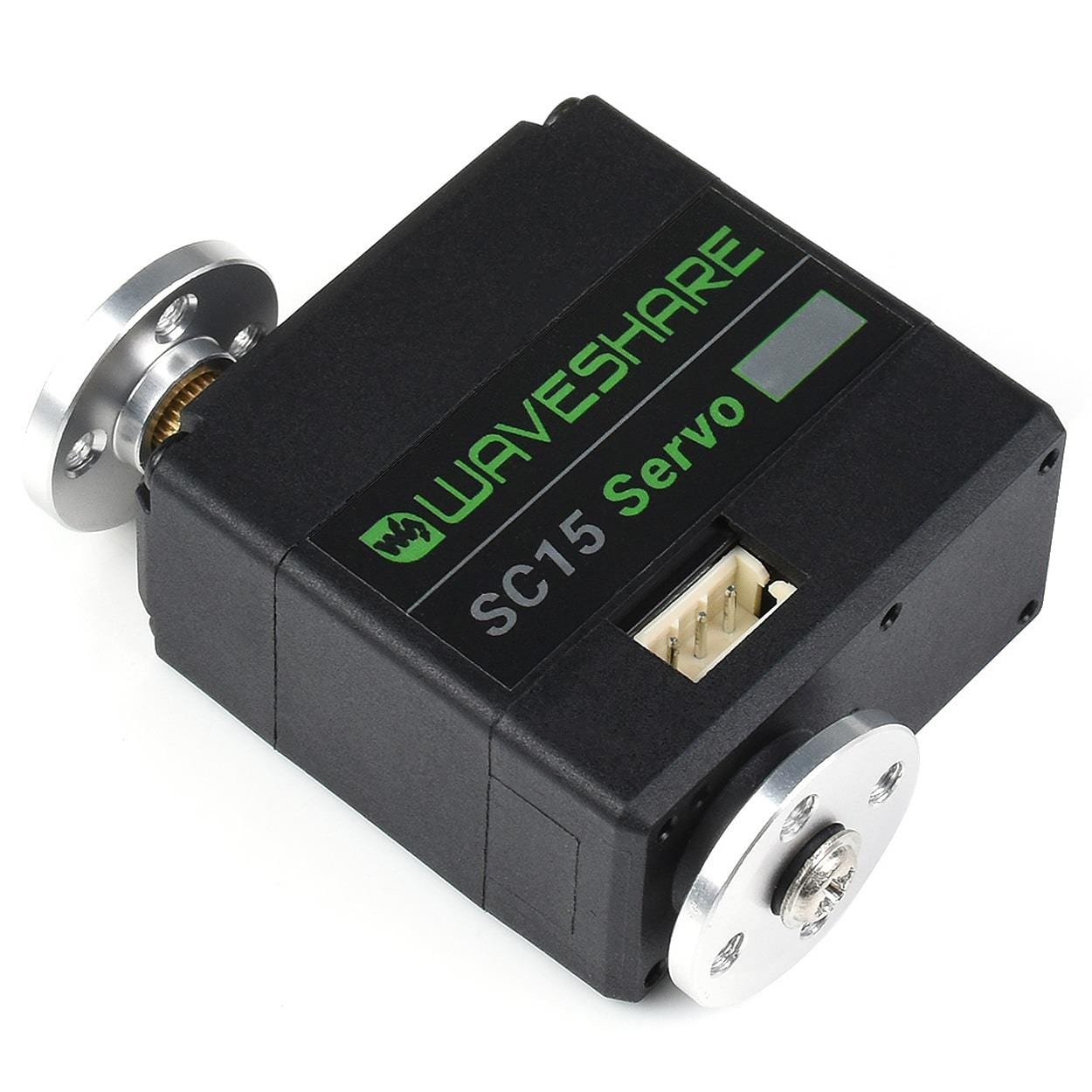

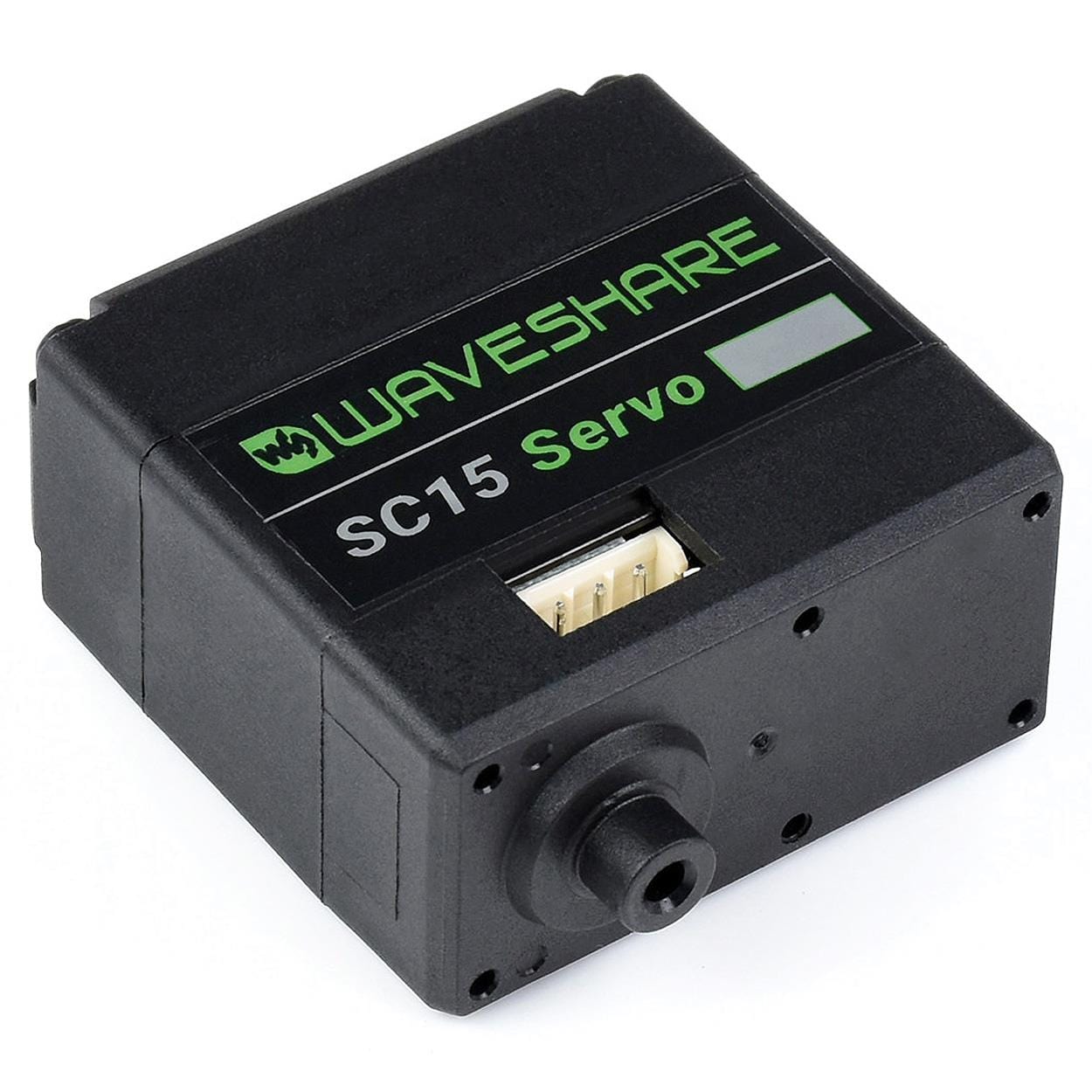

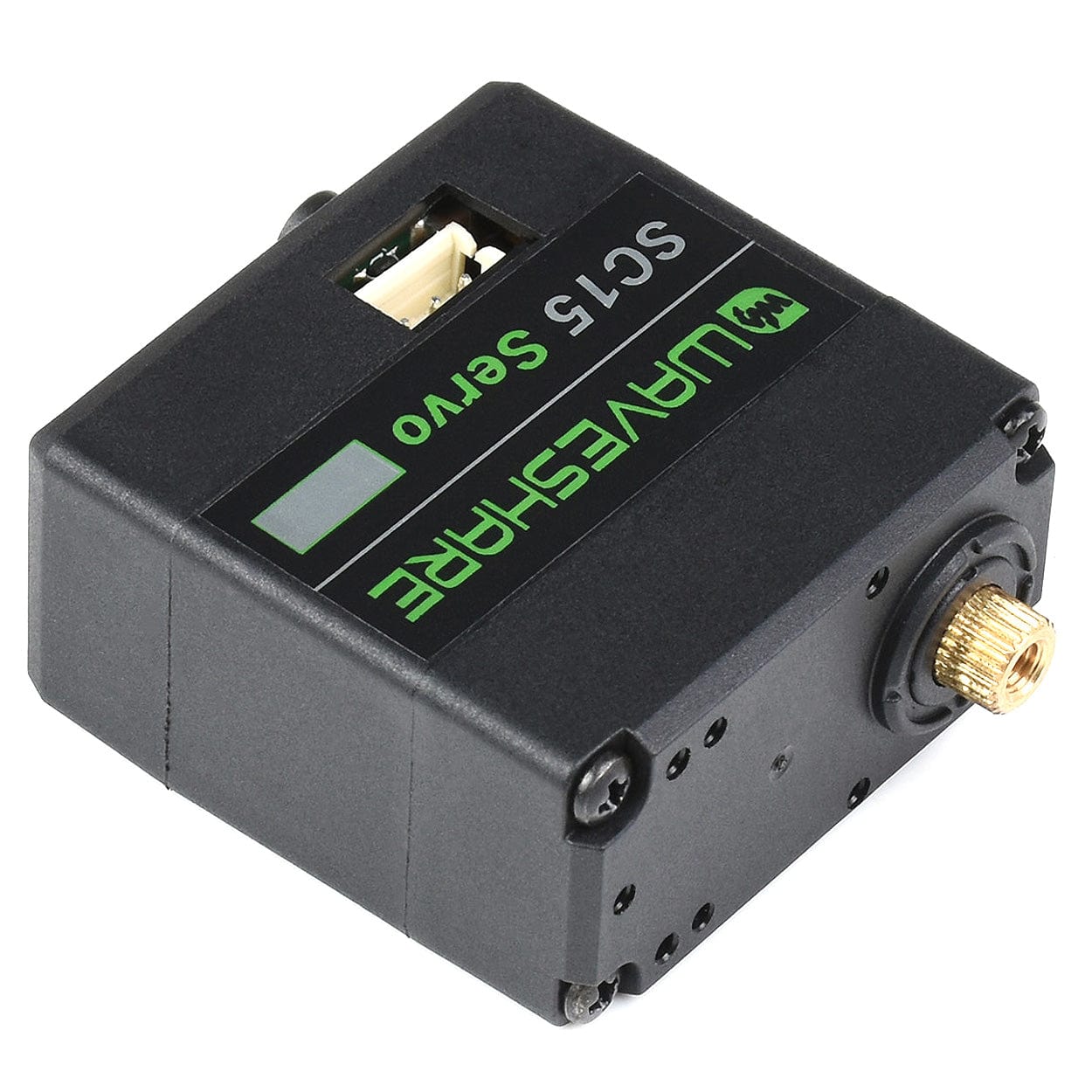

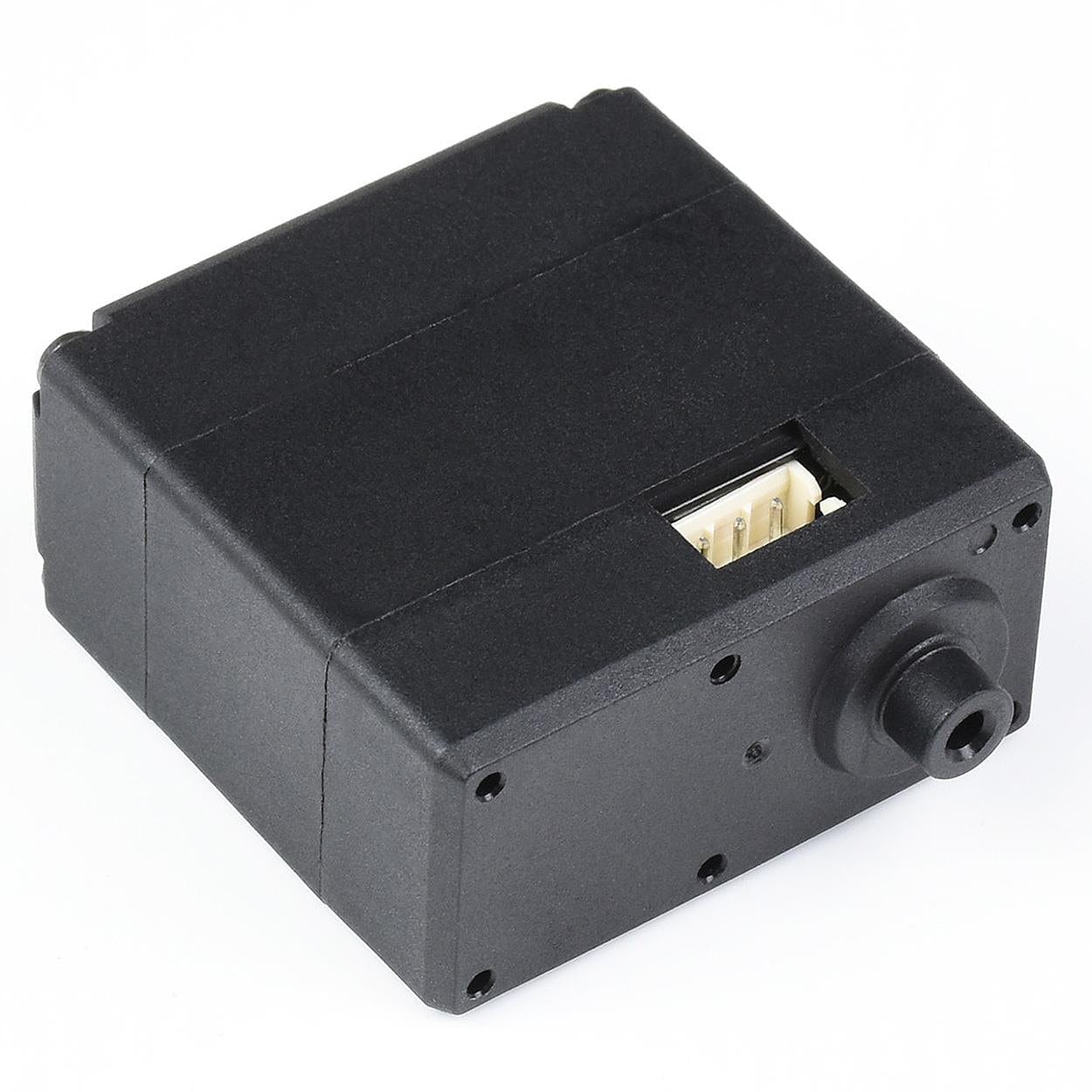

The SC15 high-torque servo from Waveshare offers up to 17kg.Cm torque @ 8.4V and offers two-way real-time feedback on position, load, speed and input voltage.

The servos feature dual-mode functionality, offering precise angle control in servo mode or continuous rotation in motor mode.

The servo wheels are made from high-strength T6061 aluminium with excellent corrosion resistance qualities, whilst the body is made from nylon and fibreglass for improved heat resistance, rigidity and mechanical performance. Copper and steel internal gears ensure lower operating noise, better stability and greater mechanical performance.

These servos are an ideal choice for use with the Waveshare ESP32 Servo Driver board.

Specifications

Product Type SC15 serial bus servo
Torque 17kg.cm@8.4V; 15kg.cm@6V; 14kg.cm@4.8V
Rotation Angle 180° (servo mode angle control)
360° (motor mode continuous rotation)
Pos Sensor Resolution 180° / 1024
Mechanical Limited Angle No Limit
Operating Voltage 4.8-8.4V
Gear high precision metal gear
Idling Speed 0.18sec / 60°@4.8V 0.16sec / 60°@6V
Id Range 0-253
Baudrate 38400bps ~ 1Mbps
Feedback Position, Load, Speed, Input Voltage
Idling Current 200 mA
Stalling Current 1700 mA

Package Contents

  • 1x SC15 Servo (includes servo, cable, fixings and servo wheels)
