ESP32 Servo Driver with WiFi and Bluetooth

WaveshareSKU: WAV-21593
Price:
Sale price £17.30
incl. VAT
excl. VAT
Stock:
Only 12 units left
Quantity:

Awesome Extras

SC15 17kg High Torque Programmable Serial Bus Servo - The Pi HutSC15 17kg High Torque Programmable Serial Bus Servo - The Pi Hut
USB-A to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
6xAA Battery Holder with Straight DC Barrel Jack - The Pi Hut6xAA Battery Holder with Straight DC Barrel Jack - The Pi Hut
The Pi Hut6xAA Battery Holder with Straight DC Barrel Jack
Sale price £2.20 incl. VAT excl. VAT

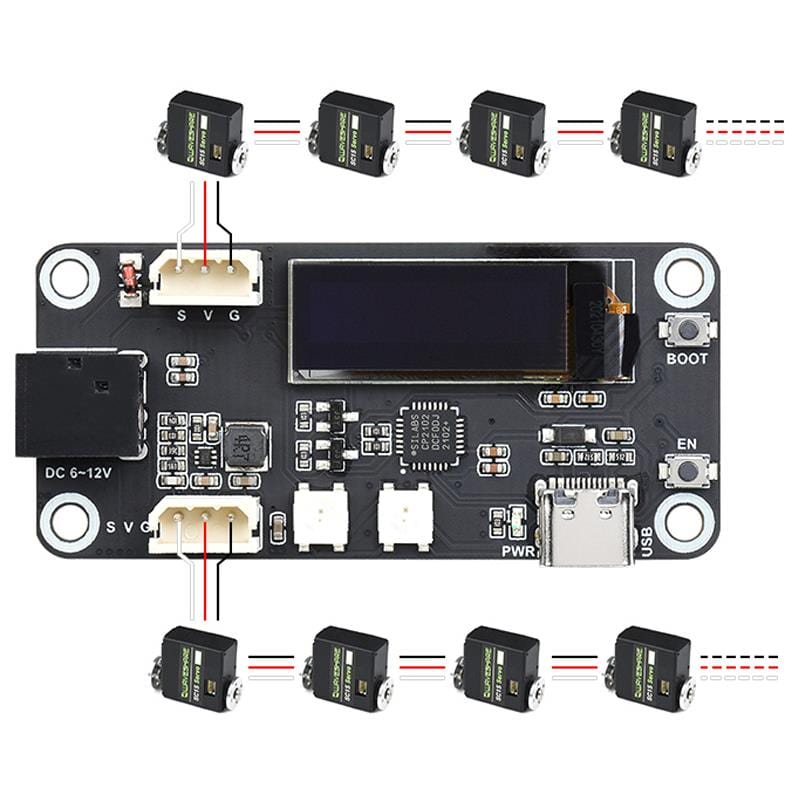

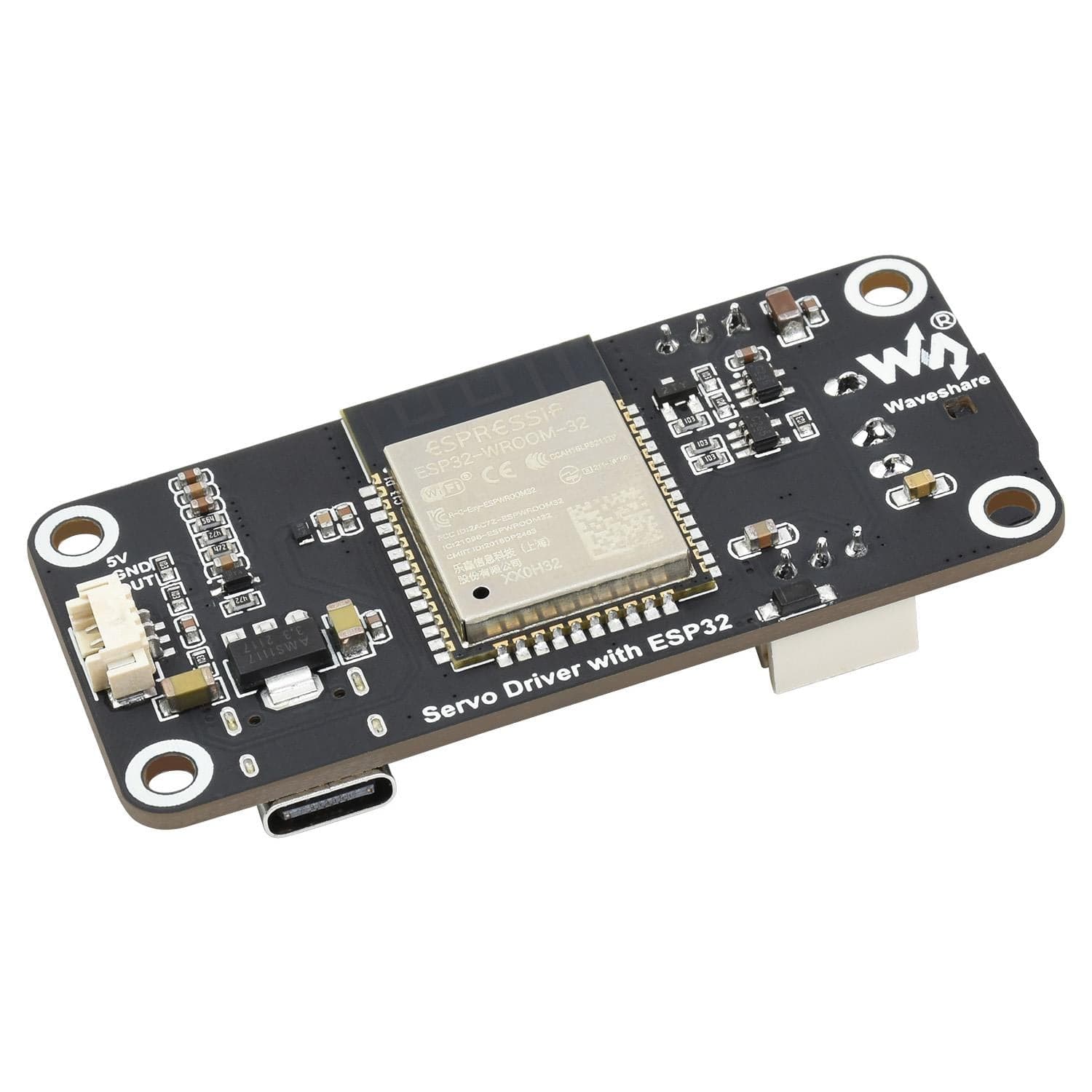

This driver board is based around the popular ESP32 controller and allows you to control up to 253* SC/ST series servos via the UART serial port. The unit has built-in 2.4GHz WiFi, Bluetooth 5.0 BLE as well as ESP-NOW support, allowing convenient remote control and servo debugging.

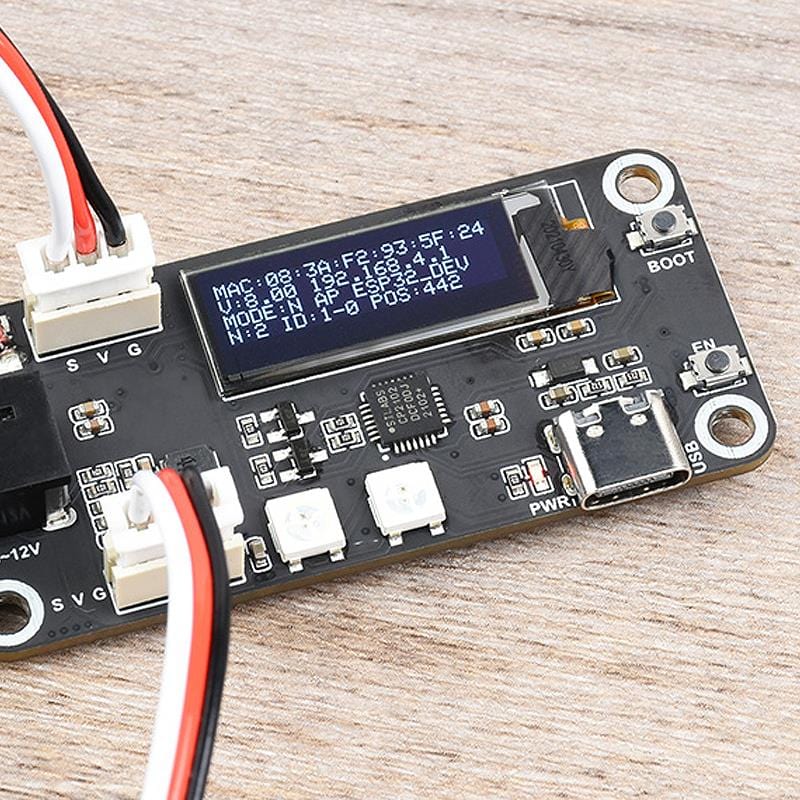

The onboard OLED can be used as a status monitor to display key information (by default the MAC address, IP, mode and other information is shown).

The board uses a USB-C connection for programming and has a wide voltage input from 6 -12V*** via a standard 5.5x2.1 barrel jack connection. There are also two RGB LED indicators, an onboard reset button and a boot button for entering download mode.

Notes:

*Though one UART channel is able to control up to 253 servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is sufficient when using multiple servos.

**See compatible servo information in the section below

***The input voltage must match the servo voltage, e.g. when using the SC15 Servo with a voltage of 6-8.4V, the input voltage of the DC port of the drive board should also be within the same range of 6-8.4V.

Compatible Servos

This servo driver is only (officially) compatible with the following servos:

Features

  • Allows controlling up to 253 SC, ST series serial bus servos at the same time (adequate power supply required)

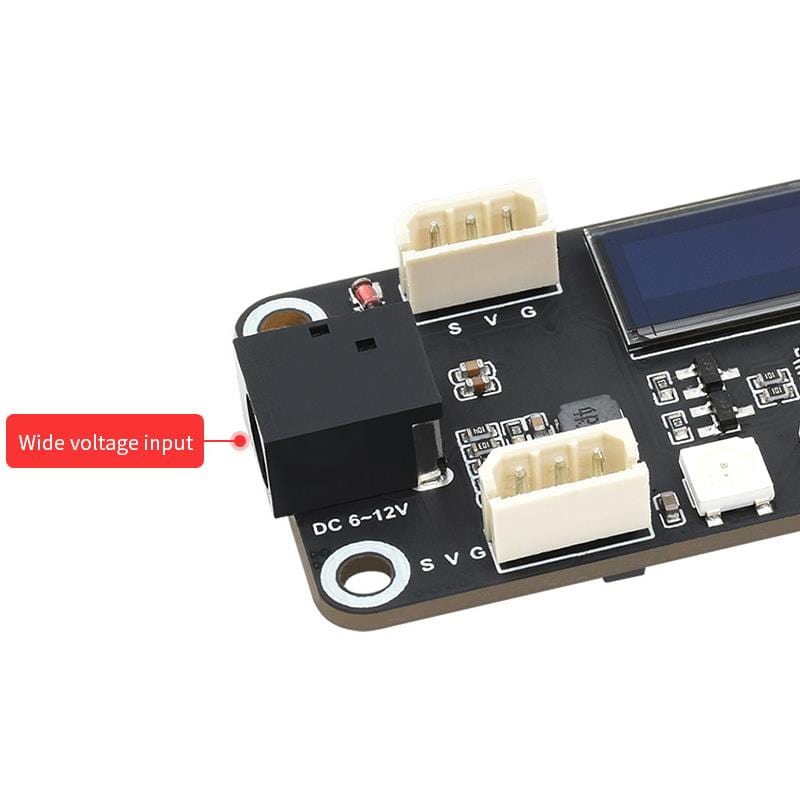

  • Wide range voltage input 6-12V (the input voltage and the servo voltage must be matched)
  • Built-in WiFi and Bluetooth, as well as ESP-NOW support for remote control and servo debugging
  • Automatic download circuit for easy uploading programs
  • Open source web applications and various robot structures
  • Compact space-saving size
  • Online wiki and user manual

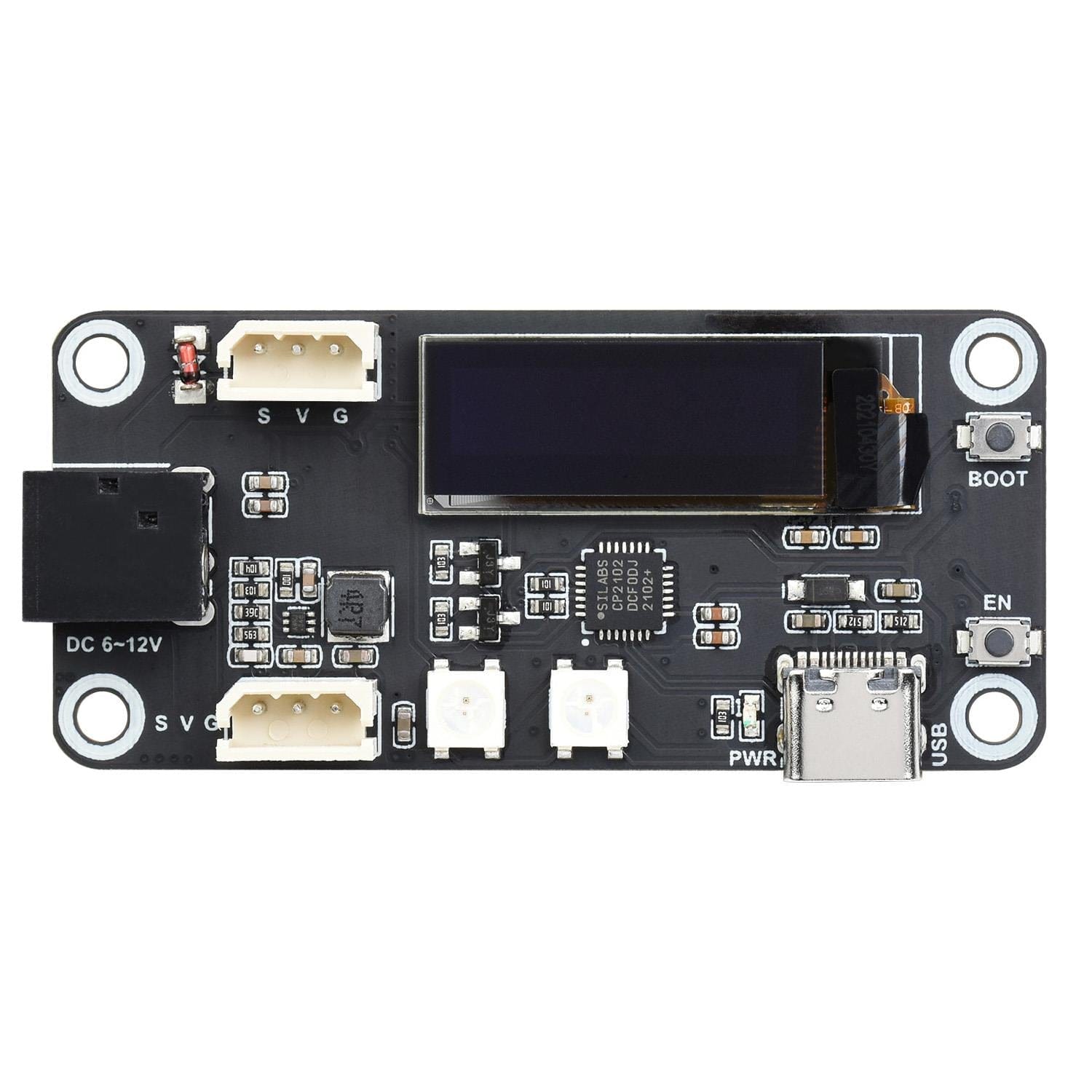

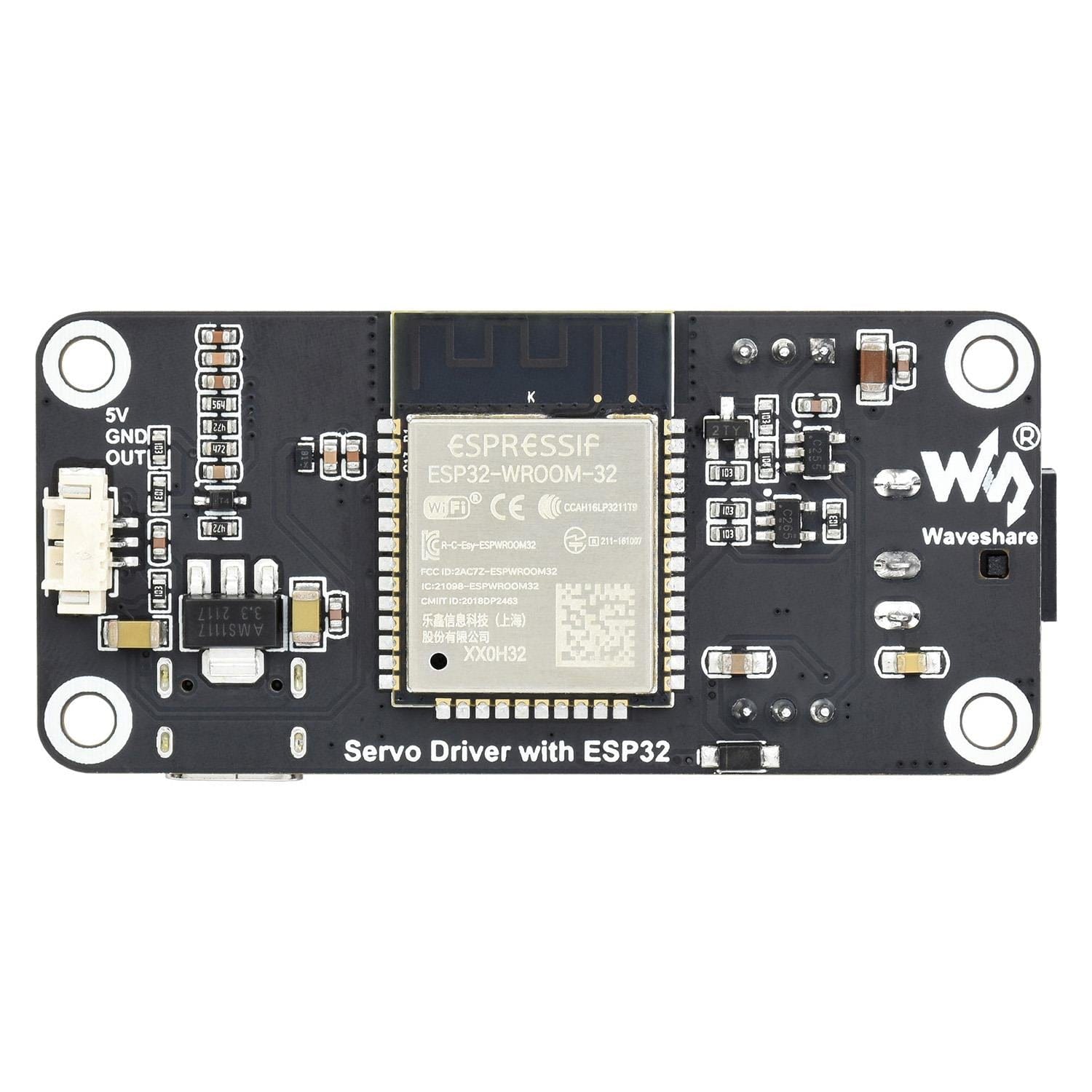

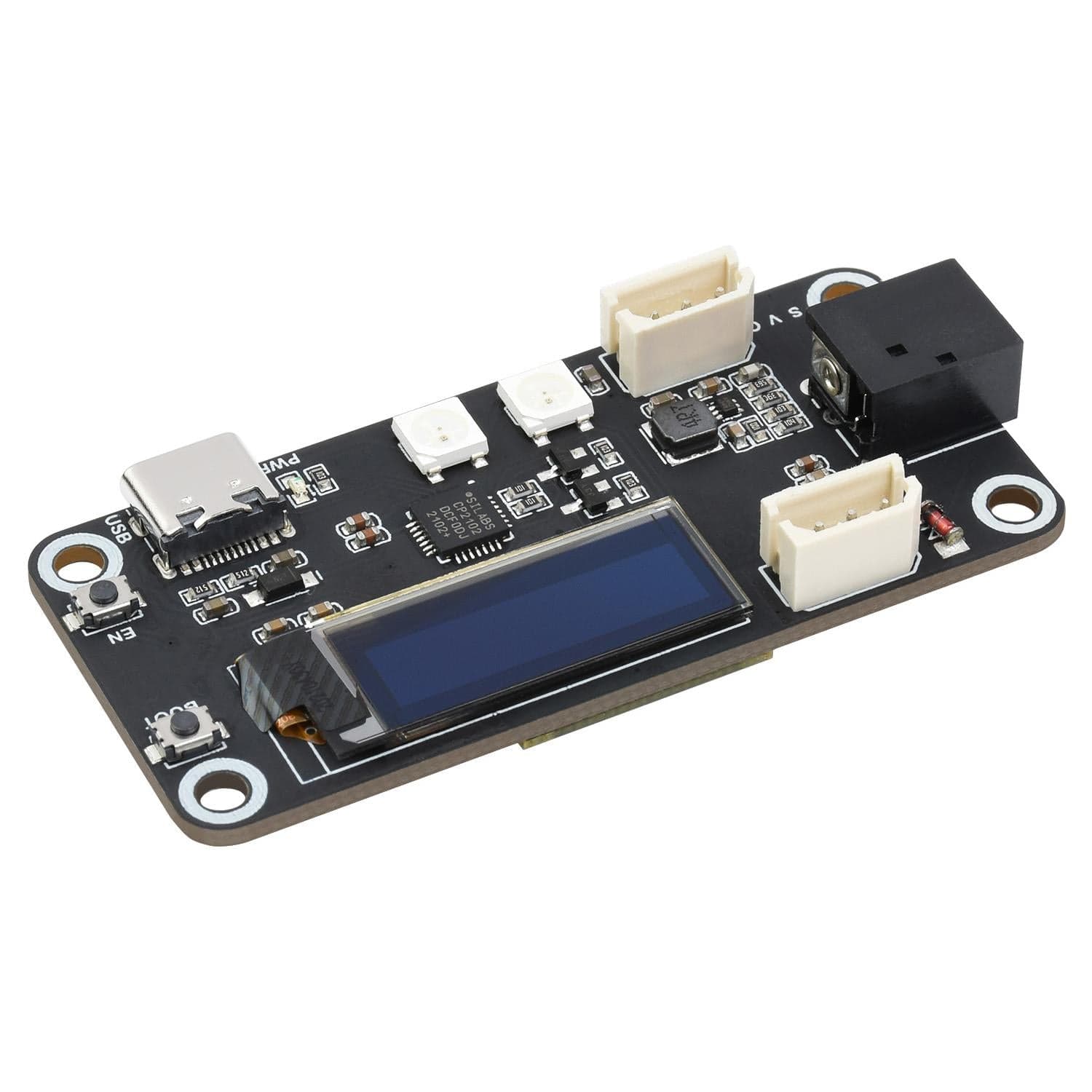

What's Onboard?

1) ESP32 main controller
2) Serial bus servo control interface
3) OLED screen
4) BOOT button to enter download mode
5) Reset button
6) TYPE-C connector
7) Automatic download circuit
8) RGB-LED indicator
9) 5.5*2.1 DC power jack
10) RGB-LED extension interface
11) Onboard PCB antenna
12) Serial bus servo control circuit

Specifications

Supply Voltage DC 6-12V
Power Supply Connector 5.5 × 2.1mm DC
Download Interface Type-C
Controller ESP32
Control Interface UART

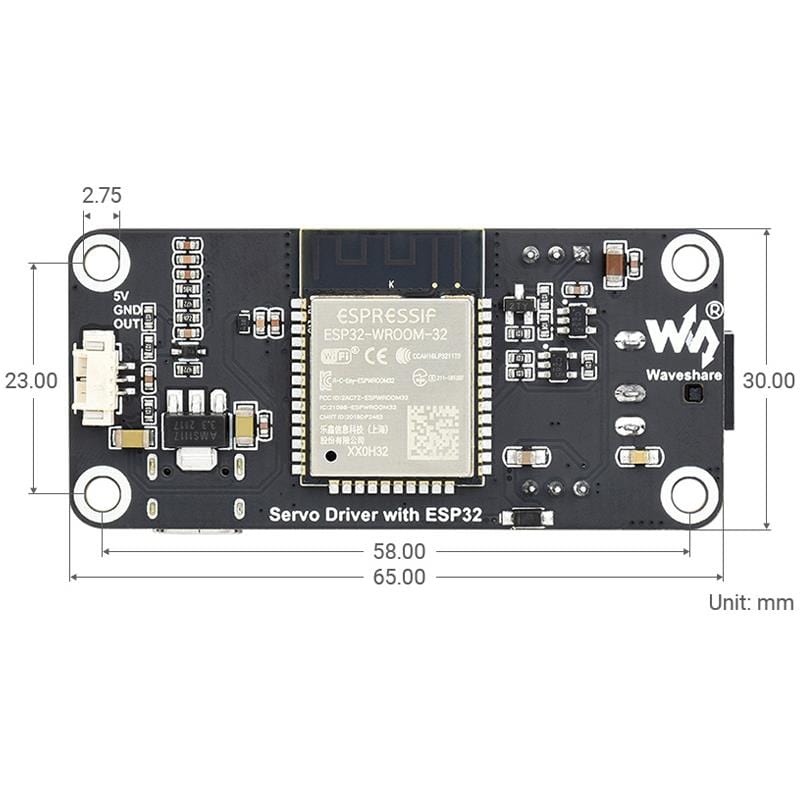

Dimensions 30 × 65mm
Mounting Hole Size 2.75mm
Mounting Hole Spacing 23 × 58mm

Application Examples

  • Servos will provide various feedback data such as position, speed, torque lock, operating mode (servo mode, servo motor mode etc) for advanced projects requiring closed-loop automatic control
  • An ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos

Package Contents

  • 1x Servo Driver with ESP32
  • 1x Screws pack

Servos not included
