Industrial USB To 8-Channel Converter RS485 Converter

WaveshareSKU: WAV-28214

£34.60

incl. VAT

excl. VAT

Only 9 units left

Awesome Extras

Industrial USB to 4-Channel RS485 Converter by Waveshare - The Pi Hut

Waveshare Industrial USB to 4-Channel RS485 Converter

£15.40 incl. VAT excl. VAT

Prototyping Wire Spool Set - 6 Spool Solid Core by The Pi Hut - The Pi Hut

The Pi Hut Prototyping Wire Spool Set - 6 Spool Solid Core

£12 incl. VAT excl. VAT

Notify me

Industrial Grade Dual-Host USB Hub (4x USB 2.0) by Waveshare - The Pi Hut

Waveshare Industrial Grade Dual-Host USB Hub (4x USB 2.0)

£18.50 incl. VAT excl. VAT

This USB to 8-channel converter is made for easy communication with multiple RS485 devices via a single USB port. Power is supplied through a USB Type-C port, and it also has a reserved 5V-36V DC terminal for auxiliary power input, providing flexibility for various setups. It also supports Win11/10/8.1/8/7, Raspberry Pi, macOS, Linux, Android and others.

This converter has unibody power supply isolation and digital isolation, providing high reliability, strong anti-interference, and low power consumption. Additionally, it includes a built-in TVS (Transient Voltage Suppressor) for protection against surge voltage and transient spikes, making it lightning-proof and anti-electrostatic for improved durability and safety in industrial environments.

Features

USB to 8-channel RS485, convenient for expanding multiple RS485 industrial serial devices.
Direct power supply via Type-C port, with reserved 5V~36V DC wide voltage screw terminal for auxiliary power input.
Unibody power supply isolation, provides stable isolated voltage.
Unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, and low power consumption.
TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic.
Self-recovery fuse and protection diodes, the current/voltage stable outputs, provide over-current/over-voltage proof and improve shockproof performance.
Built-in 120R terminal resistor on the RS485 ports, configurable via jumper for flexible switching.

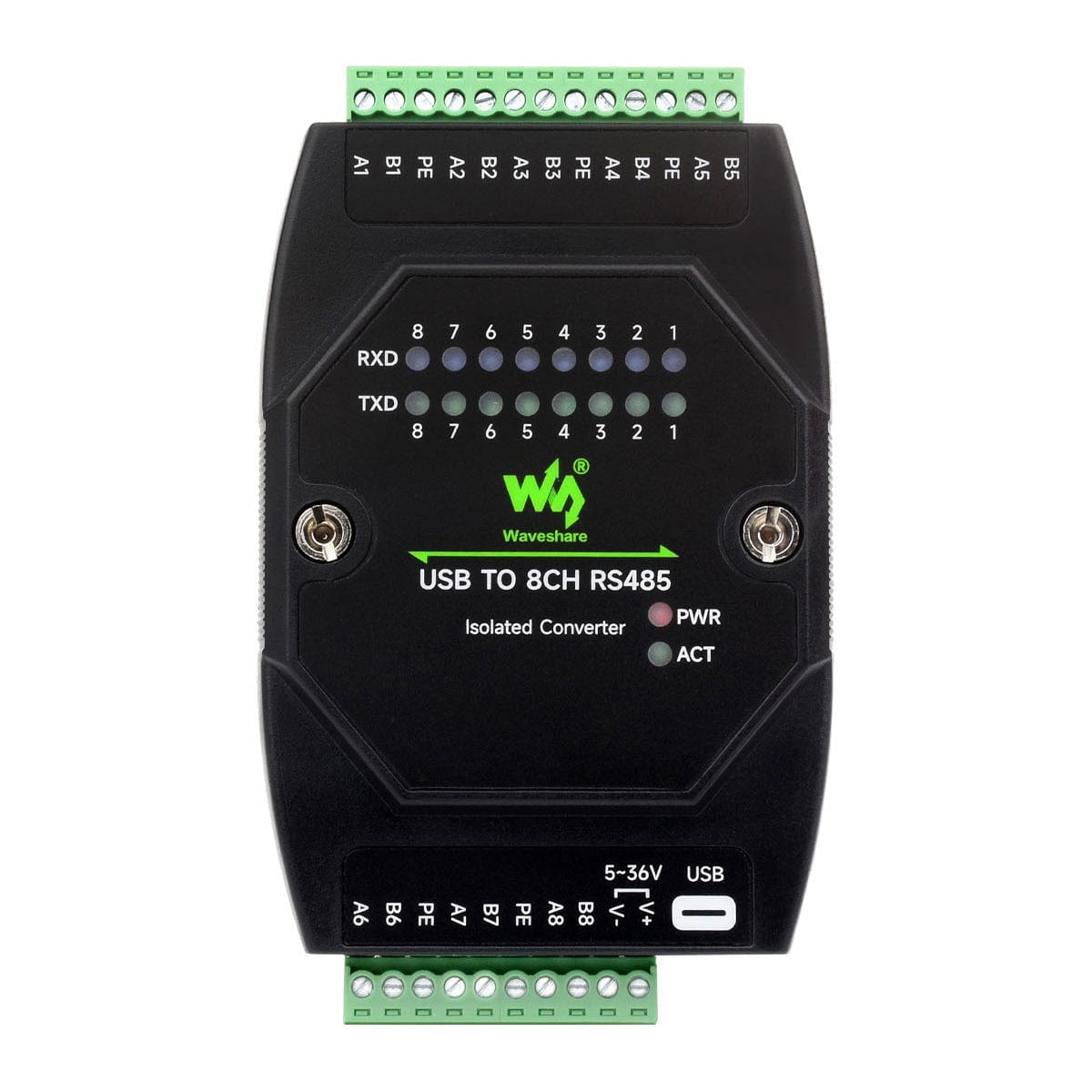

LEDs for indicating the power, device configuration status and transceiver status.

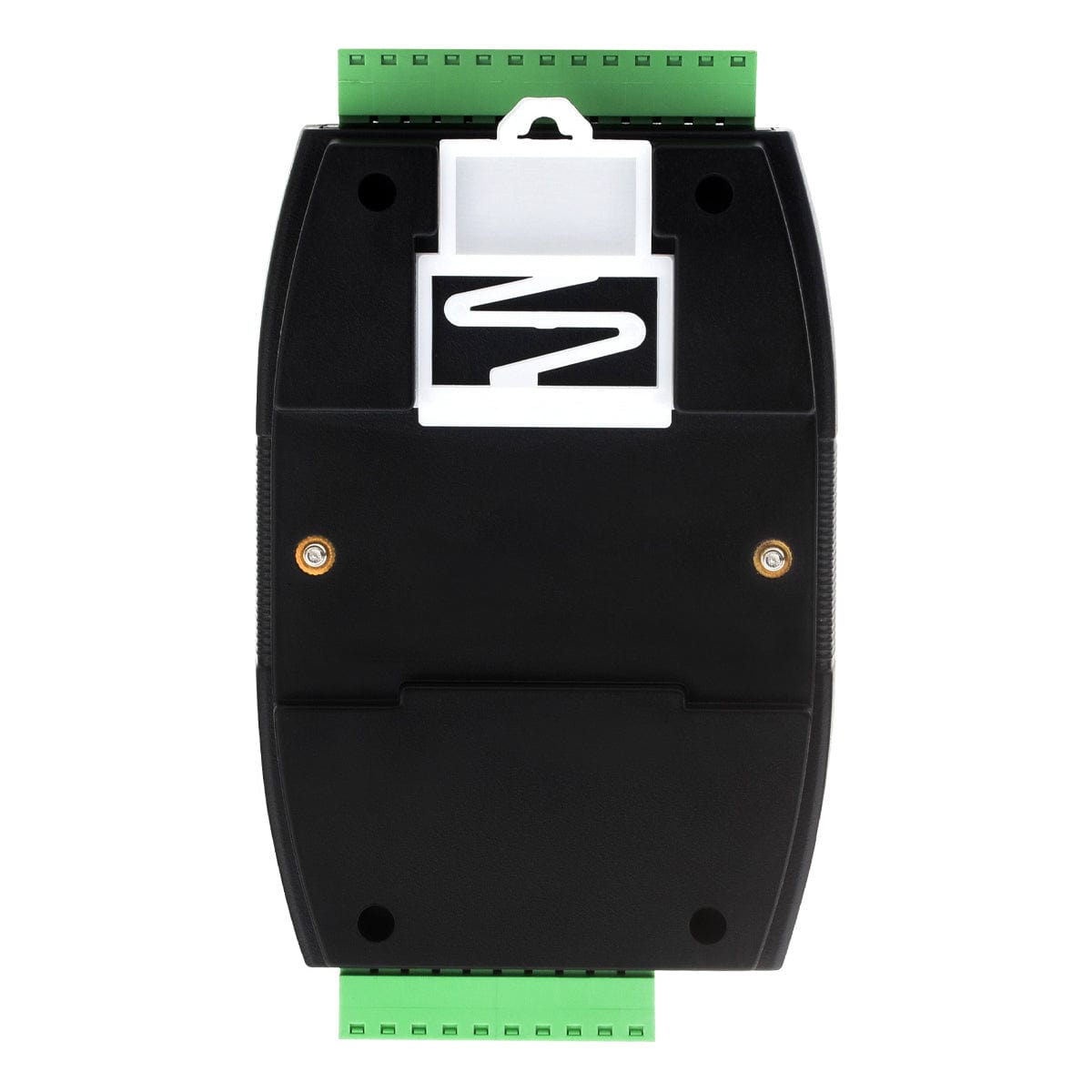

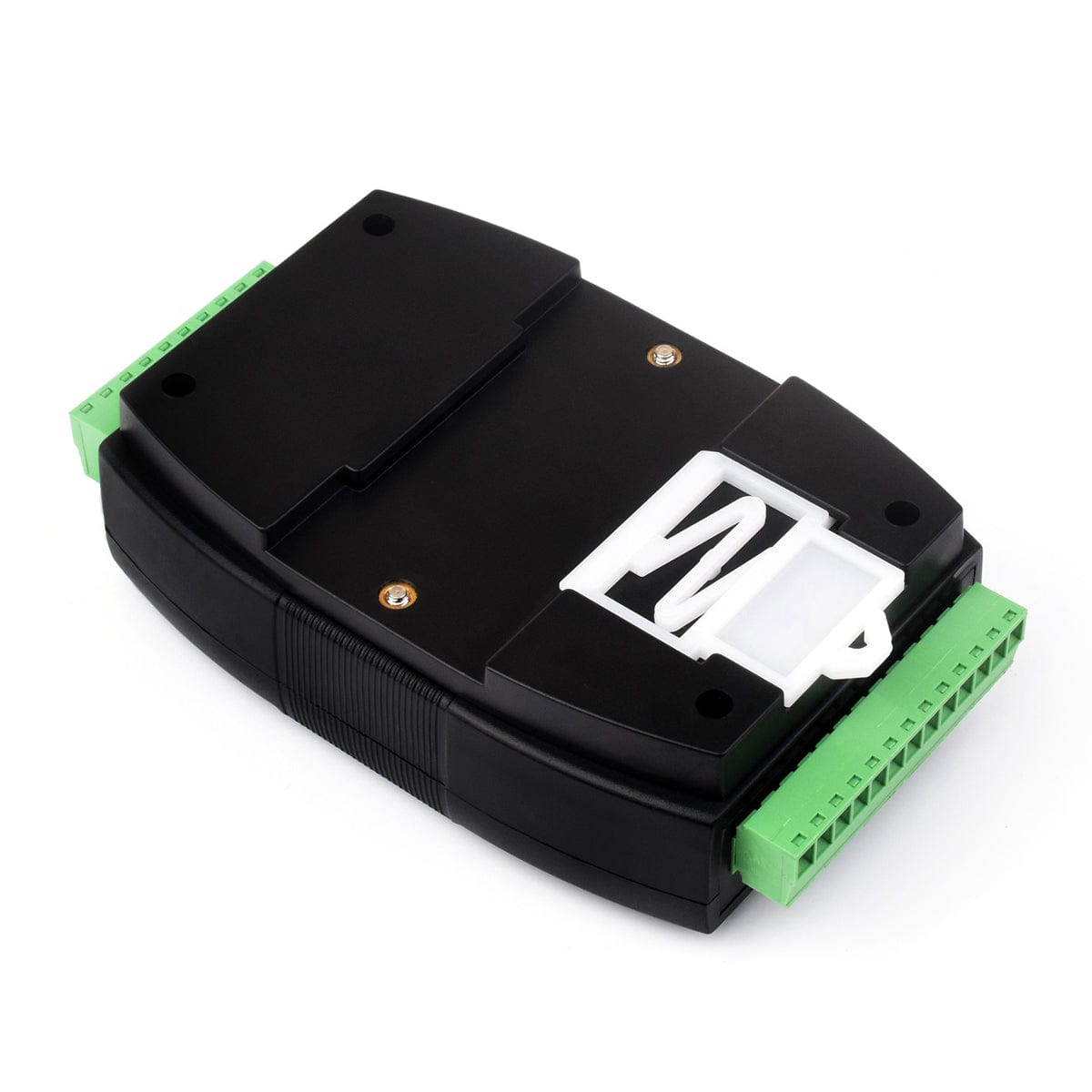

Rail-mount case design, support stackable combination, easy to install and safe to use

What's on Board

Specifications

Host Port	USB
Device Port	RS485
Power Supply	USB Type-C (5V), screw terminal (5V~36V)
USB	Operating voltage	5V
	Connector	USB-C
	Protection	200mA self-recovery fuse, isolated output
	Transmission distance	About 5m
Isolated RS485	Connector	Screw terminal
	Direction Control	Hardware automatic control
	Protection	600W lightning proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
	Transmission Distance	About 1.2km (low rate)
	Transmission Mode	Point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
	Baud Rate	1200bps ~ 921600bps
LED Indicators	PWR	Red power indicator lights up when there is a USB connection and voltage is detected
	ACT	Status indicator lights up green when the driver is detected.
	TXD	Green TX indicator lights up when the USB port sends data
	RXD	Blue RX indicator lights up when the device ports send data back
Operating Environment	Temperature	-15°C ~ 70°C
Operating Environment	Humidity	5%RH ~ 95%RH
Operating System	macOS, Linux, Android, Windows 11/10/8.1/8/7

Resources

Package Contents

1x USB TO 8-channel RS485
1x USB-A male to USB-C male cable - 1m
1x Screwdriver
