Olimex RP2350-PICO2-BB48

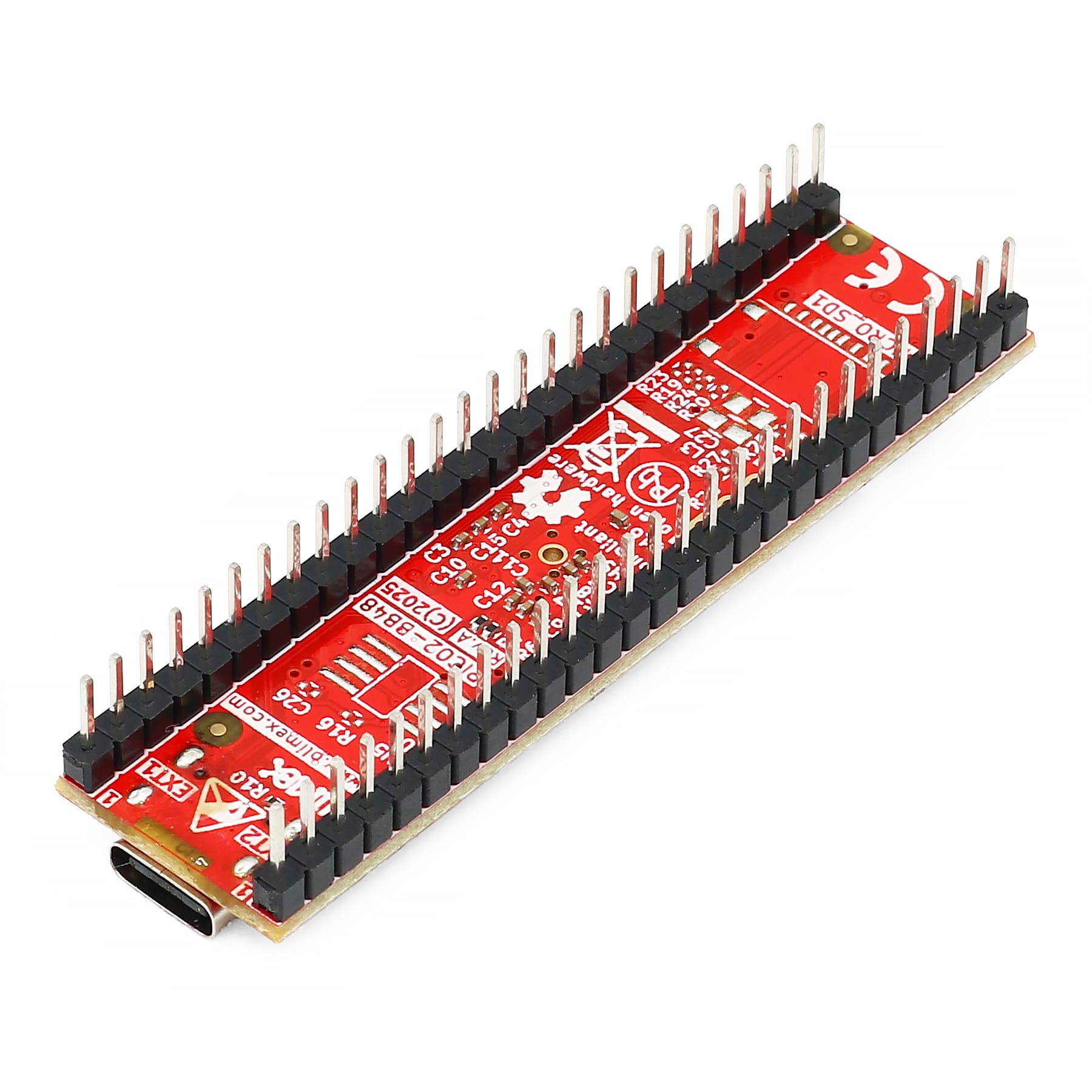

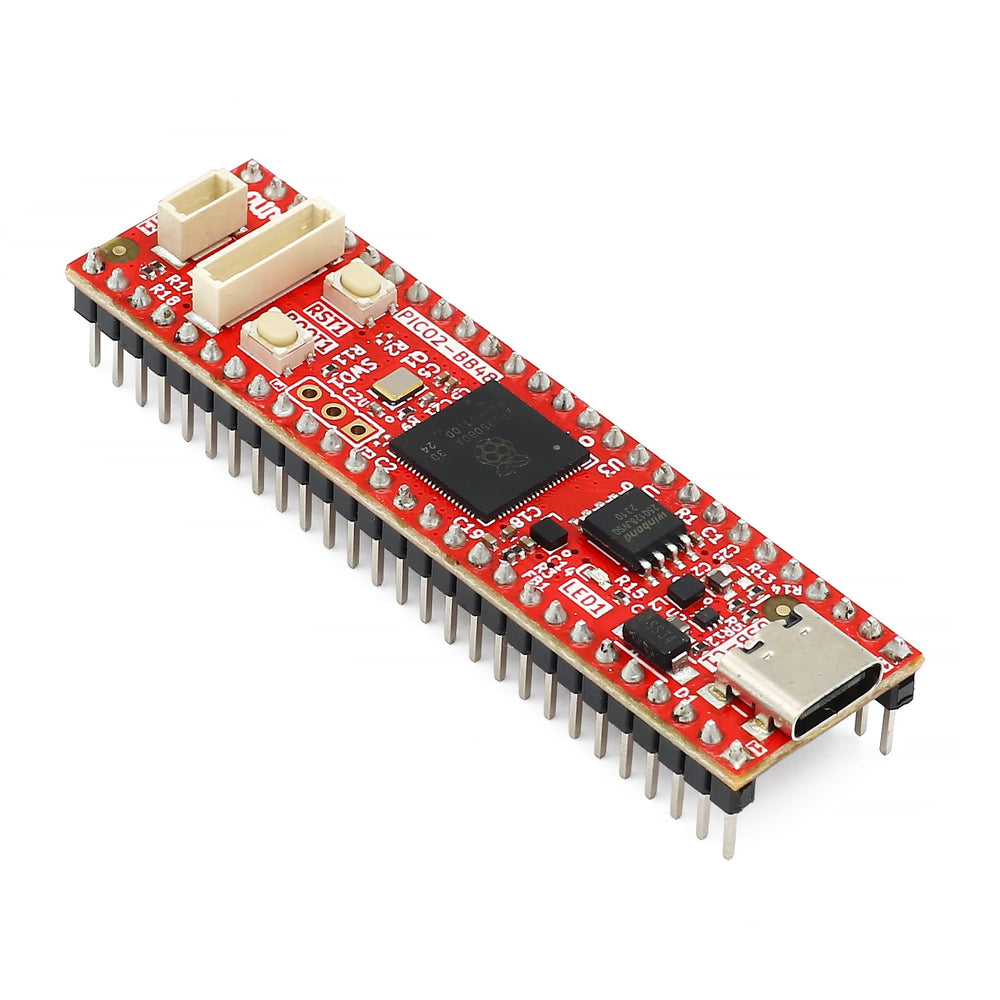

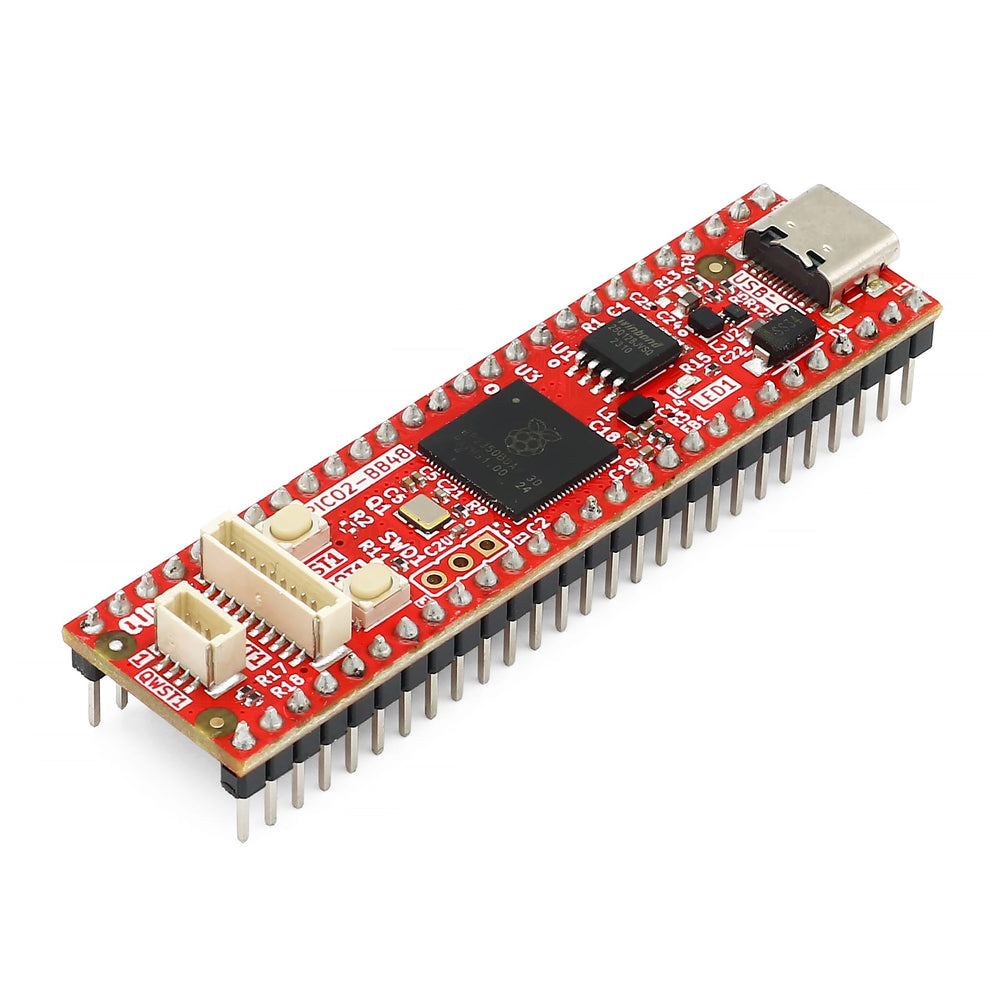

The RP2350-PICO2-BB48 is a redesigned version of the popular Raspberry Pi Pico 2, offering several useful enhancements while maintaining the familiar compact form factor. It comes equipped with 16MB of external Flash memory, providing plenty of space for larger applications and data storage.

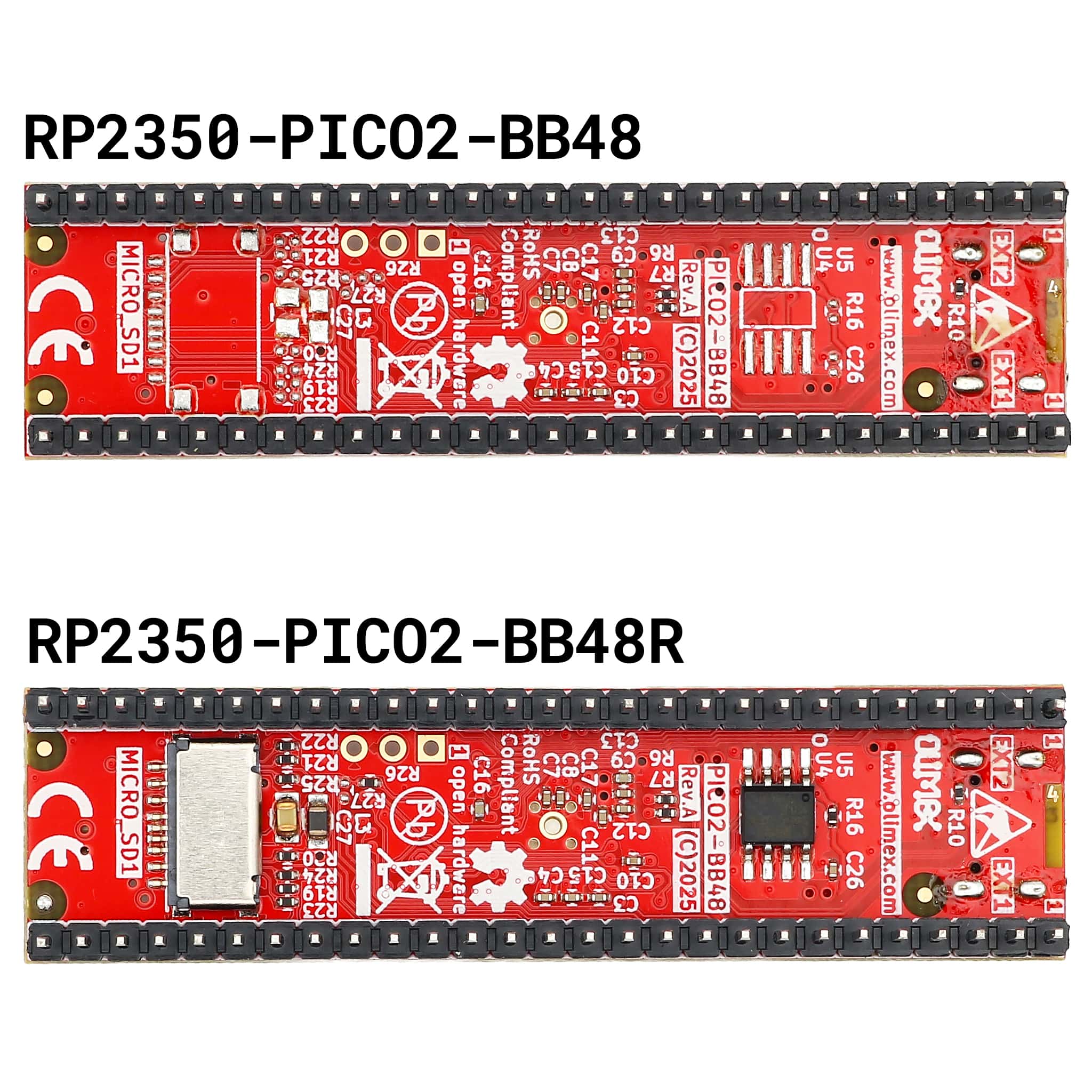

For projects that require additional memory and removable storage, the RP2350-PICO2-BB48R includes the same 16MB of external Flash, along with 8MB of external PSRAM and a microSD card connector, making it well suited to more demanding applications.

Please select your preferred version before adding to your cart.

Features

• RP2350B Dual Cortex-M33 or dual RISC-V @ 150MHz
• 520 KB on-chip SRAM
• USB-C data and power supply connector
• BOOT and RESET buttons
• 16MB QSPI flash
• 8MB QSPI PSRAM (only in -BB48R version)
• Micro SD-card (only in -BB48R version)
• UEXT connector (pUEXT 1.0 mm step connector)
• Qwiic/Stemma connector
• Status LED
• All 48 GPIOs exposed
• Breadboard-friendly spacing
• Distance between pin rows 15.24 mm
• Dimensions: 69 x 18mm

Resources

• User manual
• Schematic in PDF format
• Pinout diagram
• KiCAD files
• Raspberry Pi C-SDK
• Micropython
• Arduino

Package Contents

• 1x RP2350-PICO2-BB48 OR 1x RP2350-PICO2-BB48R
