RP2350 Development Board with 1.69" Capacitive Touch Display (240x280)

This RP2350 board has a dual-core Arm Cortex-M33 and Hazard3 RISC-V processor that operates up to 150MHz. It has 16MB Flash, 520KB PSRAM, and an SD card slot. The board also has a 6-axis IMU with a 3-axis gyroscope, a 3-axis accelerometer and there's a USB-C connector for power and programming.

On the back of the board, you'll find a colourful 1.69" capacitive touch display with 65K colours and a 240 x 280 resolution that the ST7789T3 display driver powers. You'll also find an MX1.25 3.7V Lithium battery charger and an RTC battery header. There is plenty of support for Pico C/C++ SDK, MicroPython and Arduino IDE with resources and tutorials to help you get started!

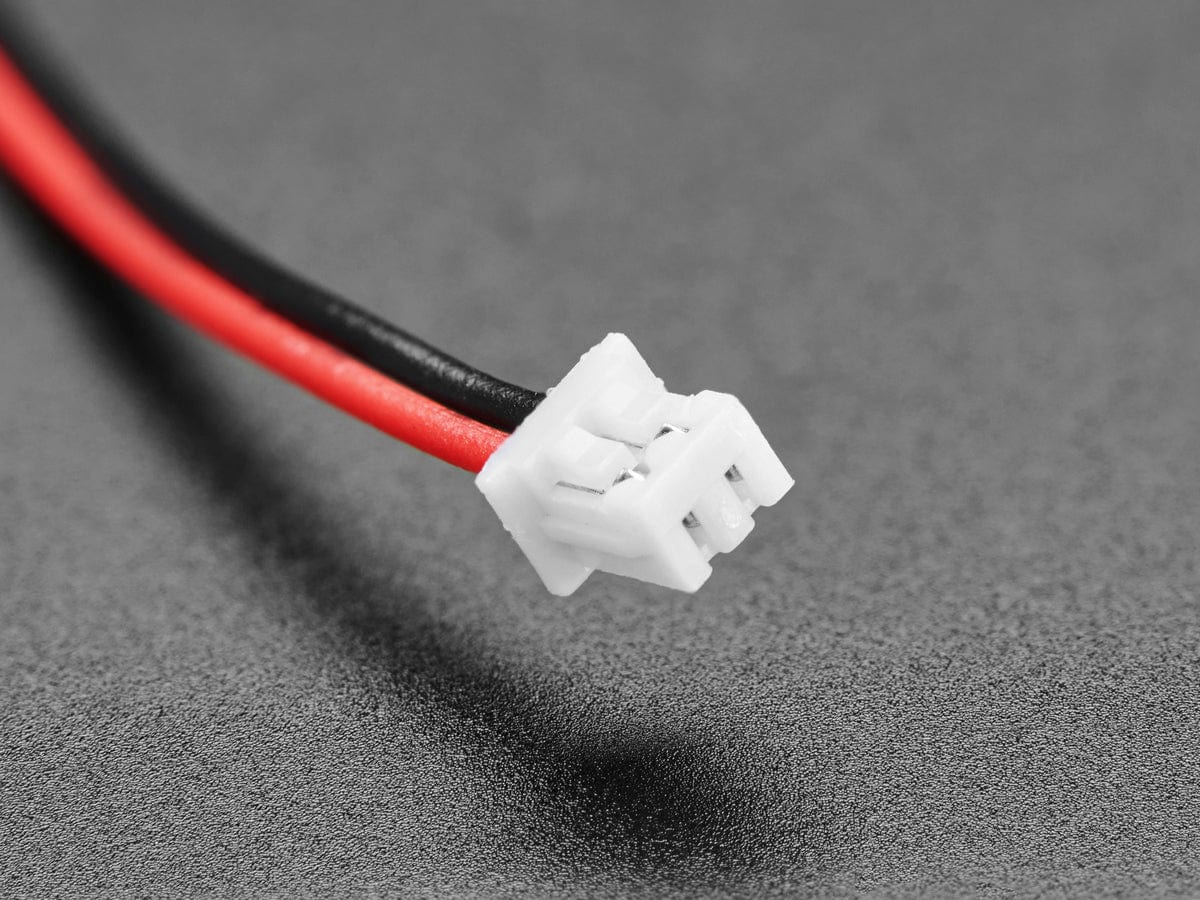

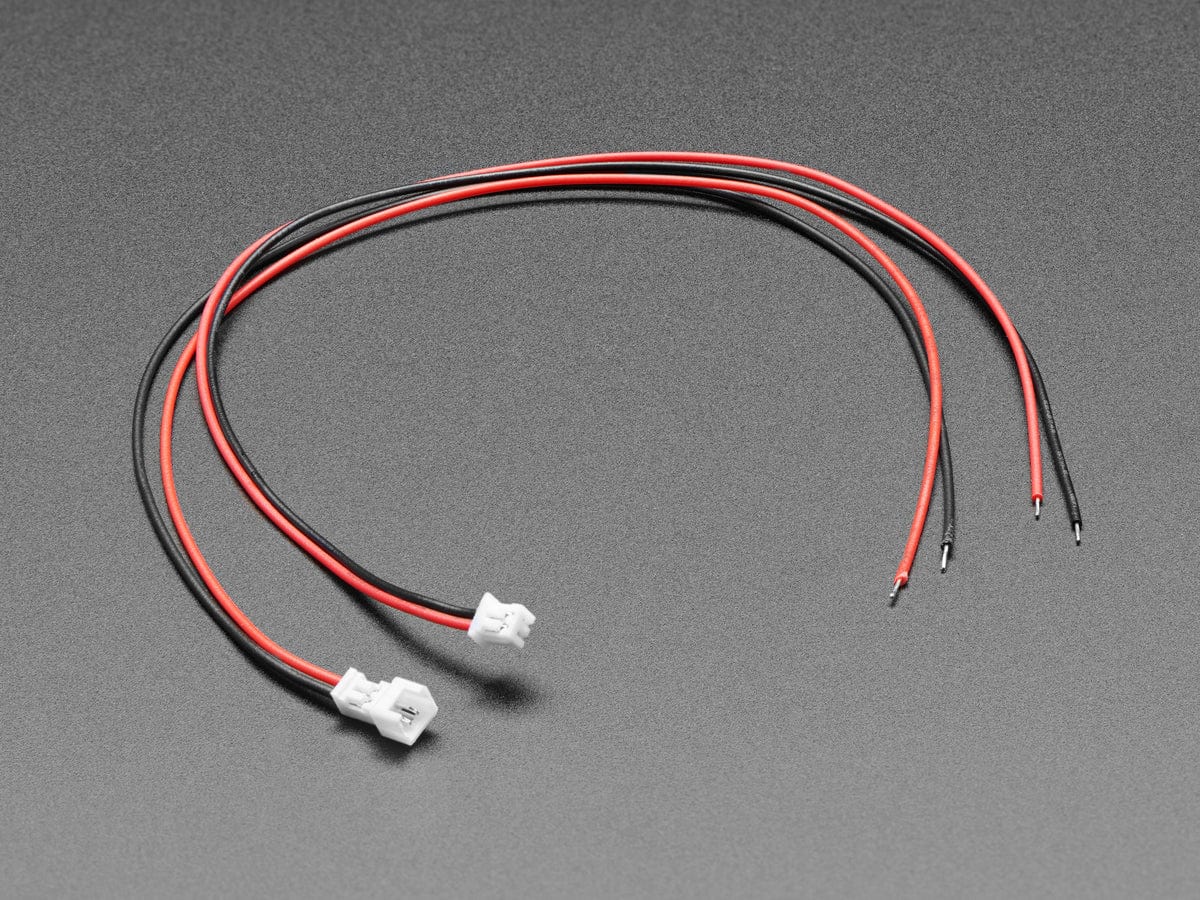

Please note: this board uses a tiny MX1.25 connector for LiPo power. Most LiPo batteries on the market (including ours) use a larger JST fitting. We do not yet stock batteries with an MX1.25 connector, however, you can customise your battery with one of our 1.25mm pitch cables to make a compatible battery yourself (assuming you have the ability, knowledge and tools to do this safely). If you want to source your own battery to fit inside the case, a battery size of 3.85 x 24 x 28 mm is recommended.

Features

• RP2350 Microcontroller Chip
• Dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 16MB of onboard Flash memory
• Type-C connector, keeps it up to date, easier to use
• 1.69" capacitive touch display, 240 x 280 resolution, 65K colour
• Lithium battery recharge/discharge header, suitable for mobile devices
• RTC chip and RTC battery header for timing and scheduling functions
• Buzzer for sound-producing peripheral
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Accurate clock and timer on-chip
• Temperature Sensor

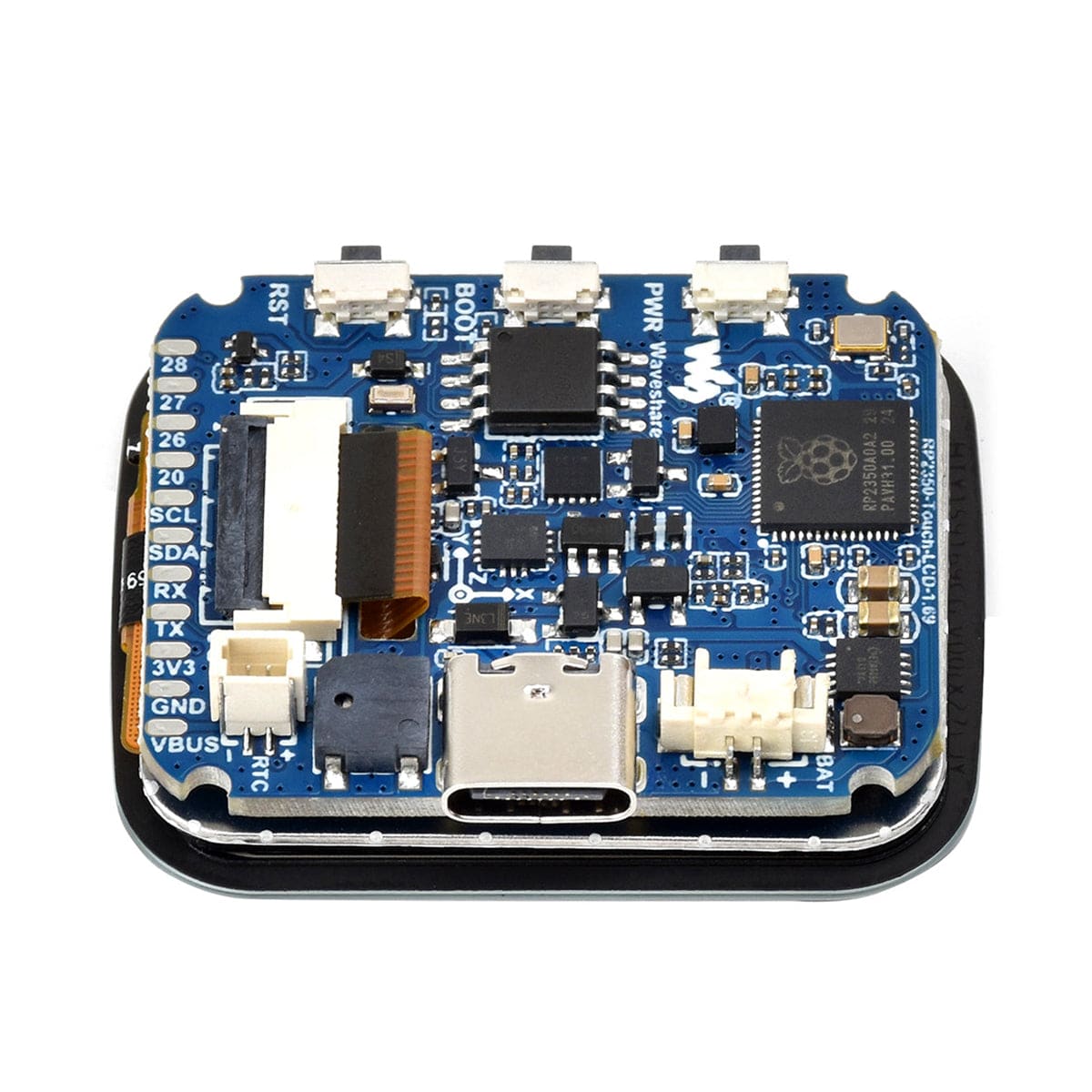

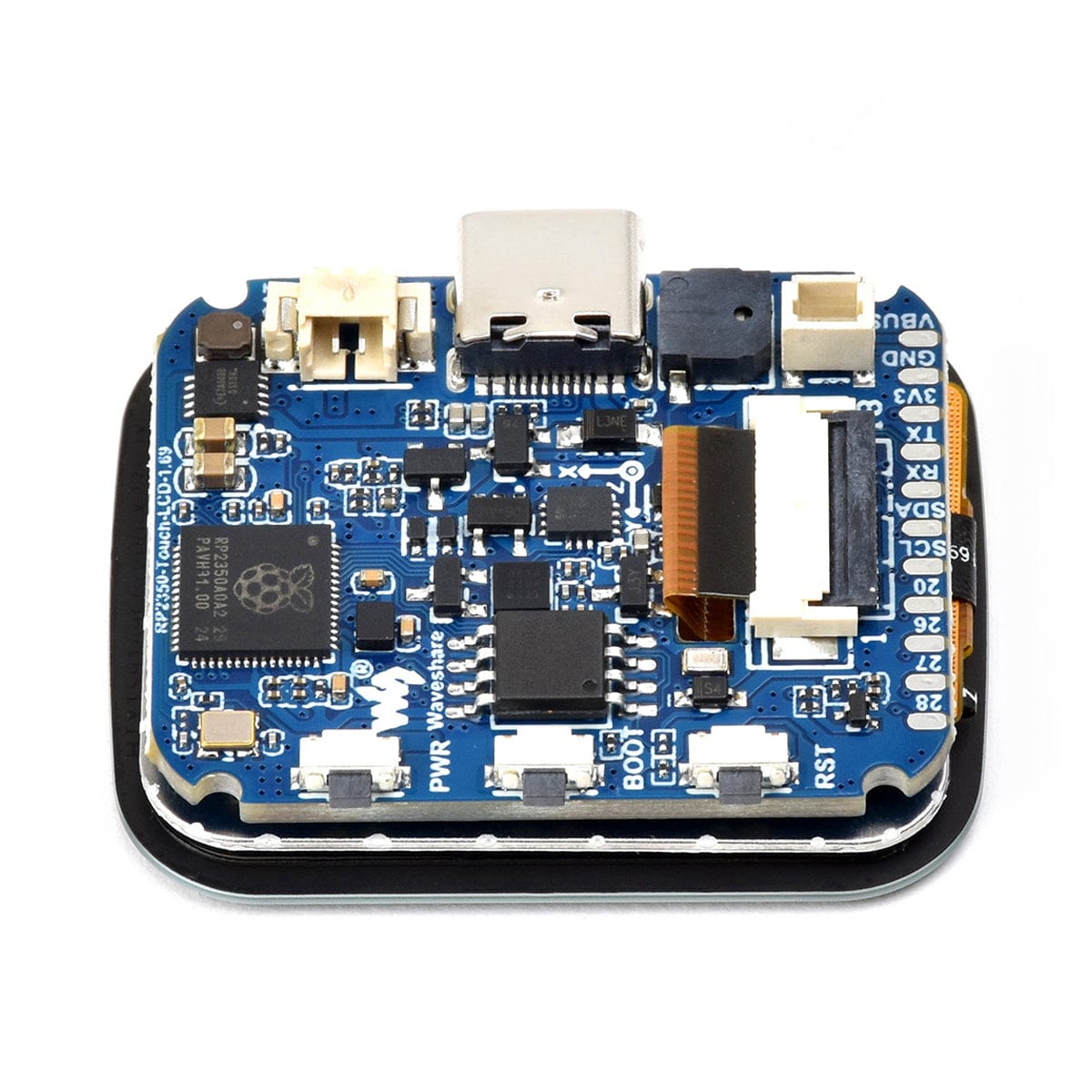

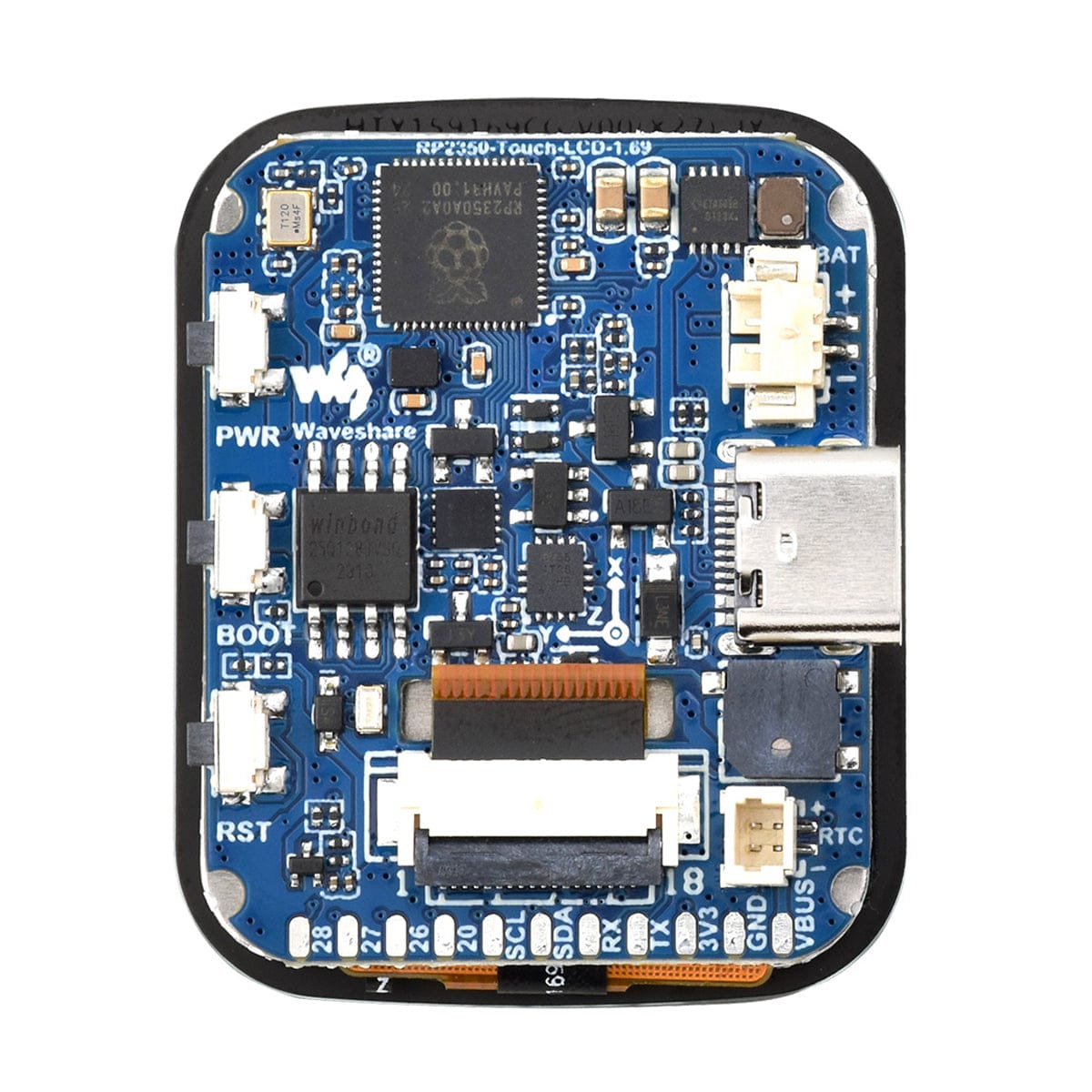

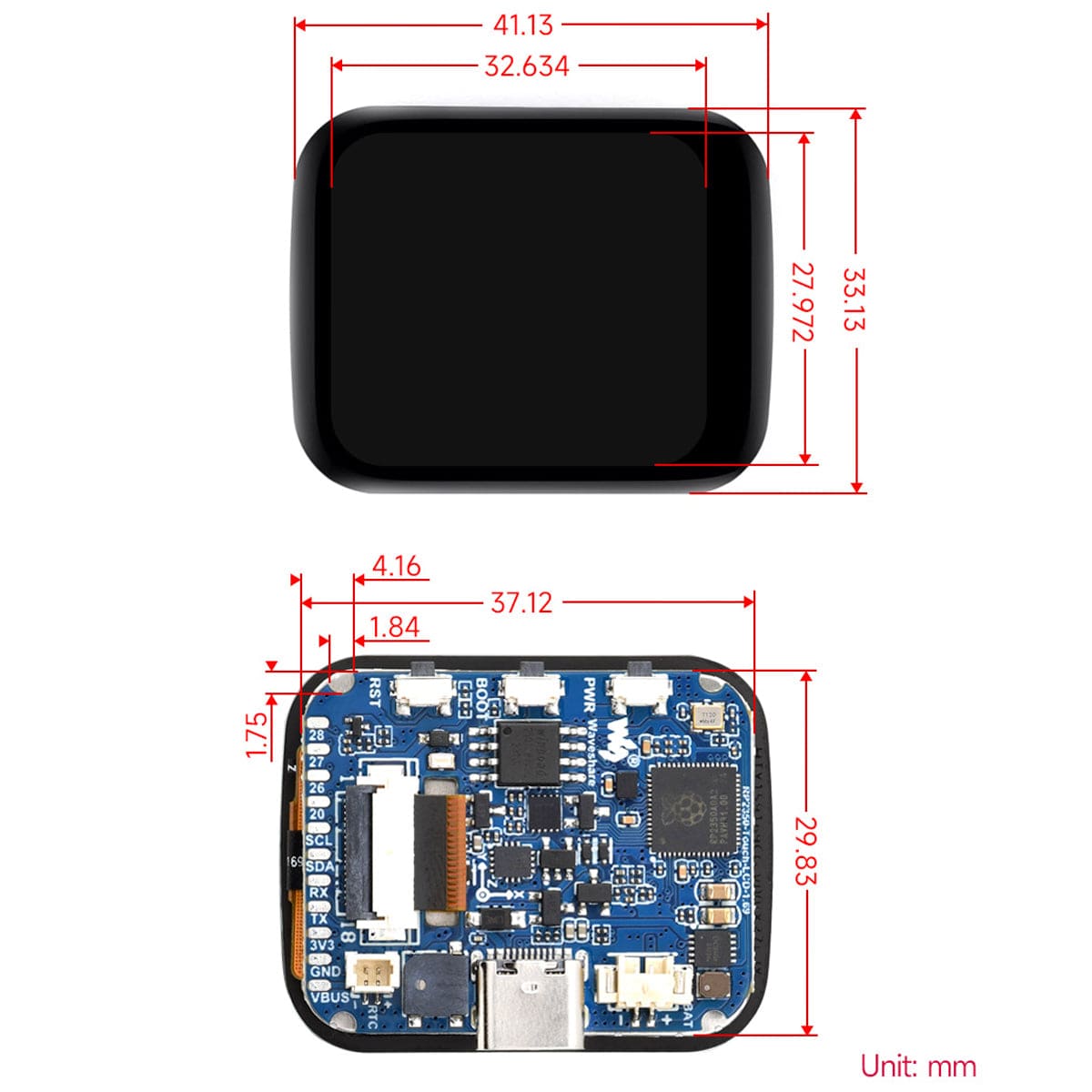

What's on Board

1. RP2350
   Dual-core and dual-architecture design, up to 150 MHz operating frequency
2. W25Q128JVSIQ
   16MB NOR-Flash
3. PCF85063
   RTC chip
4. QMI8658
   6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
5. ETA6098
   Lithium battery recharge manager
6. MX1.25 battery header
   MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
7. Type-C connector
   For programming, USB 1.1 with device and host support
8. Buzzer
   sound-producing peripheral
9. RTC battery header
   For connecting rechargeable RTC batteries (only supports rechargeable RTC batteries)
10. PWR button
    Battery power supply control, single-press, double-press, multi-press and long-press operations
11. BOOT button
12. RST Reset button

Specifications

Resources

• Product Wiki
• Schematic
• ST7789V2 Datasheet

Pinout

Package Contents

• 1x RP2350 Microcontroller Development Board
