Power + Relay HAT for Raspberry Pi Zero

Price:
Sale price £17.40
incl. VAT
excl. VAT
Stock:
Only 20 units left
Quantity:

Compatible with:

Awesome Extras

BCRoboticsPower + Relay HAT for Raspberry Pi
Sale price £24.20 incl. VAT excl. VAT
Raspberry PiRaspberry Pi Zero WH (with pre-soldered header)
Sale price £15.40 incl. VAT excl. VAT

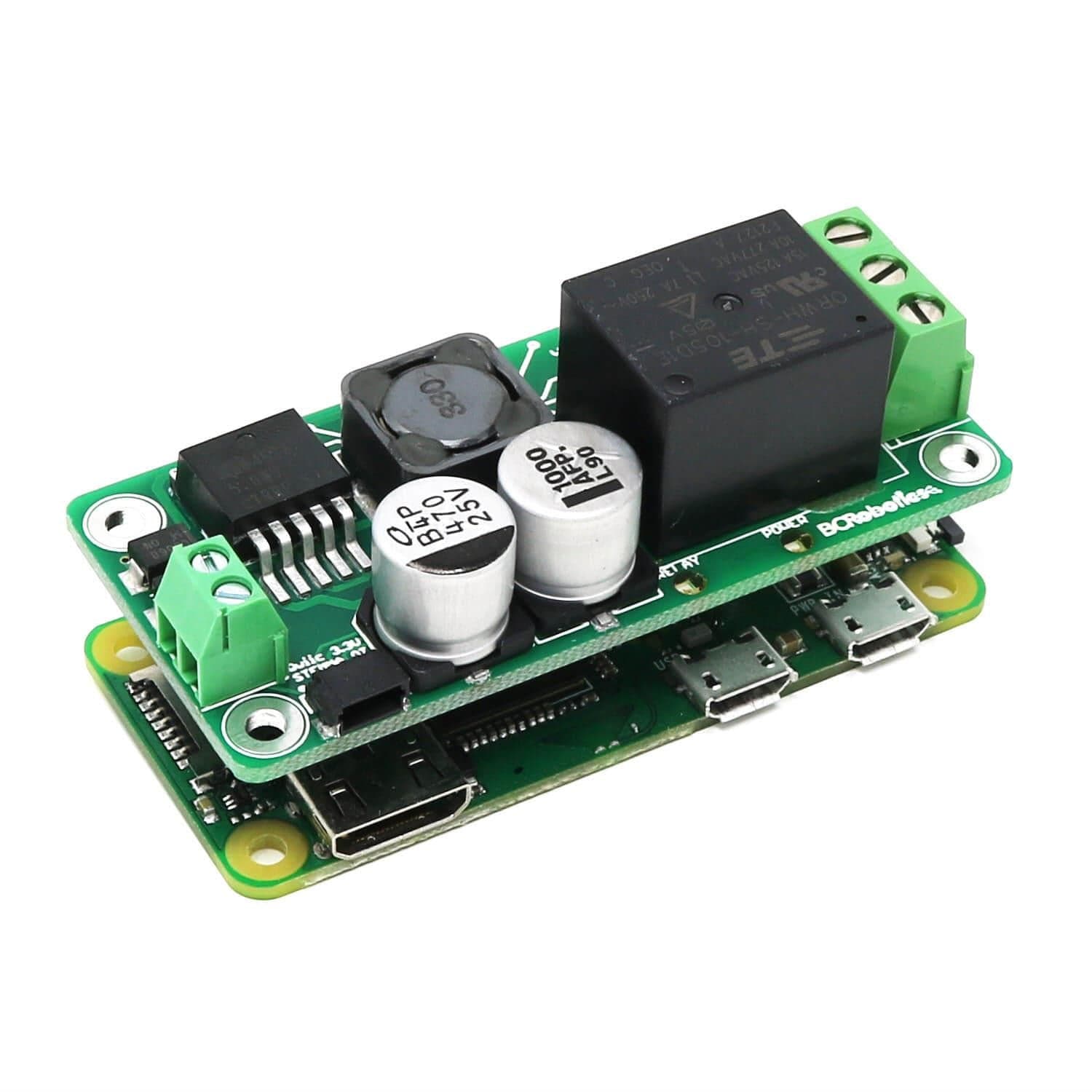

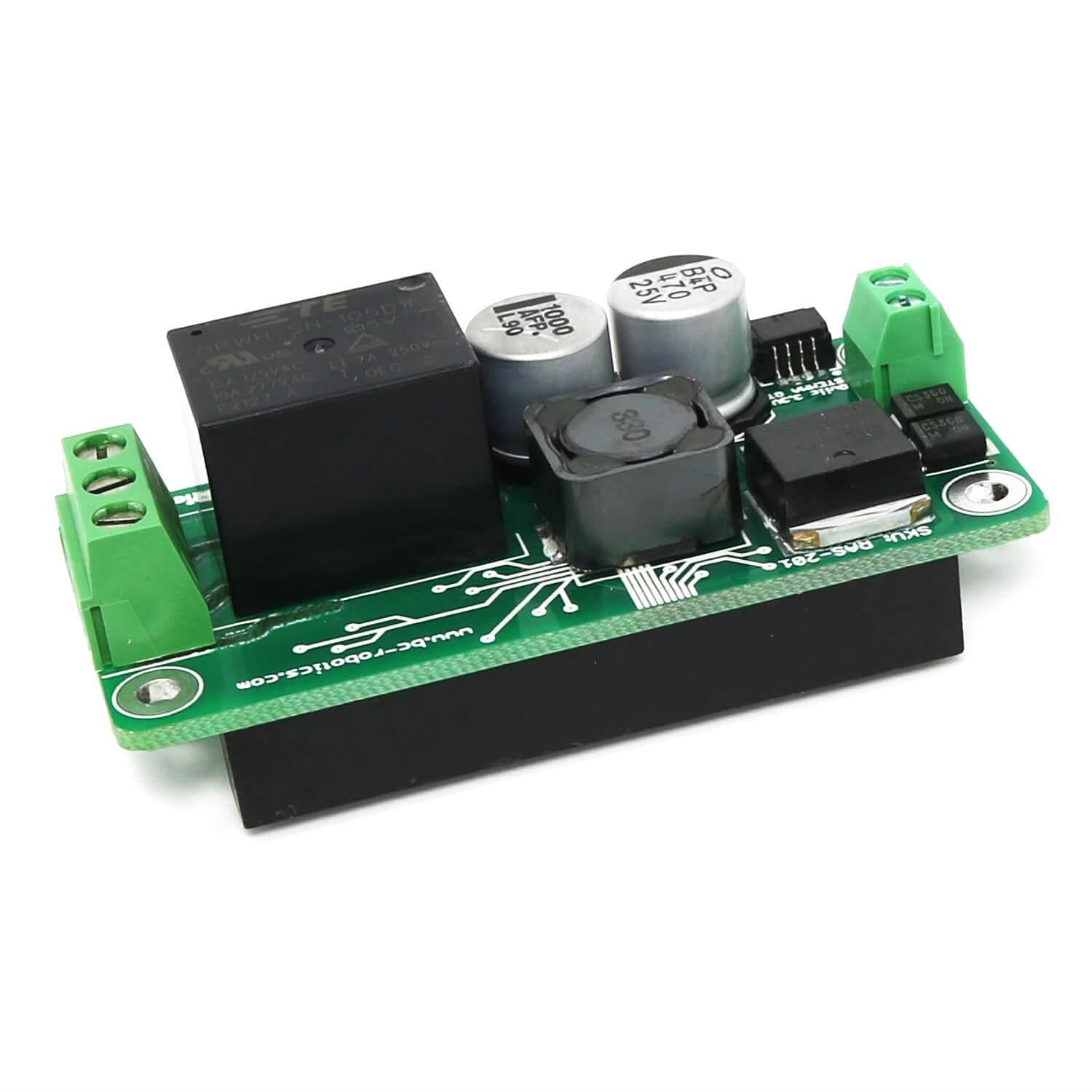

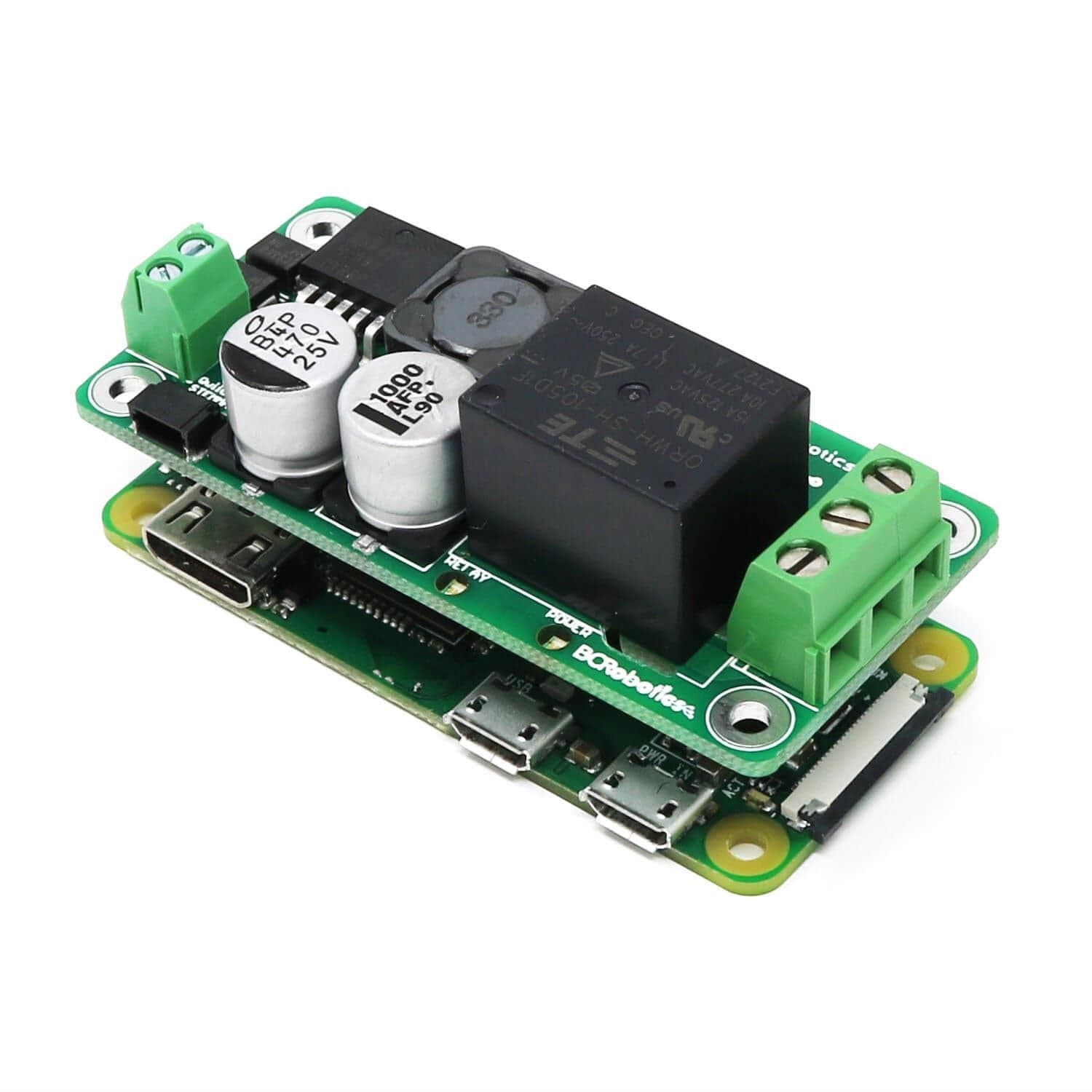

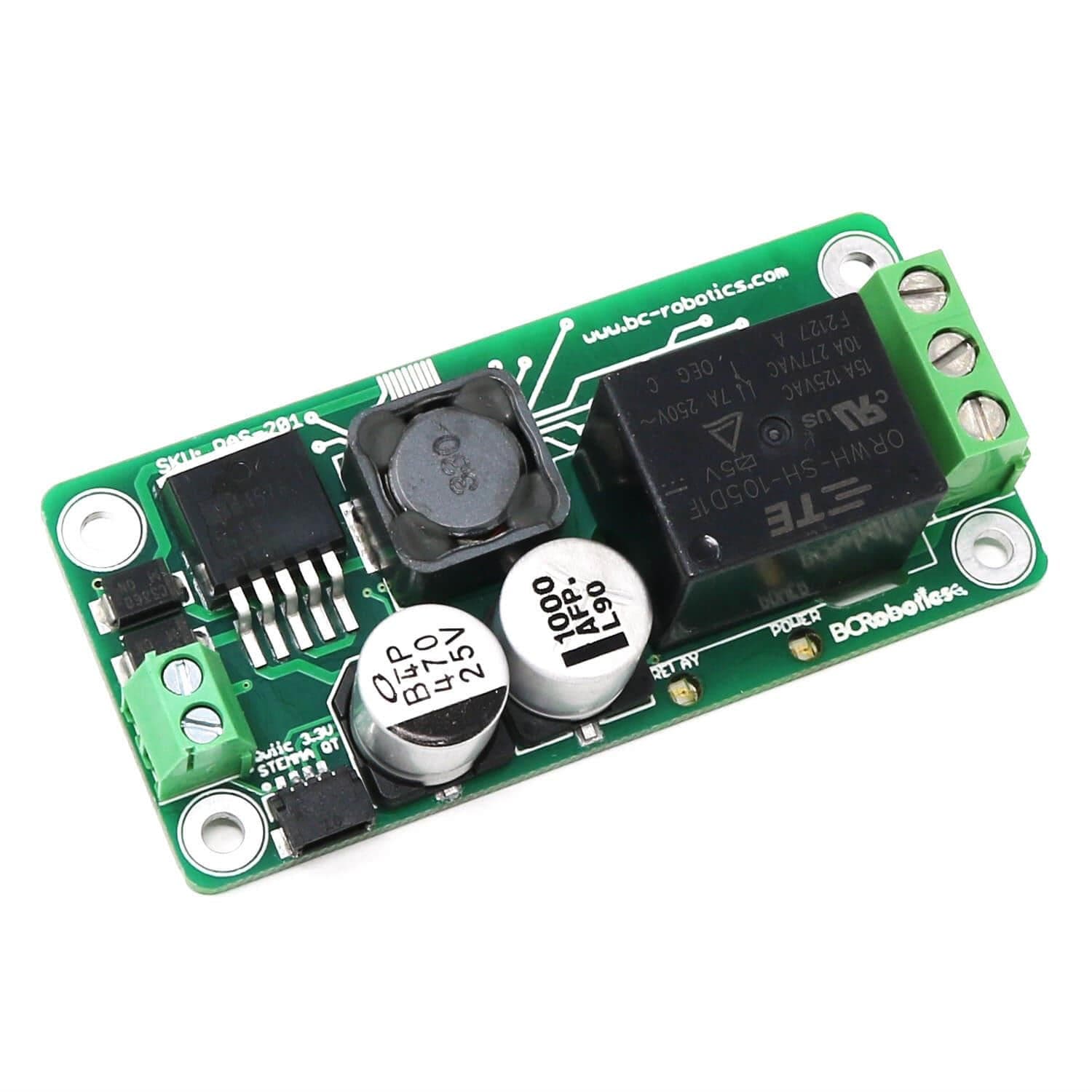

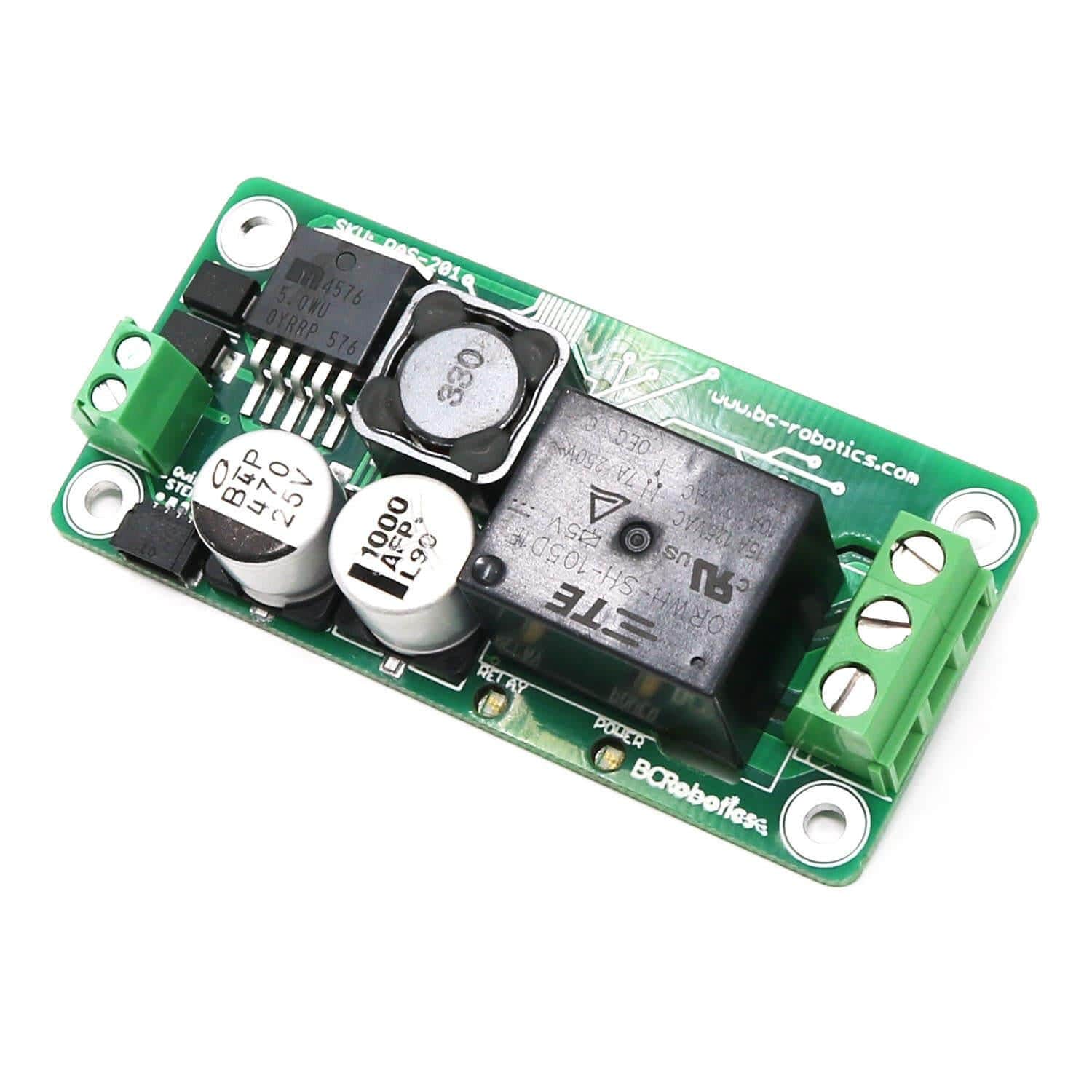

The Power + Relay HAT for Pi Zero is designed as an all-in-one simple automation add on for the Raspberry Pi Zero. It combines the beefy 5V 3A power supply (via 7-16V input) from our series of Raspberry Pi Power HATs with a 10A relay.

These are ideal for situations where a 7-16V DC power is readily available and higher voltage / current loads need to be switched.

To add to the functionality, we have also included an Adafruit STEMMA QT / SparkFun Qwiic socket so additional Qwiic / STEMMA QT sensors and breakout boards can be added with ease!

This HAT is compatible with all versions of  Raspberry Pi Zero (or any Pi with a 40-pin header) and uses GPIO pin 4 (Pin 7) on the GPIO header. The board is fully assembled with a Raspberry Pi GPIO header, meaning no soldering is required.

We also offer a full-size version with 2-relays for the Raspberry Pi 4/Model B. Check out the full BCRobotics range here, including dedicated relay HATs and more!

Features

  • Fits directly on the Pi's 40 pin GPIO header
  • Relay on GPIO 4
  • No Soldering Required
  • Compatible with all models of the Raspberry Pi with as 40-pin header
  • Switch up to 10A
  • 5V 3A Output to power Raspberry Pi
  • Fused and Reverse Polarity Protected Power Input
  • Recommended Input: 7 – 16VDC
  • Ideal for 12V power systems

Resources

Raspberry Pi not included
