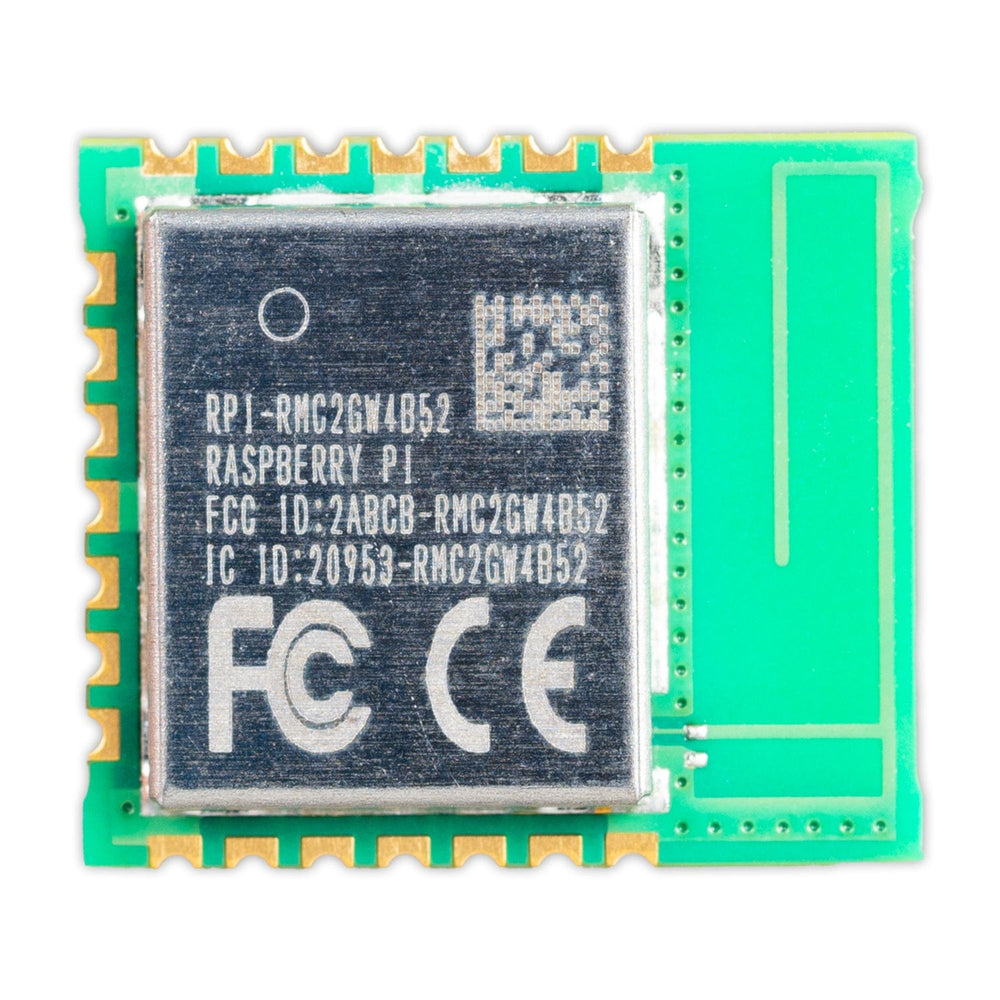

Raspberry Pi Radio Module 2 (RM2) is intended to provide easy-to-integrate radio functionality for OEM products or your own PCB designs, originally designed for use with Raspberry Pi’s low-cost, high-performance microcontrollers such as the Raspberry Pi Pico 2 W.
It uses Infineon’s CYW43439, a single-chip combo device featuring 1x1 single-band 2.4GHz Wi-Fi® 4 (802.11n) and Bluetooth® 5.2 for low-cost applications.

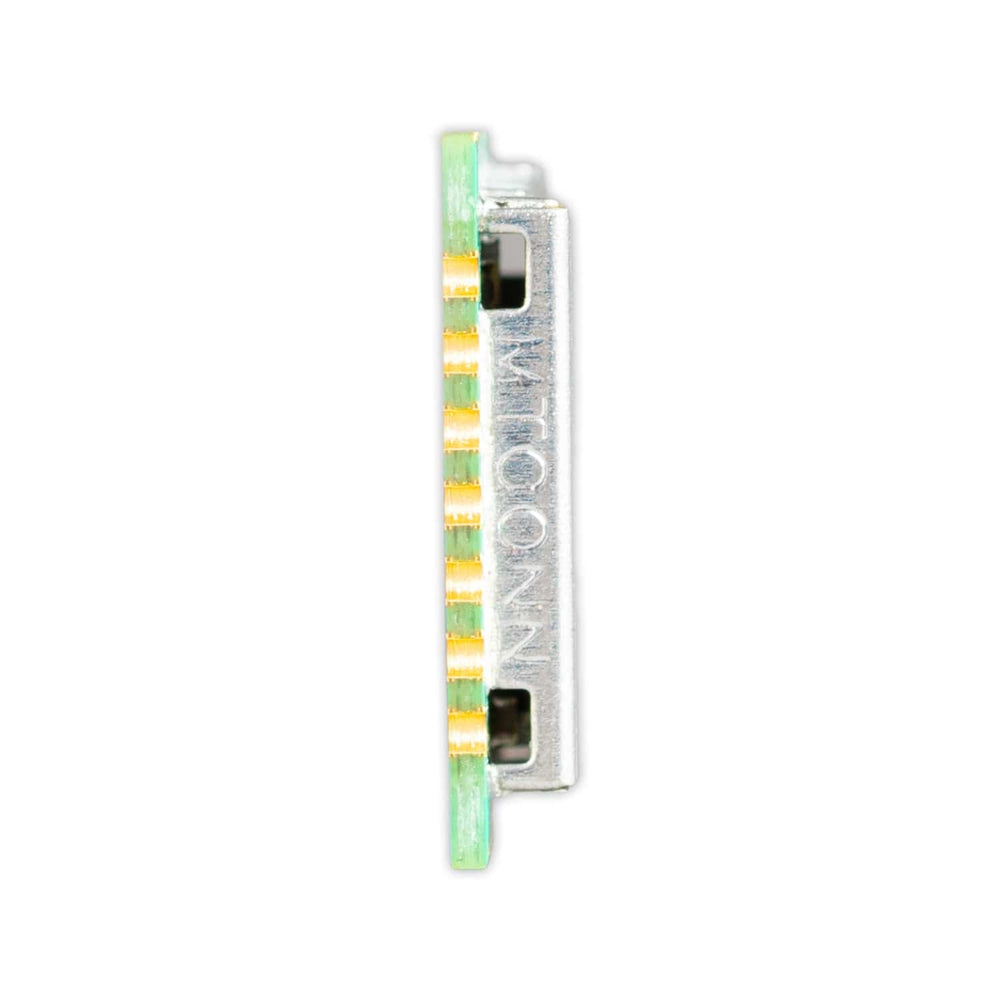

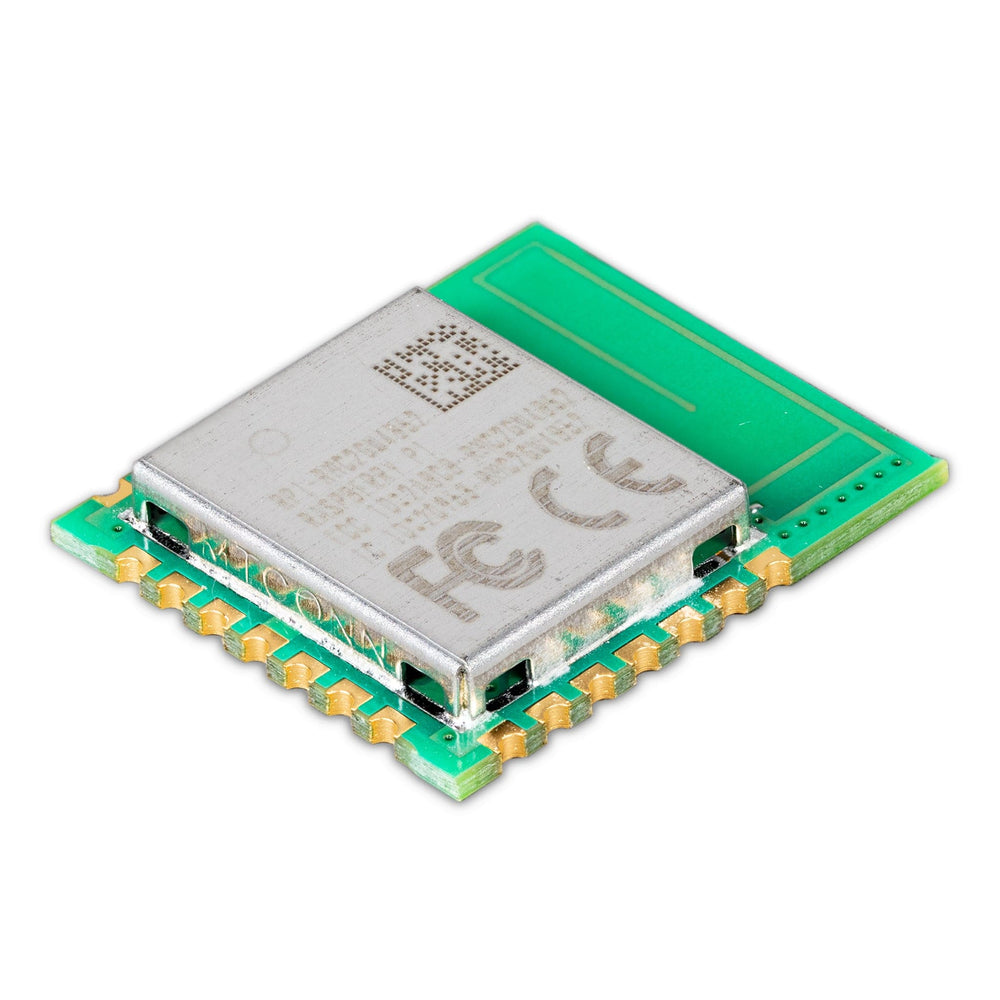

It is a small form-factor solution with minimal external components for reduced mass production costs. The radio module has castellated edge pads to allow for a variety of mounting options, and features an on-board single 2.4GHz antenna for ease of design. It has full modular certification, making integration straightforward with regard to regulatory compliance.
Sold as individual units (cut from a tape & reel and packaged into an anti-static bag). Need bulk quantities, or even a full 960-piece reel? Head over to our Business site.
Features
Castellated package for easy integration
Single-band 2.4GHz Wi-Fi 4
Bluetooth 5.2
FCC modular conformance
Specifications
Wi-Fi support:
Wi-Fi 4 (802.11n), single-band (2.4 GHz)
Bluetooth support:
Bluetooth 5.2 Bluetooth Classic and Bluetooth Low Energy (LE)
Compatibility:
Full software compatibility with Pico W and Pico 2 W SDK
Simple GPIO expander:
Three host-controlled GPIOs for added I/O capabilities
Minimal I/O overhead:
Low-pin-count qSPI host interface allows for simplified integration with minimal I/O requirements
Single-antenna design:
SISO1 configuration supports efficient single-antenna wireless performance Wi-Fi and Bluetooth can coexist with a shared antenna
Connectivity:
Integrated internal PA and LNA for signal range and reliability
Speed:
Supports 20 MHz channels with data rates up to 96 Mbps (PHY rate)
Bluetooth range:
Supports up to 100 m (Class 1) and 10 m (Class 2)
Operating temperature:
−30°C to +70°C
Low power consumption:
IEEE Power Save PM1 DITM1 average rate 1: 1.19 mA Receive active rate MCS7 (at −50 dBm): 43 mA Transmit active rate MCS7 (at 16 dBm): 271 mA
Mechanical characteristics:

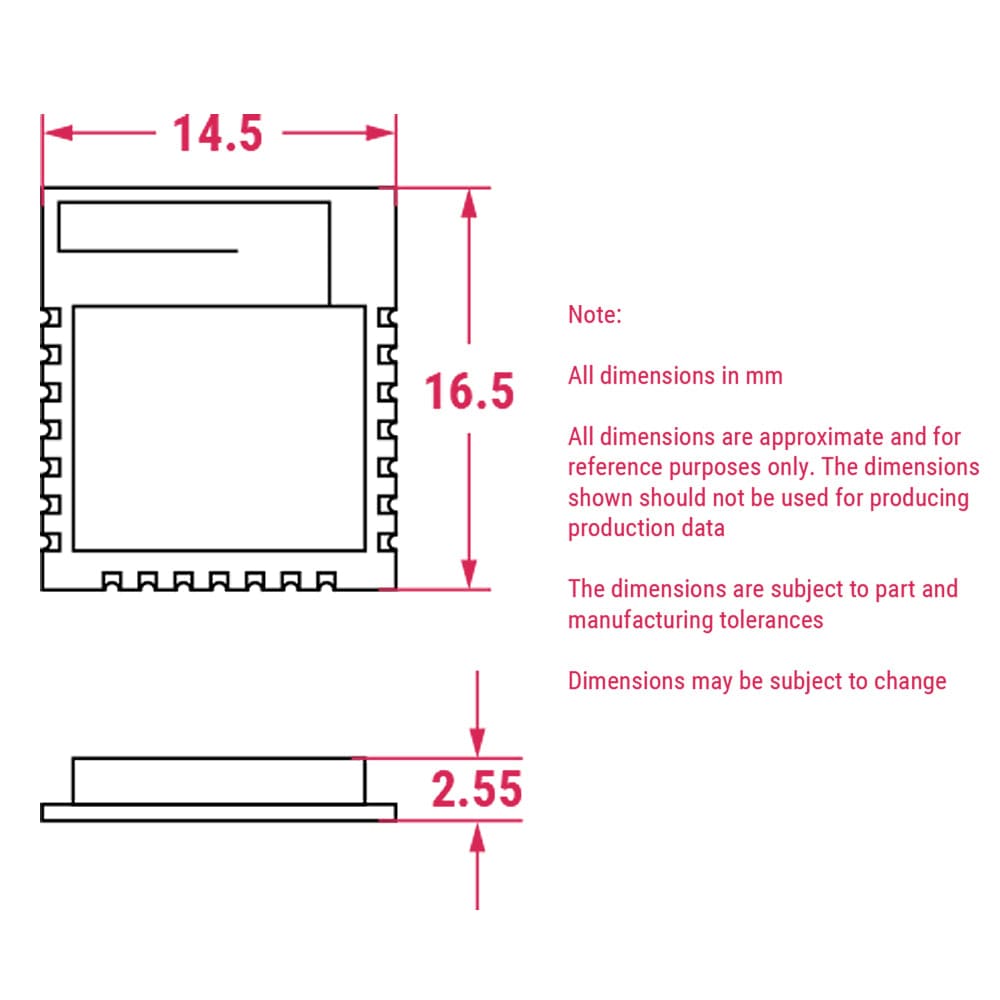

21-pad castellated package 16.5 mm × 14.5 mm
Datasheet:
For full product specifications, including footprint and reference schematics, please see the datasheet
Part number:
RMC20452T
Production lifetime:
Raspberry Pi Radio Module 2 will remain in production until at least January 2036
Compliance:
For a full list of local and regional product approvals, please visit pip.raspberrypi.com
