Pico:ed Smart CuteBot Kit V2 (with Pico:ed V2)

Price:
Sale price £48.50
incl. VAT
excl. VAT
Stock:
Only 2 units left
Quantity:

Awesome Extras

ANSMANNX-Power 1.5V AAA Alkaline Batteries (4-Pack)
Sale price £4.95 incl. VAT excl. VAT
The Pi HutMini Remote Control
Sale price £4.30 incl. VAT excl. VAT
ElecfreaksSmart AI Lens Kit
Sale price £55.50 incl. VAT excl. VAT

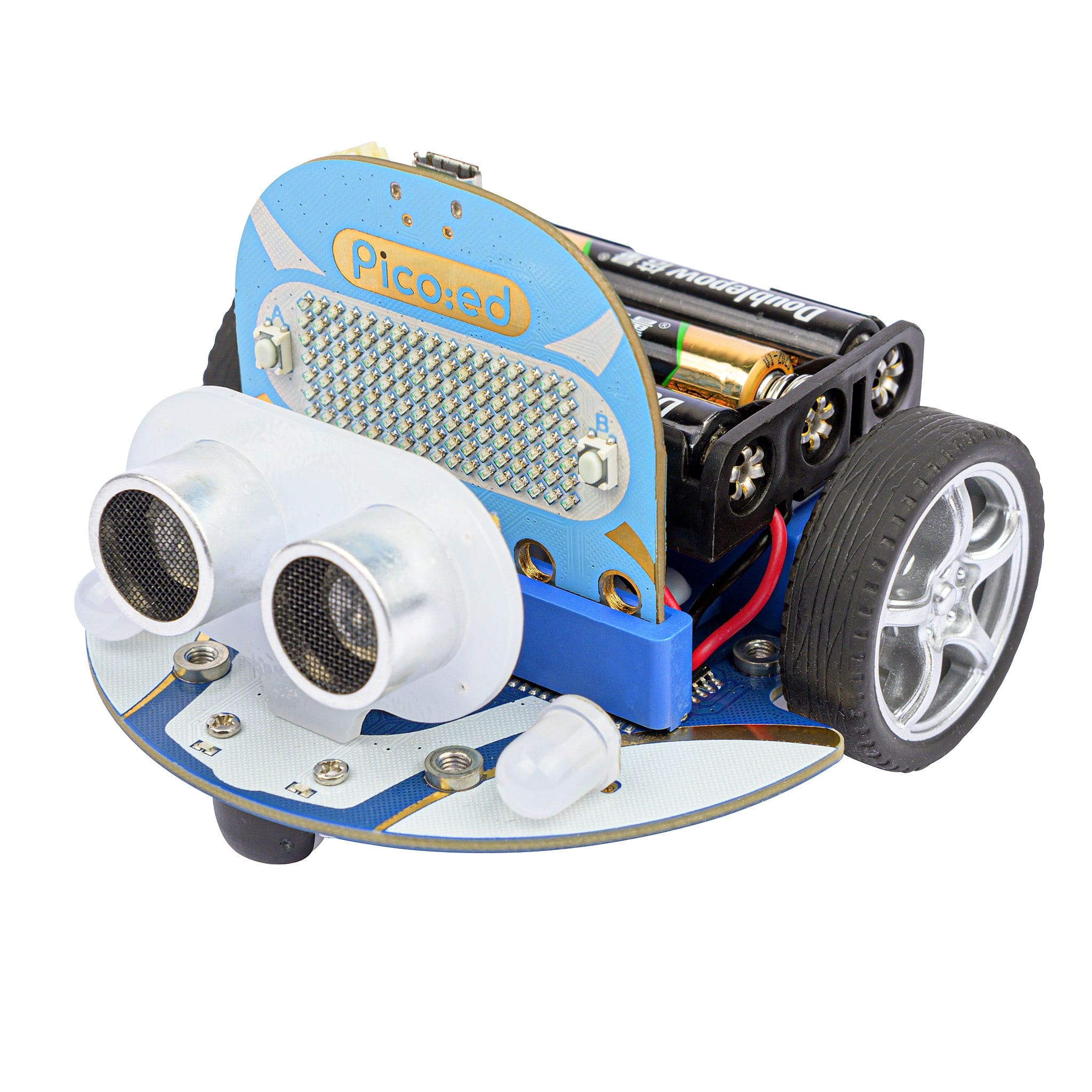

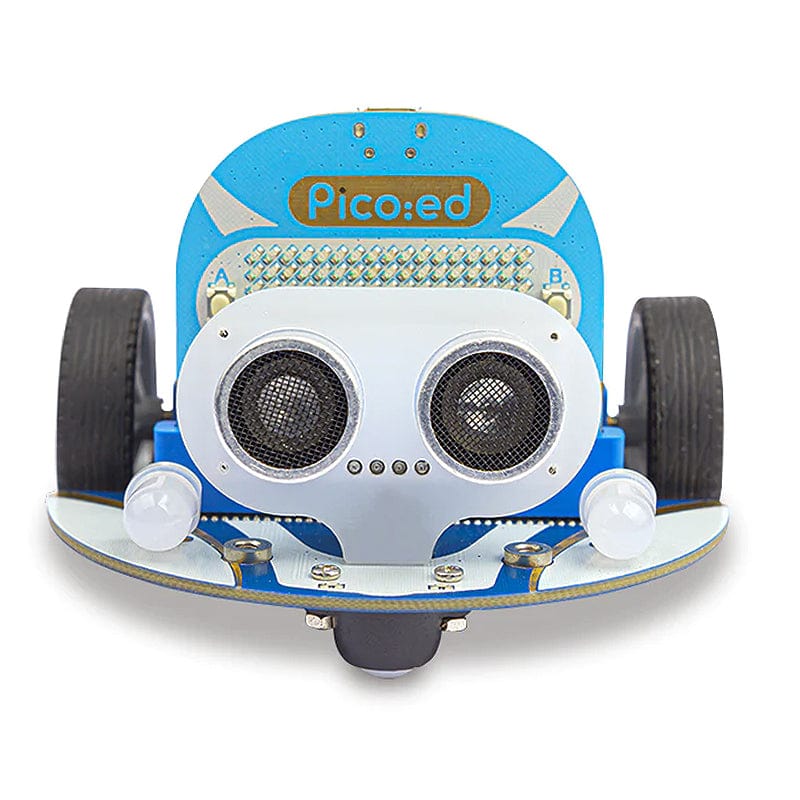

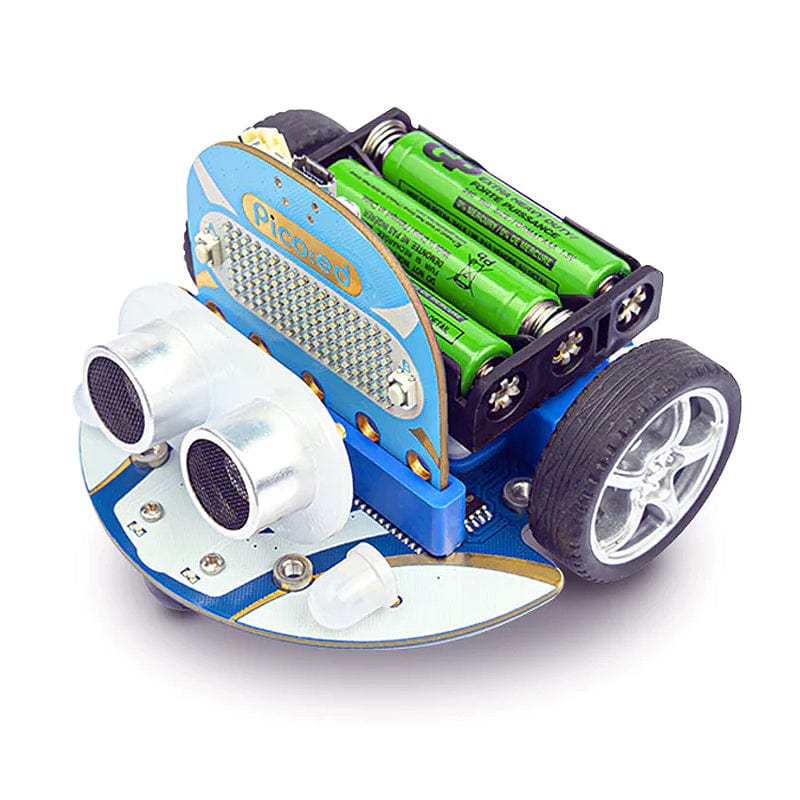

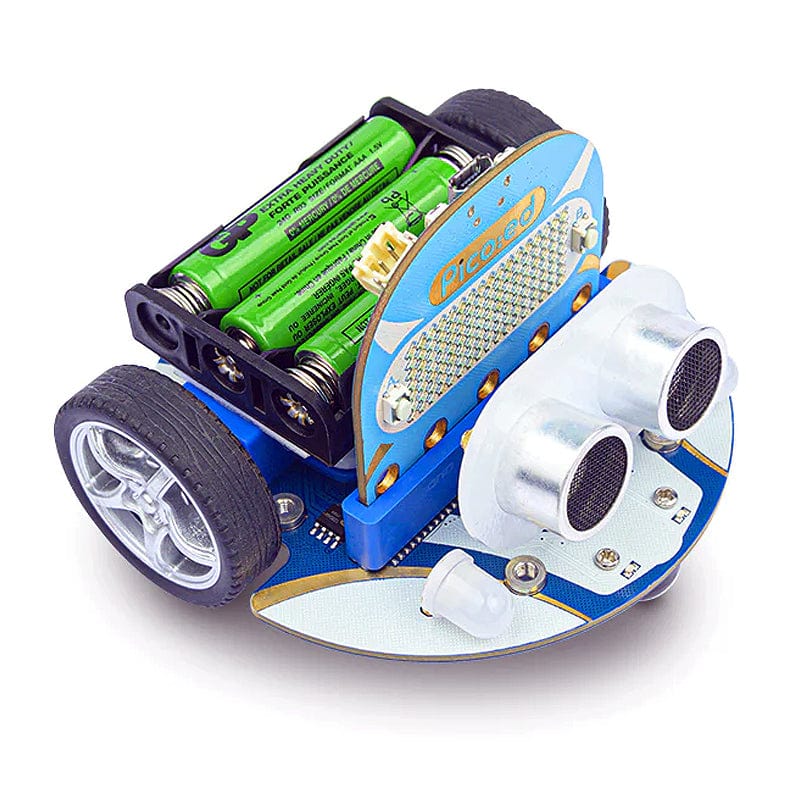

The Elecfreaks Pico:ed V2 Smart Cutebot is a compact rear-drive smart car driven by dual high-speed motors and the RP2040-powered Pico:ed V2 (included!).

It's a fantastically fun way to engage children and teach them how to code whilst having far too much fun, using easy-to-learn simple graphical programming blocks. Great for us big kids too!

The robot is easy to assemble - just install the battery pack (3xAAA batteries required - not included) and ultrasonic sensor and you're ready to start coding. Use code to control the car, or combine it with an infrared remote control (not included) to enable manual control. The CuteBot uses a fully enclosed motor which will not be damaged due to dust and debris like normal motors, and is compatible with building bricks from packs such as the Nezha!

Supports MicroPython via Thonny and has a detailed online user guide including a number of projects to learn with and build upon.

If you've got a micro:bit, you may also want to check out the Smart CuteBot for micro:bit.

Batteries not included

Features

The robot has many onboard features including:

  • Ultrasonic sensor
  • Two RGB LED headlights
  • IR receiver
  • Clearance lamps on the bottom
  • Two line-tracking probes
  • Active buzzer as a horn
  • Under-chassis lights
  • Sealed motors
  • Interface expansion pins
  • ...and cuteness!

It can be connected with other accessory packs, such as the Smart AI Lens Kit and other sensors via the interface pins.

Specifications

Working Voltage 3.5V - 5V
Dimension 85.68mm x 85.34mm x 38.10mm
Buzzer Active Buzzer
RGB Headlights 2x RGB
Rainbow LED 2x Neopixel
Connection Servo Extension, GVS Lead-out, IIC Port, Ultrasonic Port
Motor Type GA12-N20 DC micro Gear Deceleration Motor (300RPM)
Ultrasonic Sensor Type HC-SR04 (2cm-400cm Contactless Distance Detection, Precision ±1.5mm)

Resources

Package Contents

  • 1x CuteBot car
  • 1x Pico:ed V2 board
  • 1x Micro-USB cable
  • 1x Battery box (3x AAA size) + adhesive strip
  • 1x HC-SR04 ultrasonic sound sensor
  • 1x Line-following map
  • 1x Manual

Batteries not included
