Olimex ESP32-P4-DevKit Development Board

The ESP32-P4-DevKit from Olimex is a development board with an Espressif ESP32-P4 Dual Core RISC-V processor.

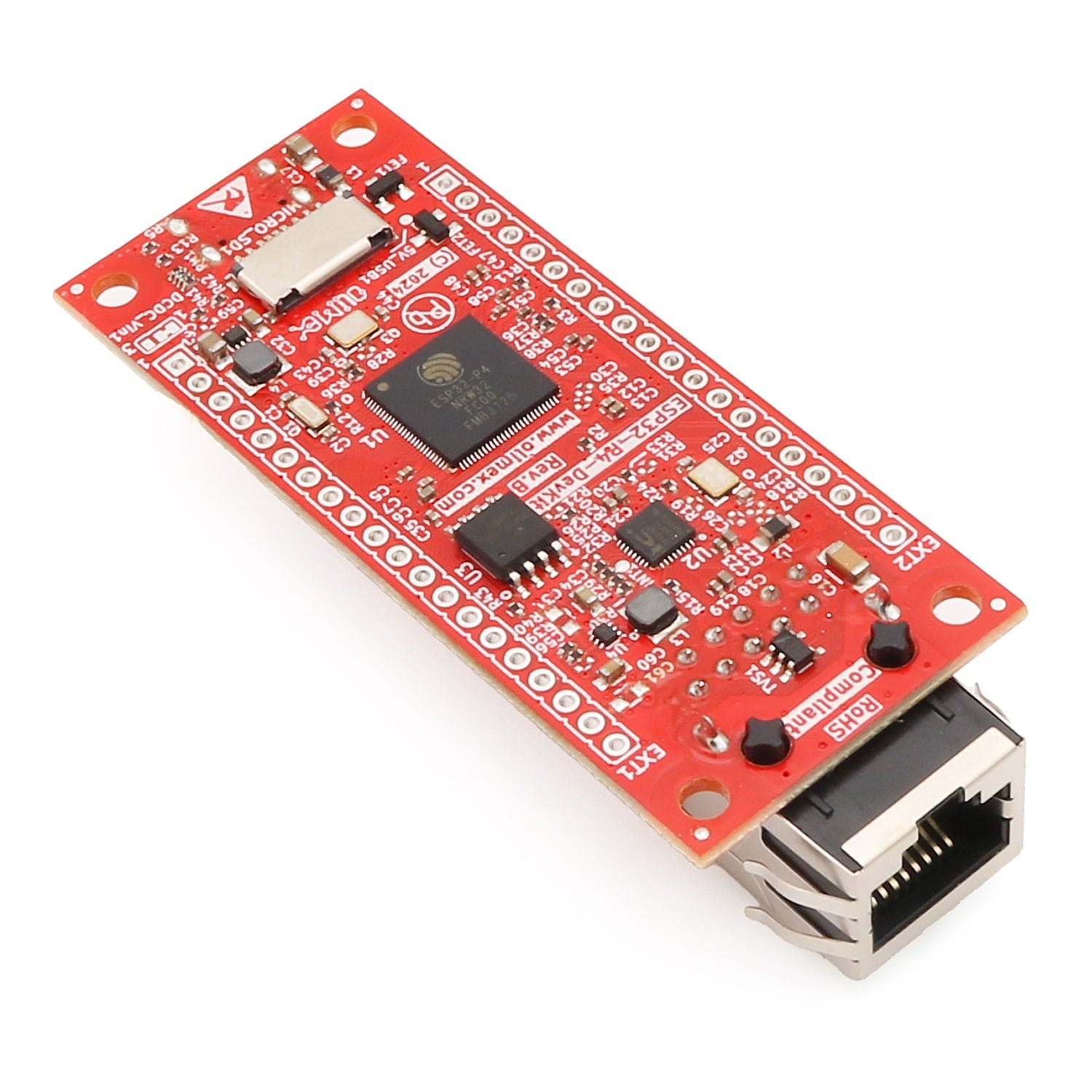

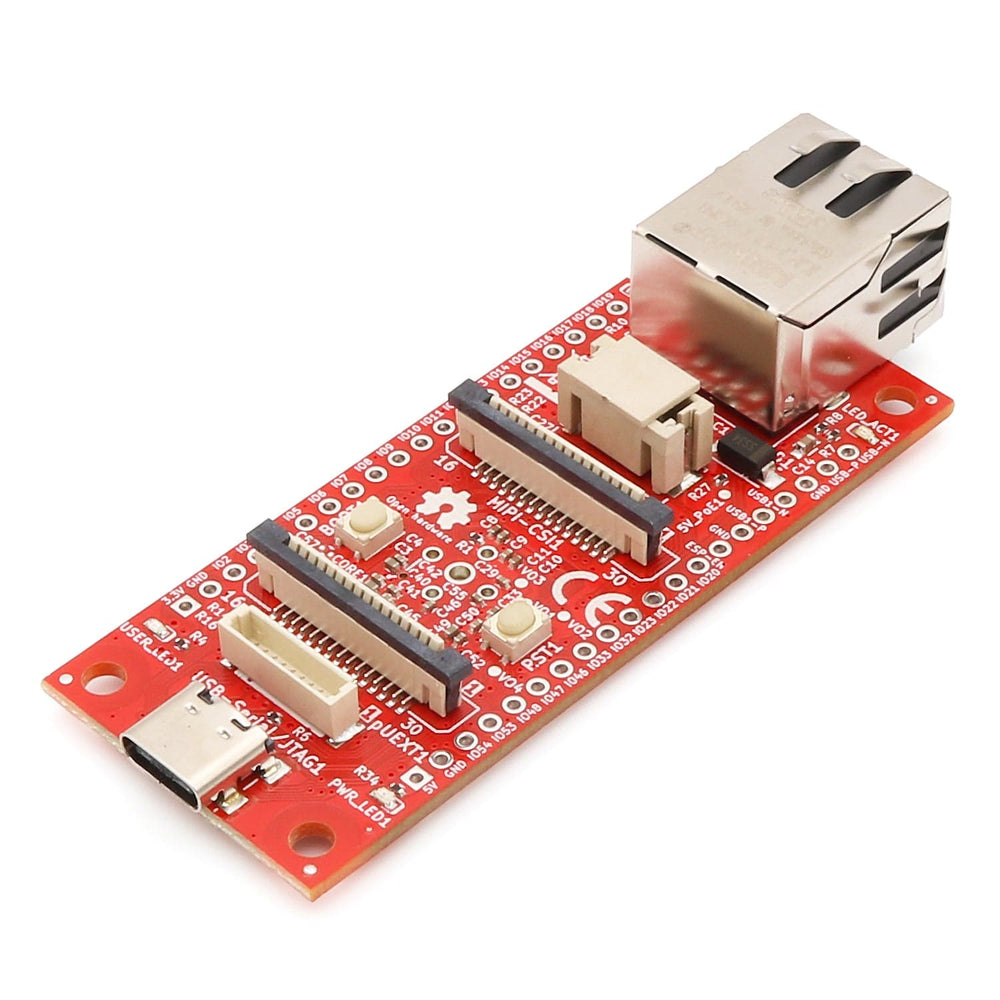

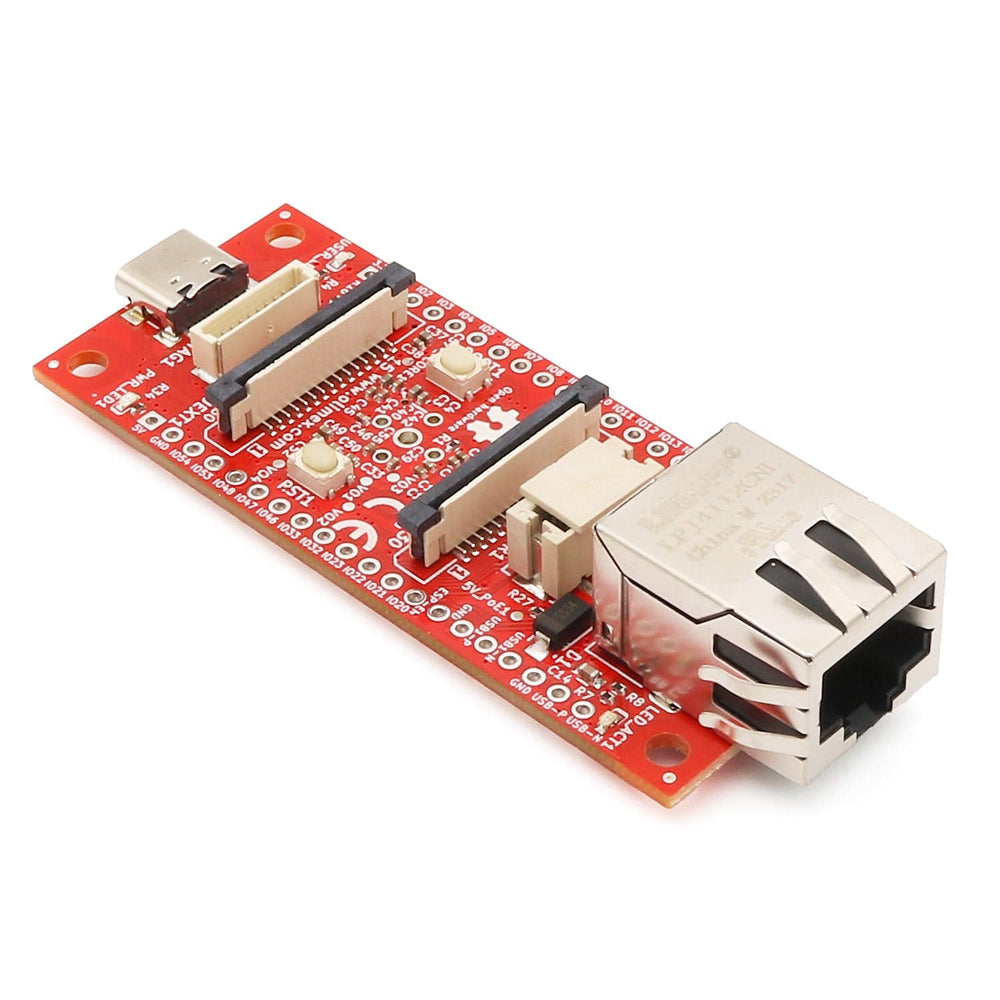

The board features a MACPHY Ethernet port, camera (CSI) and display (DSI) interfaces, a compact MicroSD slot on the underside, BOOT and RESET buttons and a USB-C JTAG interface for programming and debugging.

The CSI interface is compatible with Raspberry Pi camera modules (Olimex do not state specific models that are compatible, please contact Olimex for more information if in doubt).

Power over Ethernet is possible when used with an optional PoE extension board.

Features

• Espressif ESP32-P4NRW32 module:
  • Dual core 400Mhz RISC-V
  • 768KB RAM
  • 32MB PSRAM
• SPI Flash 16MB
• USB JTAG for programming and debugging
• Ethernet MACPHY and connector with POE option via extension (sold separately, coming soon)
• Camera CSI interface
• Display DSI interface
• MicroSD card
• Boot and Reset buttons
• pUEXT connector
• All GPIOs available on 0.1″ 2.54 mm 20 pin DIL headers
• Four mounting holes 3.3mm diameter
• Dimensions: 72 x 30mm

Resources

Documents

• ESP32-P4-DevKit user manual
• ESP32-P4-DevKit EU declaration of conformity
• ESP32-P4-DevKit UKCA declaration of conformity

Hardware

• ESP32-P4-DevKit schematic in PDF format
• ESP32-P4-DevKit KiCad source files

Software

ESP-IDF demos

• ESP32-P4 blink demo
• ESP32-P4 iperf demo
• ESP32-P4 mipi-csi camera demo
• ESP32-P4 sdmmc demo

Arduino IDE Support

• The module is supported in the Arduino IDE ESP32 package since version 3.1.x, use these settings

Package Contents

• 1x Olimex ESP32-P4-DevKit board
