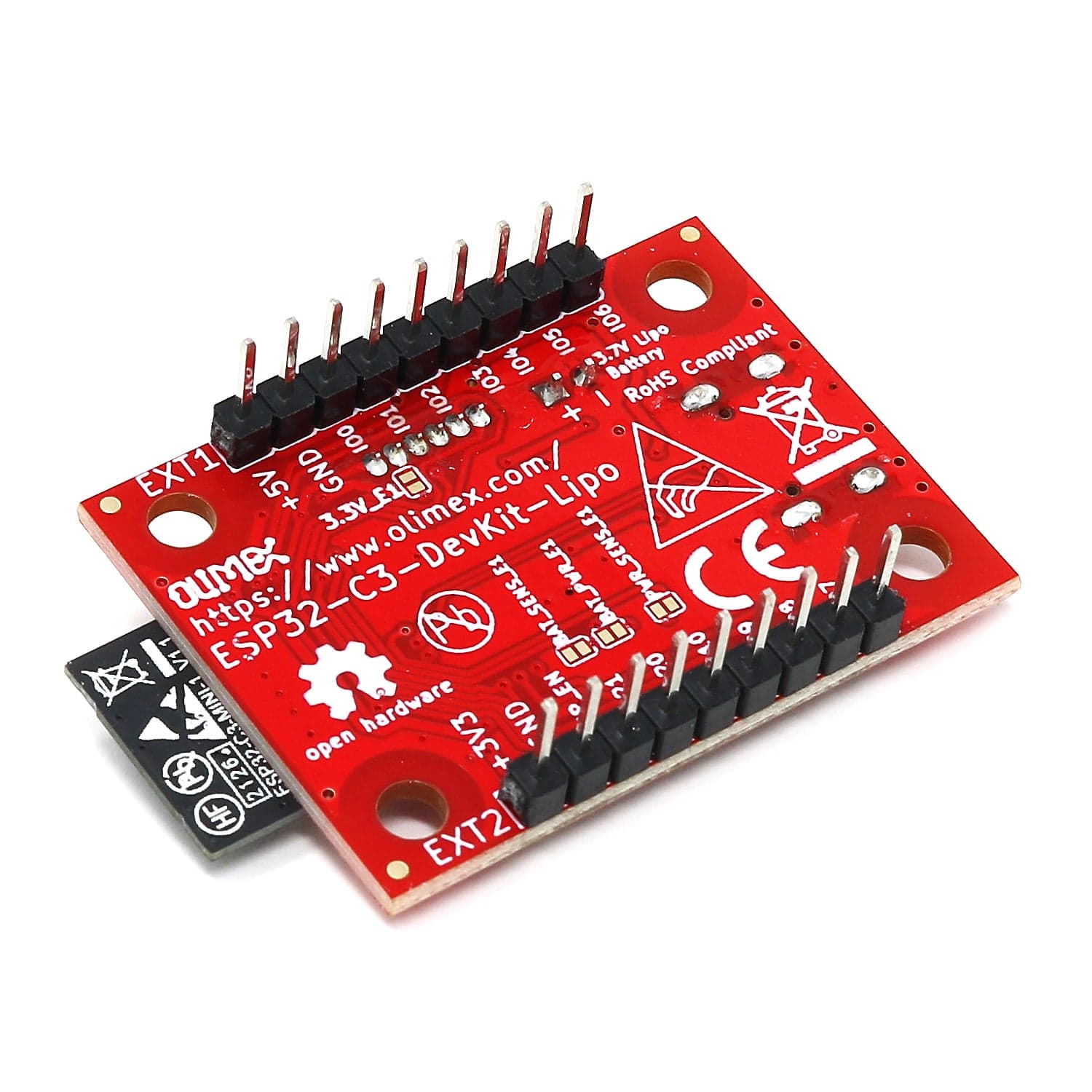

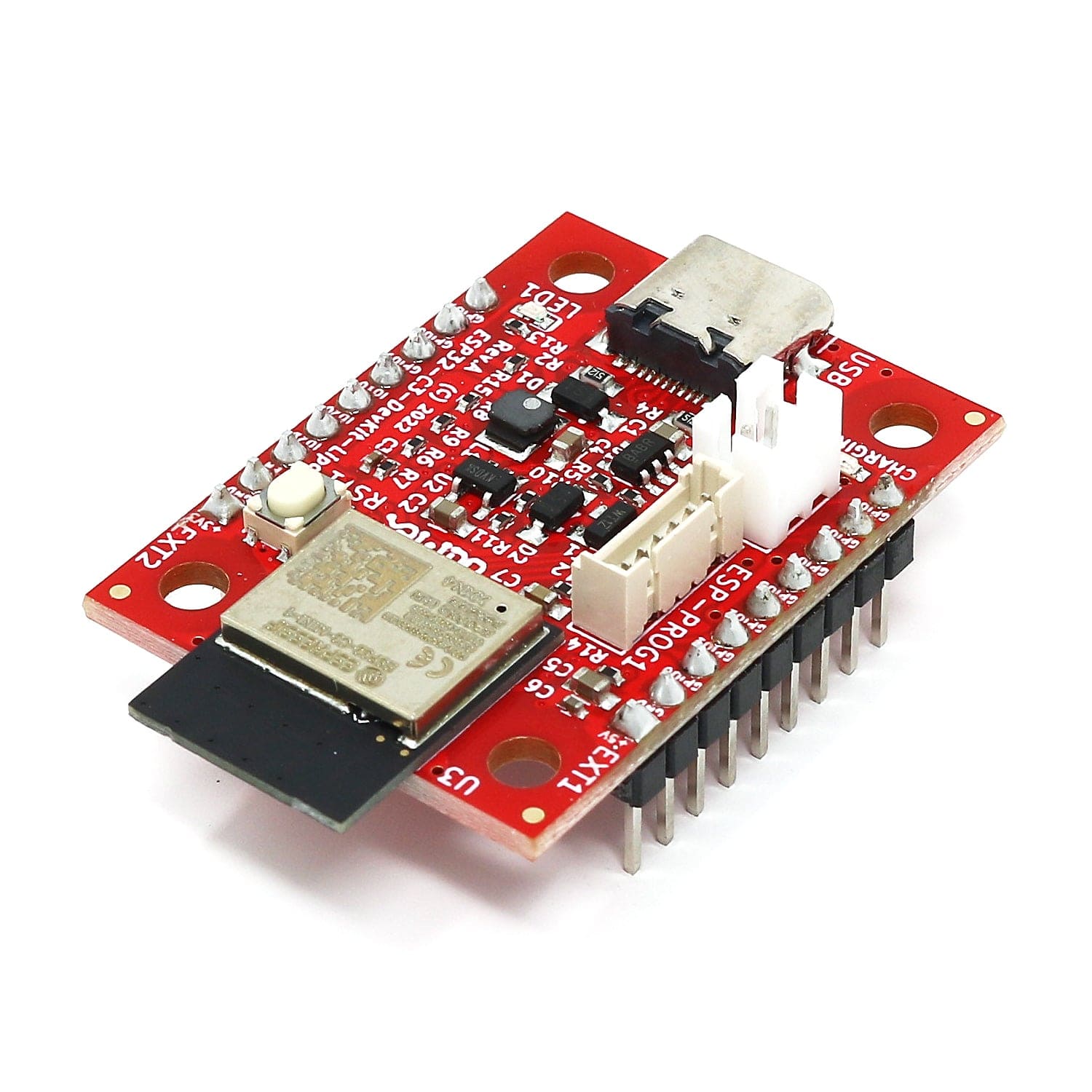

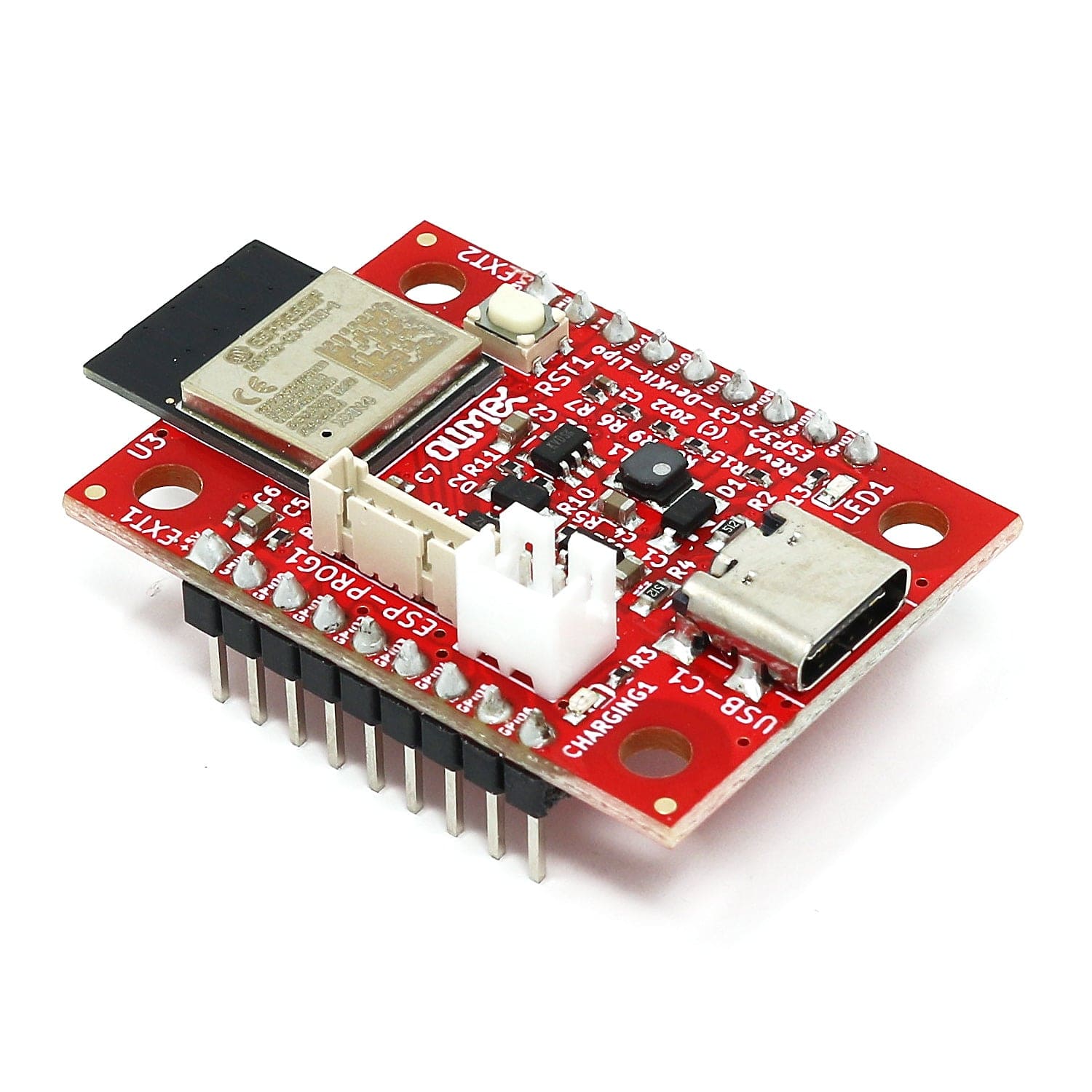

Olimex ESP32-C3-DevKit-Lipo RISC-V Development Board

OlimexSKU: 105363
Price:
Sale price £6.80
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Awesome Extras

USB-A to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
Full-Size Breadboard - White - The Pi HutFull-Size Breadboard - White - The Pi Hut
The Pi HutFull-Size Breadboard - White
Sale price £5 incl. VAT excl. VAT
1200mAh 3.7V LiPo Battery - The Pi Hut
The Pi Hut1200mAh 3.7V LiPo Battery
Sale price £8 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut

The Olimex ESP32-C3-DevKit-Lipo is an entry-level RISC-V development board with USB-C, JTAG, WiFi, Bluetooth 5 and a built-in Lipo charger.

The board offers 15 GPIOs, 4MB embedded FLASH, a LiPo battery connector with built-in LiPo charger and status LEDs, an onboard antenna for the onboard WiFi and Bluetooth and more! Programming is achieved via the USB-C connection - be sure to grab a quality USB-C cable.

It is breadboard-compatible *BUT* due to the width of the board, it will need to straddle across two standard breadboards to allow access to pins.

Features

  • RISC-V single-core processor running at 160 Mhz
  • 384 KB ROM, 400 KB SRAM, 8 KB SRAM in RTC
  • 4 MB embedded flash
  • 2.4 GHz WiFi (802.11 b/g/n) 1T1R up to 150 Mbps
  • Bluetooth 5
  • 15 GPIOs
  • Onboard antenna
  • Built-in LiPo battery charger with STATUS LED, for handheld operations
  • Lipo battery connector for LiPo batteries
  • RESET button
  • STATUS LED
  • ICSP programming connector for rescue with ESP-PROG-C
  • 4 mount holes
  • USB-C connector for Debugging and Programming
  • EXT1, EXT2 headers with all signals and power supply

Resources

Documentation

Hardware

Software

Package Contents

  • 1x Olimex ESP32-C3-DevKit-Lipo RISC-V Development Board
