NCIR 2 Thermometer Unit (MLX90614)

M5StackSKU: U150
£21.70
incl. VAT
excl. VAT
Only 5 units left

Awesome Extras

M5Stack Core2 v1.1 ESP32 IoT Development Kit - The Pi HutM5Stack Core2 v1.1 ESP32 IoT Development Kit - The Pi Hut
M5StackM5Stack Core2 v1.1 ESP32 IoT Development Kit
£44.70 incl. VAT excl. VAT
M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi HutM5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut
M5StackM5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit
£24 incl. VAT excl. VAT
Notify me
M5Stack 8-Angle Unit with Potentiometer - The Pi HutM5Stack 8-Angle Unit with Potentiometer - The Pi Hut
M5StackM5Stack 8-Angle Unit with Potentiometer
£12.30 incl. VAT excl. VAT

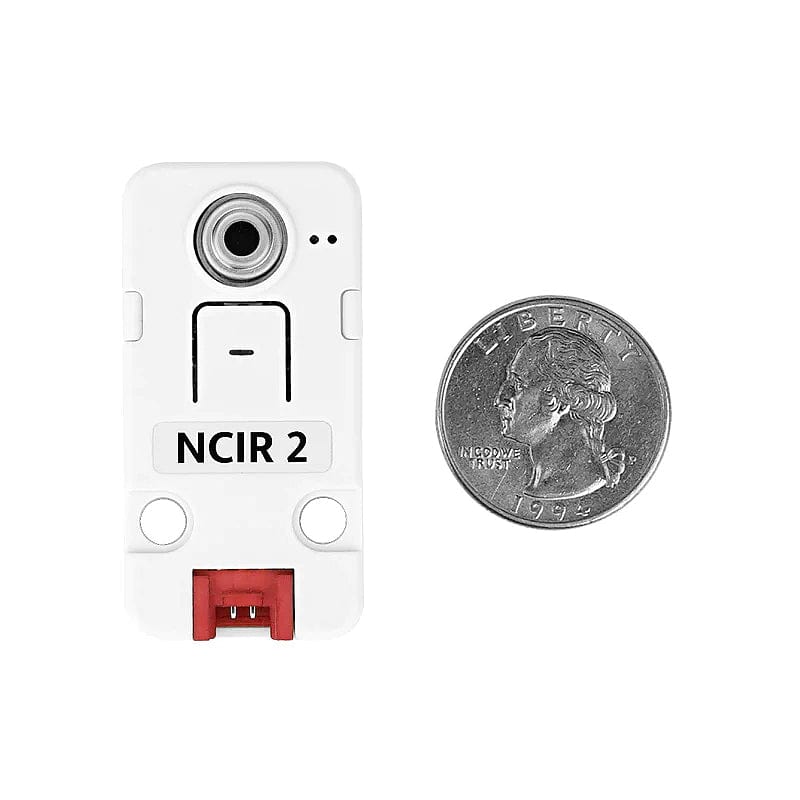

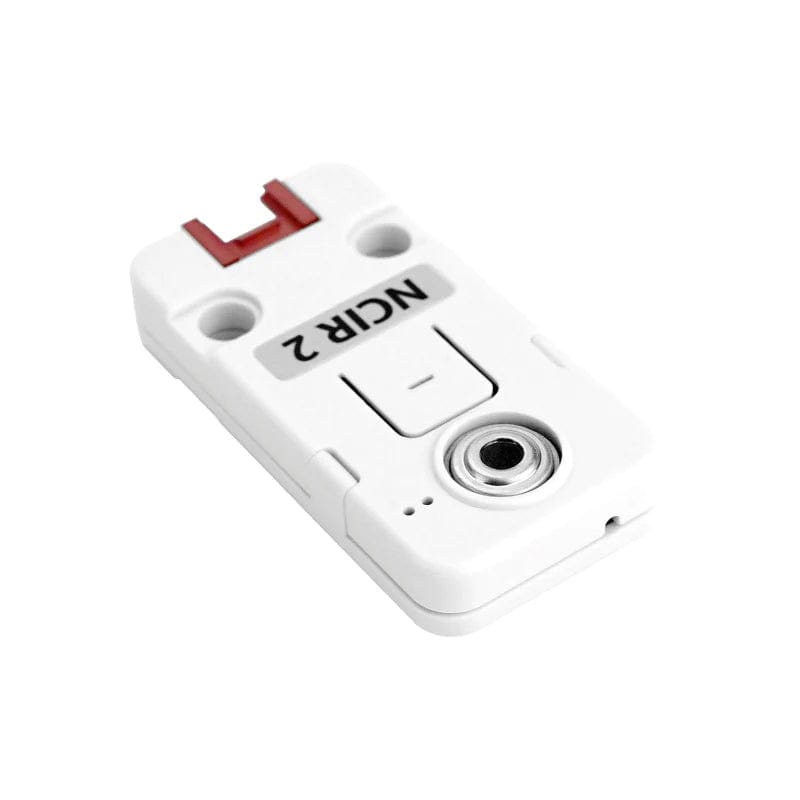

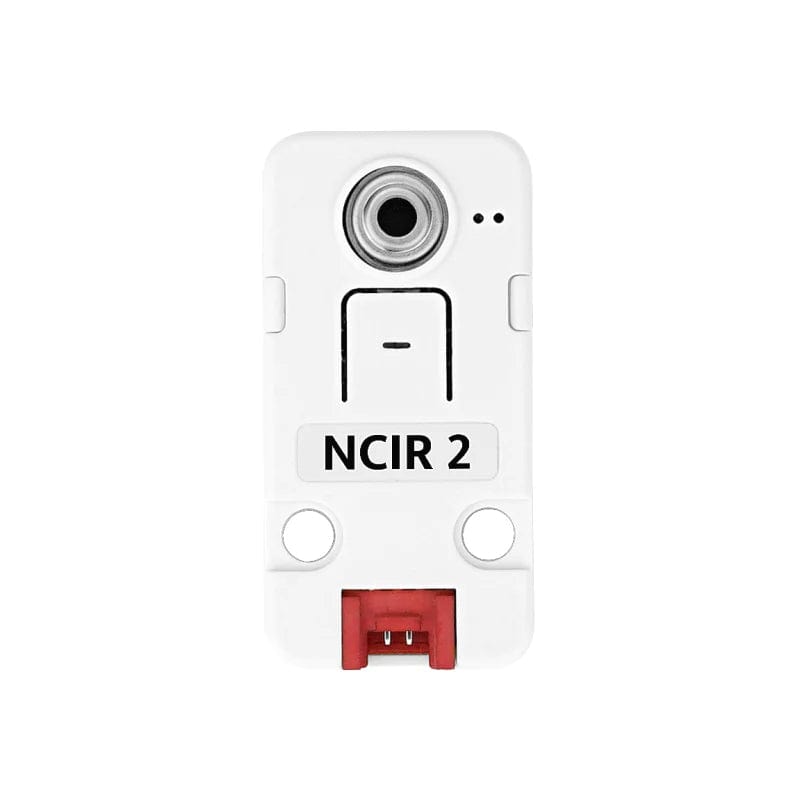

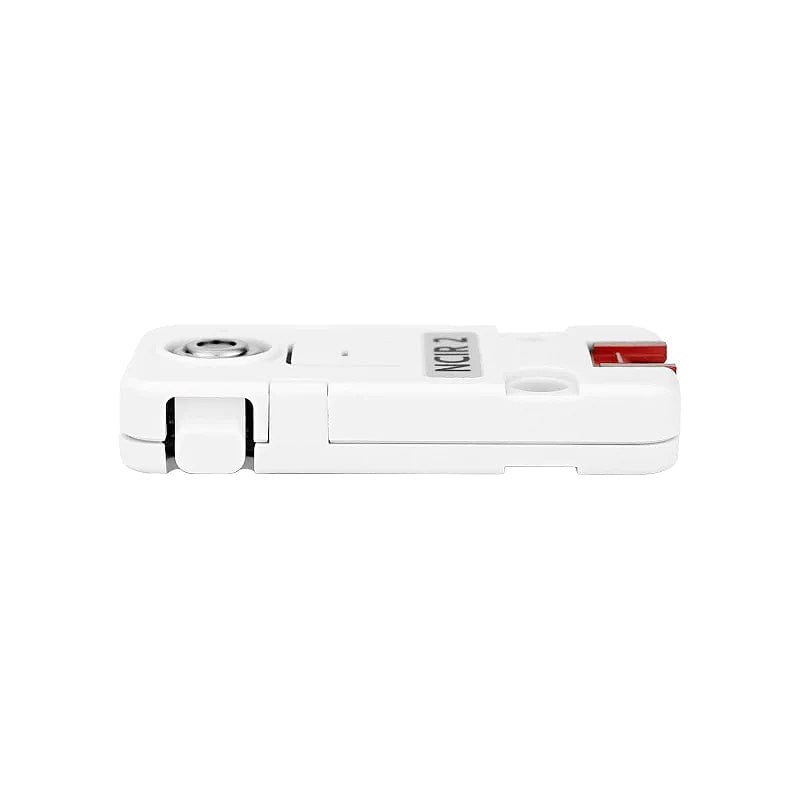

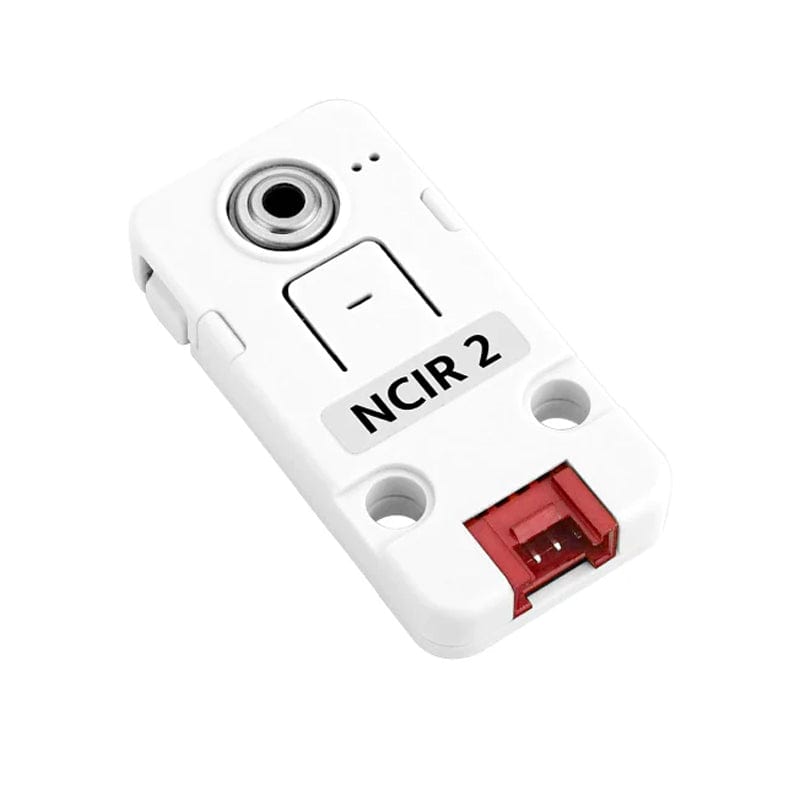

The NCIR 2 Thermometer Unit utilizes the MLX90614 temperature sensor, and takes ambient and object temperature readings.

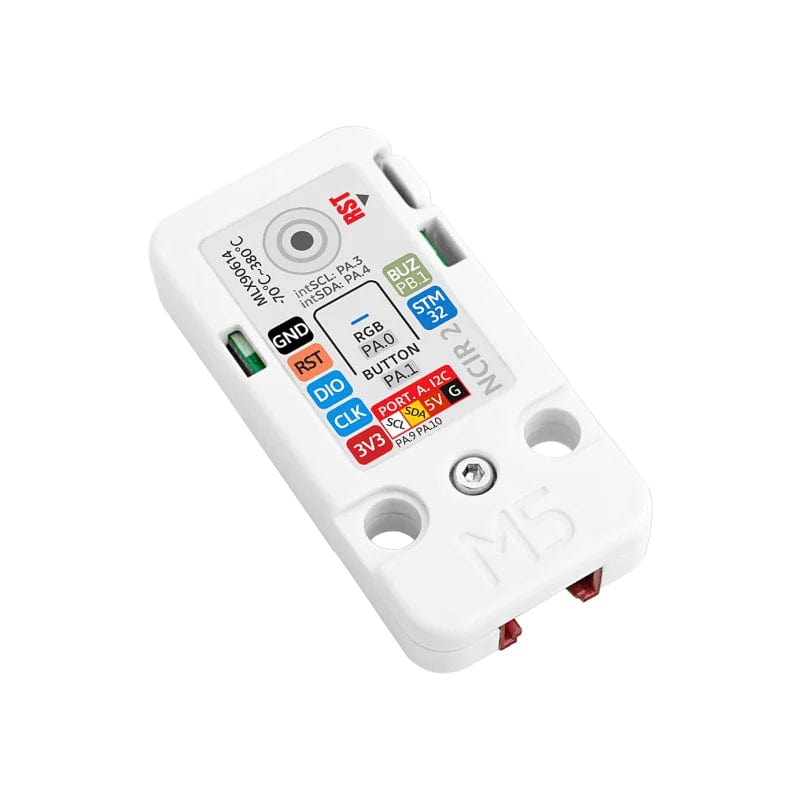

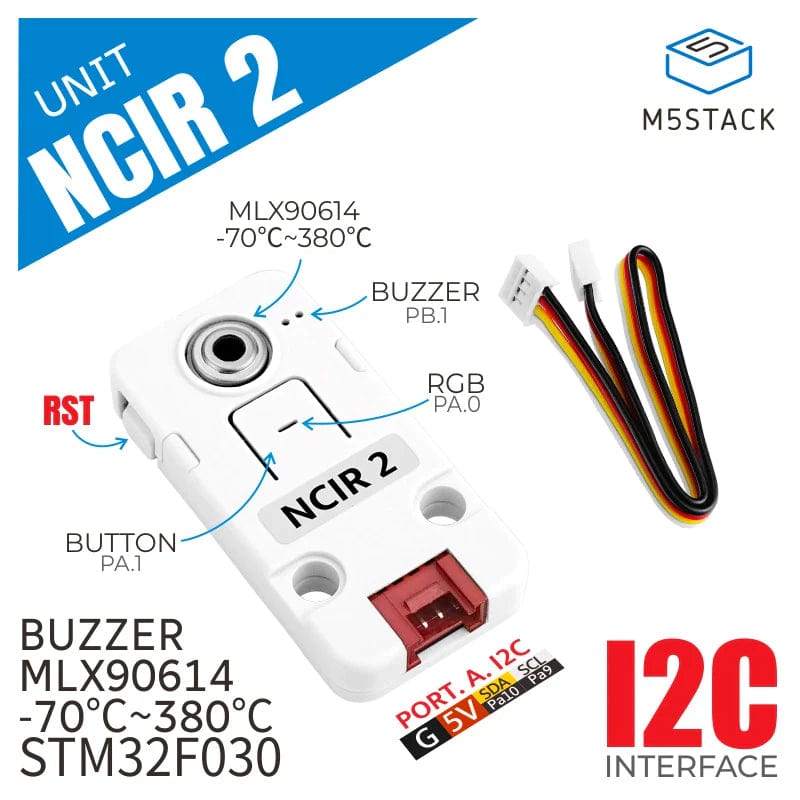

The MLX90614 sensor is factory calibrated in a wide temperature range, -40 to 125 ˚C for the ambient temperature and -70 to 380 ˚C for the object temperature. The embedded MCU - STM32 can process the data to achieve a high/low temperature alert function. There is also a buzzer, RGB LED, function button and reset button on board.

This Unit can either work with an M5Core through I2C protocol, or work alone. This is suitable for medical, environmental monitoring, and home automation applications.

Features

  • STM32F030F4P6
  • MLX90614 IR Sensor
  • HY2.0 - 4-pin Connector (I2C)
  • Program platform: Arduino, UIFlow
  • Two brick compatible holes

Package Contents

  • 1x NCIR 2 Unit
  • 1x HY2.0 - 4-pin Cable (20cm)

Specifications

Resources Parameters
MCU STM32F030F4P6
Sensor MLX90614ESF-BAA
Object Measurement Temperature Range -70°C ~ 380°C
Calibrated Sensor Temperature -40°C ~ 125˚C
Unit Operation Temperature 0°C ~ 40°C
Accuracy ±0.5°C
Program Platform Arduino, UIFlow
I2C Address 0x5A
Product Size 48mm × 24mm ×8mm
Package Size 136mm × 92mm × 13mm
Product Weight 7.3g
Package Weight 12.8g

Resources
