M5Stack 8-Angle Unit with Potentiometer

M5StackSKU: U154

£12

incl. VAT

excl. VAT

Only 8 units left

Awesome Extras

M5Stack Core2 v1.1 ESP32 IoT Development Kit by M5Stack - The Pi Hut

M5Stack M5Stack Core2 v1.1 ESP32 IoT Development Kit

£47.90 incl. VAT excl. VAT

M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit by M5Stack - The Pi Hut

M5Stack M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit

£24 incl. VAT excl. VAT

M5Stack RFID Unit 2 (WS1850S) by M5Stack - The Pi Hut

M5Stack M5Stack RFID Unit 2 (WS1850S)

£4.80 incl. VAT excl. VAT

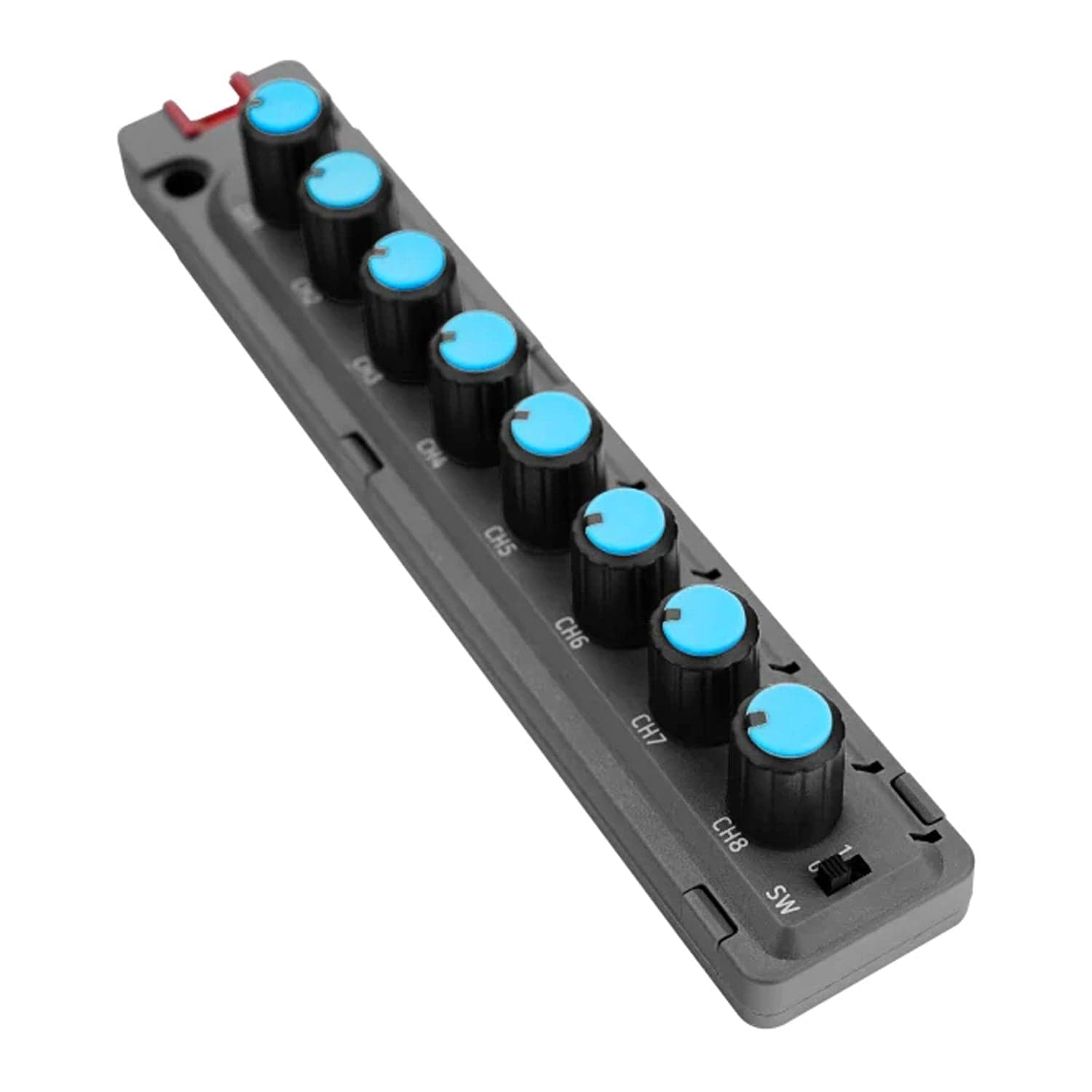

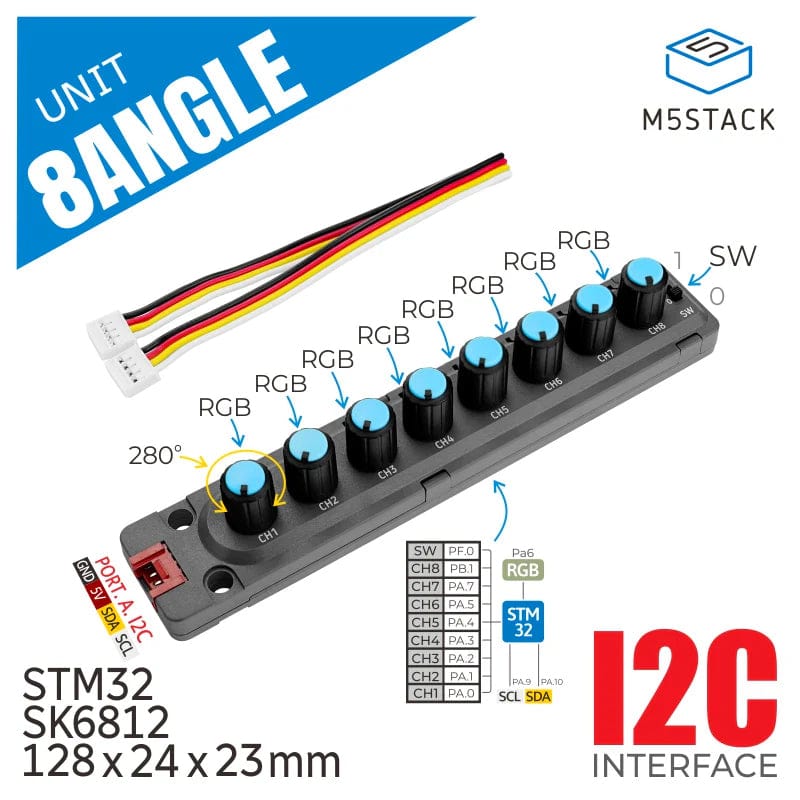

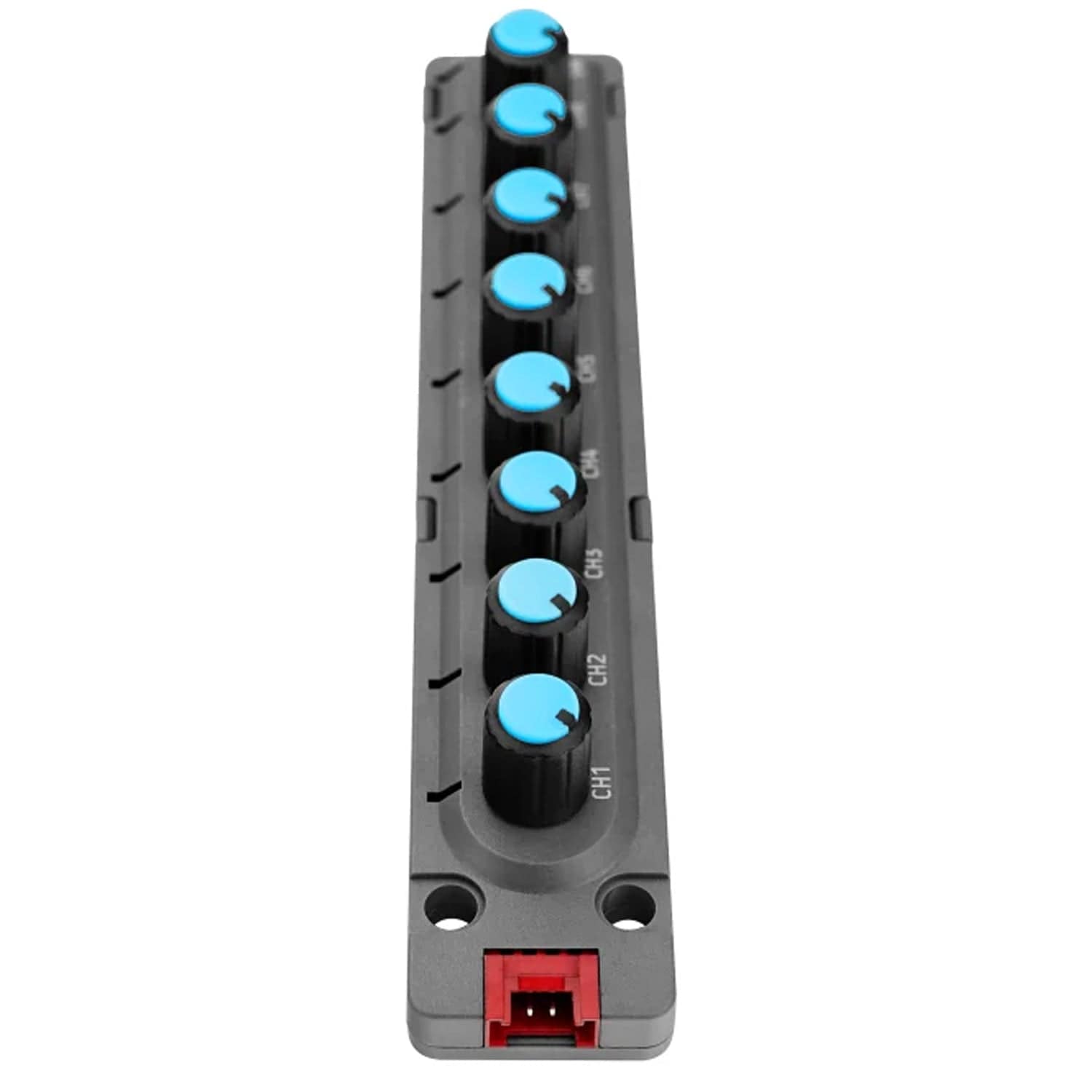

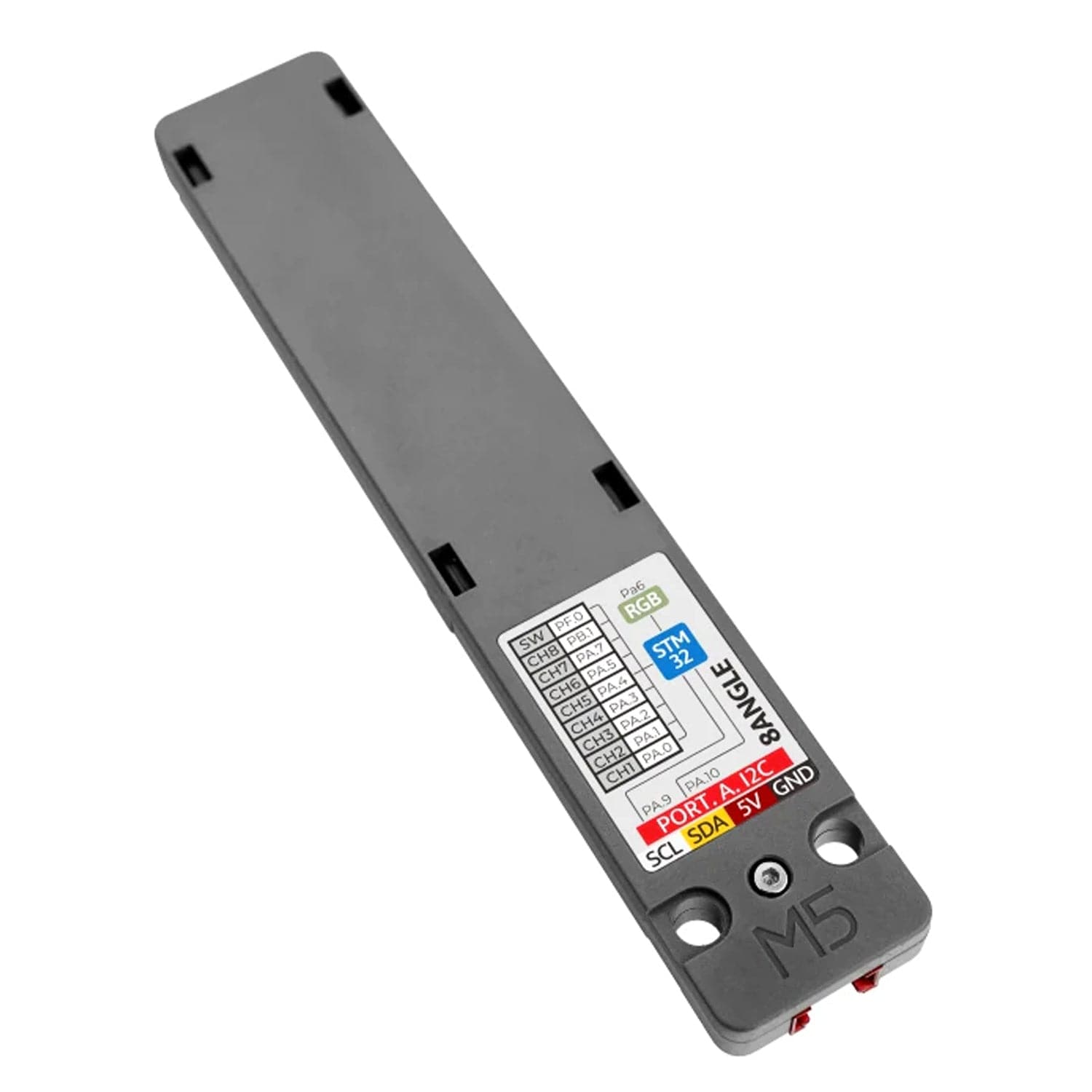

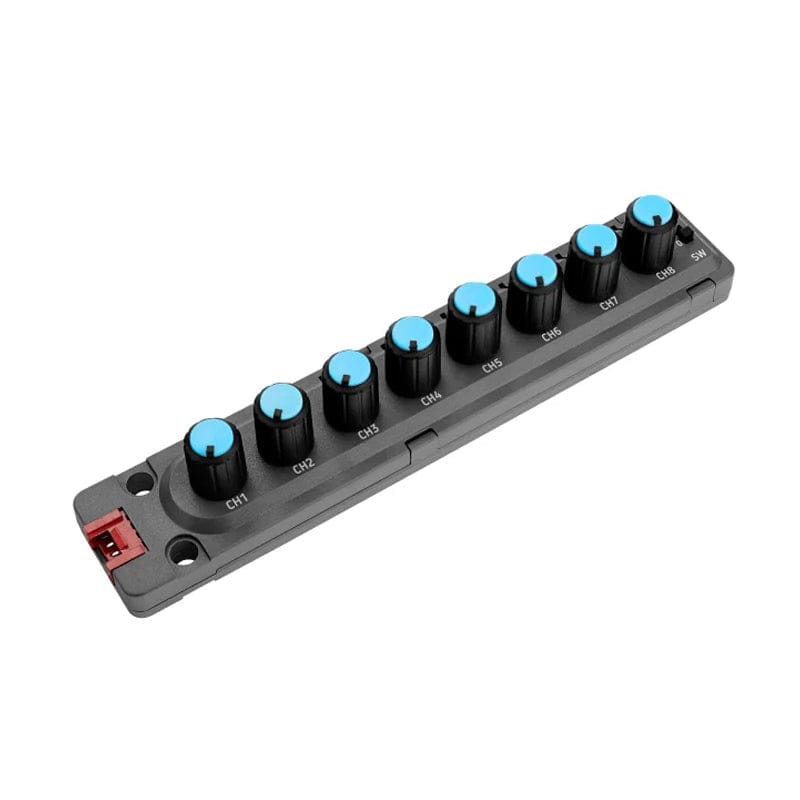

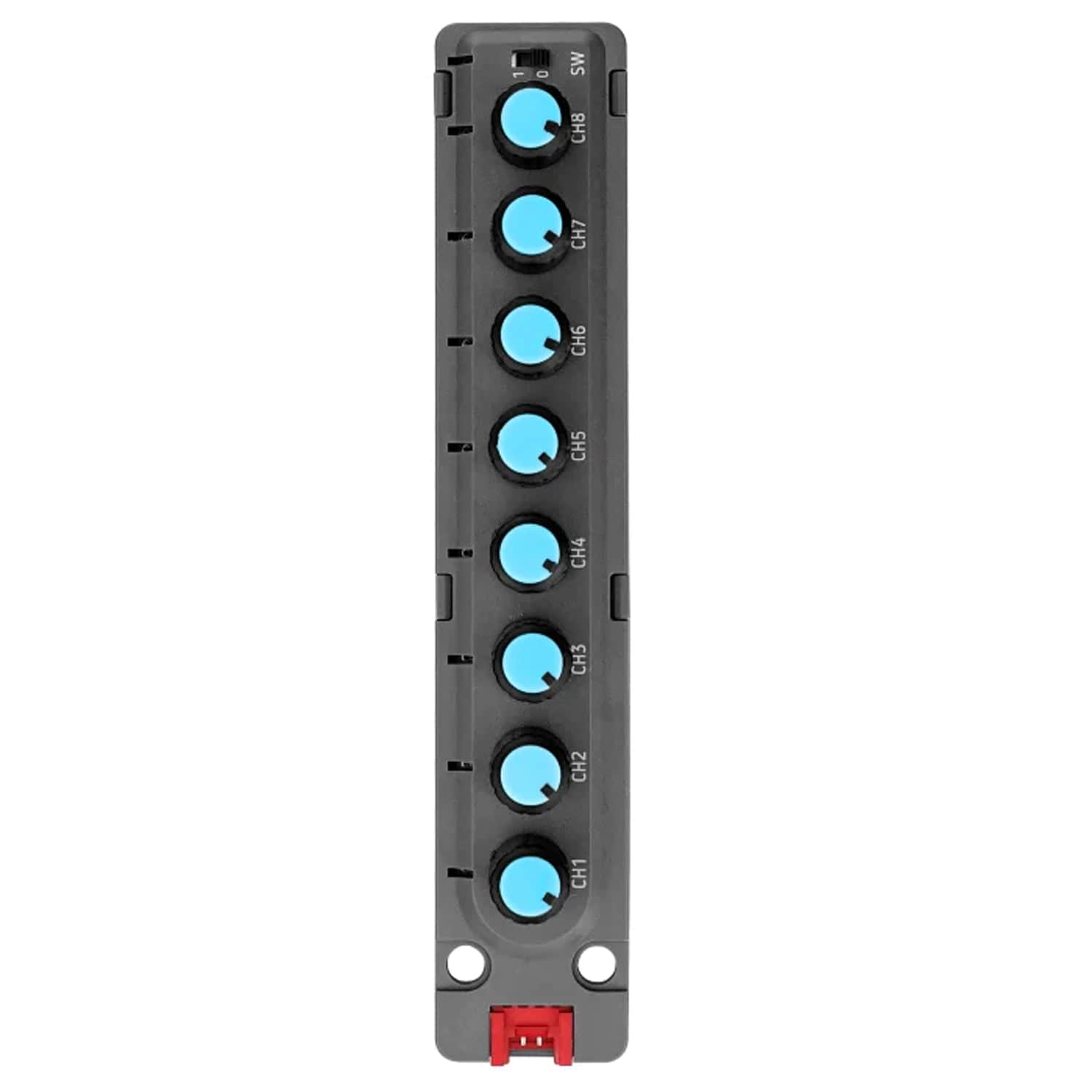

This 8-Angle Unit is an input unit integrating 8 adjustable potentiometers, an internal STM32F030 microcomputer, and the host computer has a I2C communication interface. Each adjustable potentiometer corresponds to 1 RGB LED light. There is also a physical toggle switch, and its corresponding RGB LED light, containing a 5V->3V3 DCDC circuit. The unit can be used for multi-channel control value input, the corresponding RGB lamp can display different states, and the toggle switch can be used for multi-channel switching input.

Features

8-channel adjustable potentiometer
8 channels correspond to RGB lights
I2C communication
Toggle switches can be used for multi-channel switching inputs

Package Contents

1x 8-Angle Unit
1x HY2.0-4-pin Cable (5cm)

Specifications

Resources	Parameters
MCU	STM32F030F4P6
LDO	ME6210A33M3G
RGB	SK6812-3535
Input voltage	5v
I2C communication address	0x43
Product Size	128mm × 24mm ×22.7mm
Package Size	130mm × 27.7mm ×27.7mm
Product Weight	34.9g
Package Weight	44.3g

Resources

Product Documents
