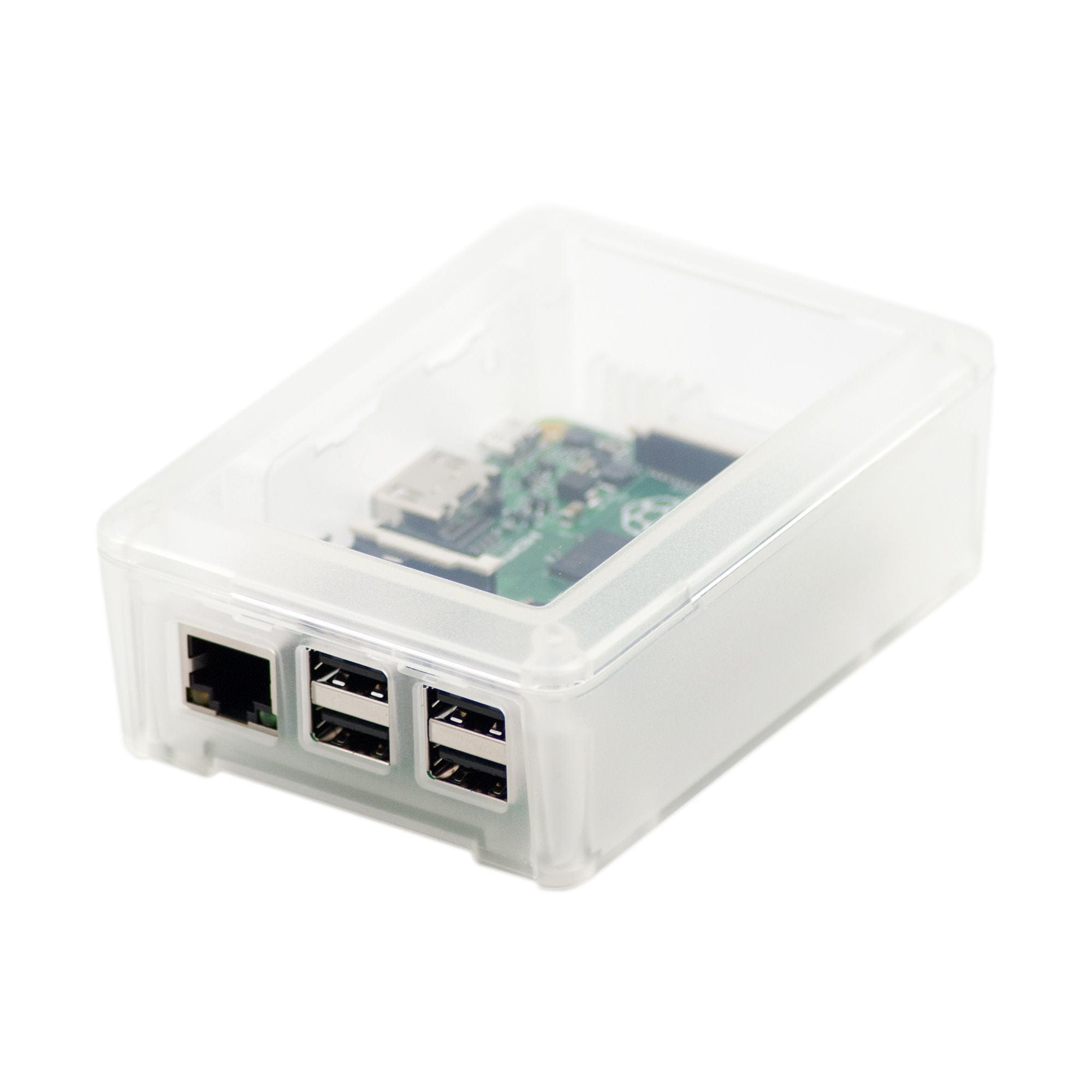

Modular Raspberry Pi 3 Case - Clear

This is our very own modular Raspberry Pi 3 injection moulded case - a fully customisable and adaptable modular unit aimed to suit a range of Raspberry Pi applications. Also compatible with the Raspberry Pi 2 and B+.

Available in black, clear, white, green and pink! A Raspberry Pi 4 version is also available!

Modular Design

The case is compatible with a range of customisable modular features allowing enhanced security, functionality and compatibility with additional hardware such as HATs. These include mounting points for a 5V GPIO fan, stackable 10mm spacer layers, micro-SD card covers, USB/HDMI covers and VESA adaptors.

All Ports Available

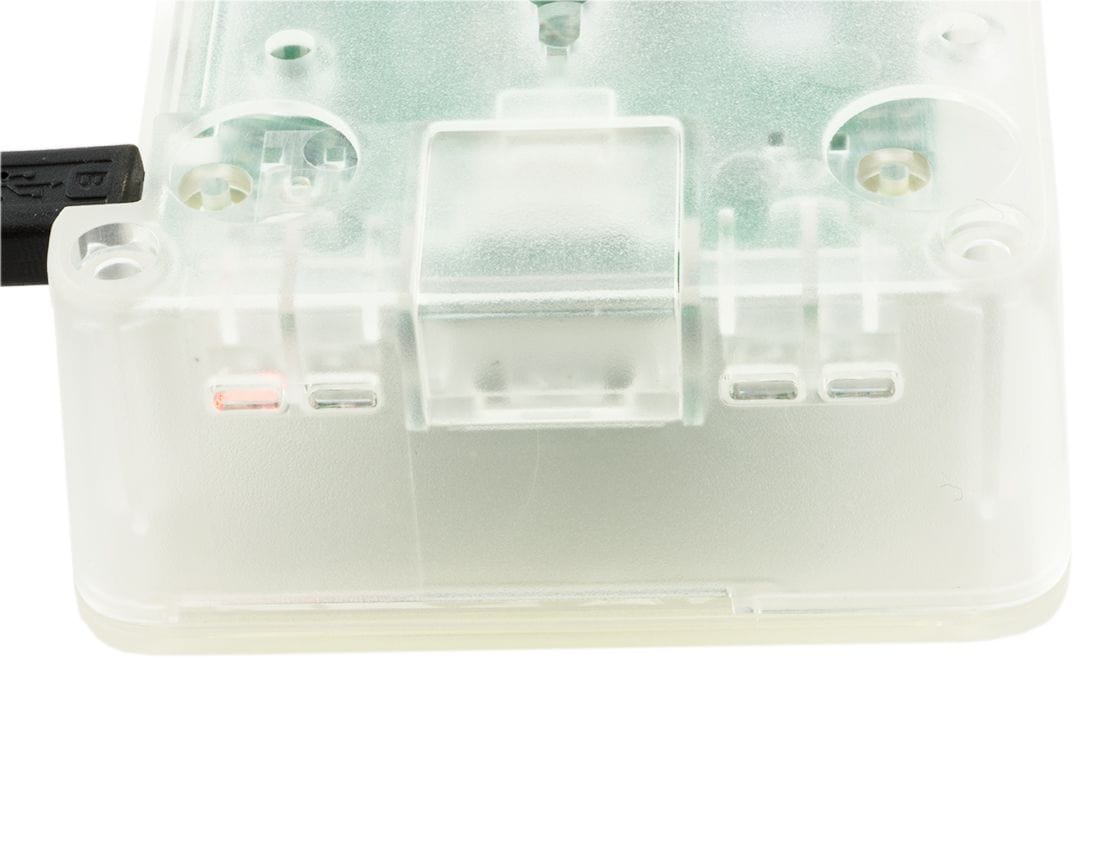

All of the Raspberry Pi's ports are available, and the light pipes ensure you can keep an eye on the LED activity light from outside of the case.

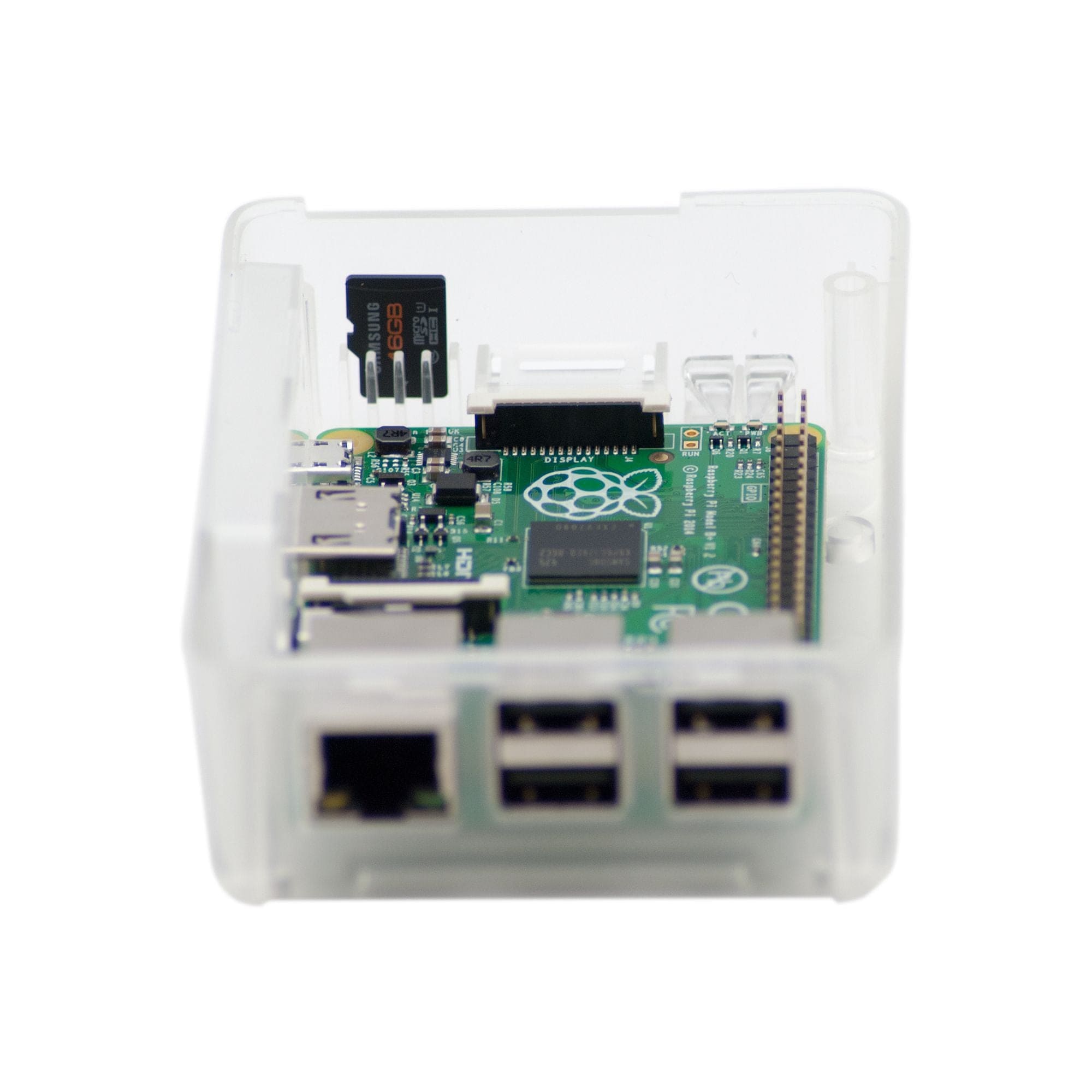

The case also includes dedicated slots below the lid for GPIO, CSI and DSI cables, and even features a clever SD card holder inside the case!

Heatsink-compatible

The case can fit one of our XL heatsinks or our excellent heatsink sets.

Stack high!

Optional spacer layers (available separately) are designed to be stacked up to 5 spacers high, so that your case can grow with your project (additional screws are required for more than 1 spacer, which are also available separately).

Features

• Raspberry Pi 4 two-part (lid & base) plastic case
• LED Status Light Pipes
• Clip-fit Raspberry Pi mount with optional screw locking (included)
• Secure case locking via screws (included)

• Airflow - Internal volume perfect for adding heat sinks
• GPIO 40-pin ribbon cable slot
• Combined CSI camera cable and DSI video cable slot
• Internal SD Card Holder
• Streamlined looks

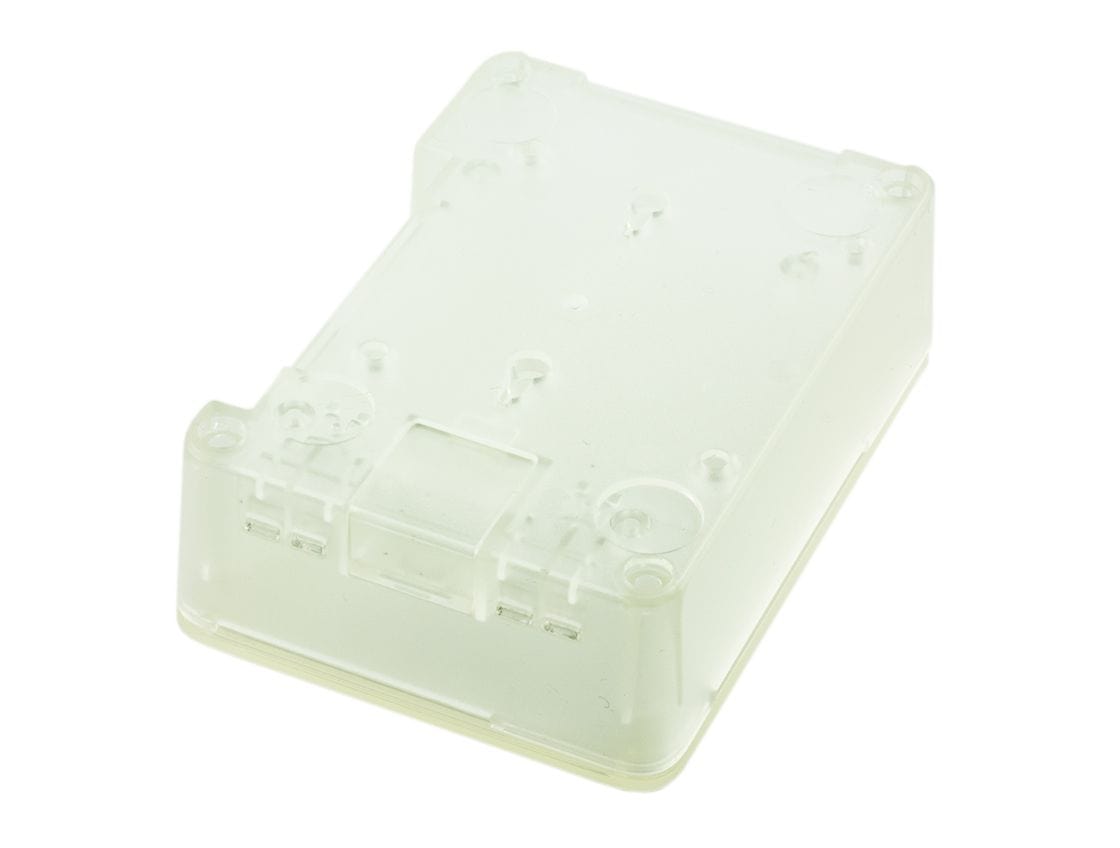

• Dedicated wall mounting points
• Matt finish body with gloss lid
• Designed in the UK
• Strong & Durable ABS Plastic

Case Dimensions

• Length: 104.95mm
• Width: 74.95mm
• Height: 36.00mm

Internal Dimensions

• Length: 90.00mm
• Width: 58.50mm
• Height*: 25.70mm (*Measured from Top of RPi PCB to Internal Top of Lid)
• Internal Volume HAT Compliant

Modular Add-On Options Include the Following:

Micro SD Card Cover

• Flush, lockable and tamper-proof
• Secure your micro-SD card from probing fingers
• Protect your micro-SD card from accidental knocks & bangs

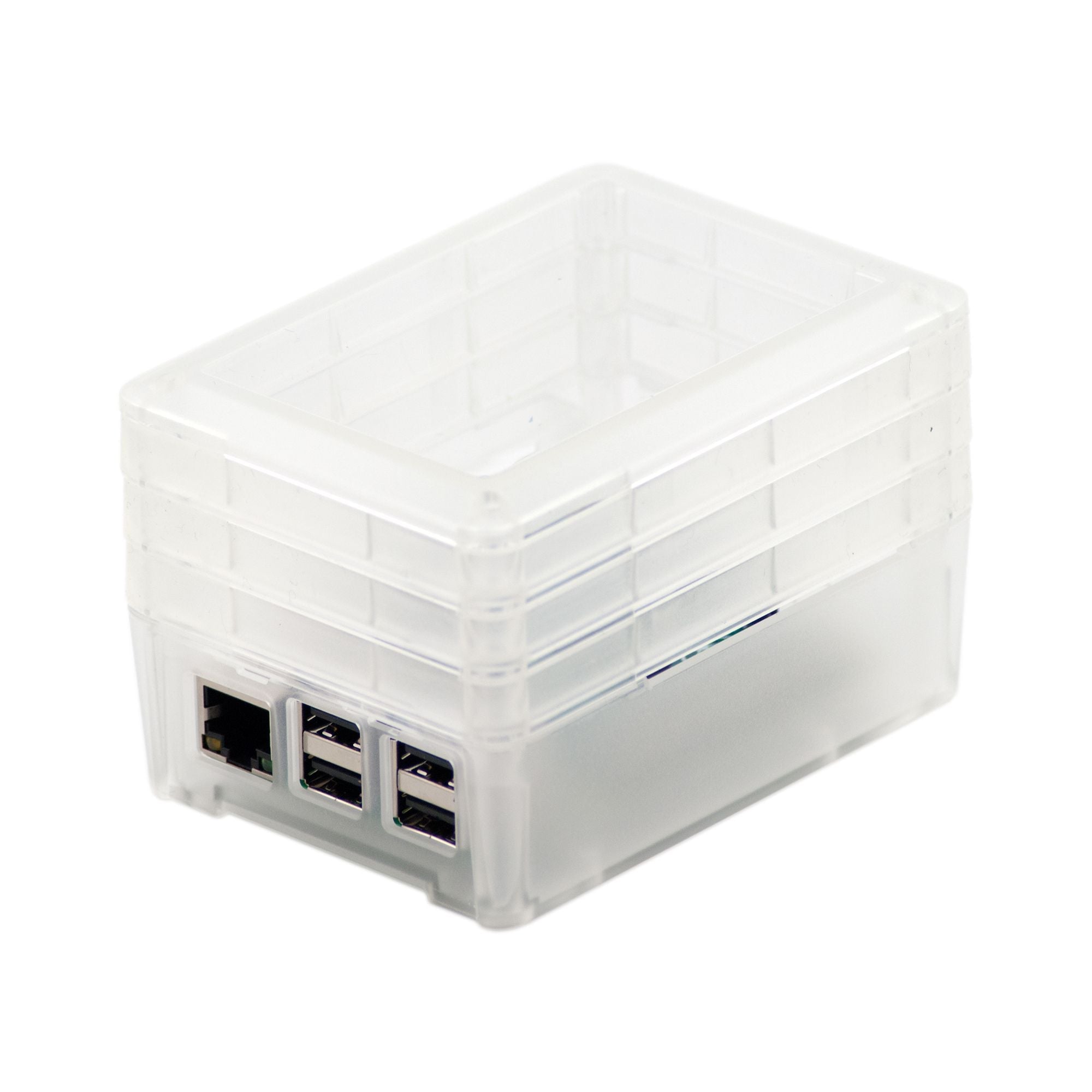

10mm Stackable Spacers

• Allows your case to be used with HATs
• Spacers raise the internal height by 10mm
• Can be stacked to increase internal height by up to 50mm (5 spacers)
• Great for embedded applications and hobbyist projects

VESA Mounts

• Two Types Available Depending on VESA Spacing
• VESA Splash Enables the use of MIS-D 75/100 M4
• VESA Slice Enables the use of MIS-F 200mm M6
• Great for media & signage applications e.g. hiding the Pi behind a monitor or TV

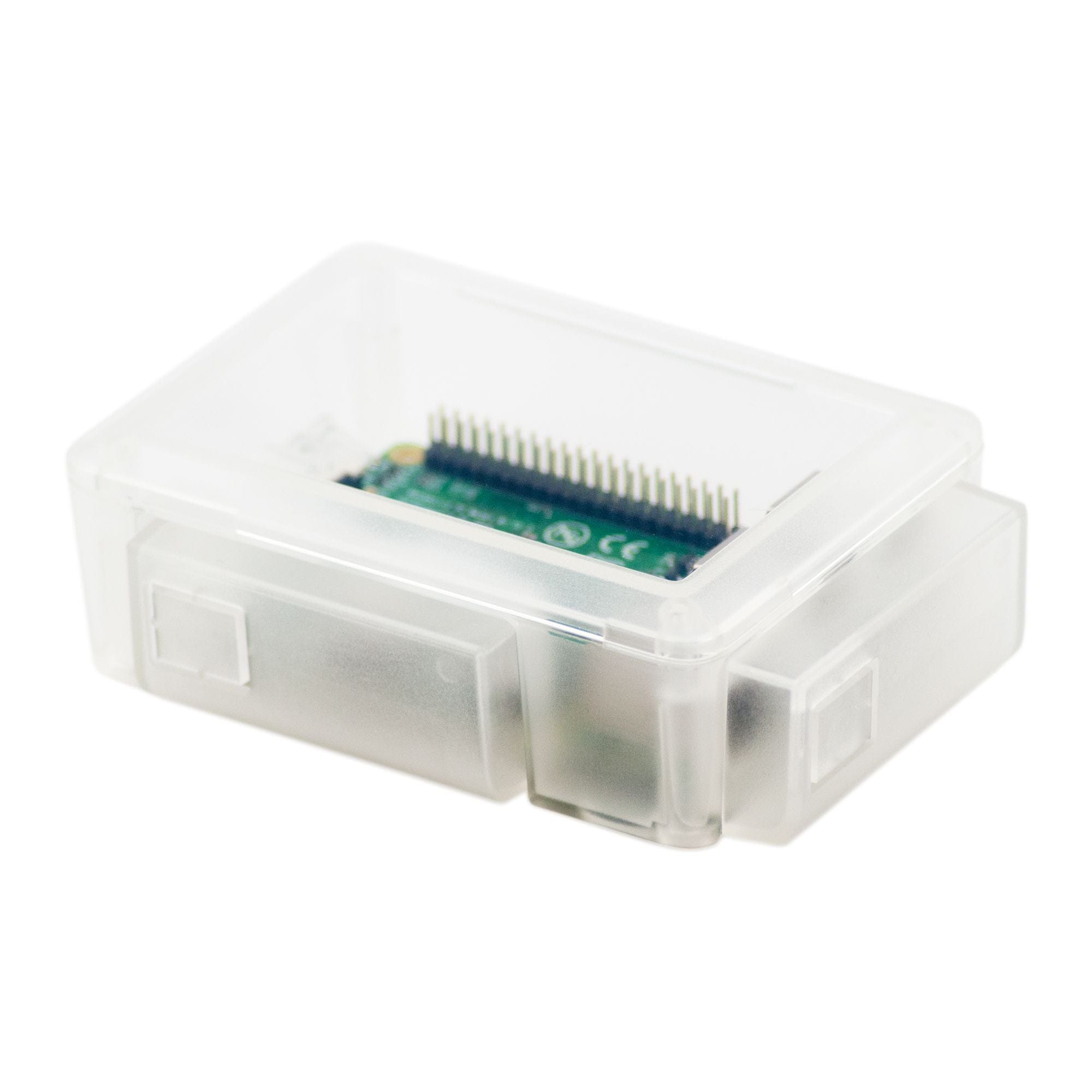

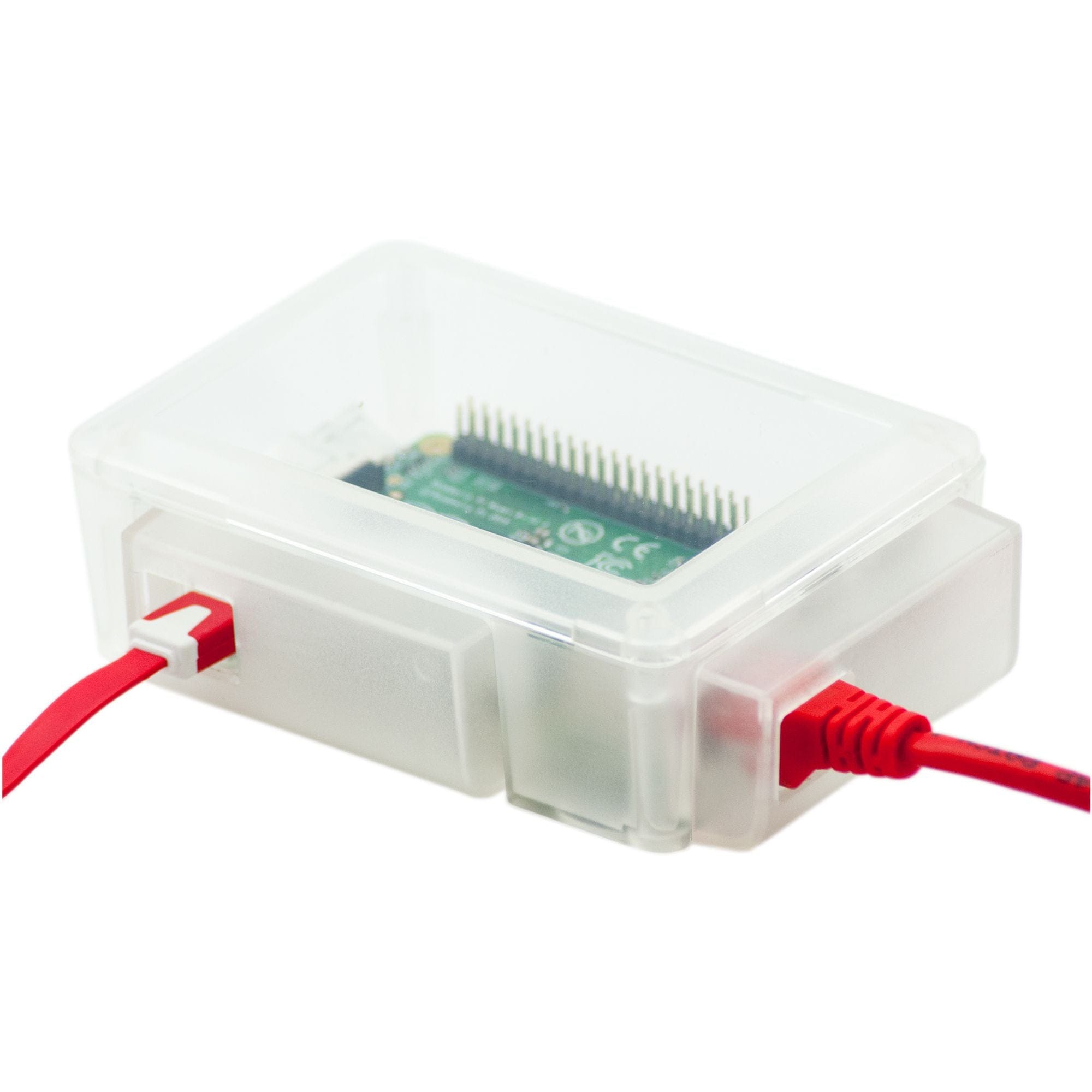

USB/HDMI Covers

• Dual-Use - compatible with either set of I/O ports e.g. HDMI or USB Side
• Secure and tamper-proof
• RJ45 & Micro-USB power breakout hatches
• Offset to enable the use & internal protection of up to 4 nano-size USB dongles
