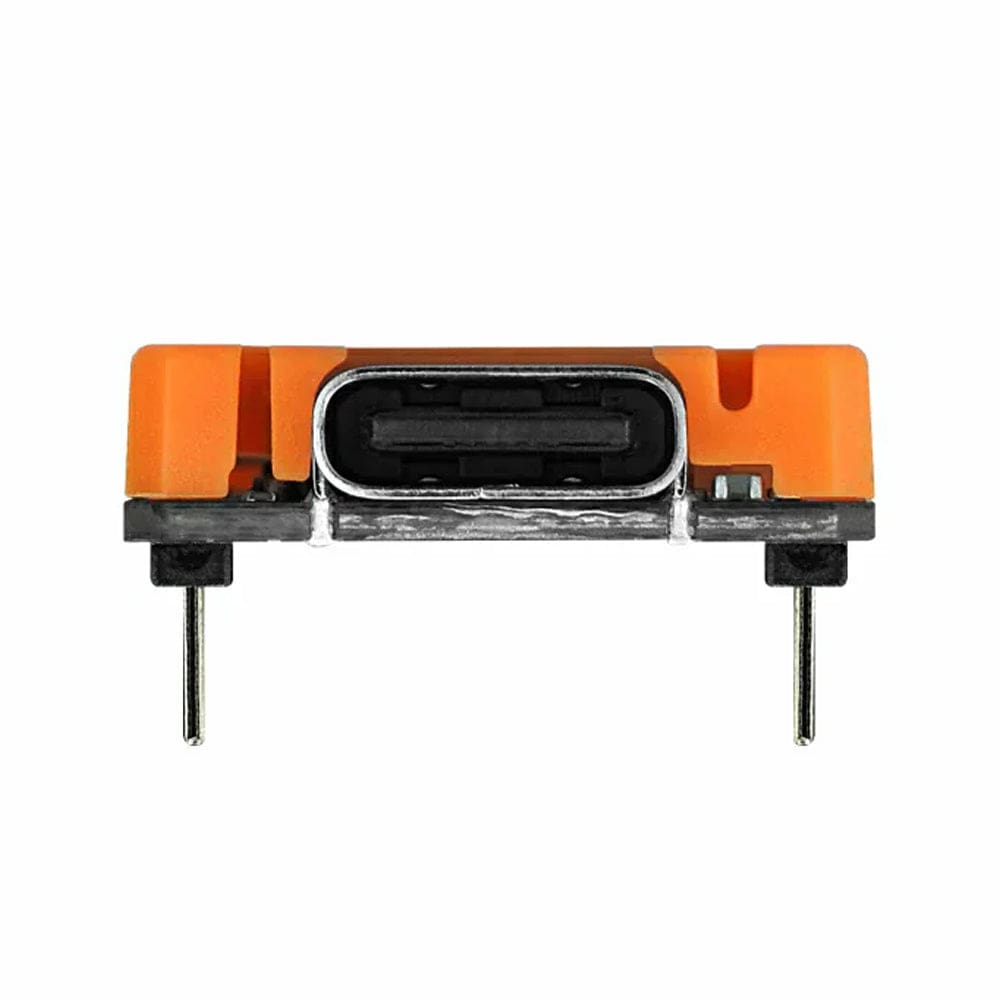

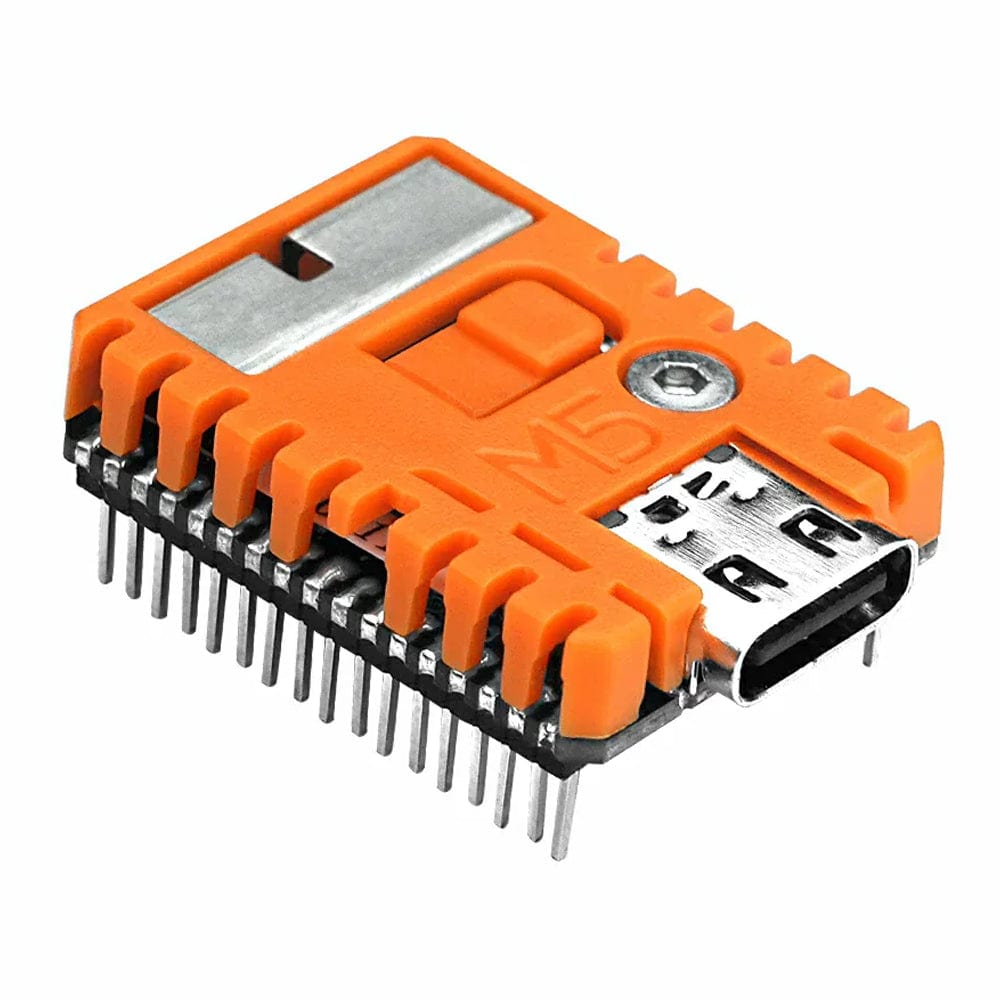

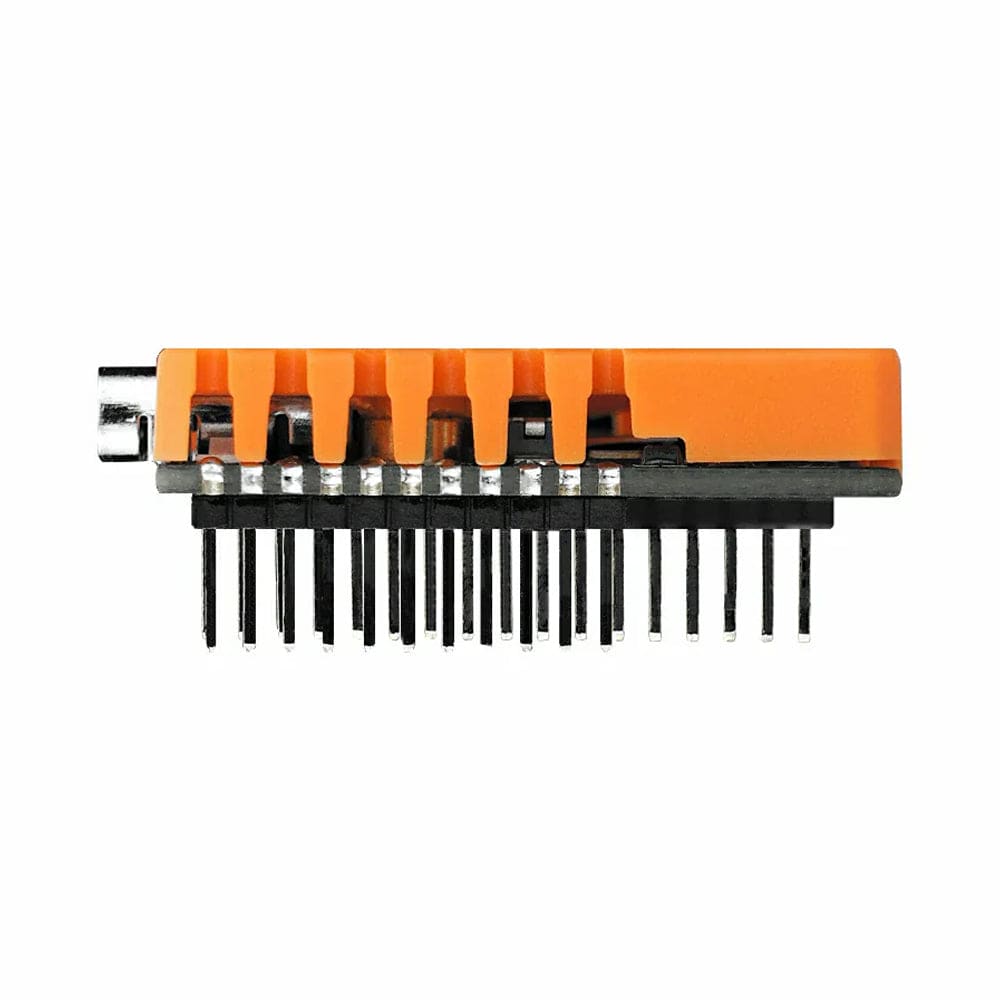

M5StampS3A with 1.27mm Header Pins

M5StackSKU: S007-PIN127-V033
Price:
Sale price £9
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Awesome Extras

USB-A to USB-C Cable - Black by The Pi Hut - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
USB-C to USB-C Cable - Black by The Pi Hut - The Pi Hut
The Pi HutUSB-C to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
M5StampS3 Breakout by M5Stack - The Pi HutM5StampS3 Breakout by M5Stack - The Pi Hut
M5StackM5StampS3 Breakout
Sale price £2 incl. VAT excl. VAT
M5Stack M5 Box by M5Stack - The Pi HutM5Stack M5 Box by M5Stack - The Pi Hut
M5StackM5Stack M5 Box
Sale price £2 incl. VAT excl. VAT
M5Stack 1.27 Header BUS Socket SMD for M5StampS3 (10 sets) by M5Stack - The Pi HutM5Stack 1.27 Header BUS Socket SMD for M5StampS3 (10 sets) by M5Stack - The Pi Hut

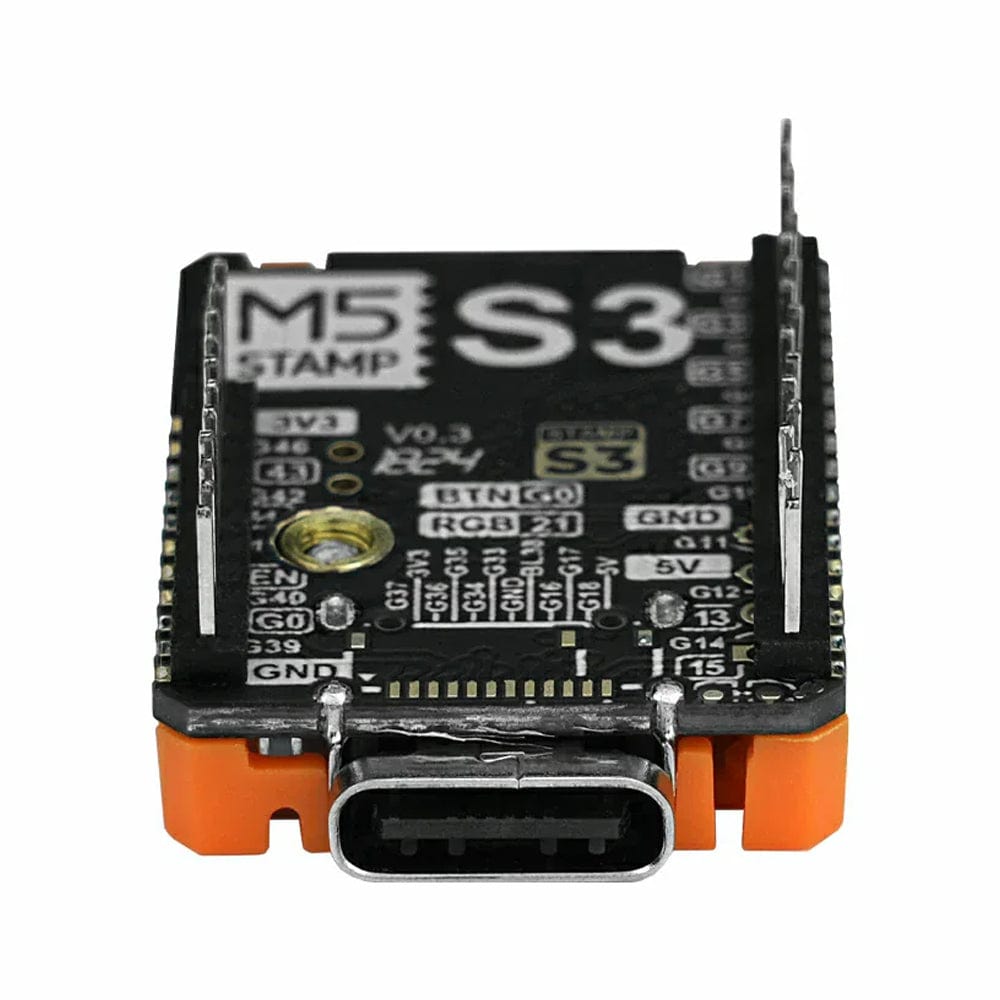

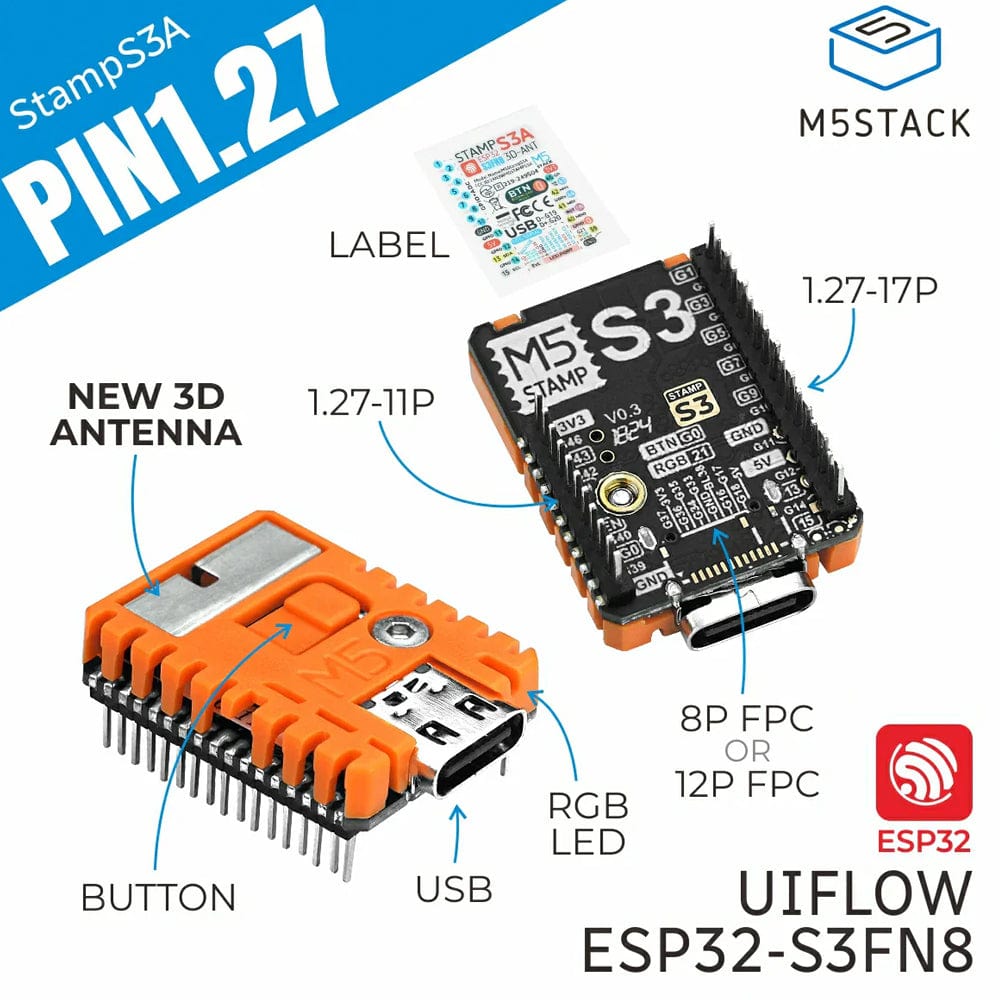

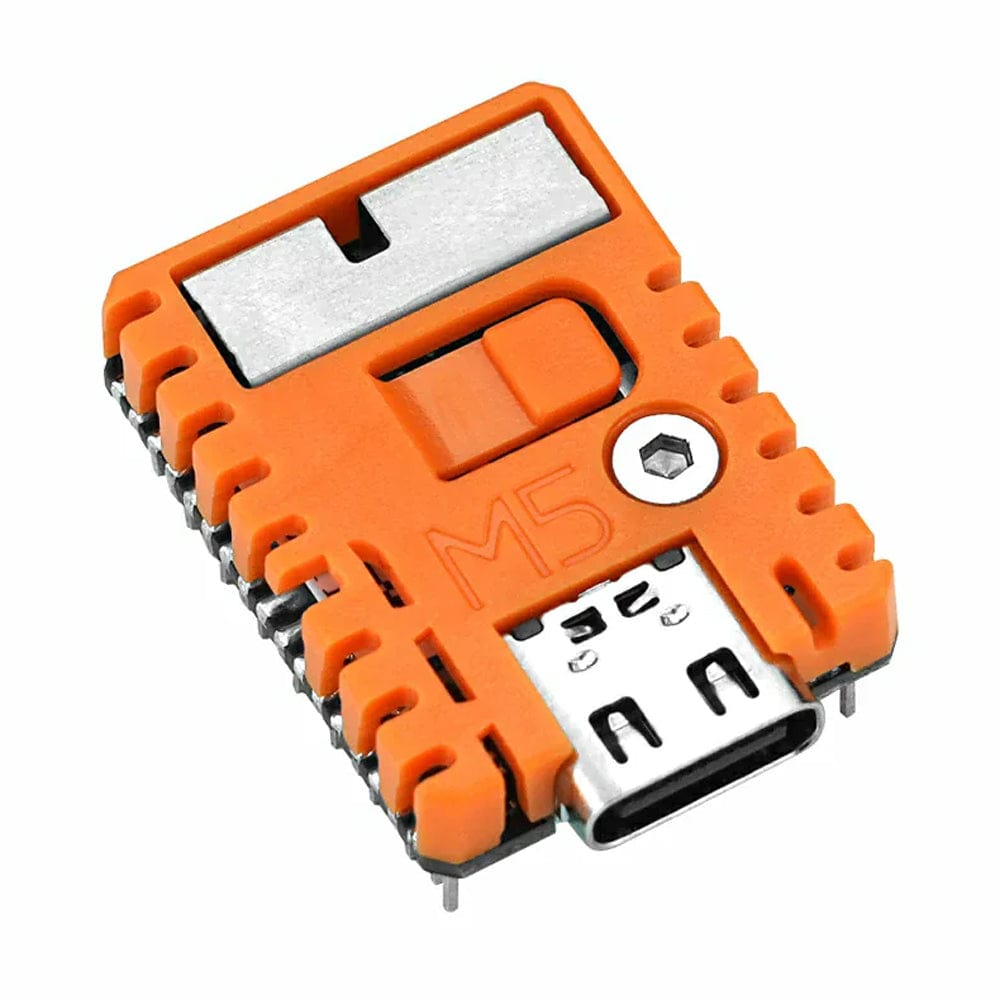

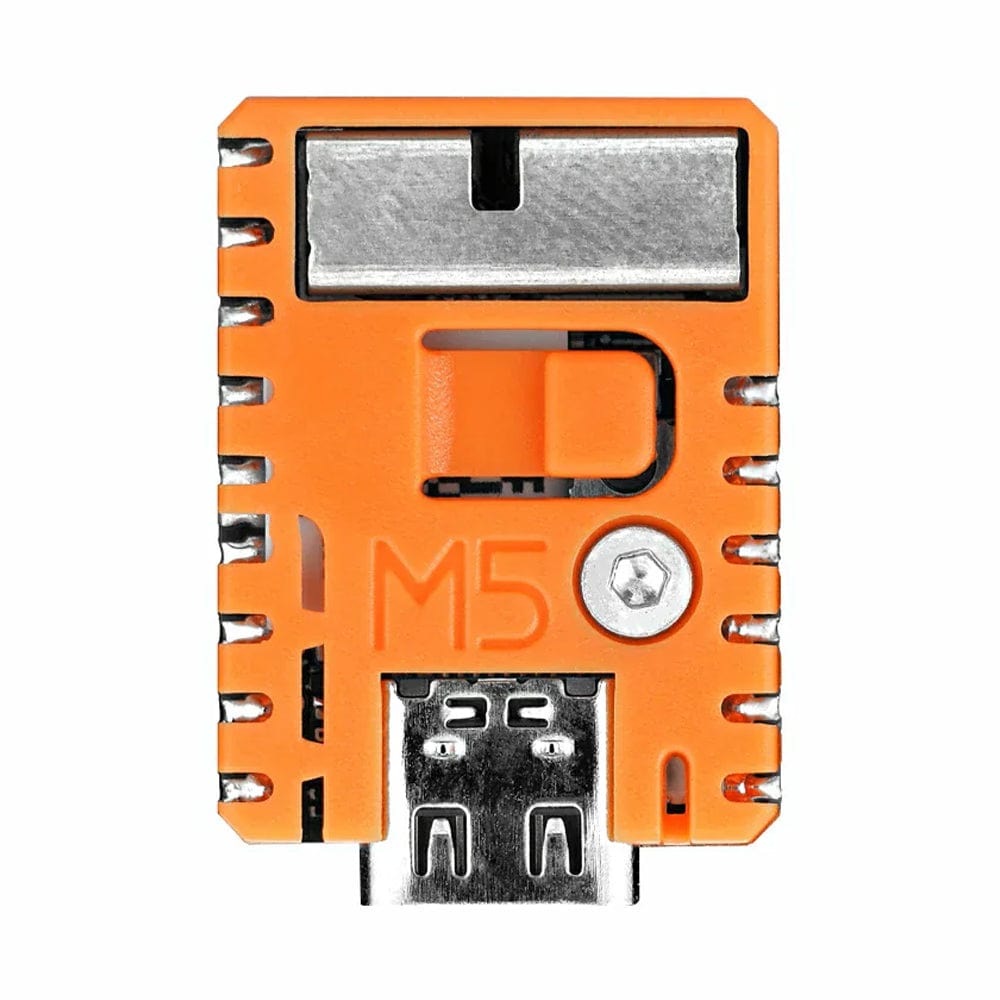

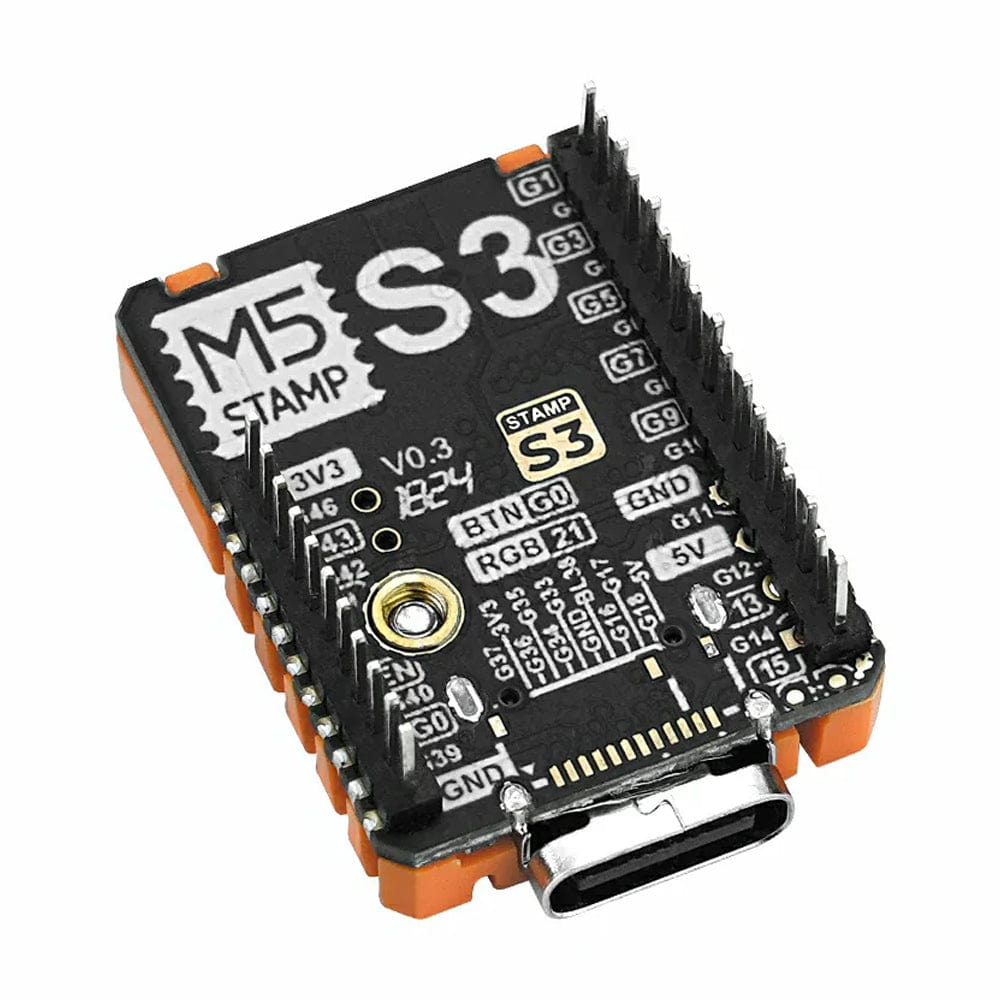

The M5StampS3A with 1.27mm Header Pins is an ESP32-S3FN8 module with a dual-core 240MHz processor, 8MB Flash, integrated RGB LED, user button, and optimised 3D antenna. It provides 23 GPIOs via a pre-soldered 1.27mm SMT header for compact PCB integration.


M5Stack M5StampS3A with 1.27mm Header Pins is a highly integrated embedded module based on the Espressif ESP32-S3FN8. It features a 240 MHz Xtensa® 32-bit LX7 dual-core processor, integrates 8 MB Flash, a programmable RGB LED, and a user button.

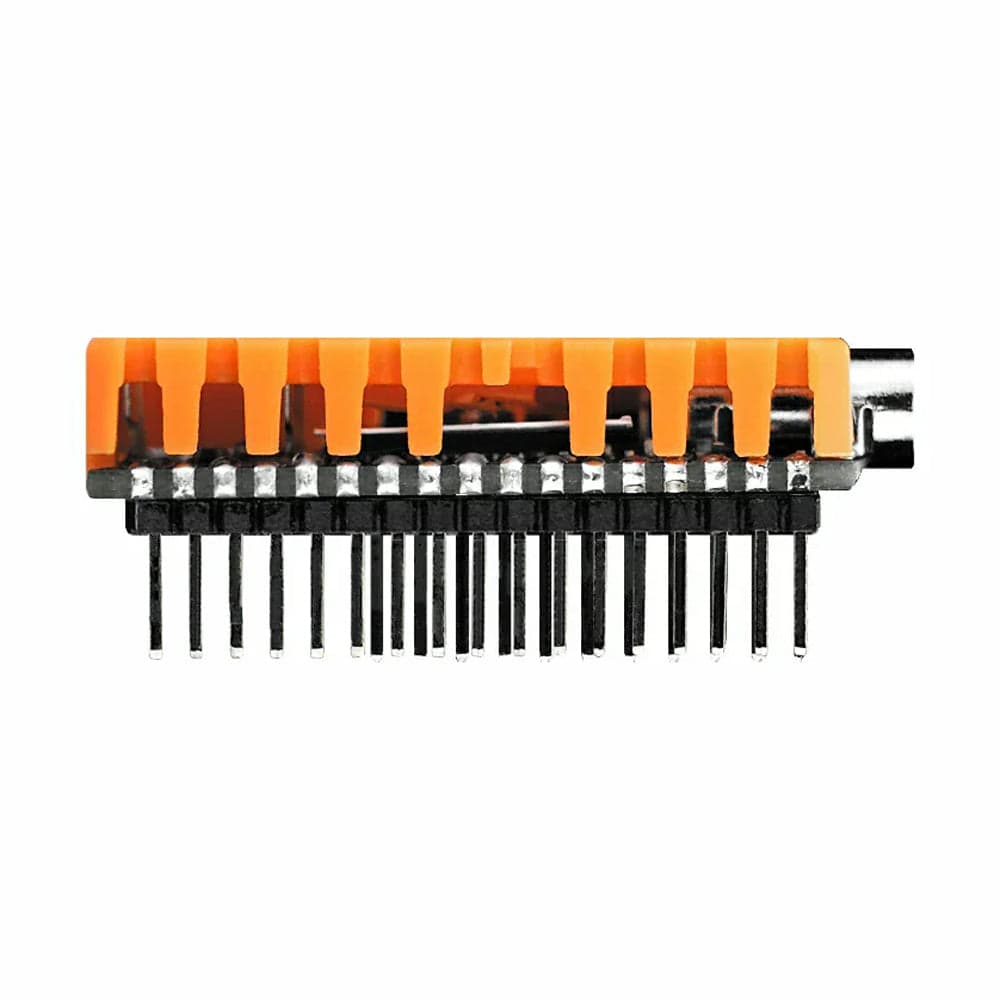

The deeply optimized 3D antenna design delivers stronger wireless performance. Twenty-three GPIOs are broken out and a 1.27 mm-pitch SMT pin header is pre-soldered, providing an even smaller footprint for high-density PCB integration and enabling developers to build compact applications quickly.

Features

  • ESP32-S3FN8 (2.4 GHz Wi-Fi)
  • 1.27 mm-pitch SMT interface
  • 23 multifunctional GPIOs
  • 8 MB Flash
  • Rich I/O breakout supporting multiple application forms (SMT, DIP, fly-wire)
  • Integrated programmable RGB LED and button
  • Development Platform
    • UiFlow2
    • Arduino IDE
    • ESP-IDF
    • PlatformIO

Specifications

Specification Parameter
SoC ESP32-S3FN8
DC-DC MUN3CAD01-SC
Flash 8 MB
Input Voltage DC 5 V
HMI Programmable physical button × 1, programmable RGB LED (WS2812B-2020) × 1
Antenna Type 2.4 GHz 3D antenna
Module Resource I/F Touch Sensor, SD/SDIO/MMC Host Ctrl, SPI, SDIO/SPI Slave Ctrl,

EMAC, Motor PWM, LED PWM, UART, I²C, I²S, GPIO, Pulse Counter

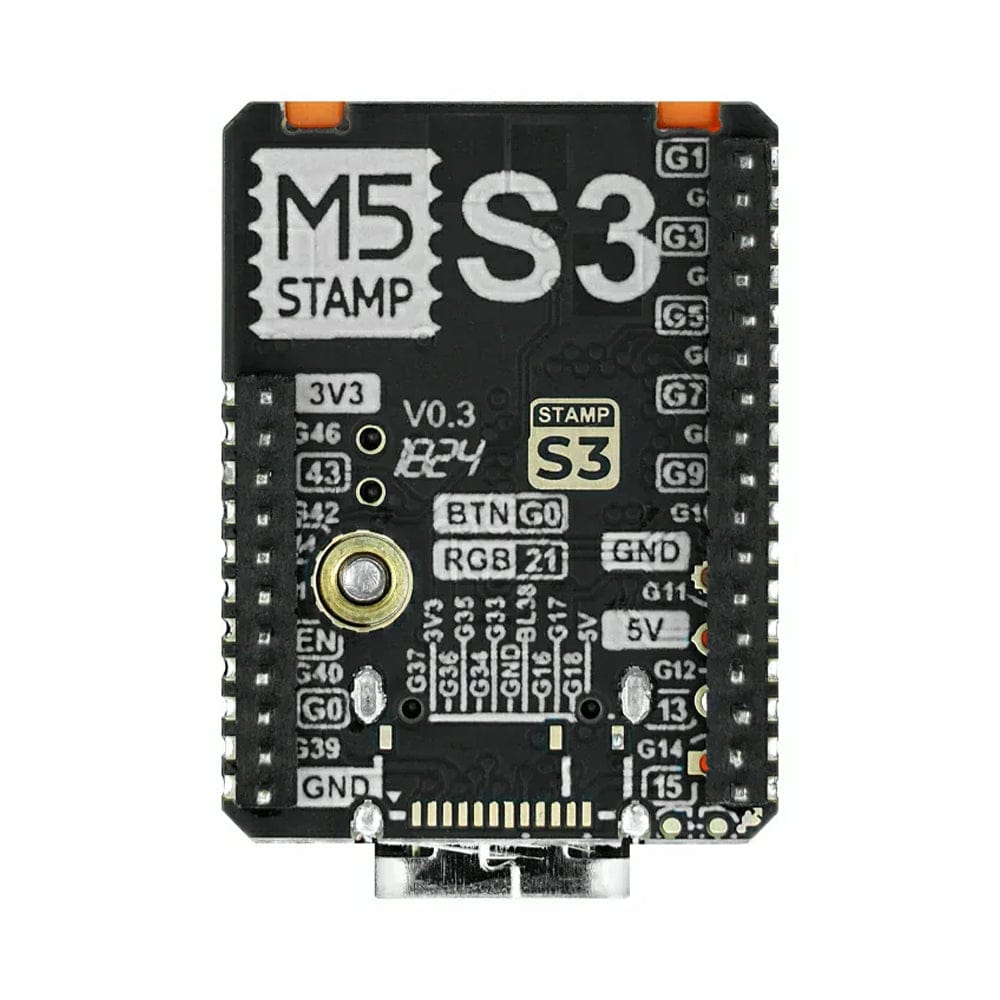

IO Interfaces × 23 G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/

G14/G15/G39/G40/G41/G42/G43/G44/G46
IO Pitch 1.27 mm
LCD FPC Pitch 0.5 mm @ 12 P or 8 P
Operating Temp. 0 ~ 40 °C
Product Size 26.0 × 18.0 × 4.7 mm
Product Weight 3.1 g

Resources

Package Contents

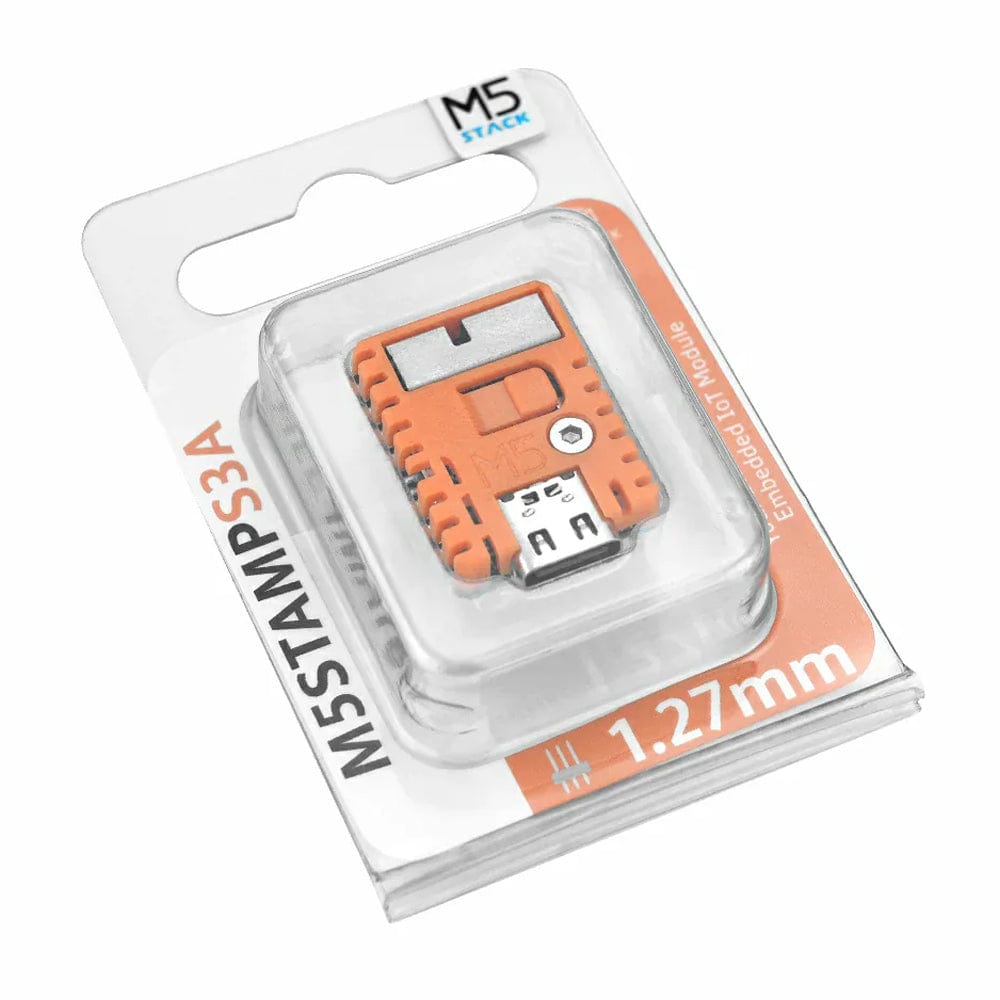

  • 1 x M5StampS3A with 1.27mm Header Pins
  • 1 x Pin Sticker
