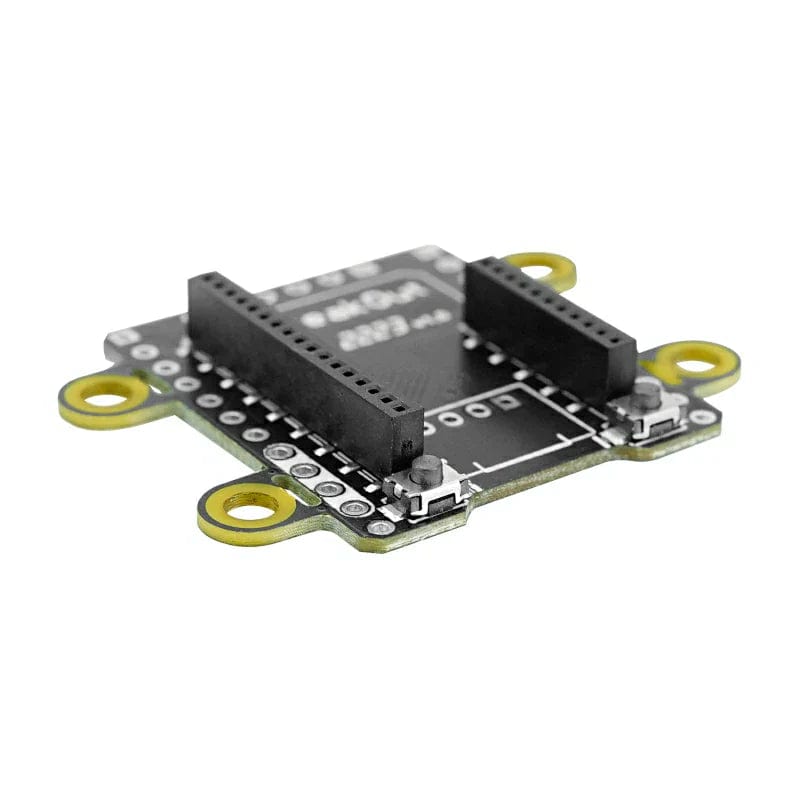

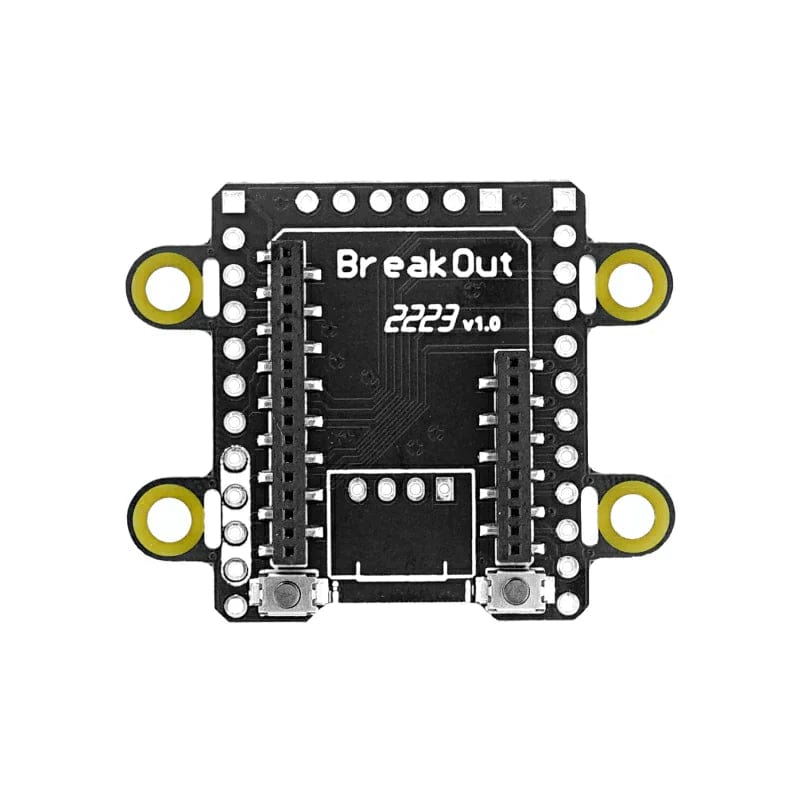

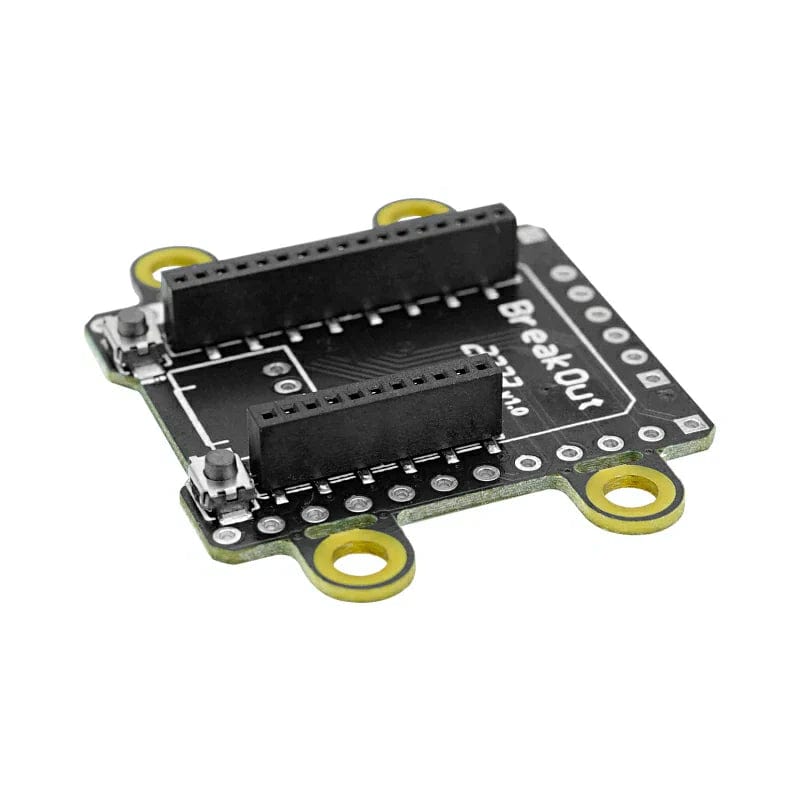

The StampS3 Breakout board is an expansion board designed specifically for the M5StampS3. It transfers the M5StampS3's 1.27mm pitch pin to a standard 2.54mm pitch for easy connection with other devices.

In addition, a 2.0mm pitch 4-pin Grove port is provided on the board for easy access to other M5 Units.

Two tact switches are connected to the G0 and EN pins, for power and reset control. Reserved fixing holes allow users to install. The board is suitable for prototyping, M5Stack project expansion, and embedded system development.

Features

  • Pin Transfer: Transfer the M5StampS3's 1.27mm pitch pin to the standard 2.54mm pitch for easy connection with other devices.
  • Expansion interface: Provide 2.0mm 4-pin Grove port for easy access to other M5 Unit modules.
  • Control functions: Two tact switches for power and reset control for added flexibility.
  • Convenient installation: Reserved fixing holes are convenient for fixed installation, and suitable for various application scenarios.
  • High scalability: Provide users with options for expanded functionality and flexibility.
  • Compatibility: Compatible with the M5Stack ecosystem for seamless integration with other M5 devices.

Specifications

Resources Parameters

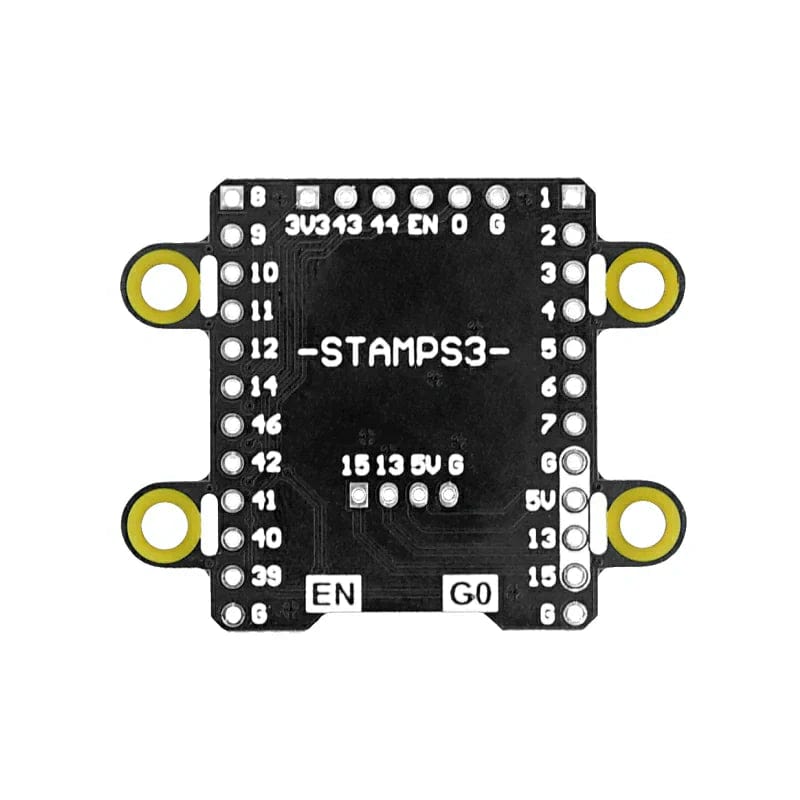

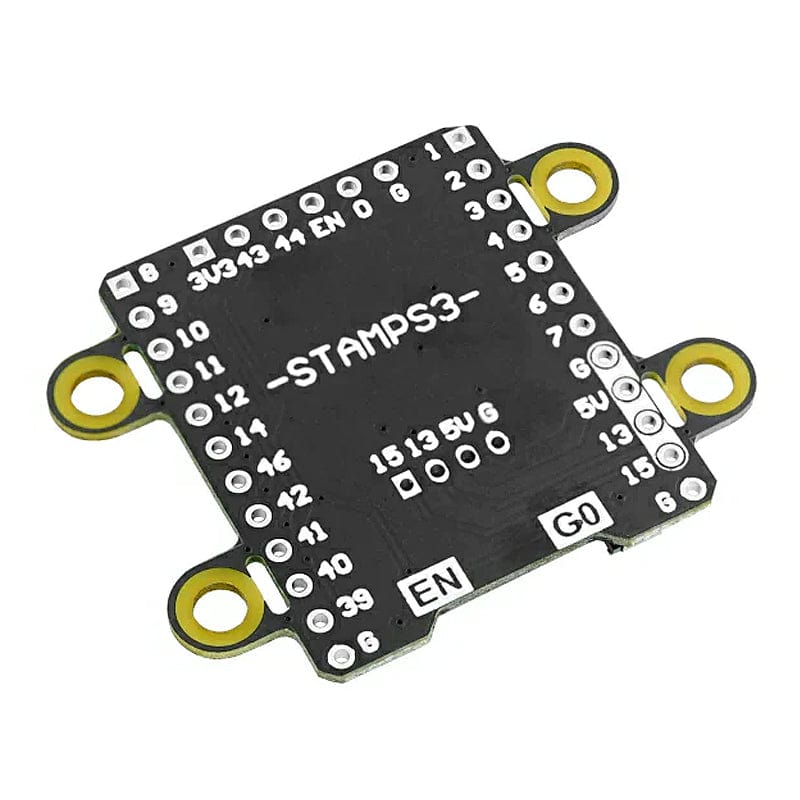

IO interface x23 G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/
G39/G40/G41/G42/G43/G44/G46
Interface type 2.54mm pin header/2.0mm Grove Interface
Button GPIO0 and EN
fixing hole diameter 3mm
Product Size 38 x 30.54 x 6mm
Package Size 136mm x 92mm x 13mm
Product Weight 2.7g
Package Weight 6.6g

Resources

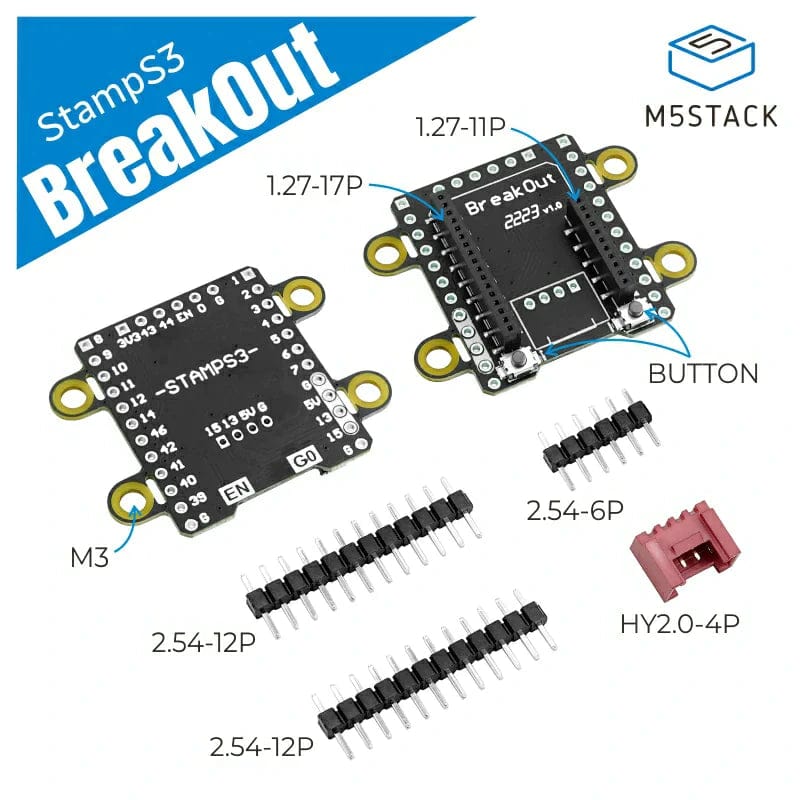

Package Contents

  • 1x M5Stamp S3 Breakout
  • 2x 2.54mm 12-pin header
  • 1x 2.54mm 6-pin header
  • 1x 4-pin Grove interface
