M5Stack M5Stamp Pico DIY Kit

M5StackSKU: K051-B
Price:
Sale price £15.40
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

USB-A to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
ATOM Matrix ESP32 Development Kit - The Pi HutATOM Matrix ESP32 Development Kit - The Pi Hut
M5StackM5Stack ATOM Matrix ESP32 Development Kit
Sale price £15 incl. VAT excl. VAT
M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi HutM5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut
M5StackM5Stack CoreS3 ESP32S3
Sale price £57.90 incl. VAT excl. VAT

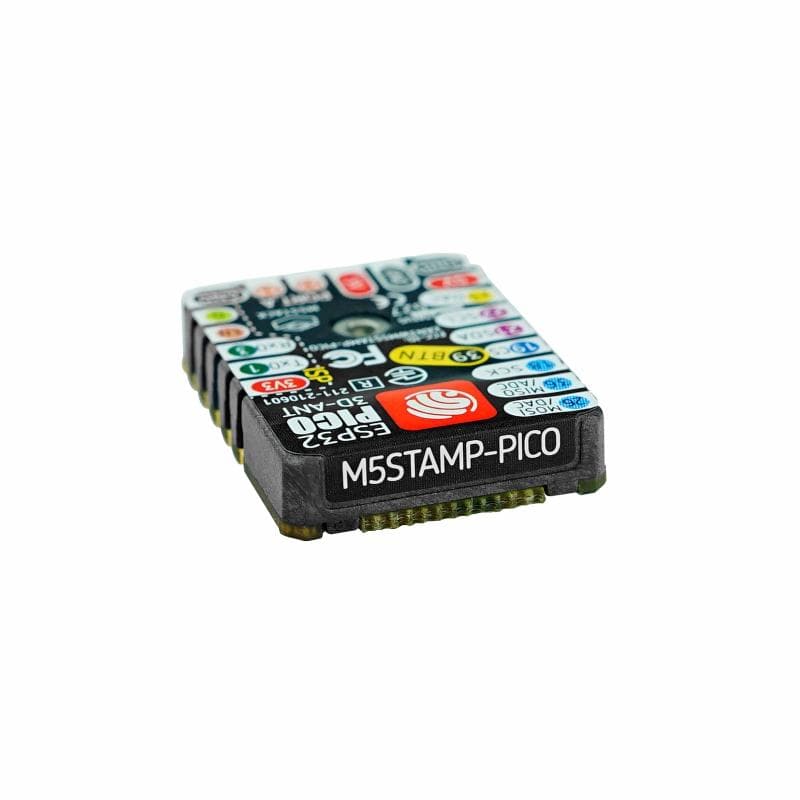

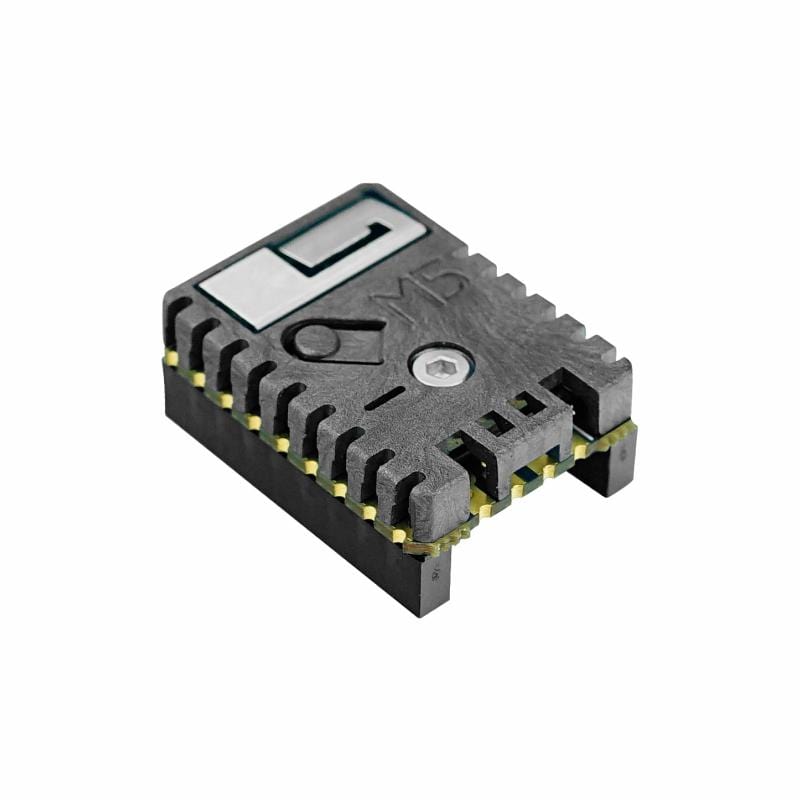

This DIY kit features an ultra-compact design with two low-power Xtensa® 32-bit LX6 microprocessors at 240MHz on a PCB as tiny and delicate as a postage stamp. With low power consumption, it is ideal for any space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices.

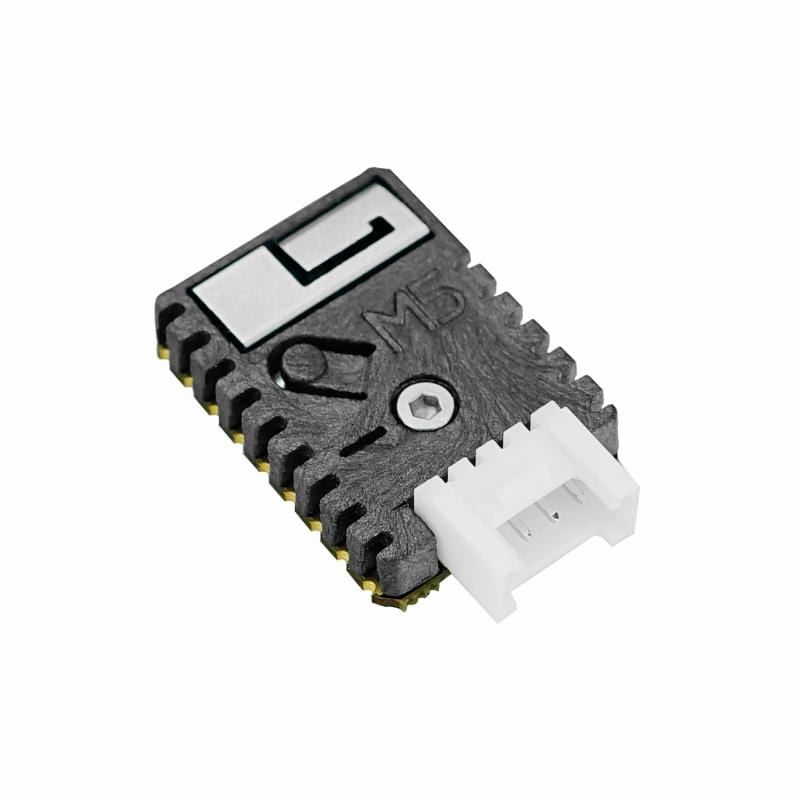

  • Multi Purpose: Five options of installation, means endless possibilities! (SMT, DIP, flywire, grove interface), with a high-temperature resistant plastic shell, 3D antenna and components can be better protected

  • Low-Code Development: It supports UIFlow graphical programming platform, scripting-free, cloud push, and fully compatible with Arduino, MicroPython, ESP32-IDF, and other mainstream development platforms to quickly build various applications

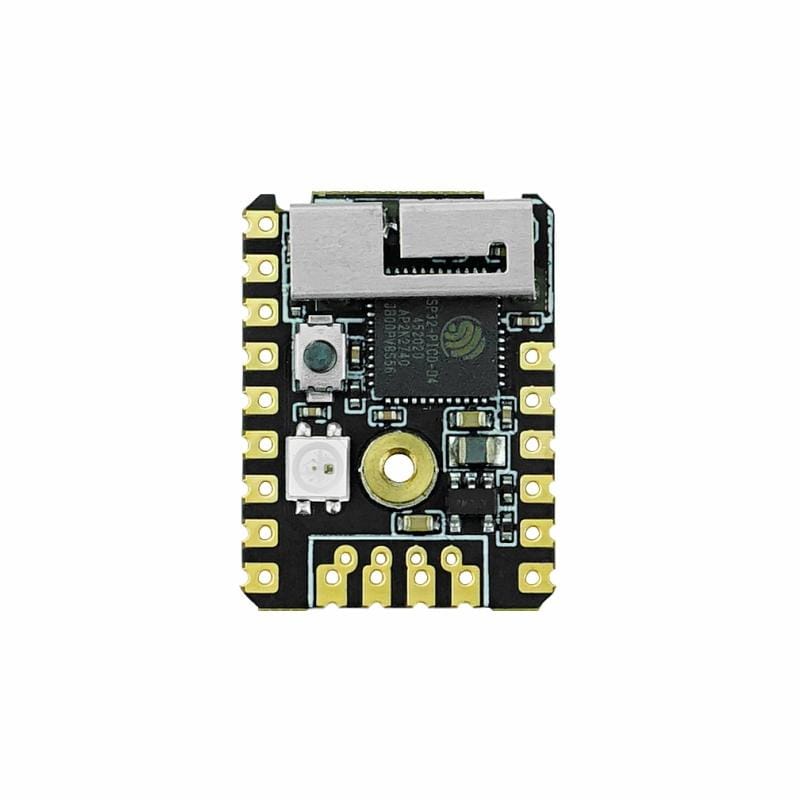

  • High Integration: Contains 5V - 3.3V DC/DC port, GPIO x12, programmable RGB light x1, button x1, finely tuned RF circuit, providing stable and reliable wireless communication

  • Strong Expandibility: Easy access to M5Stack's hardware and software ecology system. A wealth of sensors, actuators, functional modules, and accessories to choose from

Features

  • Chip-set: ESP32-PICO-D4 (2.4GHz Wi-Fi and Bluetooth dual mode)
  • Support UIFlow graphical programming

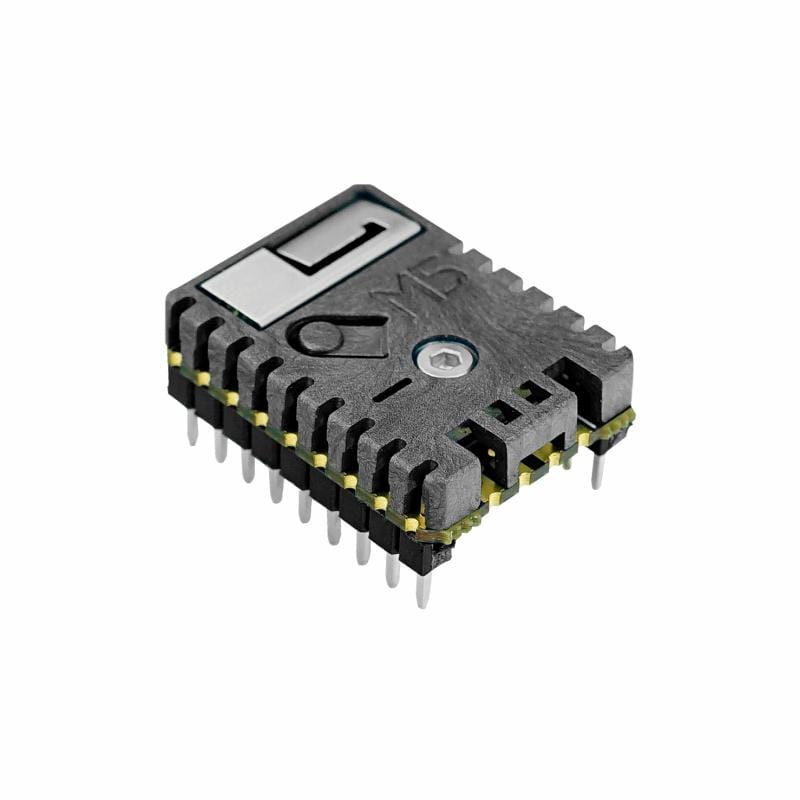

  • Multi-IO pinout, support multiple application forms (SMT, DIP, fly-by-wire)
  • Integrated programmable RGB LEDs and buttons
  • Miniature module

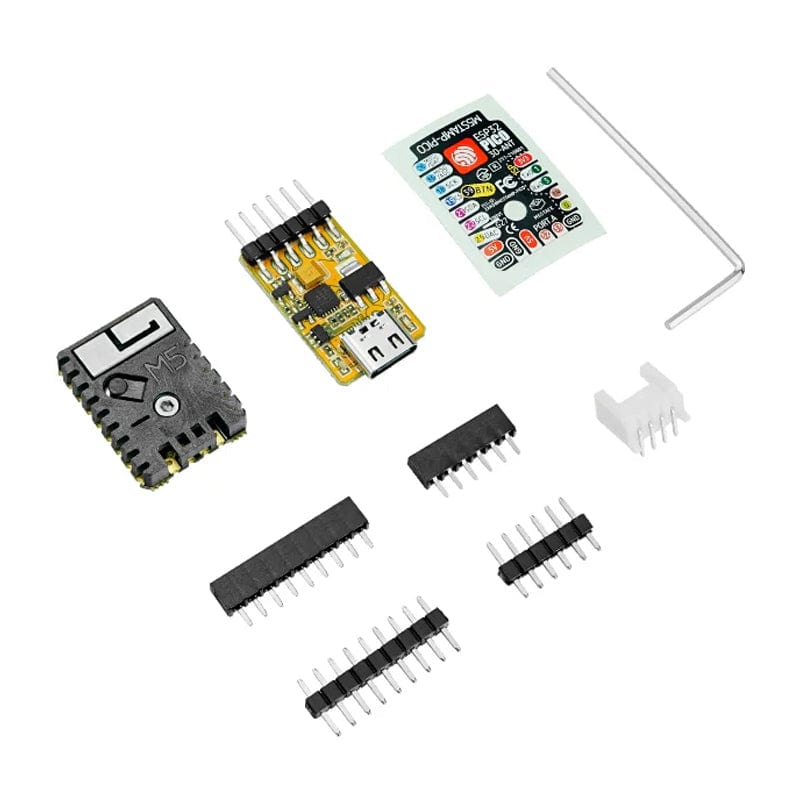

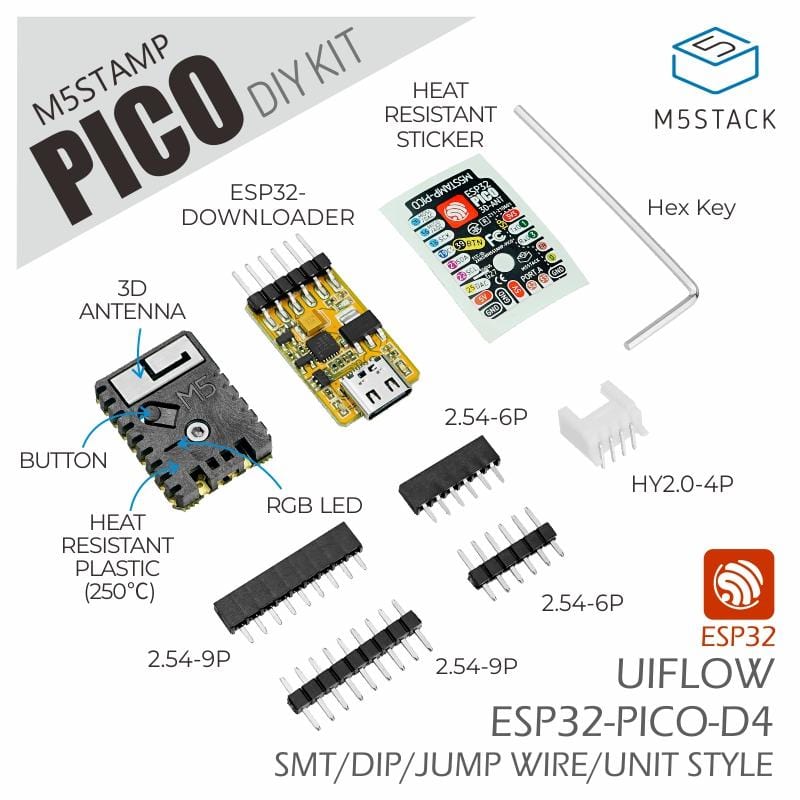

Package Contents

  • M5Stamp Pico DIY Kit:
    • 1 x M5Stamp Pico
    • 1 x Sticker
    • 4 x Pin Headers
    • 1 x 90° Grove Connector
    • 1 x Hex Key
    • 1 x ESP32 Downloader Applications

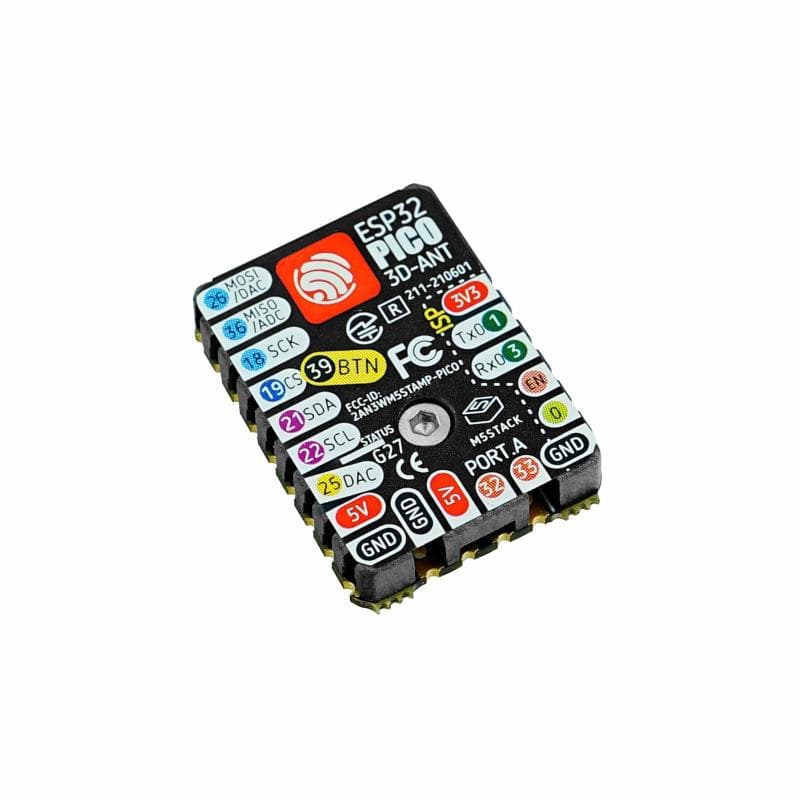

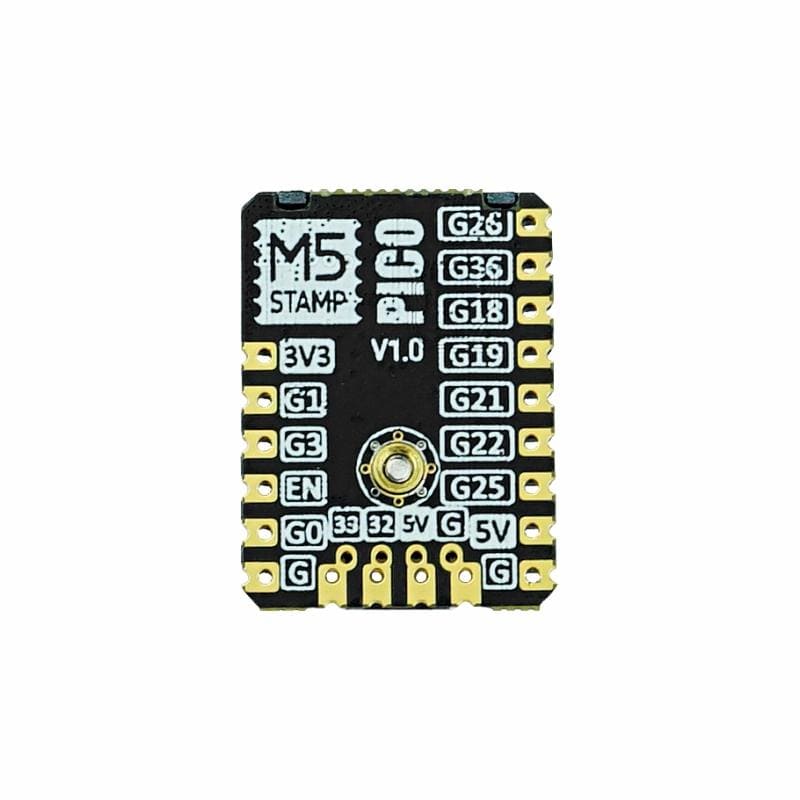

Pinout

Specifications

Resources Parameter
Master Control Resource ESP32-PICO-D4
Flash 4MB
Input Voltage 5V @ 500mA
Power consumption Normal standby: 5V@29mA, WIFI STA mode: 5V@60mA, Bluetooth mode data sending status: 5V@84mA, Deep-sleep mode: 5V@0.35mA
UI Programmable physical keys x 1, Programmable RGB LED (SK6812) x 1
Antenna Type 2.4G 3D Antenna
WiFi 802.11 b/g/n (up to 150 Mbps for 802.11n), spectrum range: 2.4 GHz ~ 2.5 GHz
Bluetooth Blutooth V4.2 BR/EDR and BLE standard, NZIF receiver, sensitivity up to -97 dBm
Module Resource Interface ADC, DAC, touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, IR remote controller, GPIO, pulse counter
IO interface x12 G0, G1, G3, G26, G36, G18, G19, G21, G22, G25, G32, G33
IO interface spacing 2.54mm
perating temperature 0°C to 60°C
Net weight 2.6g
M5Stamp Pico (5pcs) Gross weight 18g
M5Stamp Pico Mate Gross weight 6g
M5Stamp Pico DIY Kit Gross weight 12g

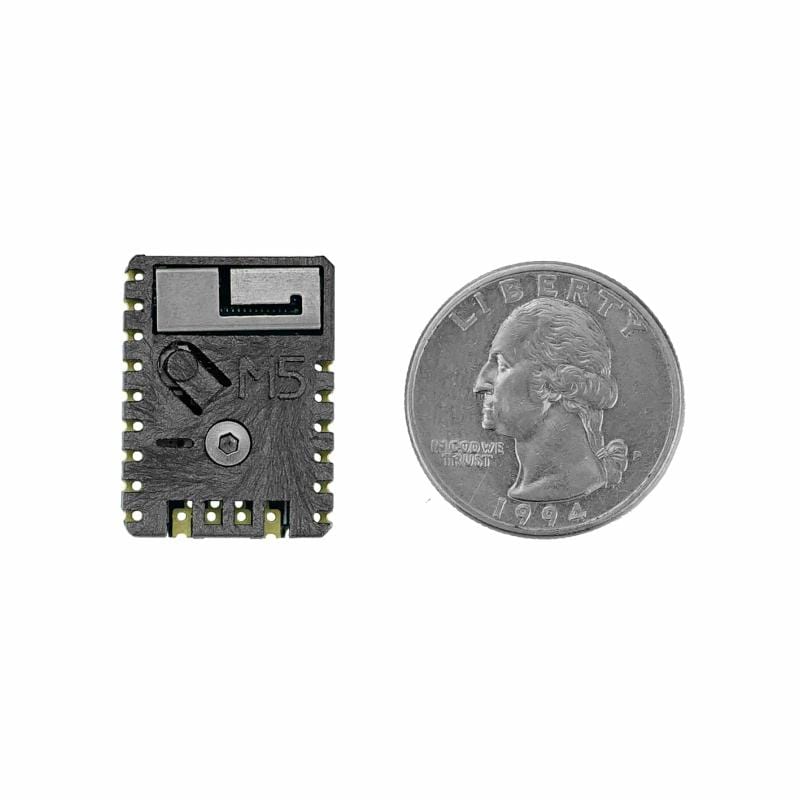

Product Dimensions 18 x 24 x 4.4mm
Package Size 85 x 55mm sealing bag (translucent)
