M5Stamp ESP32S3 Module

M5StackSKU: S007
£7.50
incl. VAT
excl. VAT
Only 14 units left

Awesome Extras

ATOM Lite ESP32 Development Kit - The Pi HutATOM Lite ESP32 Development Kit - The Pi Hut
M5StackM5Stack ATOM Lite ESP32 Development Kit
£9 incl. VAT excl. VAT
USB-A to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
From £2.25 incl. VAT excl. VAT
ATOM Matrix ESP32 Development Kit - The Pi HutATOM Matrix ESP32 Development Kit - The Pi Hut
M5StackM5Stack ATOM Matrix ESP32 Development Kit
£15 incl. VAT excl. VAT

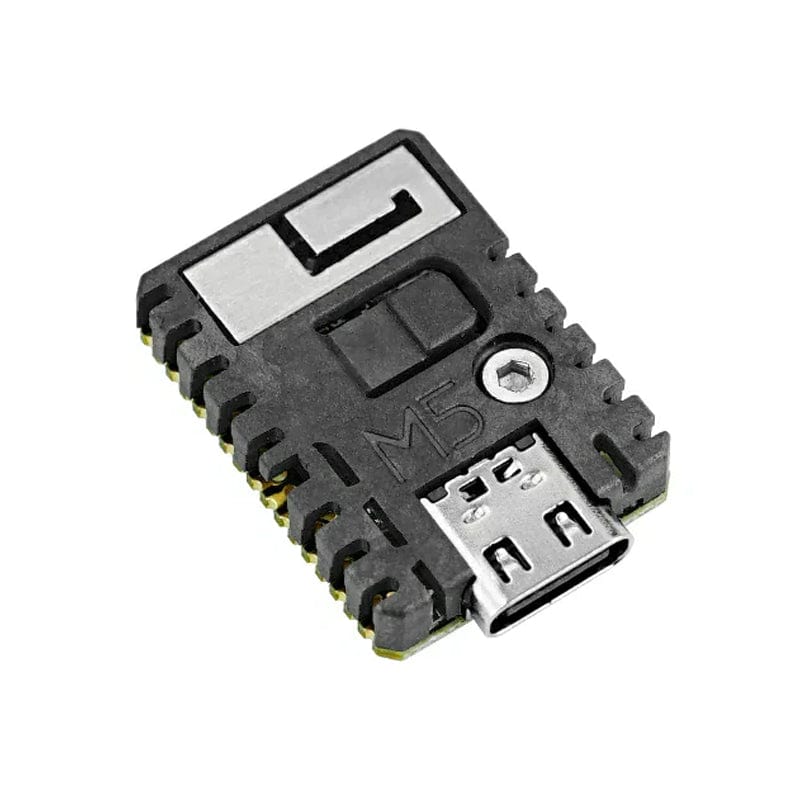

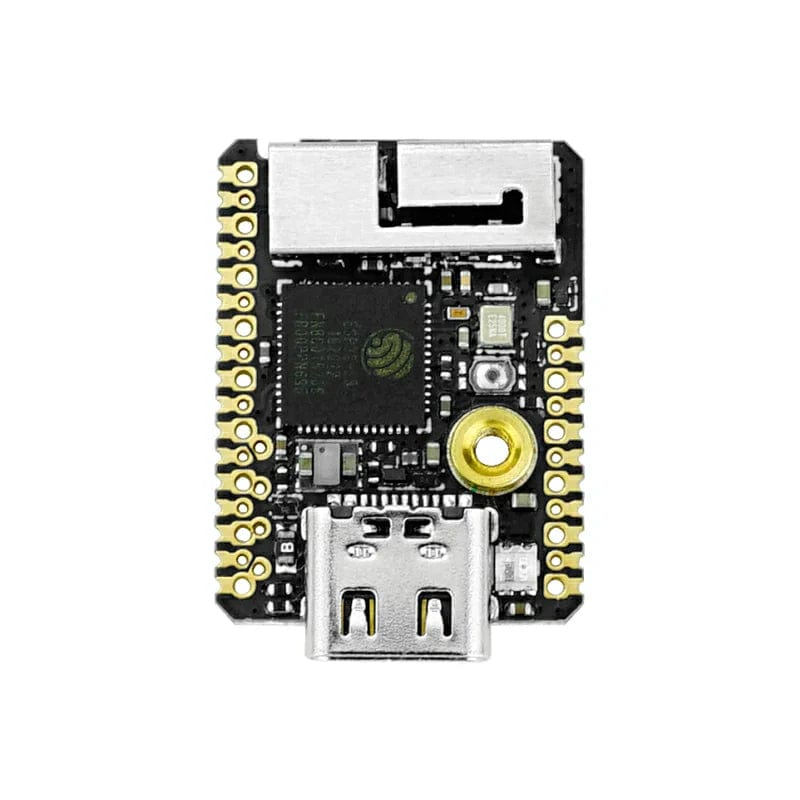

The STAMPS3 is a main control core module, using a Lexin ESP32-S3FN8 main control chip, 8MSPI flash memory, an Xtensa 32-bit LX7 dual-core processor and a main frequency up to 240MHz. It has a built-in 5V to 3.3V circuit, an RGB status indicator, a programmable button, and a 1.27MM/2.54MM spacing lead. It supports SMT, DIP row, and DIP row jump wires. The module is suitable for IoT application scenarios with embedded main control modules.

We also stock a version with pin headers pre-soldered.

Features

  • ESP32-S3FN8(2.4GHz Wi-Fi)
  • Minimal system board
  • Multi-IO lead-out, support multiple application forms (SMT, DIP, flying wire)
  • Integrated programmable RGB LEDs and buttons
  • Support UIFlow graphical programming

Specifications

Resources Parameters
MCU ESP32-S3FN8
DCDC Highly integrated MUN3CAD01-SC
Flash 8MB
Input voltage 5V
Interactive Programmable physical buttons x 1, programmable RGB LED (WS2812B-2020) x 1
Antenna type 2.4G 3D antenna
Module resource interface Touch sensor, SD/SDIO/MMC master controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, GPIO, pulse counter

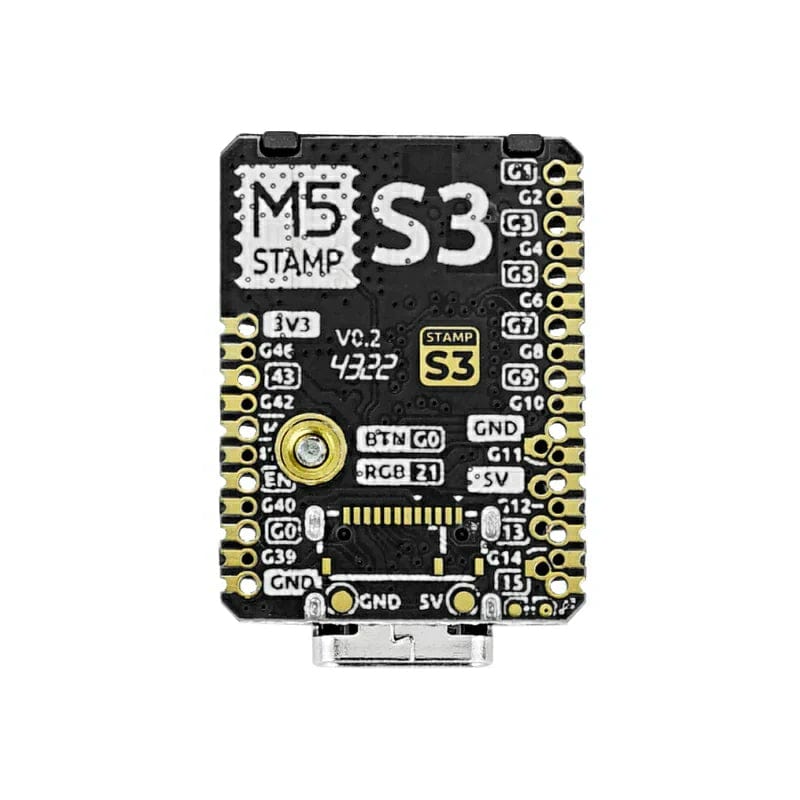

IO interface x23

G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39

/G40/G41/G42/G43/G44/G46
Connection method SMT/DIP (pitch 2.54mm and 1.27mm)/Jump Wire
IO interface spacing 2.54mm x 1.27mm
Operating temperature 0°C to 40°C

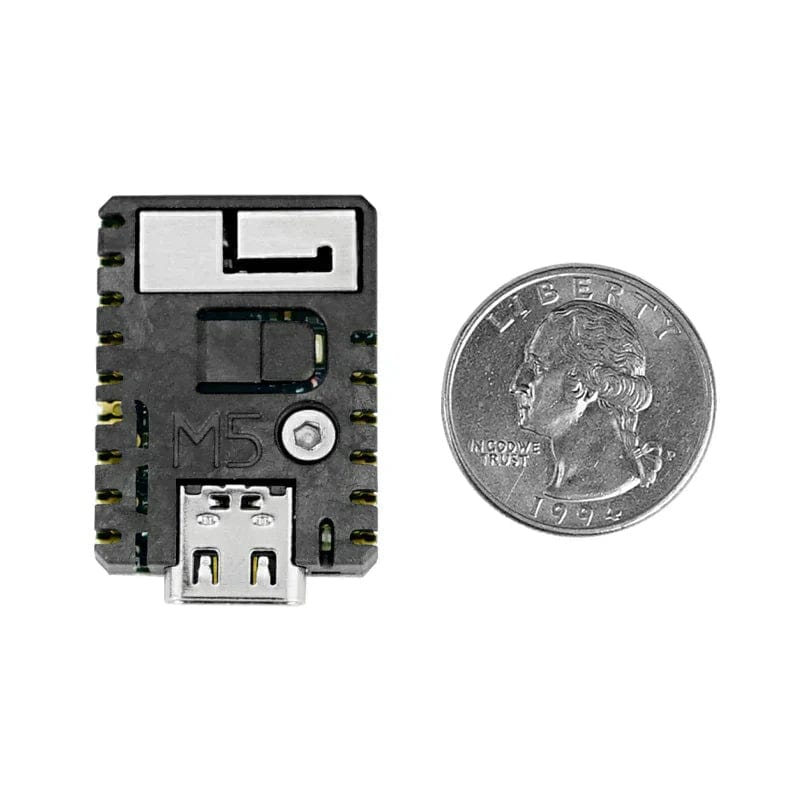

Product Size 26mm × 18mm × 4.6mm
Package Size 136mm × 92mm × 13mm
Product Weight

3.2g
Package Weight

7.5g

Resources

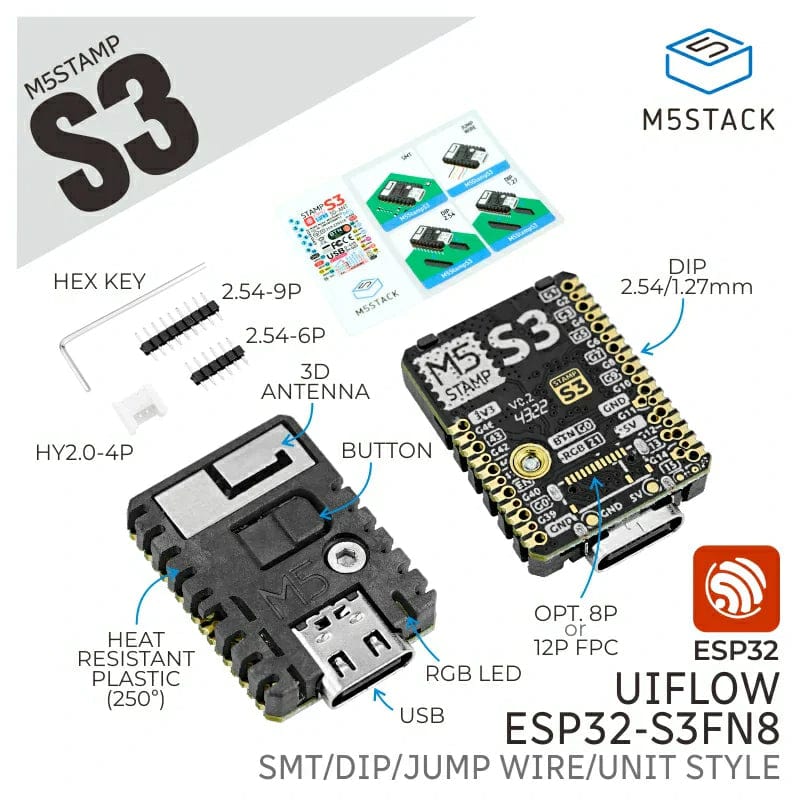

Package Contents

  • 1x StampS3
  • 1x HY2.0-4P terminal
  • 1 x 2.54-9P header
  • 1 x 2.54-6P header
  • 1 x Hex Key
  • 1 × User manual
