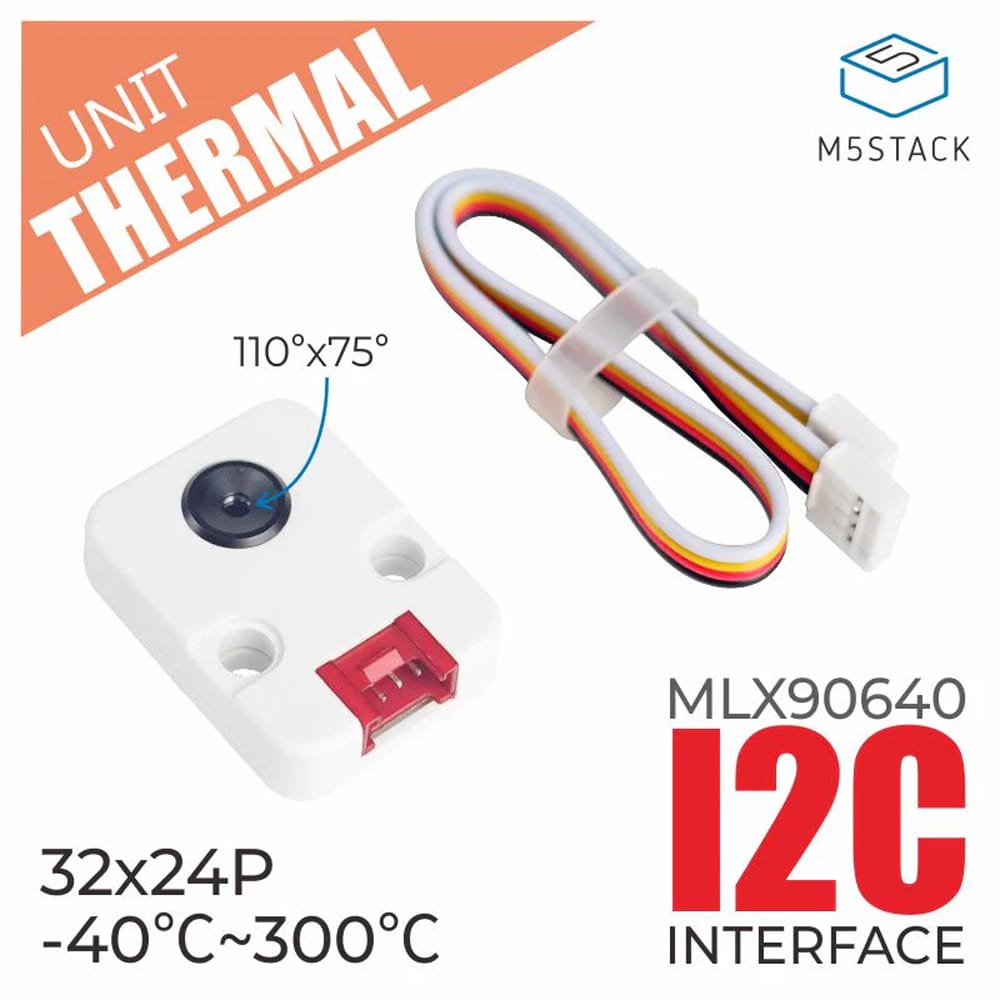

The M5Stack Thermal Camera Unit is an infrared thermal imaging module using the MLX90640 sensor to capture 32 × 24 thermal images. It measures surface temperature without frequent recalibration, offering a wide 110° × 75° field of view via I2C (0x33).

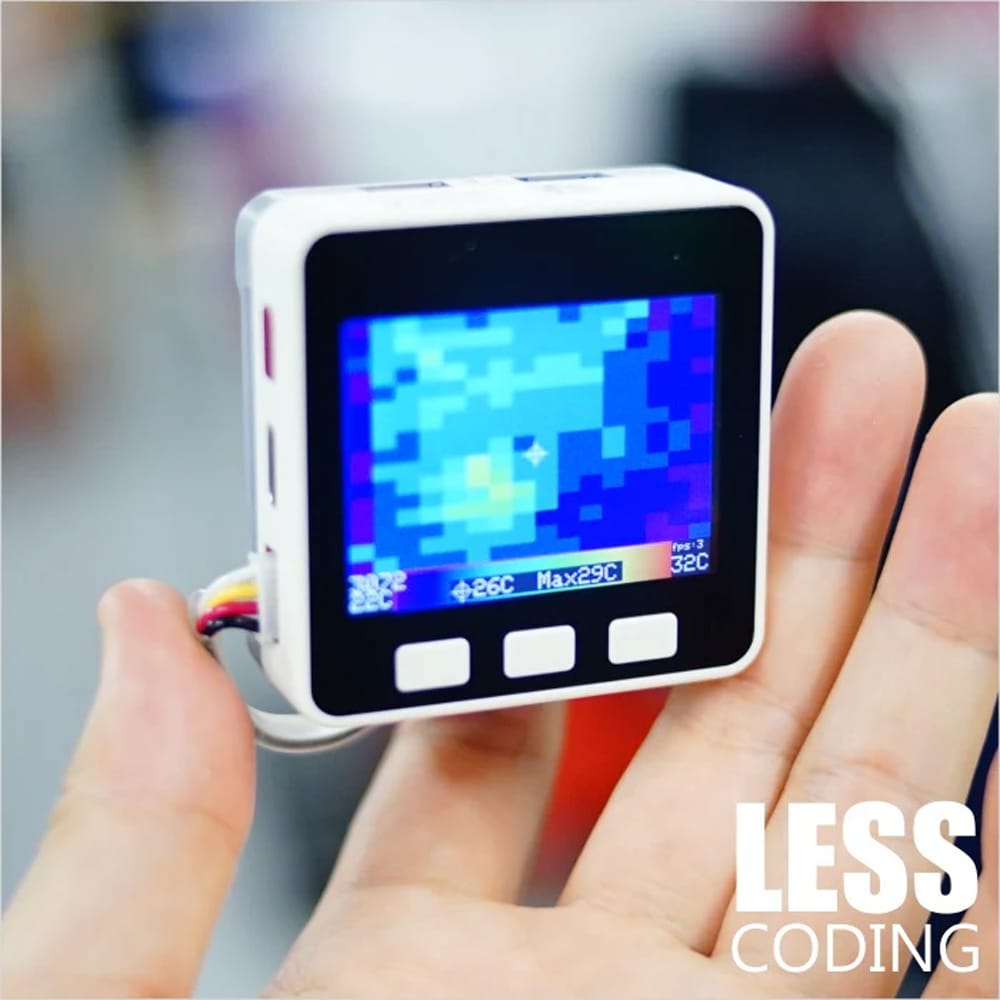

The M5Stack Thermal Camera Unit is an infrared thermal imaging Unit for the human body. Built-in MLX90640 thermopile sensor, capable of measuring the surface temperature of objects and generating a thermal image (image resolution 32 x 24) based on the temperature gradient formed by the surface temperature.
The MLX90640 infrared (IR) sensor array features high resolution and reliable operation in harsh environments. Compared with expensive high-end thermal imagers, this Unit is a cost-effective alternative.
Unlike ordinary microbolometers, this sensor has the advantage of not requiring frequent recalibration, thus ensuring detection continuity and reducing system maintenance costs. Field of view offers a wide-angle version (110°×75°), I2C address is 0x33.
