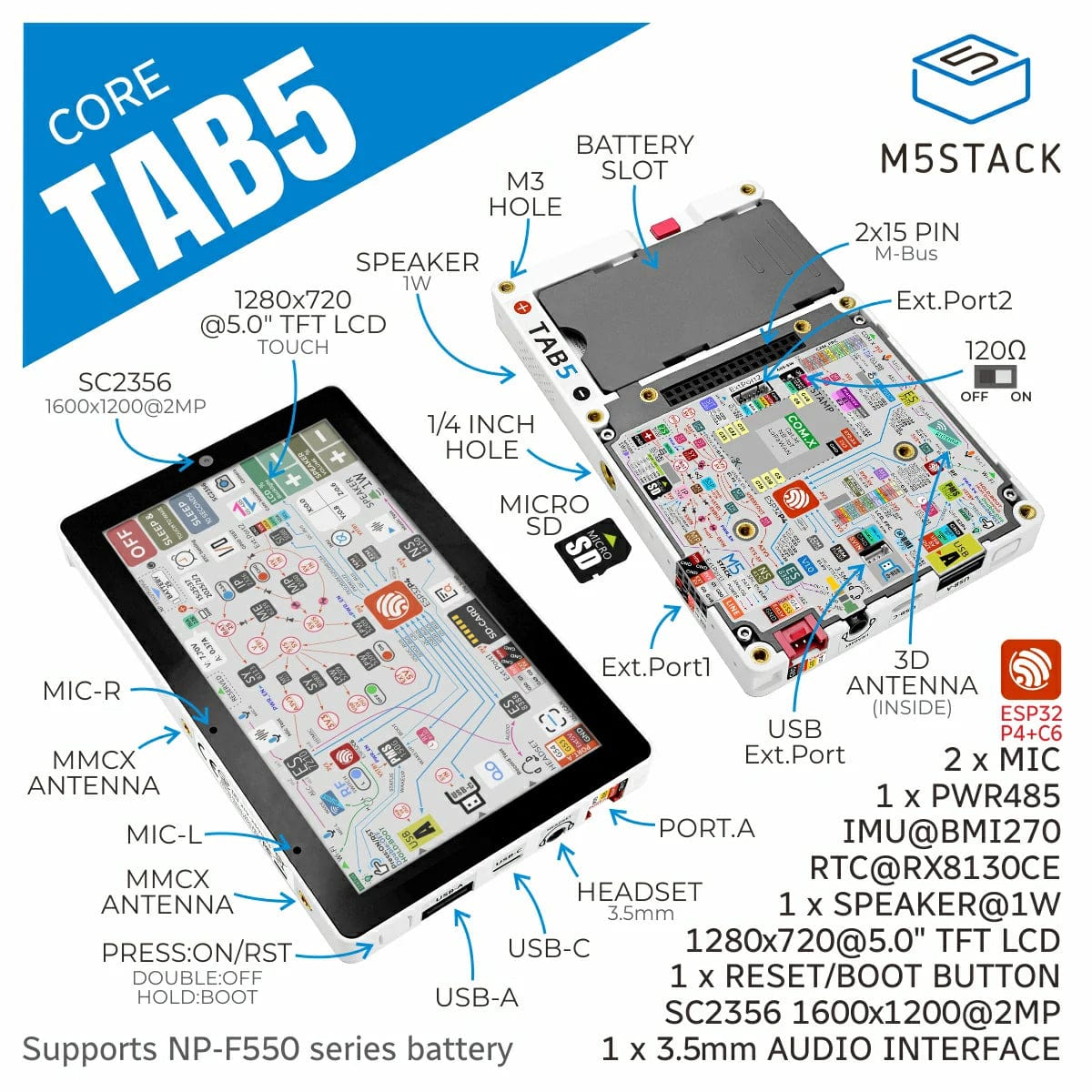

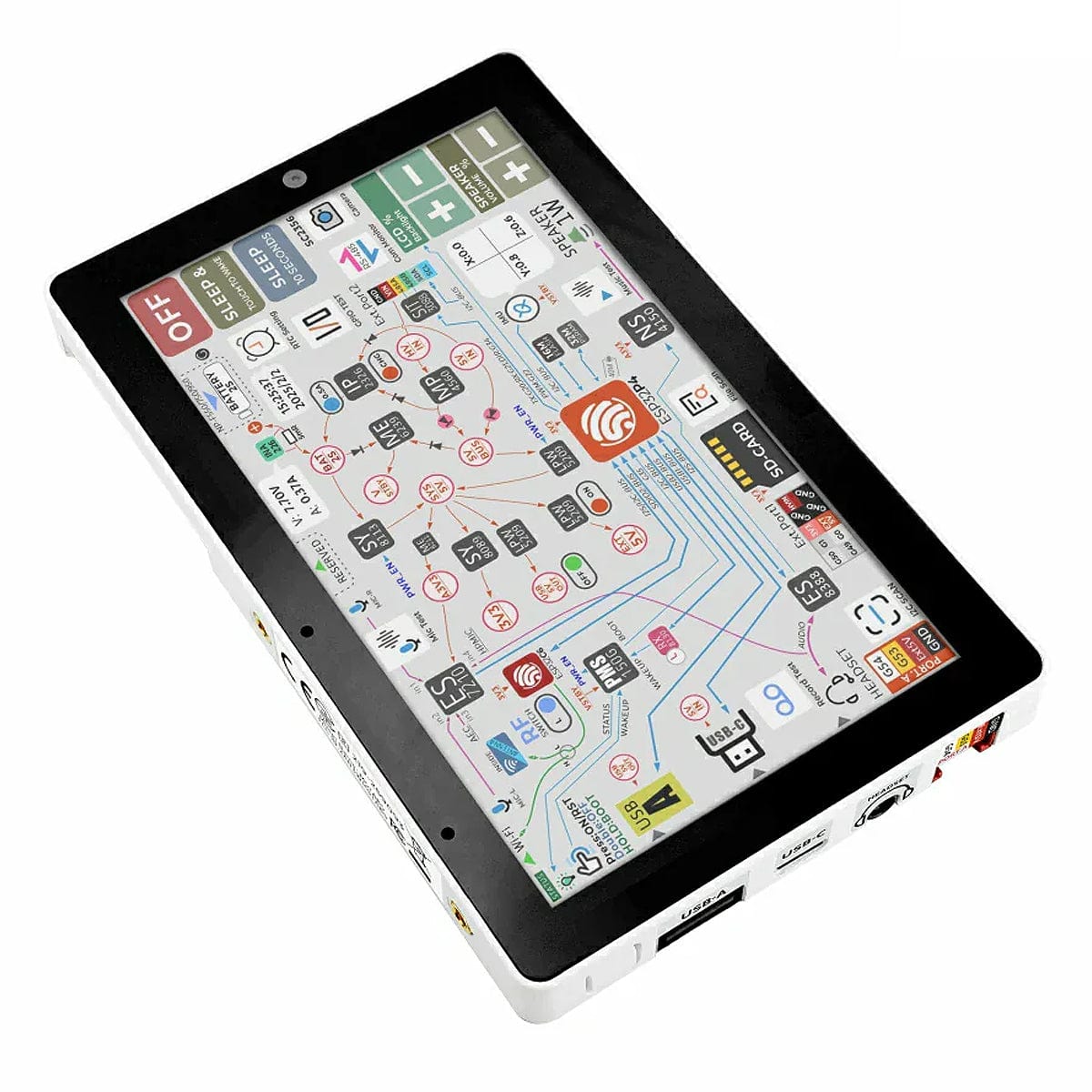

The M5Stack Tab5 is a developer-oriented, highly extensible portable IoT terminal development device that integrates a dual-SoC architecture and abundant hardware resources.

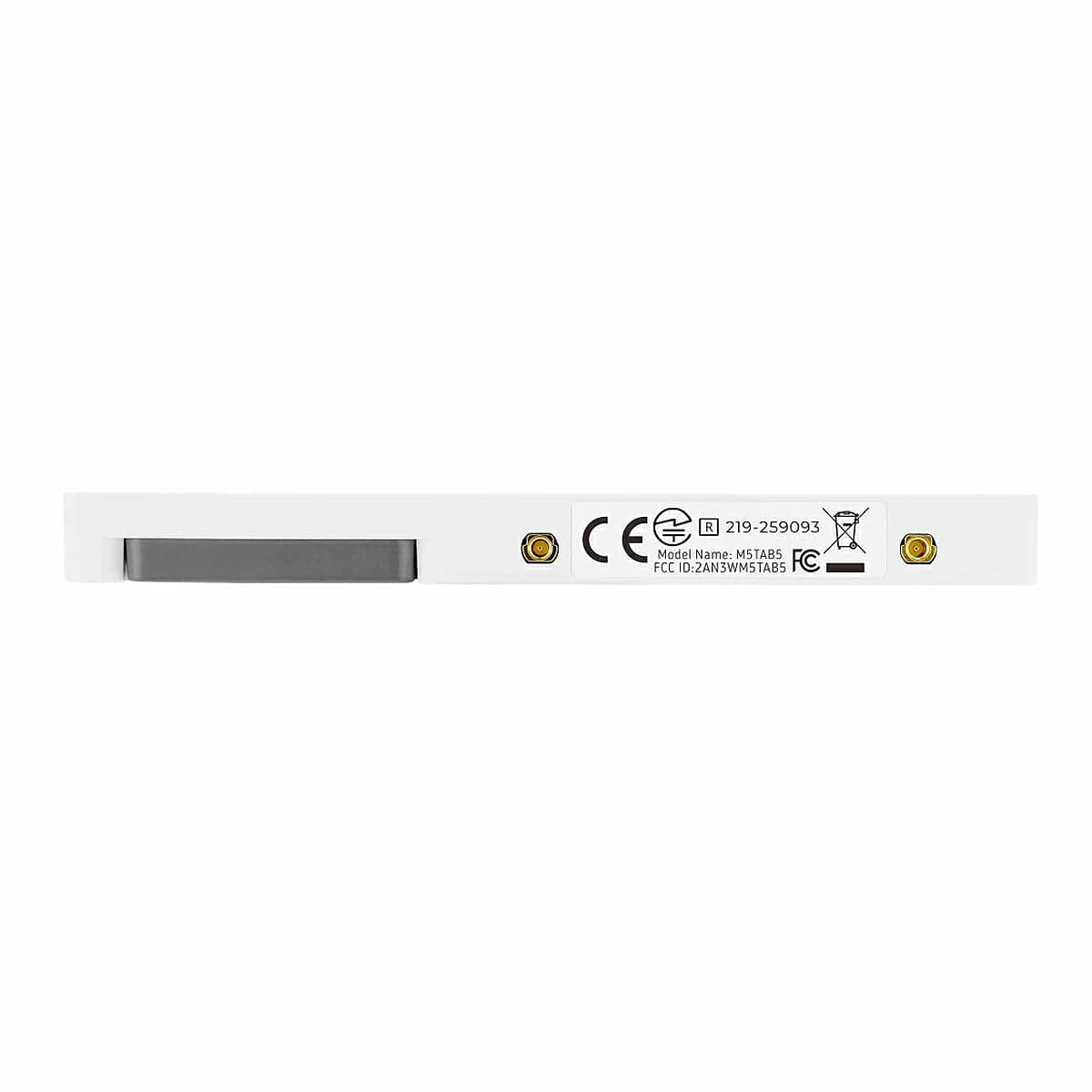

Its main controller is the RISC-V-based ESP32-P4 SoC, equipped with 16MB Flash and 32 MB PSRAM; the wireless module uses ESP32-C6-MINI-1U, supporting Wi-Fi 6 with an antenna system that can switch between a built-in 3D antenna and an external MMCX antenna port.

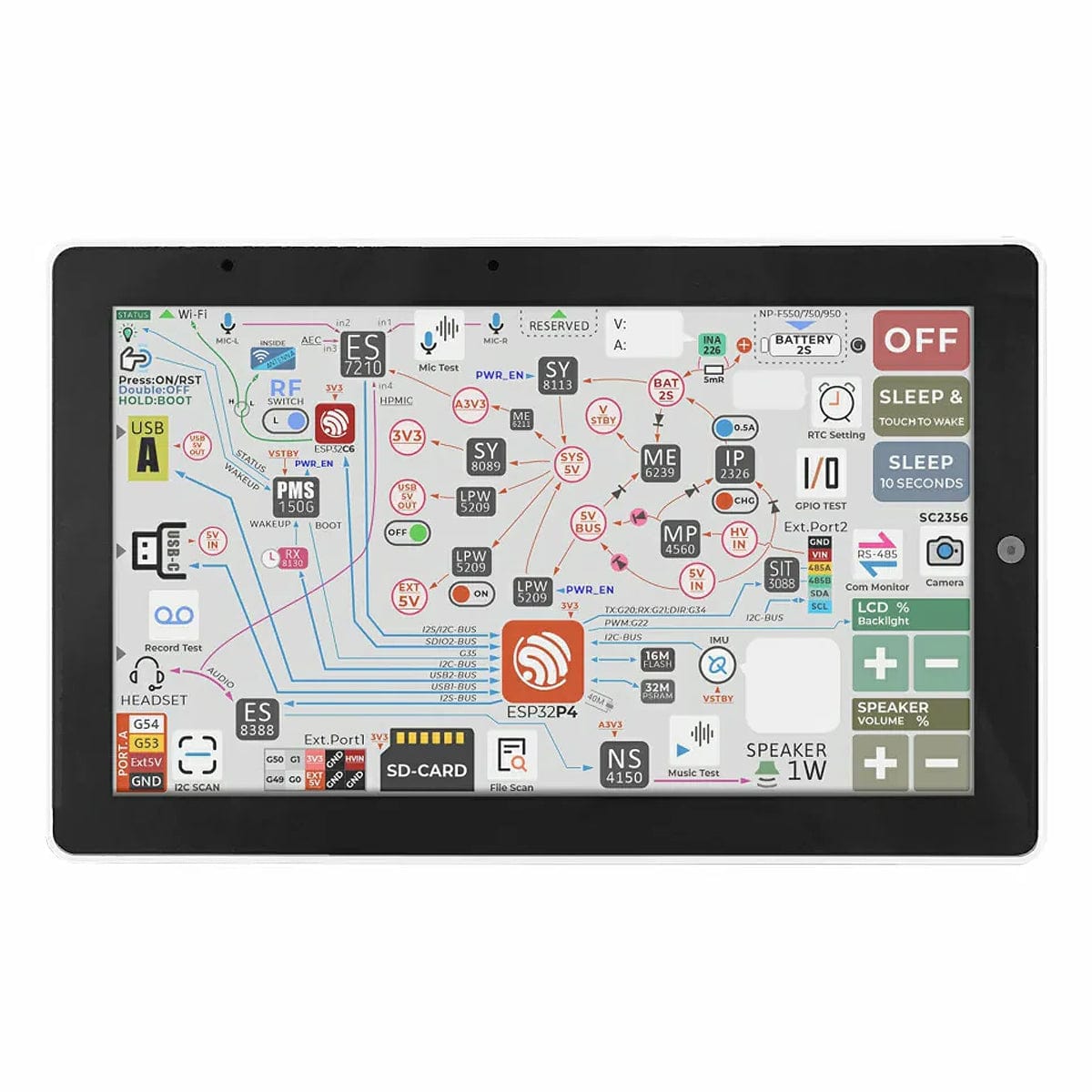

Tab5 features a 5" 1280x720 IPS TFT display driven over MIPI-DSI, with touch input handled by the GT911 multi-touch controller (I²C). A MIPI-CSI-connected SC2356 2MP camera (1600x1200) enables HD video capture, image processing, and edge AI applications.

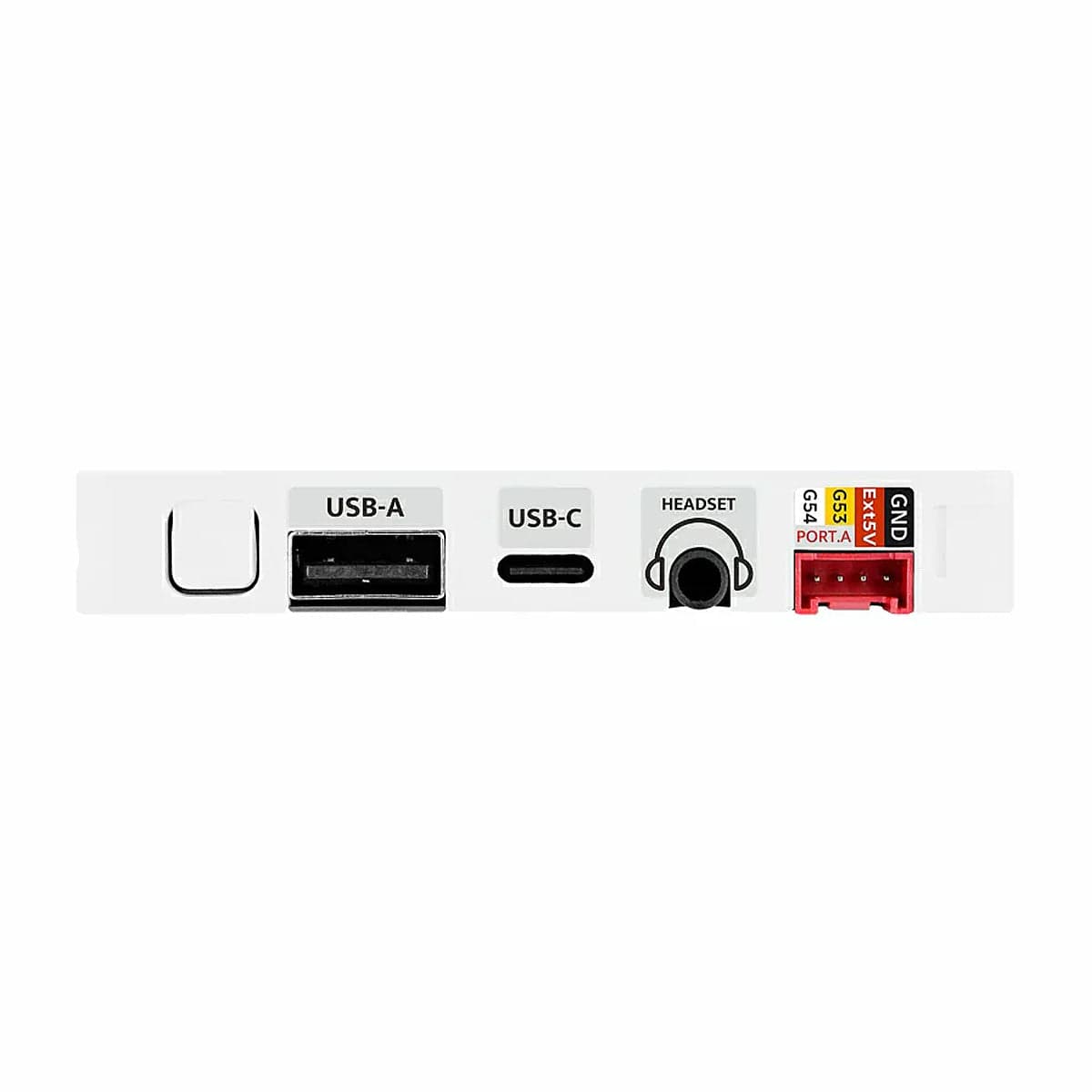

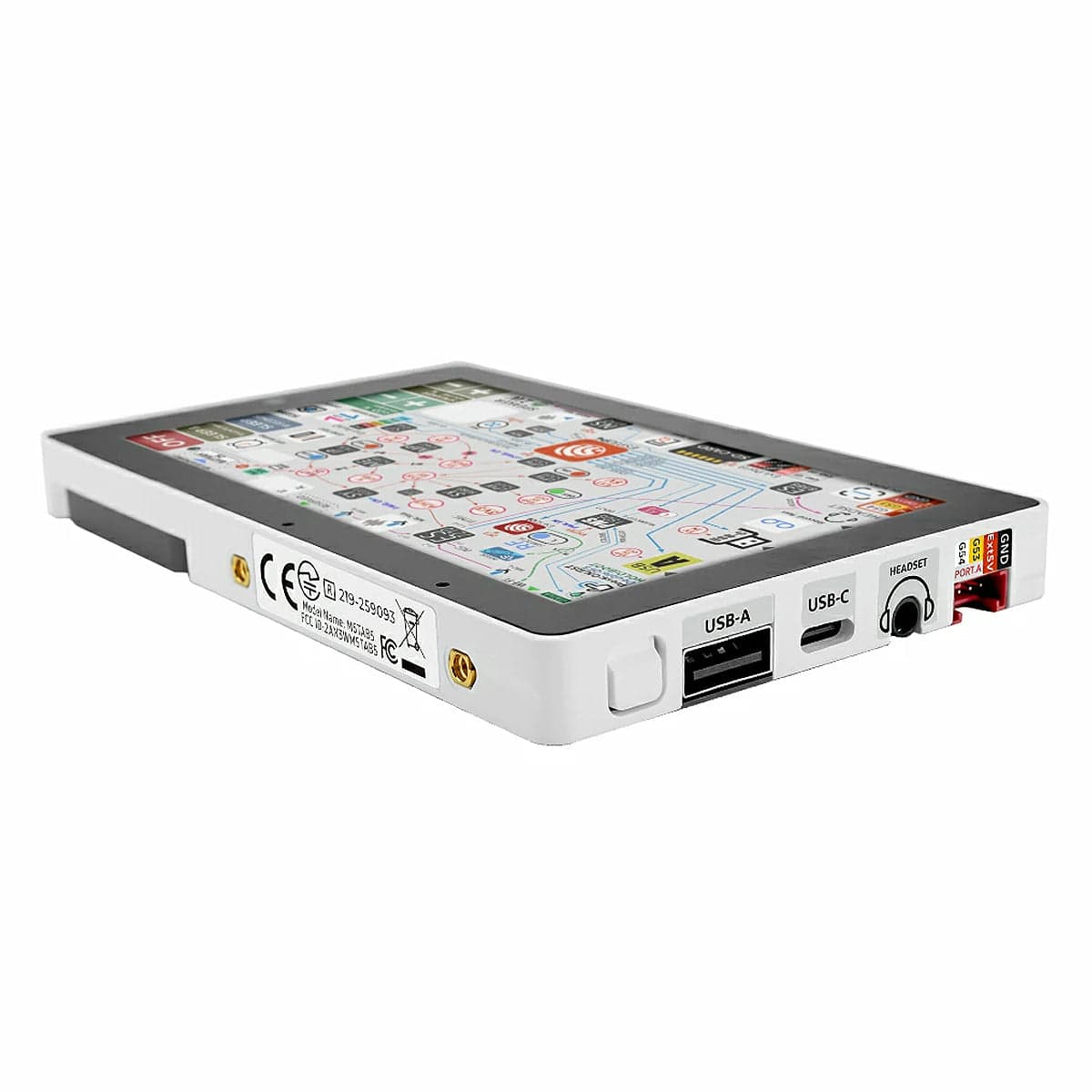

I/O and expansion include USB-A (Host) and USB-C (USB 2.0 OTG) ports for traditional peripherals; industrial communication via RS-485 (SIT3088 with switchable 120 Ω termination); 1x Grove, 1x M5BUS, GPIO_EXT header, and a Micro SD slot; plus a STAMP solder-pad for Cat.M/NB-IoT/LoRaWAN modules. A Reset/Boot button allows for quick reset and firmware flashing.
Audio/video uses an ES8388 audio codec with ES7210 AEC front end, dual-mic array, 3.5 mm jack, and 1W 8 Ω NS4150B speaker for recording and playback. The onboard BMI270 six-axis sensor (accel+gyro, interrupt wakeup) can trigger MCU wakeup on motion.

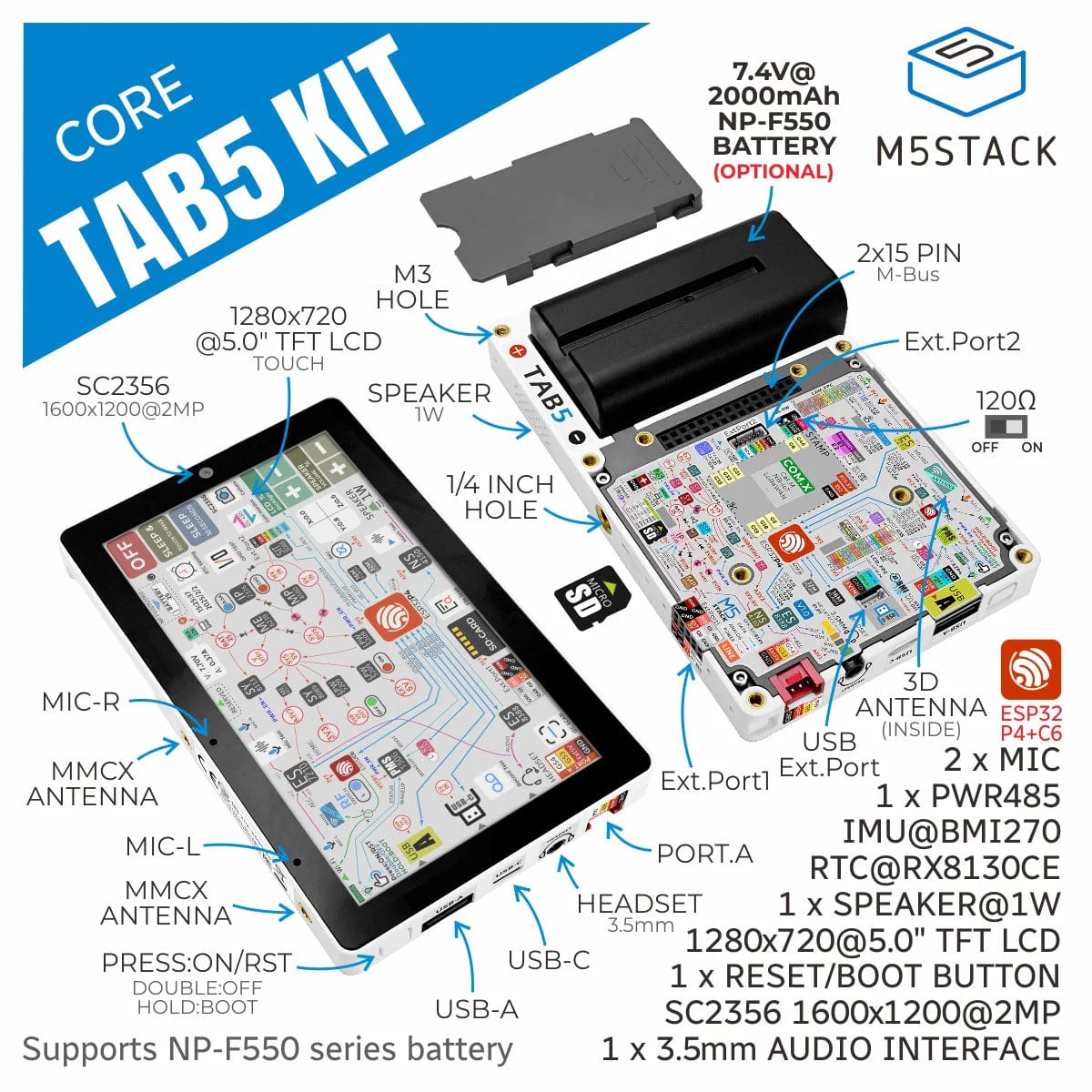

Time and power management integrate an RX8130CE real-time clock (interrupt wakeup); a 2S NP-F550 removable Li-ion battery (Kit option only); and IP2326 charging, MP4560 buck-boost, and INA226 real-time monitoring circuits to ensure stable operation without external power. A side-mounted Power button provides one-touch on/off.

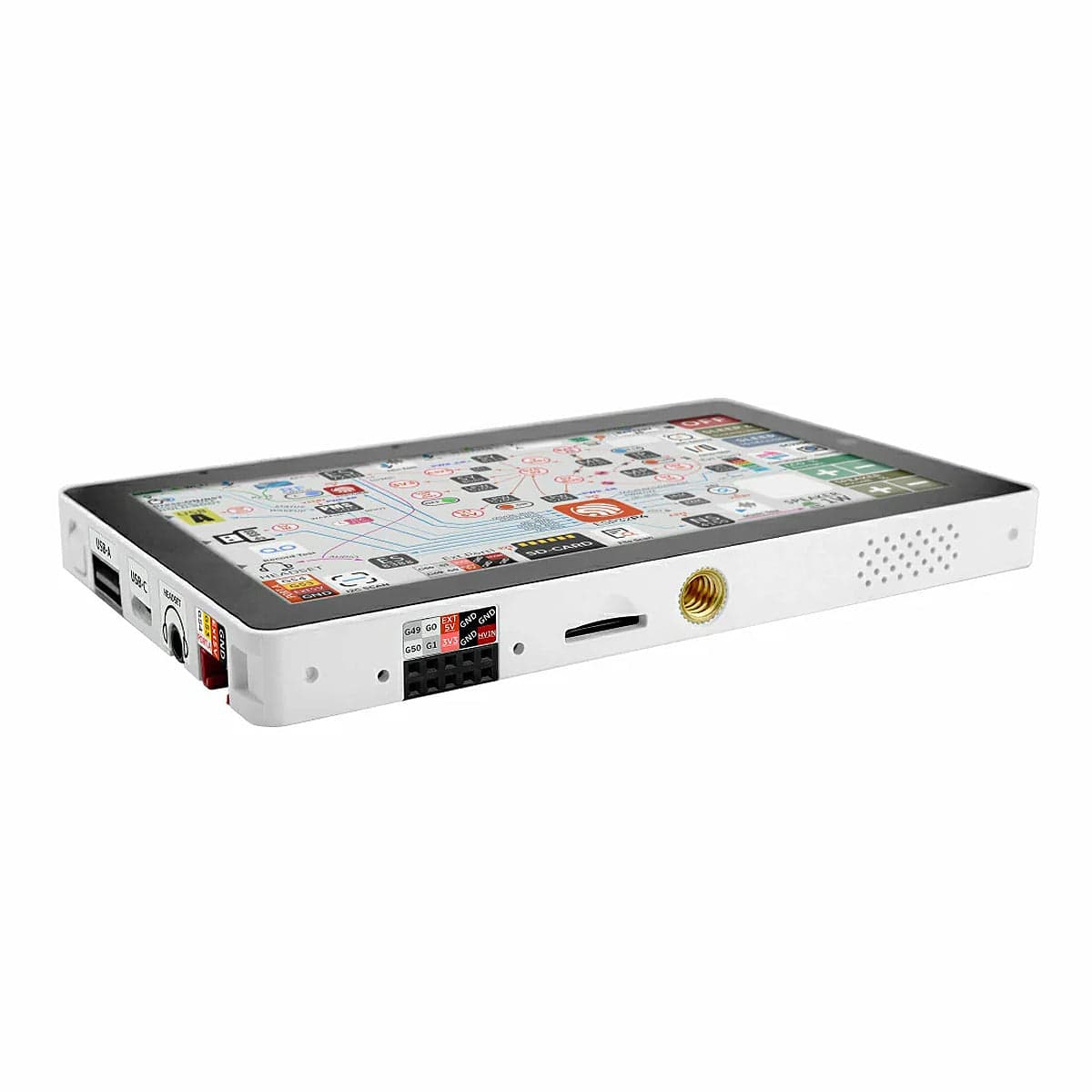

Structure-wise, Tab5 features a side-mounted standard 1/4″-20 tripod mount nut for direct mounting to tripods or other supports.
