M5Stack Proto Module with Extension & Bus Socket

M5StackSKU: M001
£4.50
incl. VAT
excl. VAT
Only 11 units left

Awesome Extras

M5Stack Plastic Frame for Proto Module (2 pieces) - The Pi HutM5Stack Plastic Frame for Proto Module (2 pieces) - The Pi Hut
M5StackM5Stack Plastic Frame for Proto Module (2 pieces)
£1.60 incl. VAT excl. VAT
Hook-up Wire Spool Set - 22AWG Stranded-Core - 10 x 25ft - The Pi HutHook-up Wire Spool Set - 22AWG Stranded-Core - 10 x 25ft - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 10 Spool Stranded Core
£18 incl. VAT excl. VAT
M5Stack Core2 v1.1 ESP32 IoT Development Kit - The Pi HutM5Stack Core2 v1.1 ESP32 IoT Development Kit - The Pi Hut
M5StackM5Stack Core2 v1.1 ESP32 IoT Development Kit
£44.50 incl. VAT excl. VAT

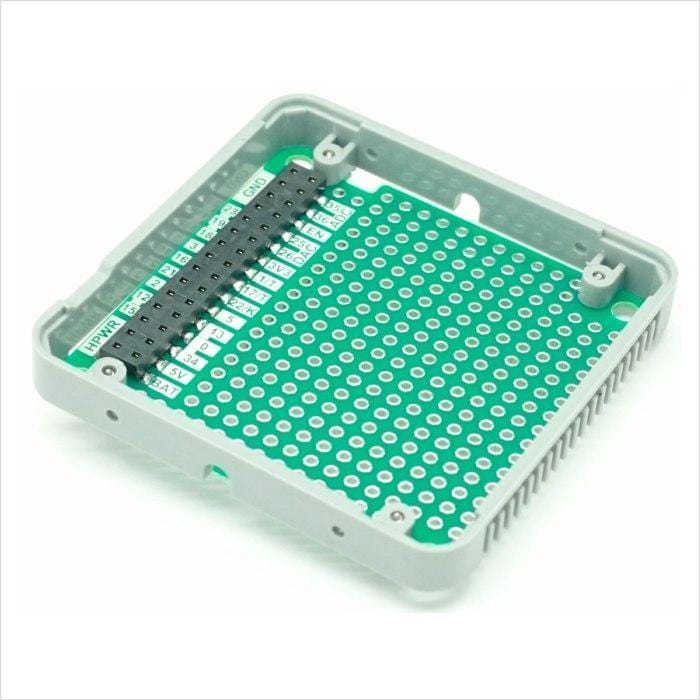

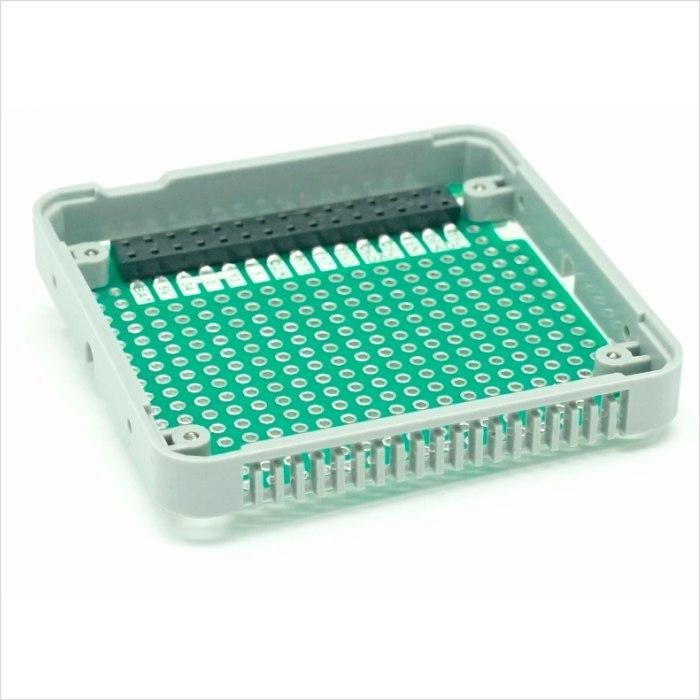

A stackable universal prototyping module for use with M5Stack Core development boards. Spare plastic frames are available here.

For more information and for help getting started, click here

Product Features

  • Hole Size: 0.039" 1mm (CNC Drilled)
  • Hole Pitch: 0.1 in - (2.54 mm)
  • Entire Hole Quantity: 260 Holes
  • Product Size：54.2mm x 54.2mm x 12.8mm
  • Product weight：11.5g

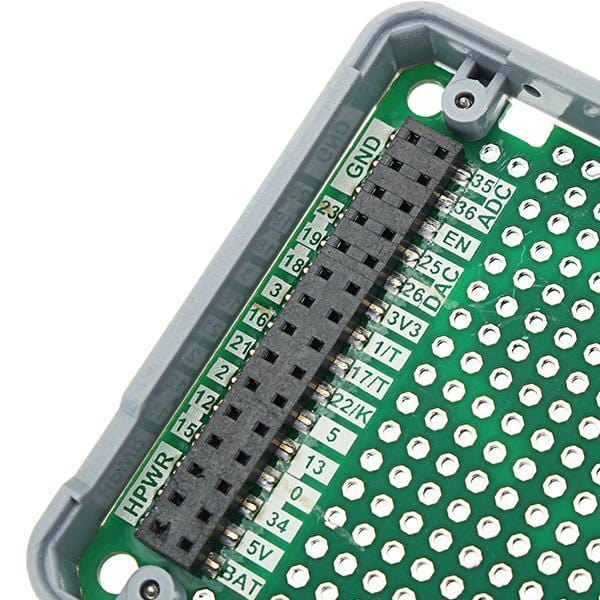

Interface

LINE0 LINE1
GND IO35(ADC1)
GND IO36(ADC2)
GND EN
IO23(MOSI) IO25(DAC0)
IO19(MISO) IO26(DAC1)
IO18(EXT_SCK) 3V3
IO3(U1_RX) IO1(U1_TX)
IO16(U2_RX) IO17(U2_TX)
IO21(I2C_SDA) IO22(I2C_SCL)
IO2 IO5
IO12(I2S_SCLK) IO13
IO15(I2S_OUT) IO0
HPOWR IO34
HPOWR 5V
HPOWR BAT
