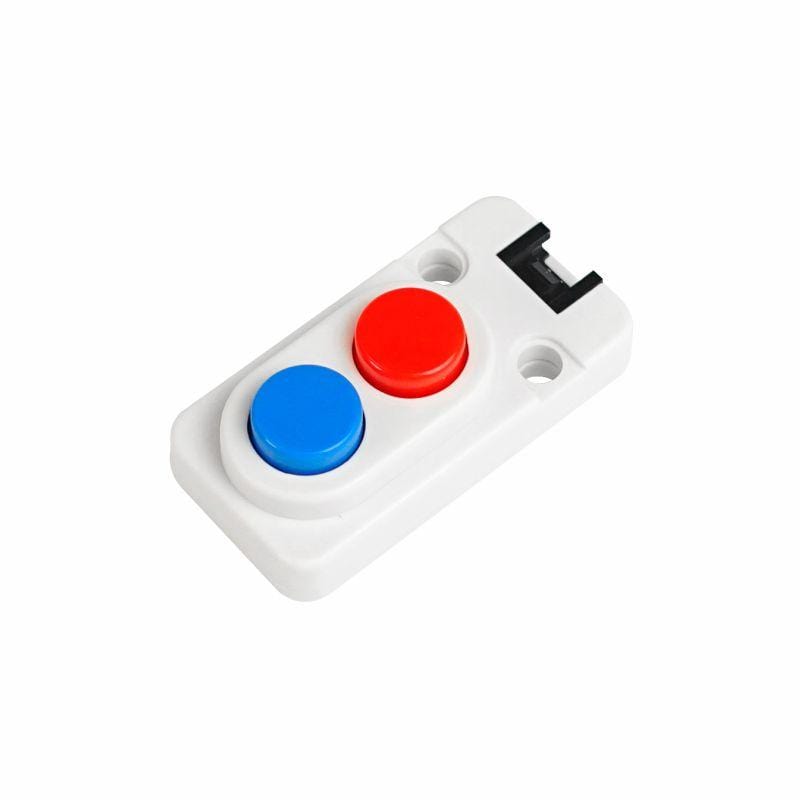

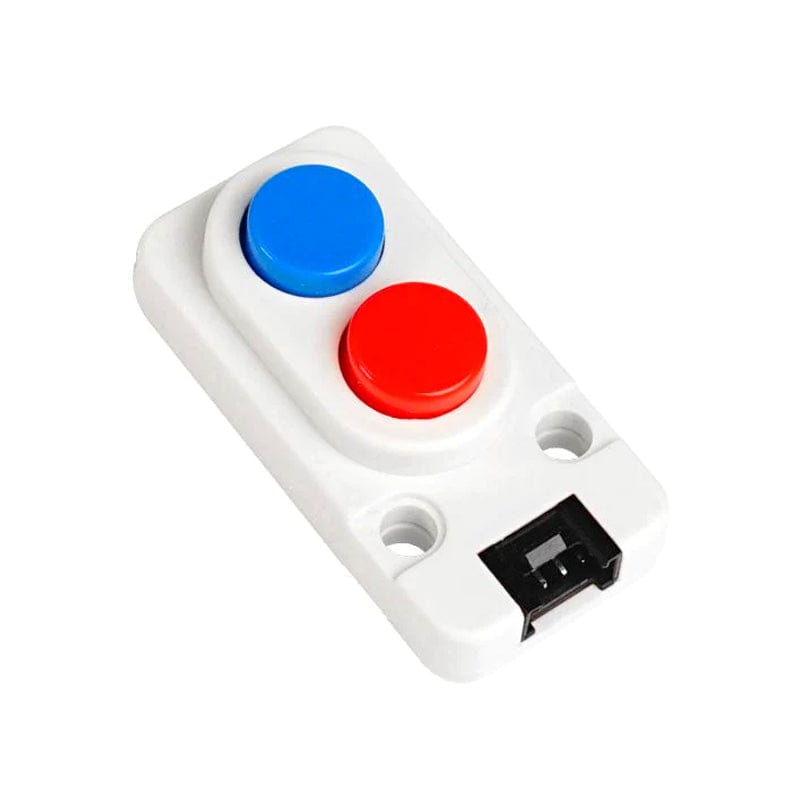

M5StackM5Stack Mini Dual Button Unit
Sale price £2.50 incl. VAT excl. VAT
M5StackM5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW)
Sale price £7.30 incl. VAT excl. VAT

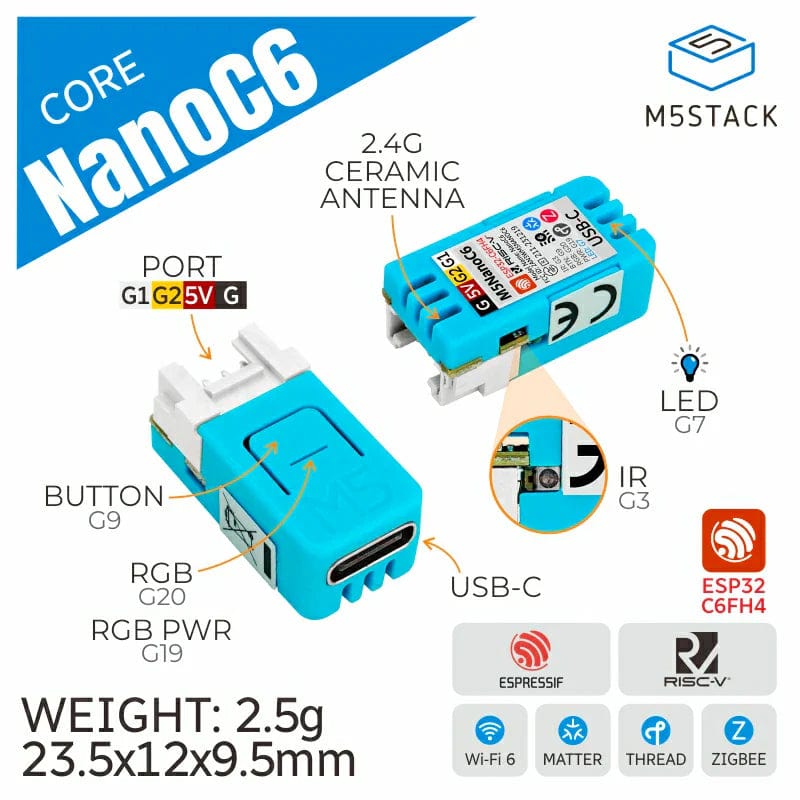

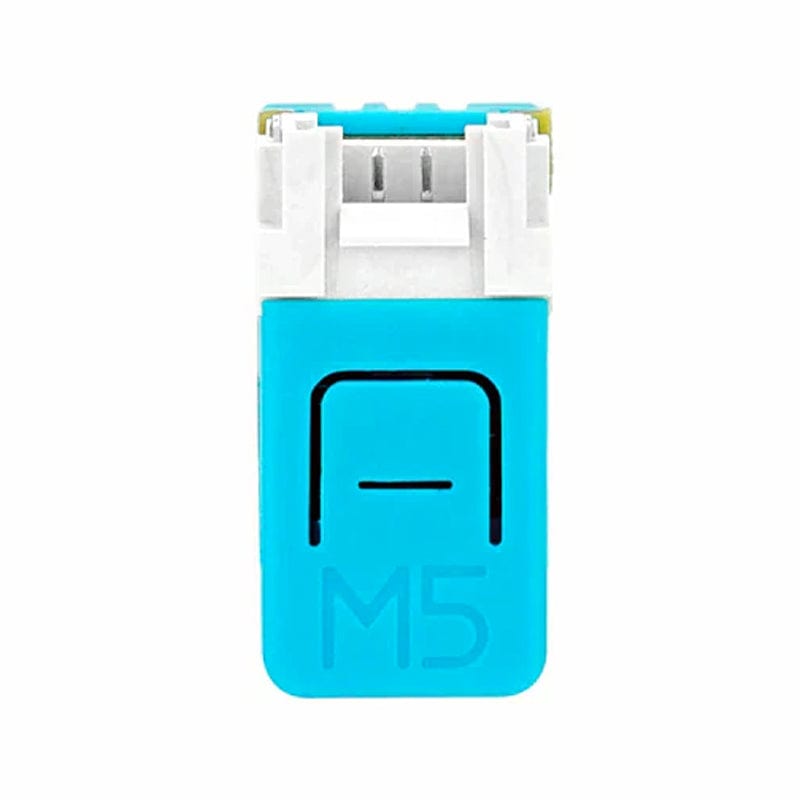

The NanoC6 is a compact, low-power IoT development board, that has the ESP32-C6FH4 MCU. It supports advanced wireless communication methods, including Wi-Fi 6 and Zigbee, and includes a built-in infrared emitter for controlling infrared IoT devices. The ceramic antenna provides stable wireless communication, while programmable RGB beads allow for personalised visual effects in projects.

The Grove interface provides flexible expansion with various M5 devices, supporting different communication protocols such as UART and I2C, which gives you extensive hardware expansion options. Ideal for smart homes, industrial automation, health monitoring, and IoT devices, the NanoC6 offers a broad development solution for innovative projects. As the first core control board with Wi-Fi 6 support, it operates on the 2.4GHz Wi-Fi 6 protocol (802.11ax) and is backwards compatible with 802.11b/g/n. The Wi-Fi 6 protocol delivers higher speed, greater capacity, lower latency, and stronger security compared to previous Wi-Fi protocols.

Note: The burning program needs to enter the download mode: press and hold the key (GPIO9), and then connect the data cable to enter the download mode.

Features

  • (2.4Ghz) Wi-Fi 6, Zigbee, and Thread, Matter wireless protocols are supported
  • Built-in infrared LED and RGB

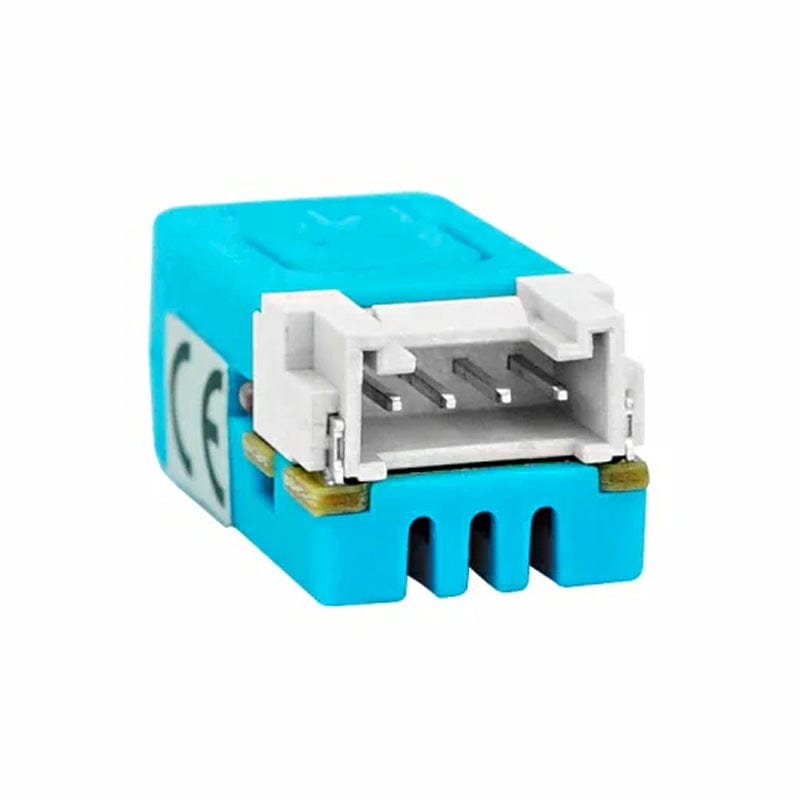

  • Equipped with Grove port
  • Ceramic Antenna
  • Small in size

Specifications

Resources Parameters
SoC ESP32-C6FH4@RISC-V 160MHz, 4M Flash, Wi-Fi 6, Zigbee 3.0, Thread 1.3, Matter, CDC
WIFI Protocol 2.4GHz Wi-Fi 6 protocol (802.11ax) and backwards compatible with 802.11b /g/n
RGB WS2812
IR Remote Control Parameters The infrared emission distance of < 0° is 632CM
The infrared emission distance of < 45° is 83CM
The infrared emission distance of < 90° is 29CM
Grove Outputs Maximum Current DC 5V@600mA(Output capacity depends on USB power supply)
Standby Current (Deep Sleep Mode) Type-C Power supply DC 5V@125.5uA
Grove power supply DC 5V@50uA
Standby Current (ULP Mode) Type-C Power supply DC 5V@252uA
Grove power supply DC 5V@201.5uA
Operating Current In WIFI mode: DC 5V@106.2mA
WI-FI Stretch Test (antenna backup, back alignment test) 54.9m
Operating Temperature 0-40°C

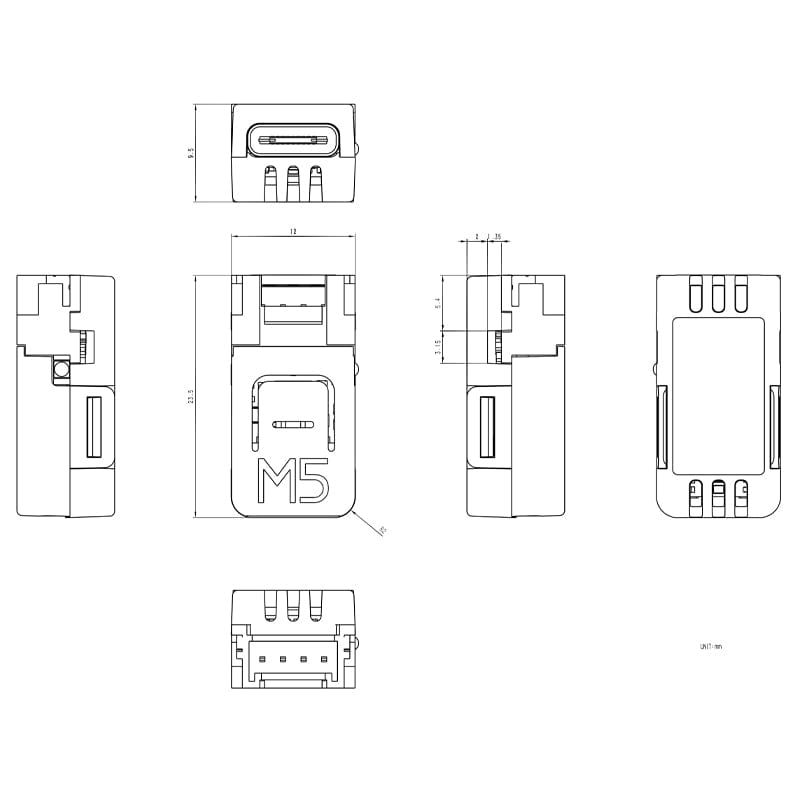

Product Size 23.5 x 12 x 9.5mm
Package Size 110 x 81 x 11mm
Product Weight 2.5g
Package Weight 11.2g

Resources

Package Contents

  • 1x NanoC6 Dev Kit
